CTech VanPro Workbench RP309 Model RP-309

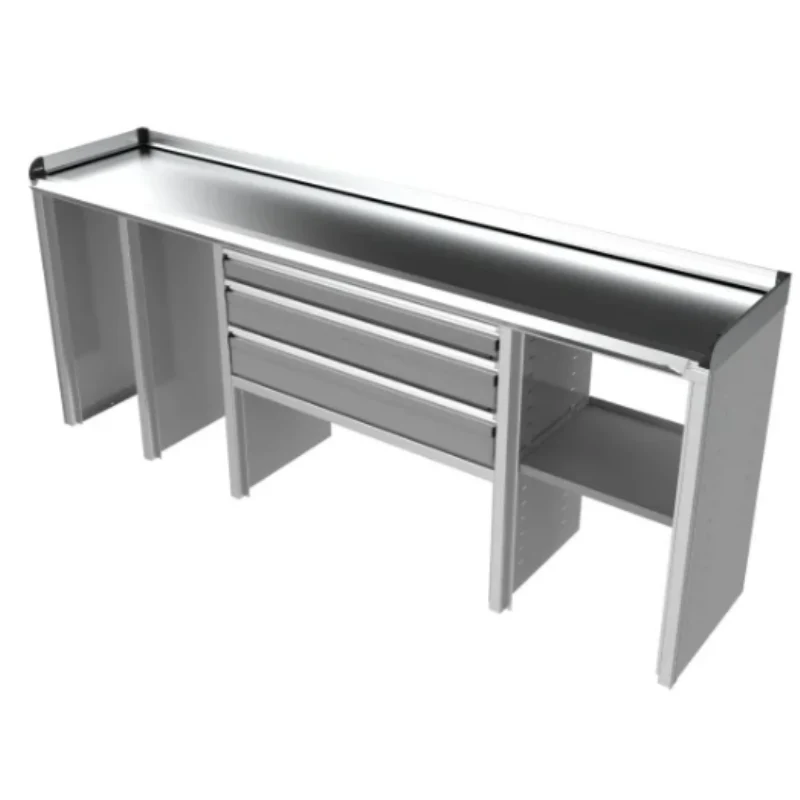

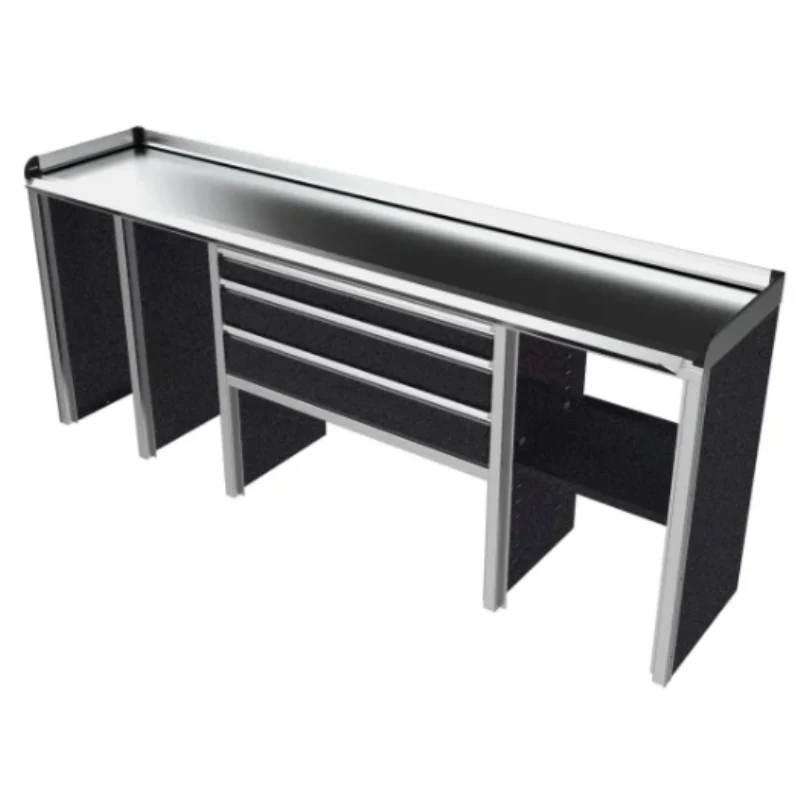

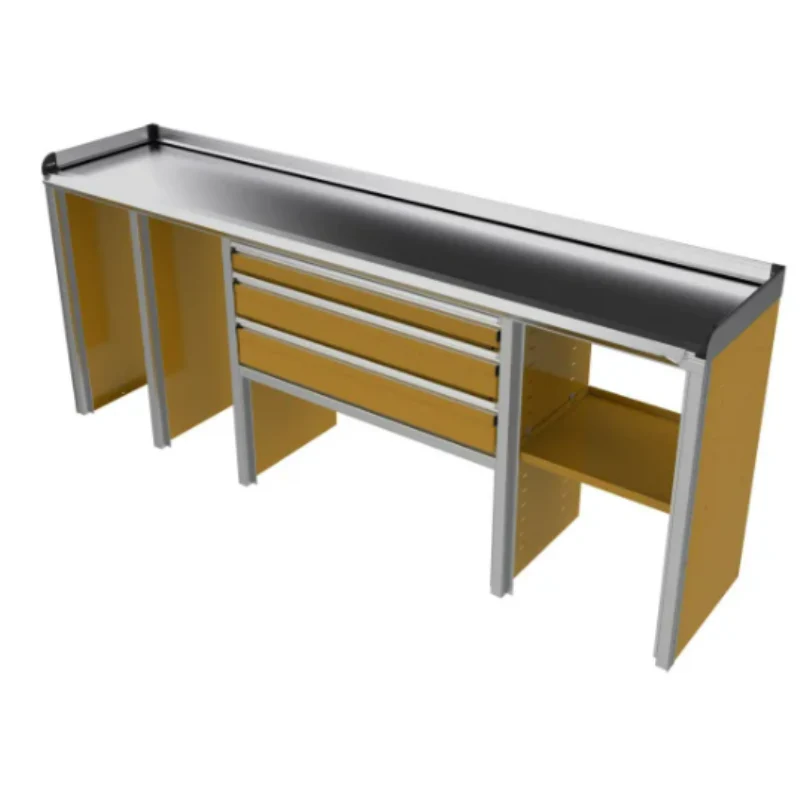

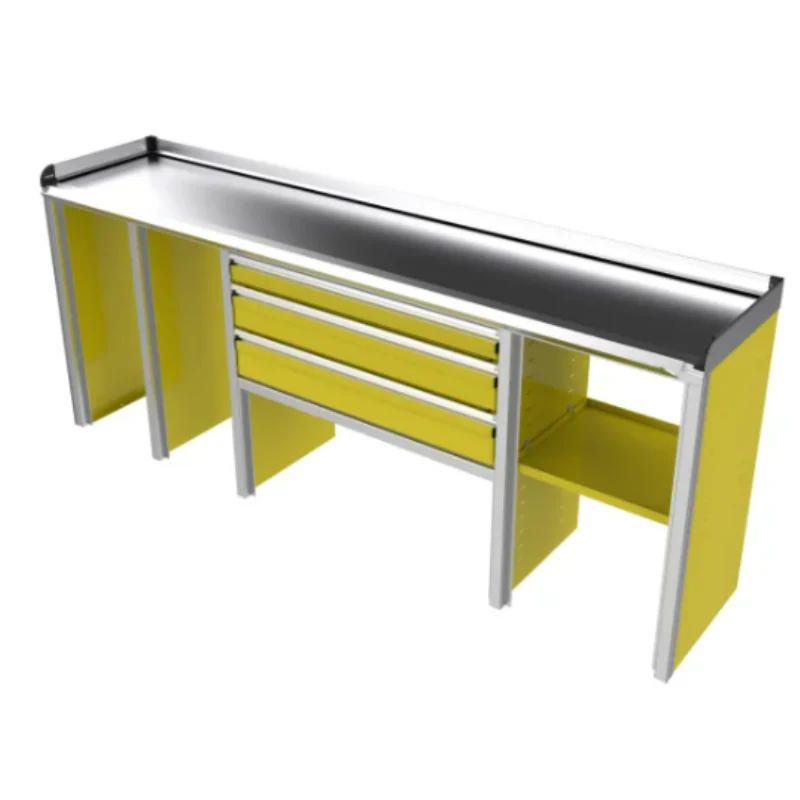

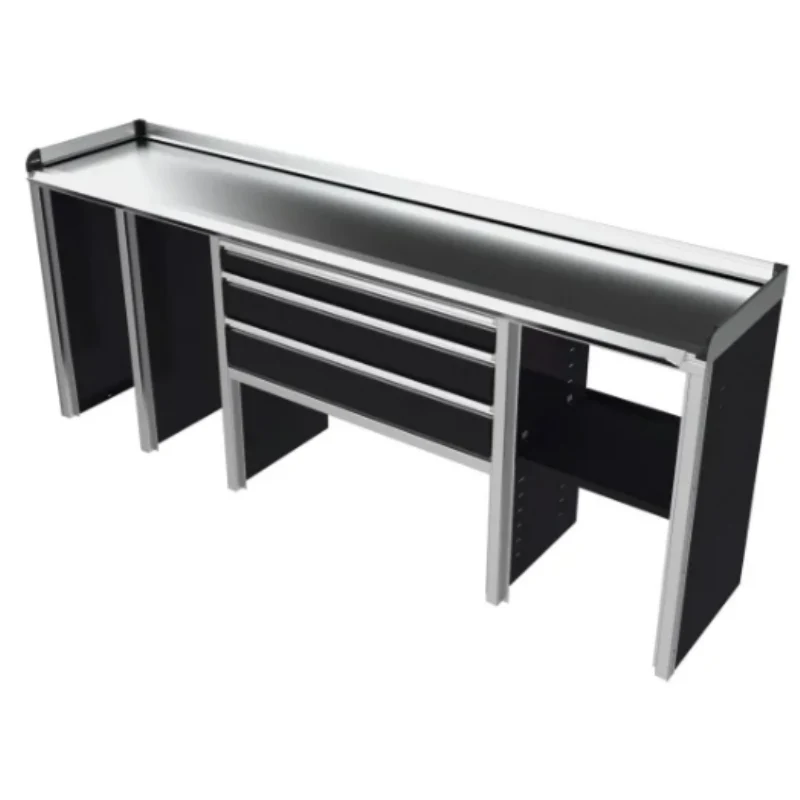

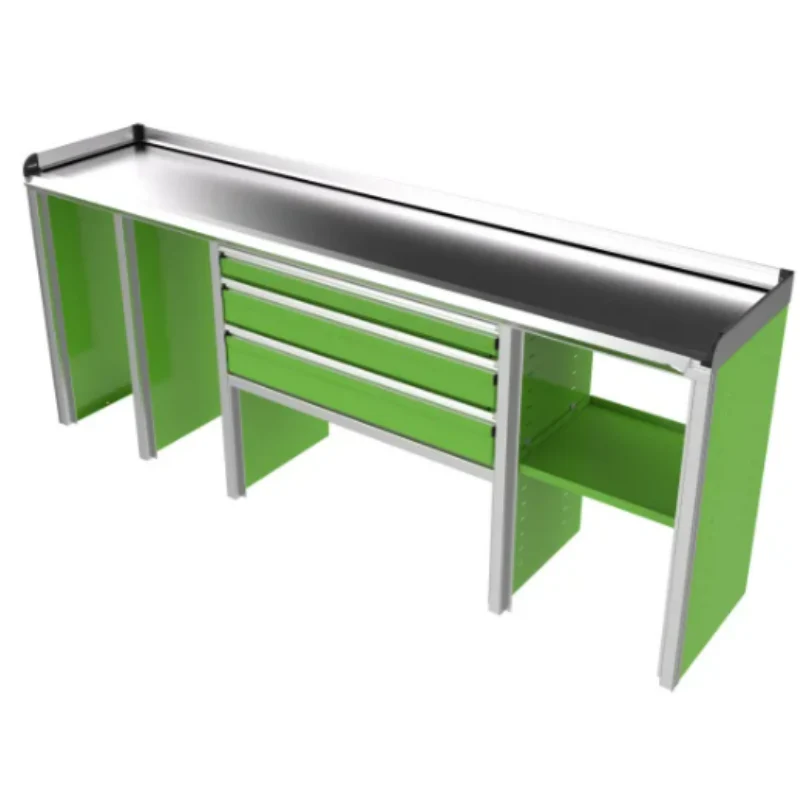

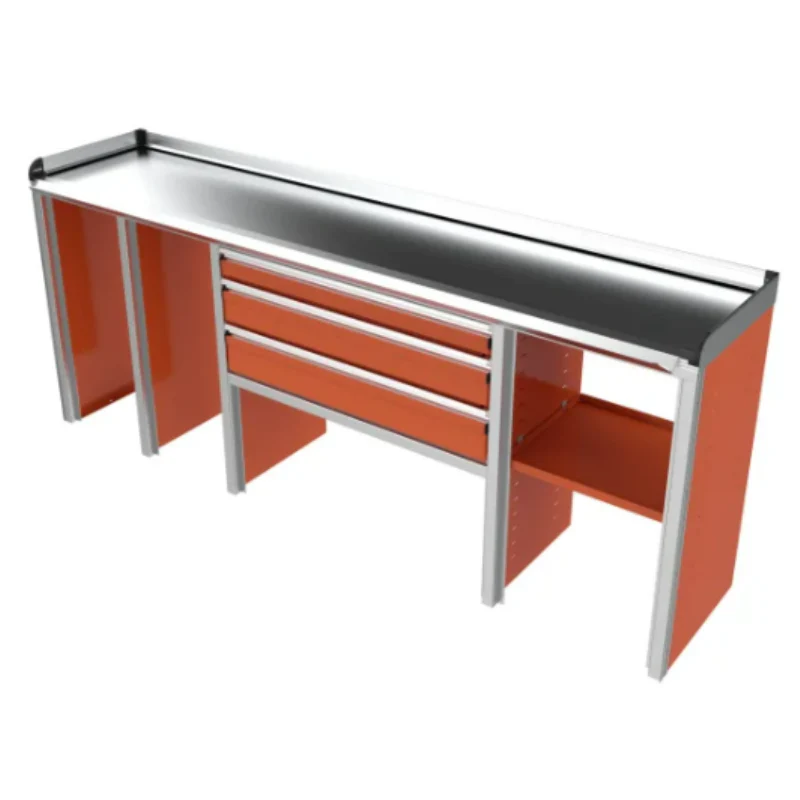

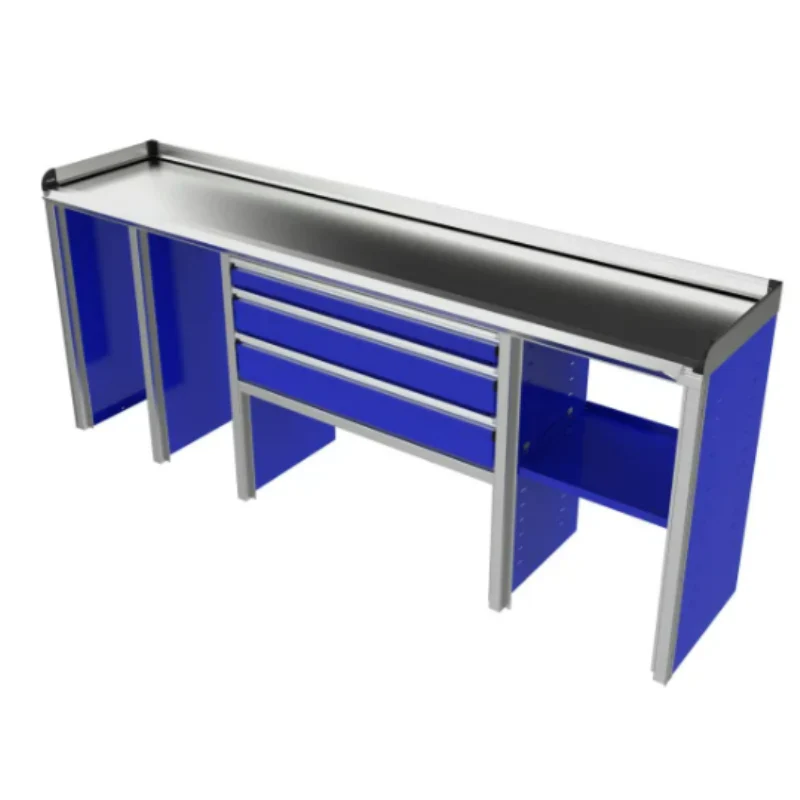

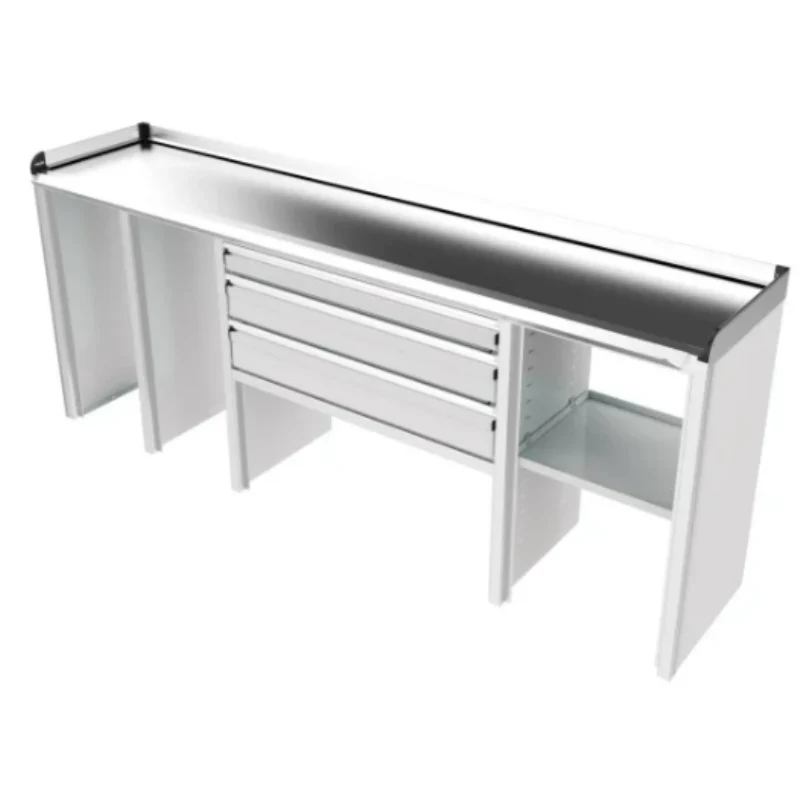

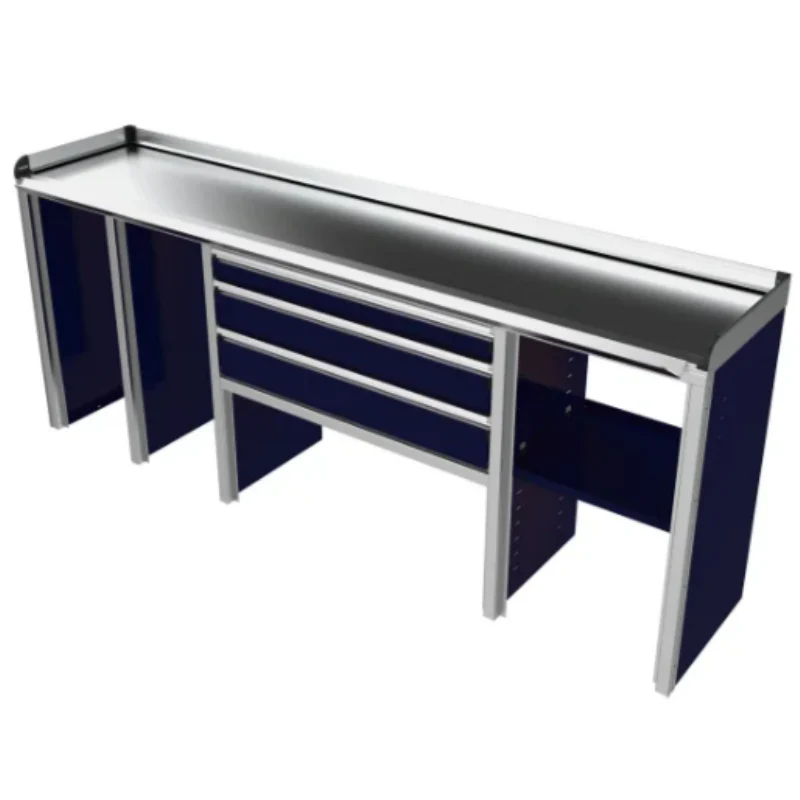

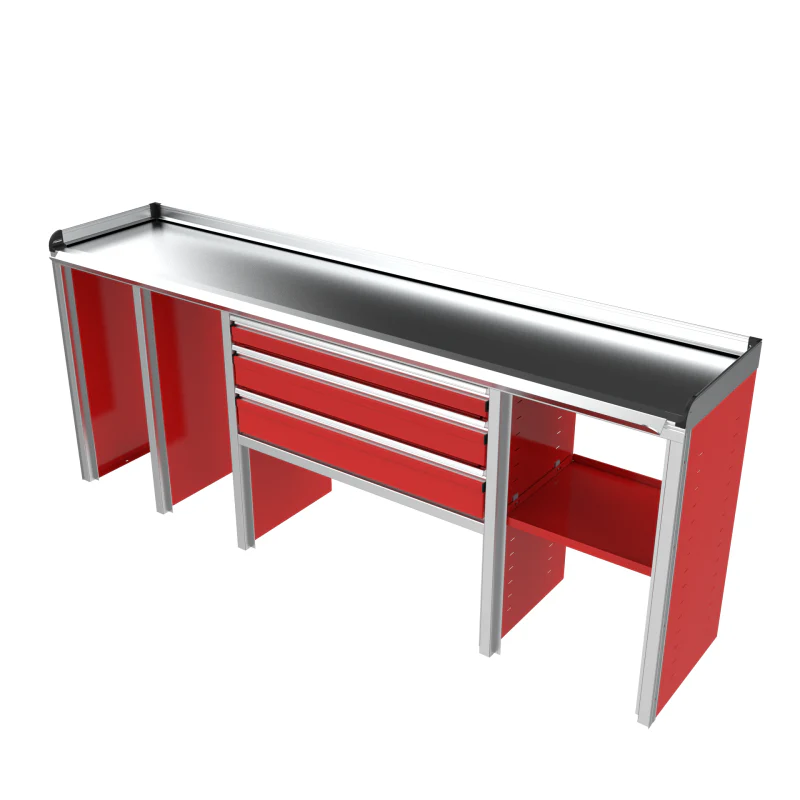

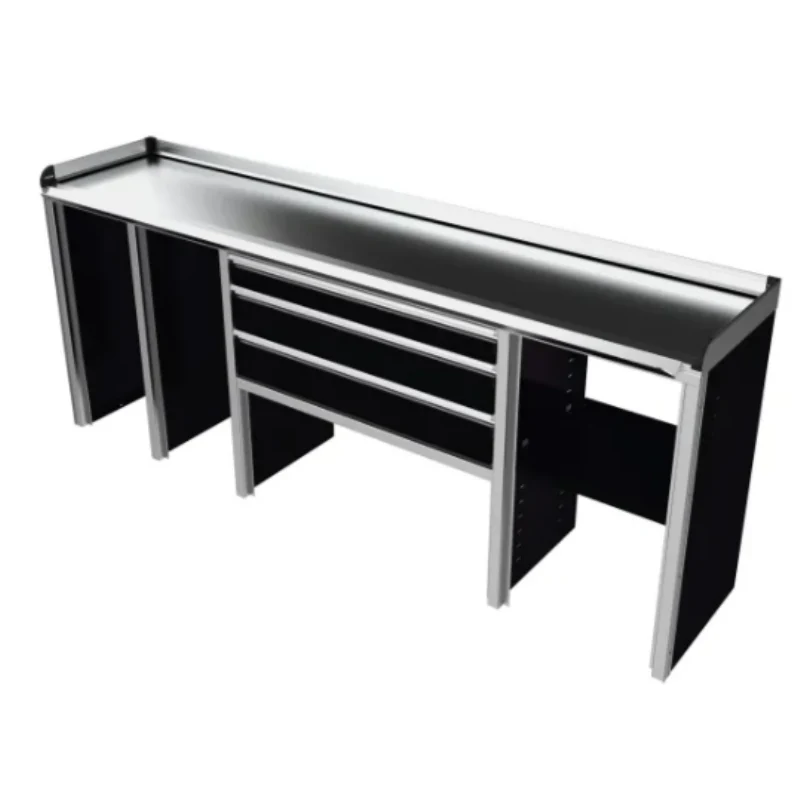

The VanPro Workbench RP309 for Ram ProMaster 2500/3500 features a wide 94" work surface with a bank of integrated drawers and open bays designed to accommodate hose reels or large repair tools. Built from durable, corrosion-resistant aluminum, it’s the perfect compact solution for hose repair professionals on the move.

Features:

• Lightweight

Cabinet Overview

Model/Part	Details
RP-309	Quantity: 1 Location: — Overall Size: 94"W x 37"H x 20"D Frame Size: 94"W x 37"H x 20"D Note: Cabinet height excludes 2.25" backsplash

Cabinet Options

• GasketLoc Countertop - Stainless Steel
• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Add Channel at Front of Cabinet

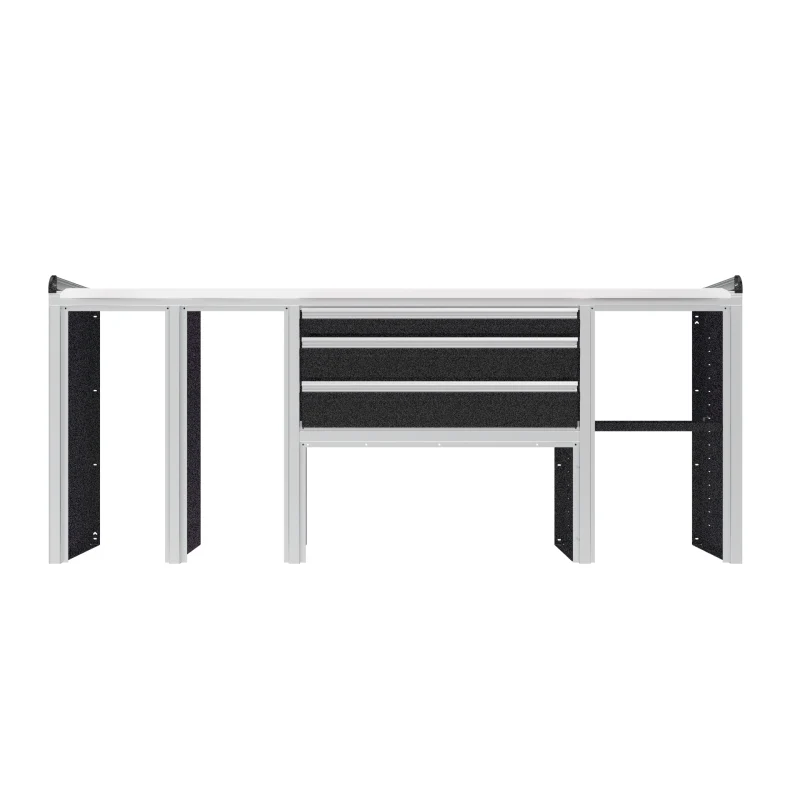

Opening Details

Model/Opening	Details
RP-309 - Opening 1	Size: 14.75"W x 35"H EMPTY
RP-309 - Opening 2	Size: 14.75"W x 35"H EMPTY
RP-309 - Opening 3	Size: 38"W x 17"H Drawers: 4", 6", 6" [5 Row] [Lnr] [Sep:10] Divider Clip Kit: Qty 7 Divider Screw Kit: Qty 6 Slide Type: Medium Duty 16" (x3) Inside Drawer Dim: 33.53"W x 15.671"D Bottom Space: 0.952"
RP-309 - Opening 4	Size: 38"W x 16.5"H EMPTY
RP-309 - Opening 5	Size: 19"W x 35"H EMPTY Adjustable Shelf: 1 (20.129"W x 18"D)

Vehicle Fitment

Product Application	Work Van
Vehicle	RAM ProMaster
Model Year	2014-2025
Wheelbase	159"
Cargo Length	Standard, Extended
Cargo Roof Height	High, Super High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
