CTech VanPro Package ML2 Model MS-170-PRO-2

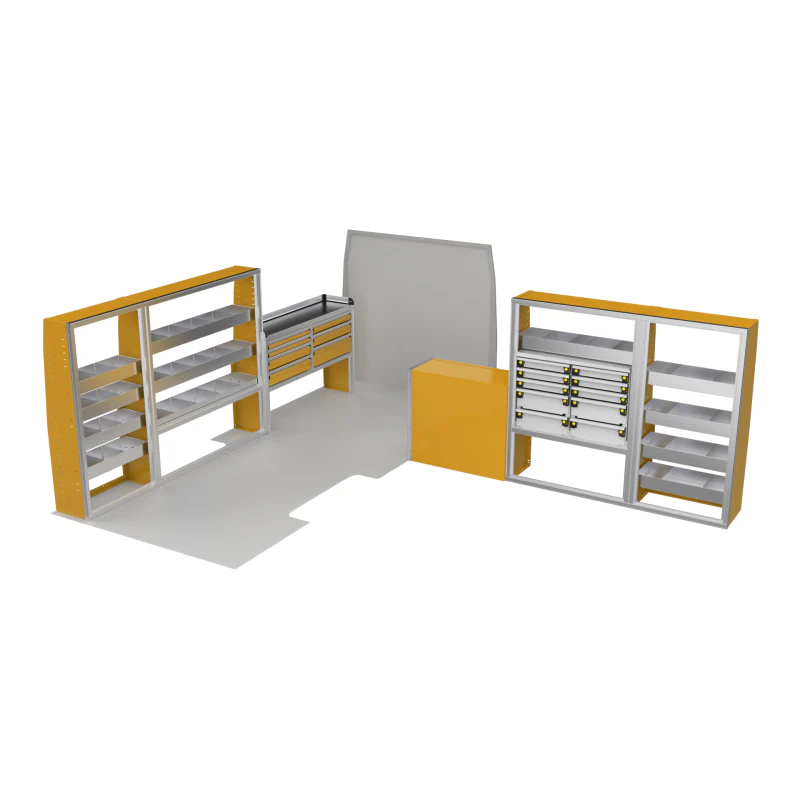

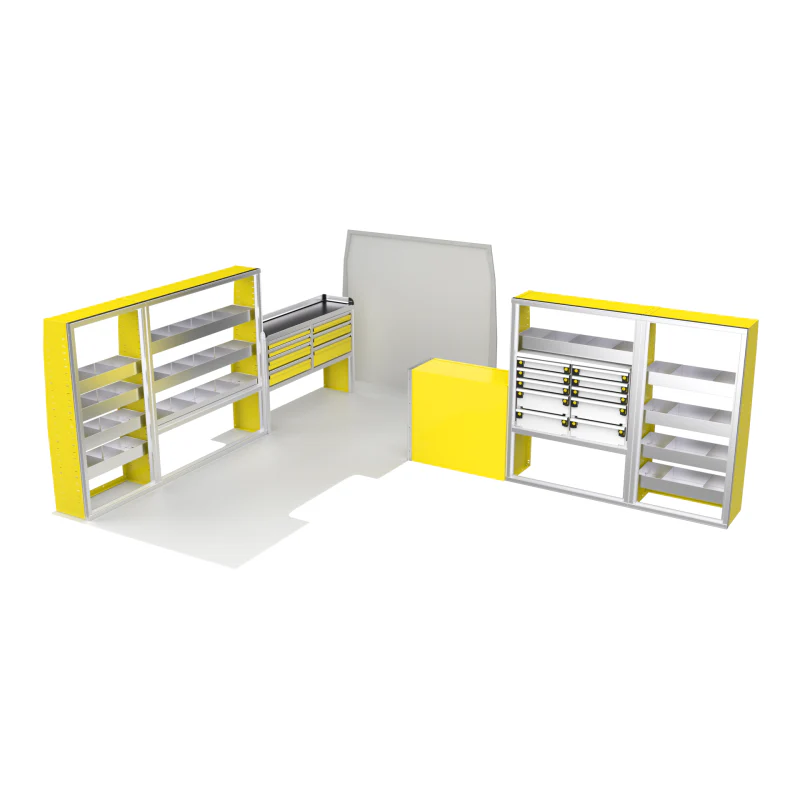

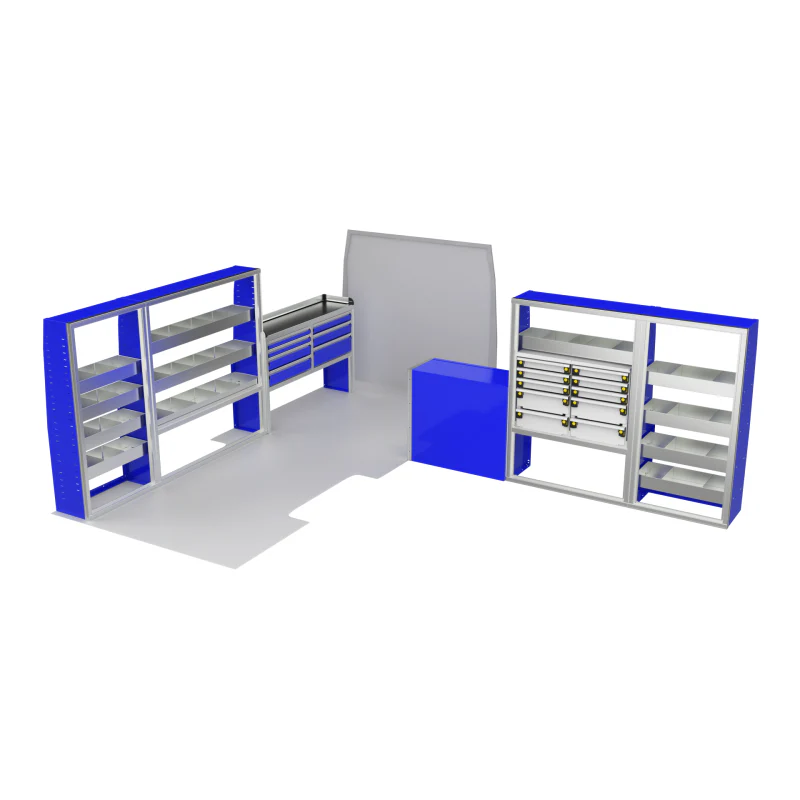

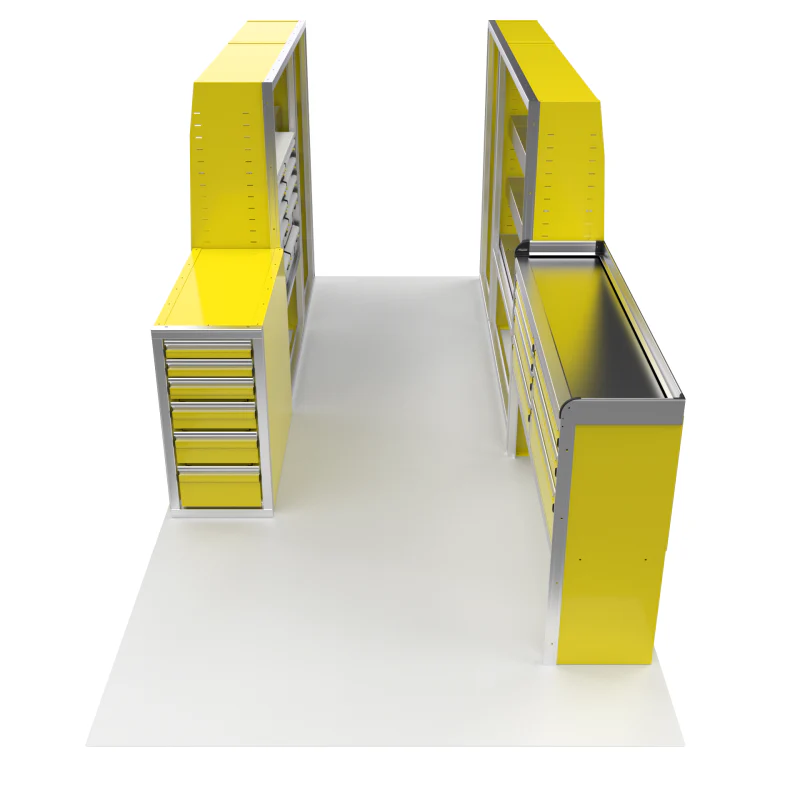

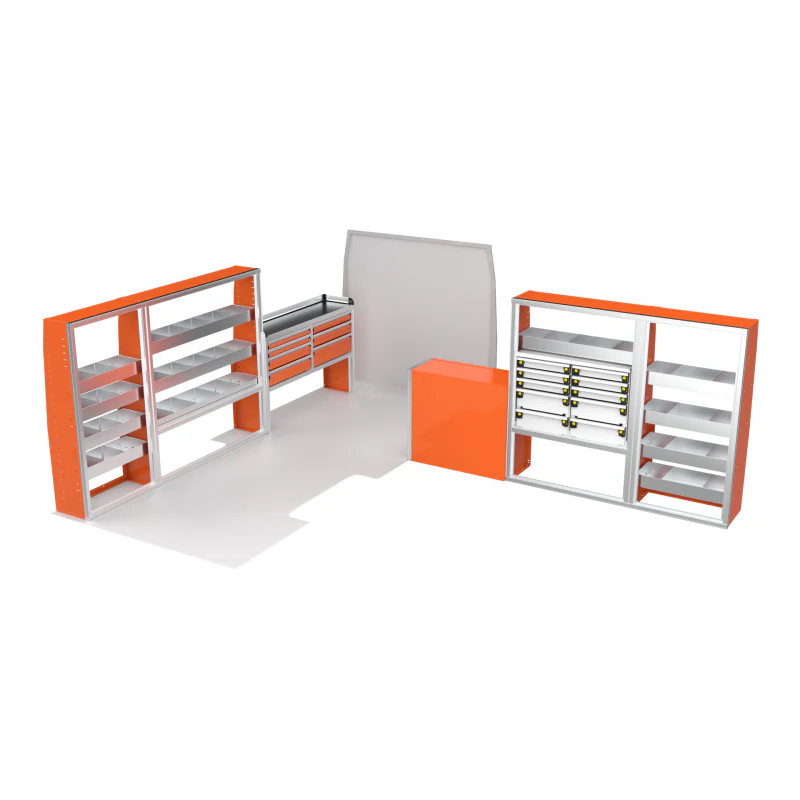

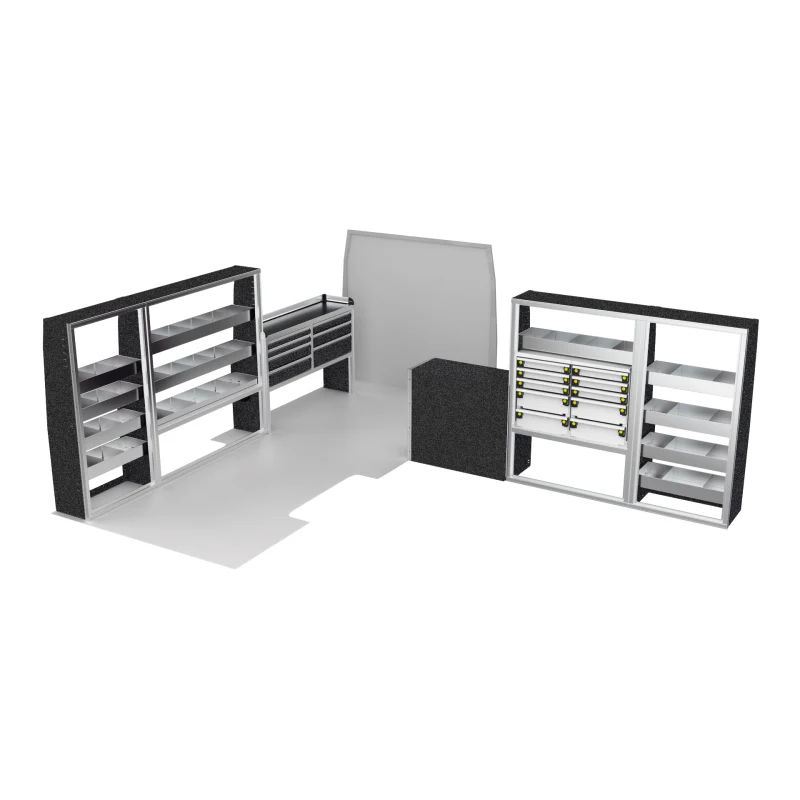

The VanPro Package ML2 for the Mercedes Sprinter 170 includes the MS300 Shelving Unit, MS301 MotionGlide Shelving Unit, MS305 Shelving Unit, MS306 Shelving Unit, MS307 Workbench, and MS309 Drawer Housing. This package offers a comprehensive storage solution with a mix of adjustable shelving, motion-controlled access, and versatile drawer housing for tools and equipment. Perfect for maximizing efficiency and organization in your Sprinter 170, this package ensures your workspace remains neat, accessible, and optimized for your mobile business needs.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
MS-307 Workbench	Quantity: 1 Overall Size: 56"W x 36"H x 14"D Frame Size: 56"W x 36"H x 14"D Note: Cabinet height excludes 2.25" backsplash
MS-300	Quantity: 1 Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
MS-305	Quantity: 1 Overall Size: 30"W x 60"H x 14"D Frame Size: 30"W x 60"H x 14"D
MS-301 MotionGlide Cabinet	Quantity: 1 Overall Size: 41"W x 60"H x 16"D Frame Size: 41"W x 60"H x 16"D
MG-9 MotionGlide Unit	Quantity: 2 Mounted in: MS-301 Unit Size: 18"W x 25"H x 14"D Drawer Heights: 3", 3", 3", 6", 6"
MS-306	Quantity: 1 Overall Size: 30"W x 60"H x 16"D Frame Size: 30"W x 60"H x 16"D
MS-309 Drawer Housing	Quantity: 1 Overall Size: 16"W x 32"H x 36"D Frame Size: 16"W x 32"H x 36"D

Cabinet Options

• GasketLoc Countertop - Plastic Laminate (MS-307)
• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Back Panel (where noted)
• Bottom Rail
• Top Panel
• Floor Panel (MS-309)
• Custom Deep Shelves with Dividers:
  - MS-300: 4 Dividers
  - MS-305: 2 Dividers
  - MS-306: 2 Dividers
• Two MG-9 Units Mounted on Fixed Shelf (MS-301)
• Sprinter Profile

Opening Details

Model/Opening	Details
MS-307 - Opening 1	Size: 25.75"W x 17"H Drawers: 3", 3", 5", 5" [Lnr] Slide Type: Medium Duty 12" (x4) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
MS-307 - Opening 3	Size: 25.75"W x 17"H Drawers: 4", 5", 7" [Lnr] Slide Type: Medium Duty 12" (x3) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
MS-307 - Opening 2	Size: 53"W x 15.5"H EMPTY
MS-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
MS-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
MS-305 - Single Opening	Size: 27"W x 57"H EMPTY Adjustable Shelves: 4 (28.758"W x 12"D)
MS-301 - Opening 1	Size: 38"W x 40"H EMPTY Adjustable Shelf: 1 (39.758"W x 14"D)
MS-301 - Opening 2	Size: 38"W x 15.5"H EMPTY Fixed Shelf with 2 MG-9 Units Mounted
MS-306 - Single Opening	Size: 27"W x 57"H EMPTY Adjustable Shelves: 4 (28.758"W x 14"D)
MS-309 - Single Opening	Size: 13"W x 29"H Drawers: 3", 3", 4", 5", 6", 7" [Lnr] Slide Type: Medium Duty 34" (x6) Inside Drawer Dim: 8.53"W x 33.671"D Bottom Space: 0.952"

Vehicle Fitment

Product Application	Work Van
Vehicle	Mercedes Sprinter
Model Year	2019-2025
Wheelbase	170"
Cargo Length	Standard
Cargo Roof Height	High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
