CTech VanPro Package MS3 Model MS-144-PRO-3

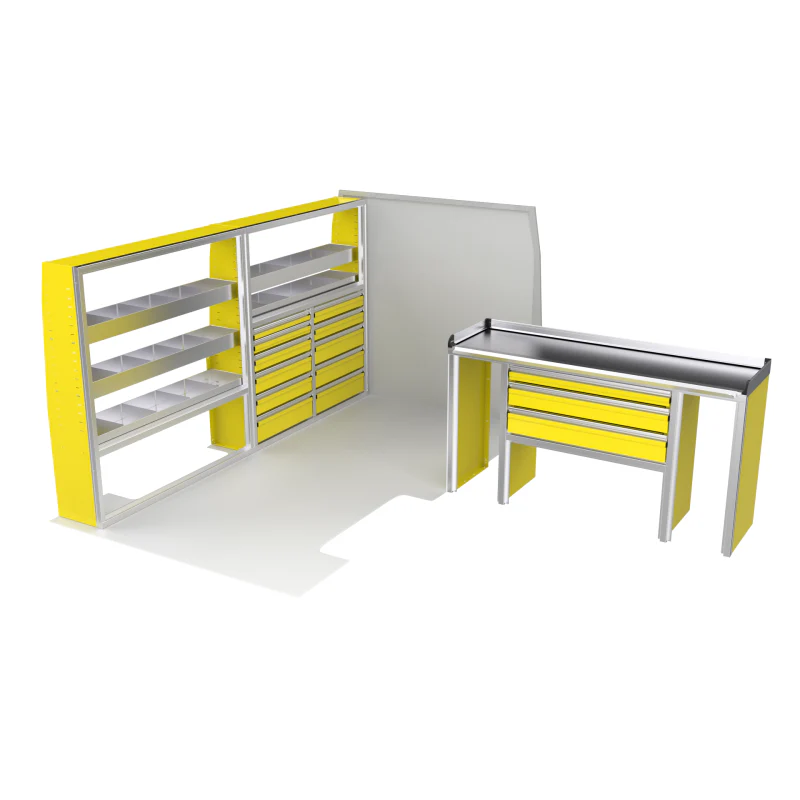

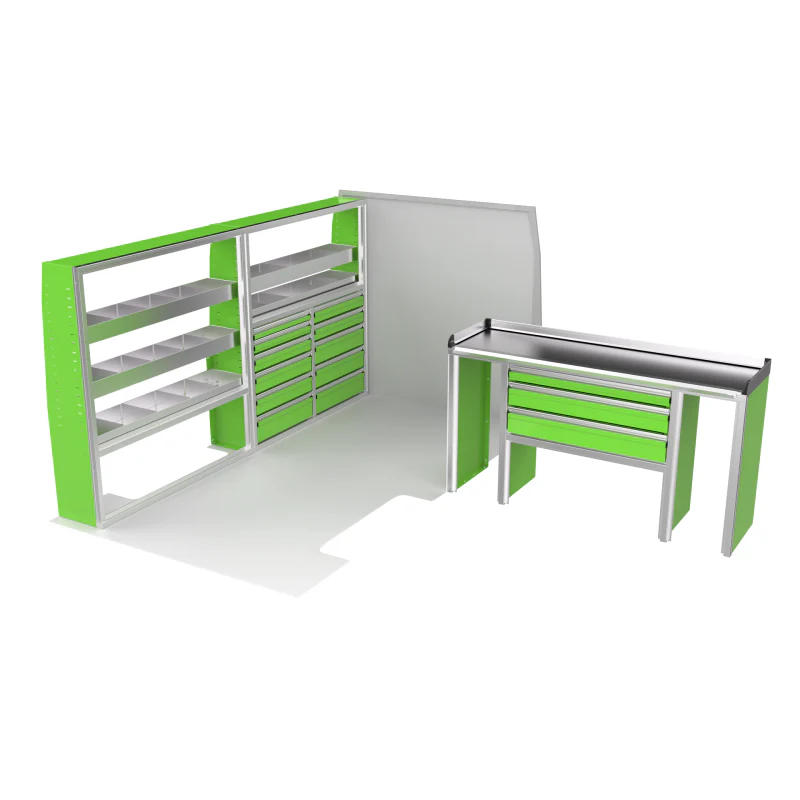

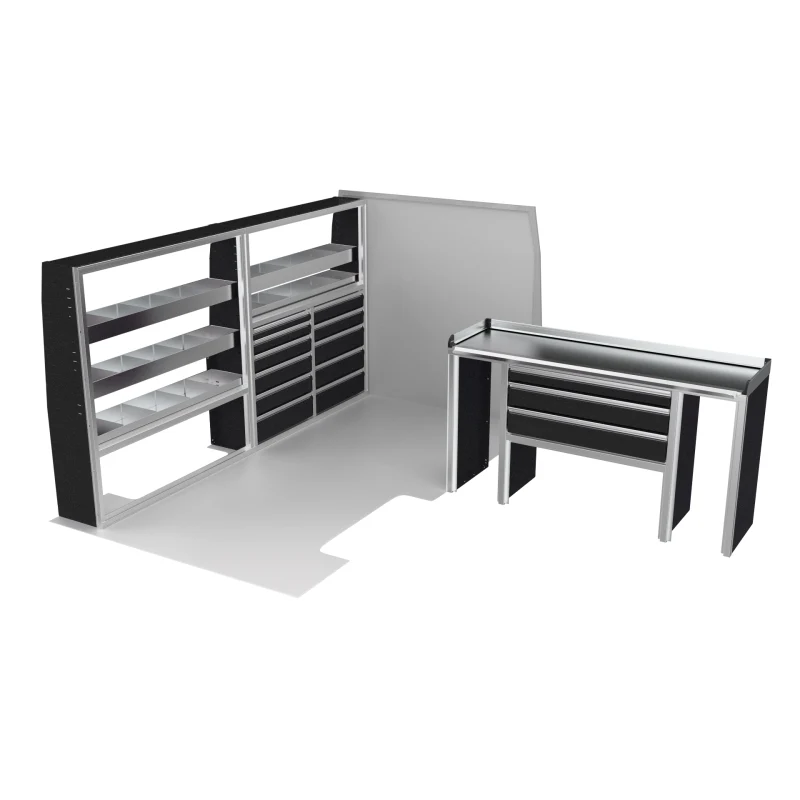

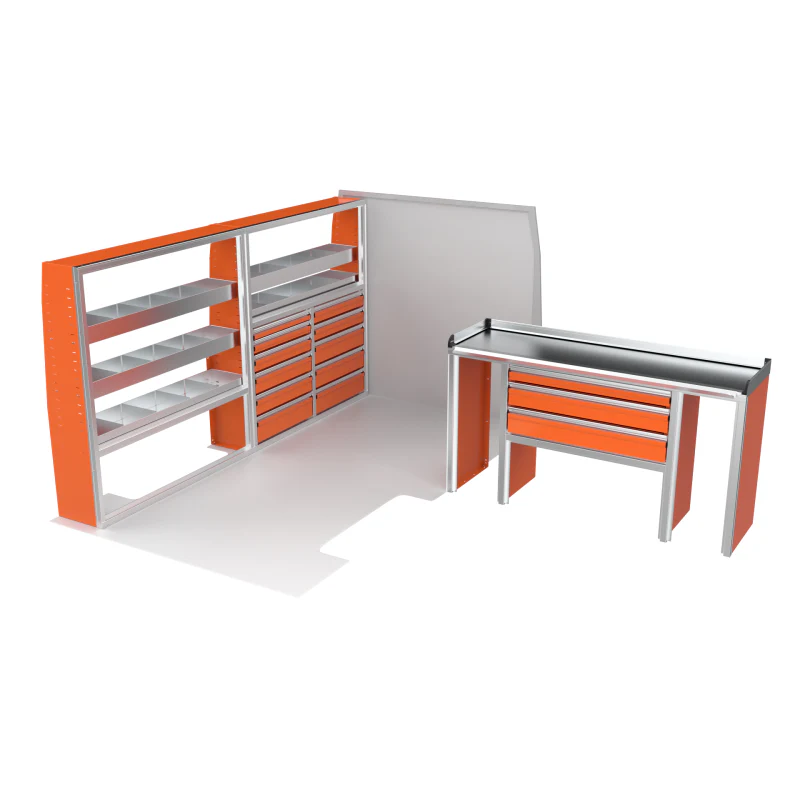

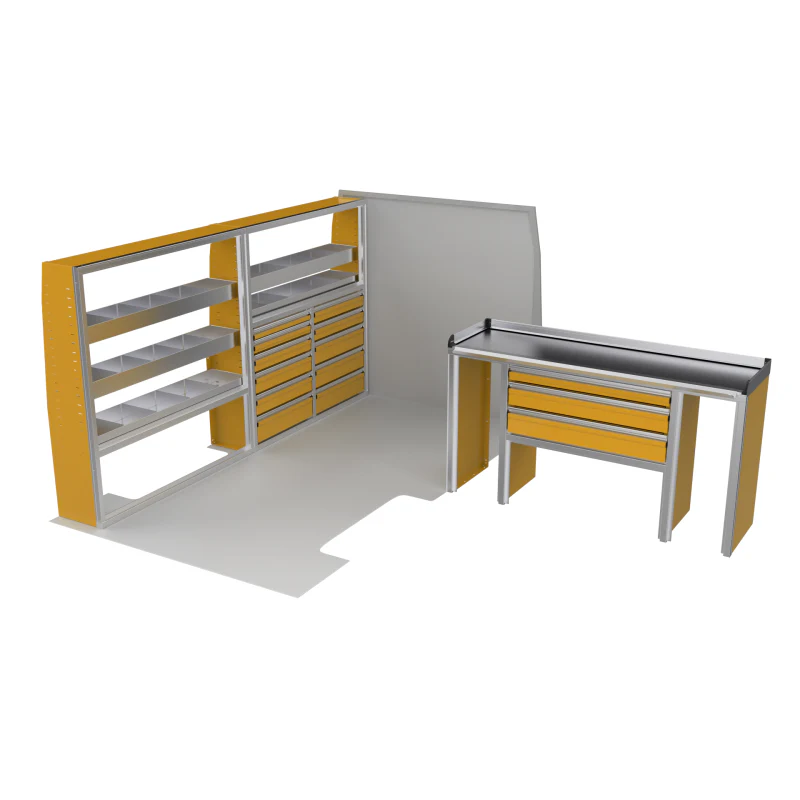

The VanPro Package MS3 for the Mercedes Sprinter 144 includes the MS300 Shelving Unit, MS311 Workbench, and MS312 Shelving Unit. This package offers a combination of customizable shelving, a high-performance workbench with motion-controlled drawers, and additional storage options to enhance organization and accessibility. Designed specifically for the Mercedes Sprinter 144, it provides a complete solution for optimizing your van’s workspace, making it perfect for any mobile business or job site.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
MS-312 MotionLatch Parts Cabinet	Quantity: 1 Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
MS-300 Shelving Unit	Quantity: 1 Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
MS-311 Workbench	Quantity: 1 Overall Size: 69"W x 37"H x 20"D Frame Size: 69"W x 37"H x 20"D Note: Cabinet height excludes 2.25" backsplash

Cabinet Options

• GasketLoc Countertop - Stainless Steel (MS-311)
• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Back Panel (where specified)
• Bottom Rail
• Top Panel
• Floor Panel (MS-312)
• Custom Deep Shelves with 4 Front to Back Dividers (MS-300, MS-312)
• Sprinter Profile

Opening Details

Model/Opening	Details
MS-312 - Opening 1	Size: 53"W x 23.375"H EMPTY Adjustable Shelf: 1 (54.758"W x 12"D)
MS-312 - Opening 2	Size: 25.75"W x 32.125"H Drawers: 3", 4", 5", 6", 6", 7" [Lnr] Slide Type: Medium Duty 12" (x6) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
MS-312 - Opening 3	Size: 25.75"W x 32.125"H Drawers: 5", 5", 7", 7", 7" [Lnr] Slide Type: Medium Duty 12" (x5) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
MS-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
MS-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
MS-311 - Opening 1	Size: 12.5"W x 35"H EMPTY
MS-311 - Opening 2	Size: 38"W x 17"H Drawers: 4", 6", 6" [5 Row, Lnr, Sep:10] Slide Type: Medium Duty 16" (x3) Inside Drawer Dim: 33.53"W x 15.671"D Divider Clip Kit: QTY 7 Divider Screw Kit: QTY 6 Bottom Space: 0.952"
MS-311 - Opening 3	Size: 38"W x 16.5"H EMPTY
MS-311 - Opening 4	Size: 12.5"W x 35"H EMPTY

Vehicle Fitment

Product Application	Work Van
Vehicle	Mercedes Sprinter
Model Year	2019-2025
Wheelbase	144"
Cargo Length	Standard
Cargo Roof Height	High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
