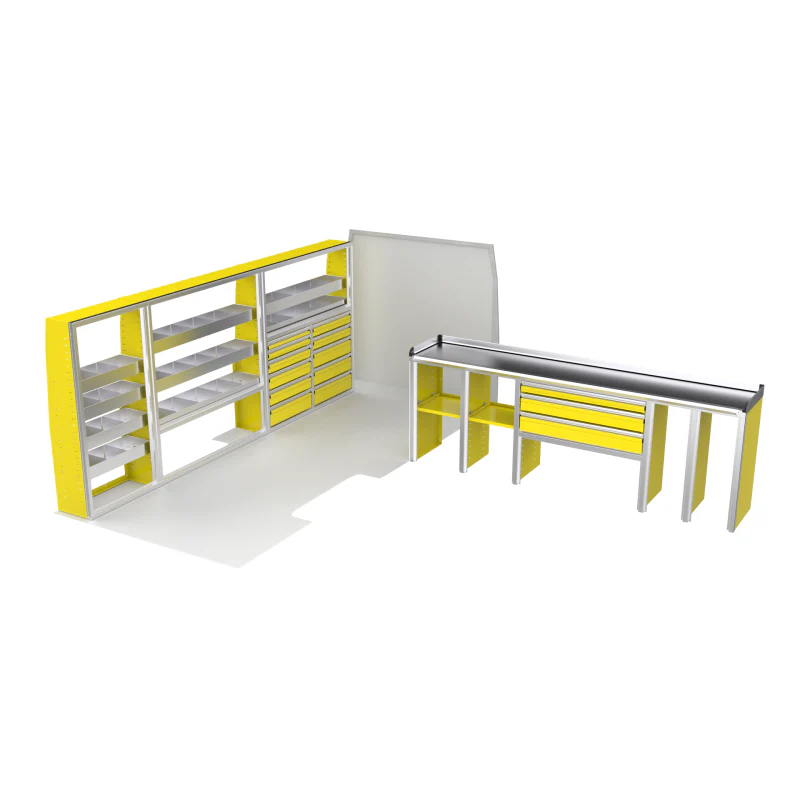

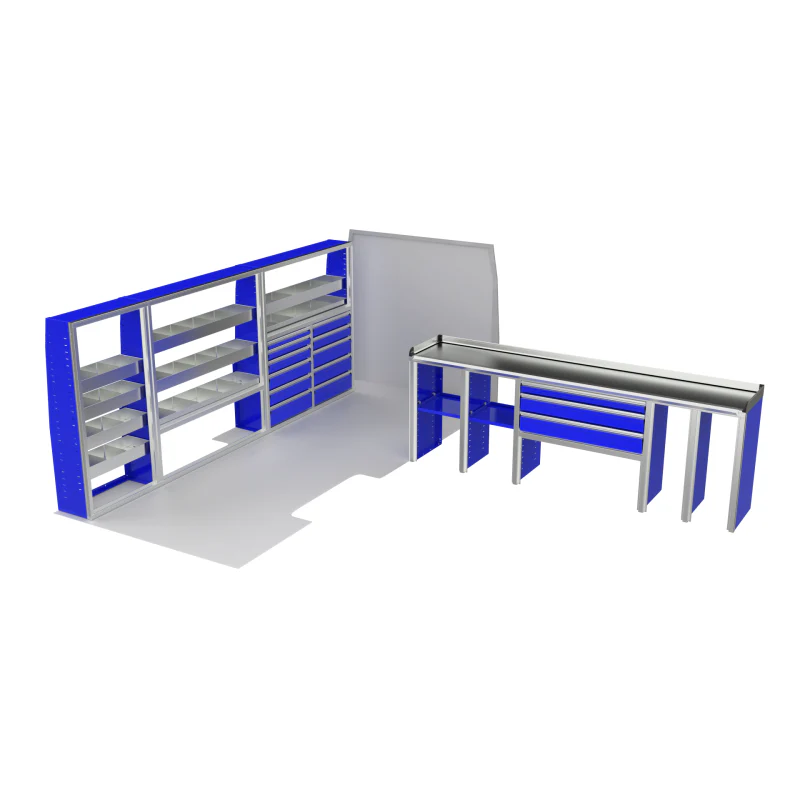

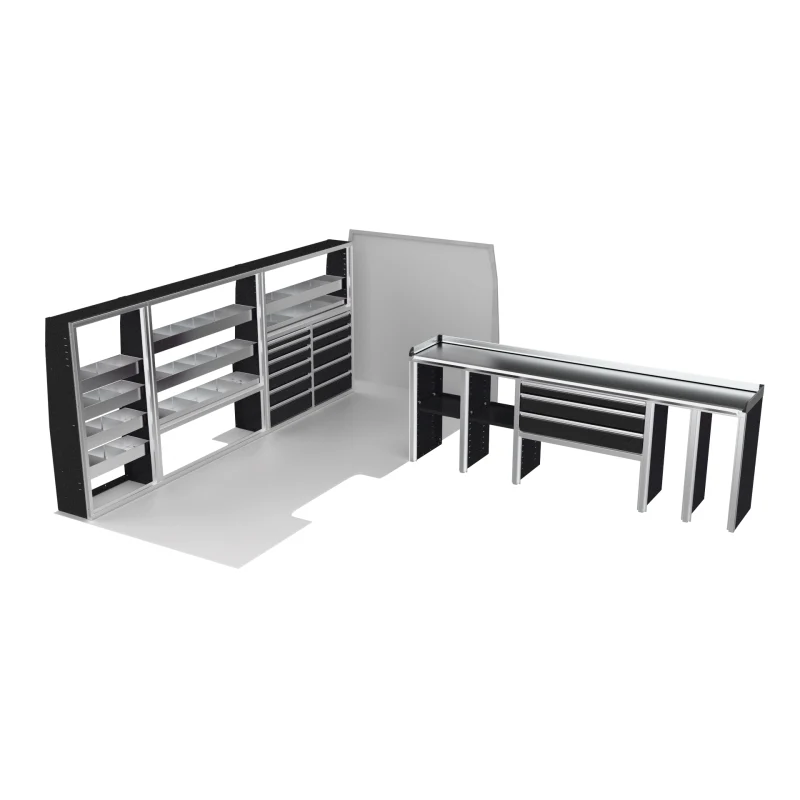

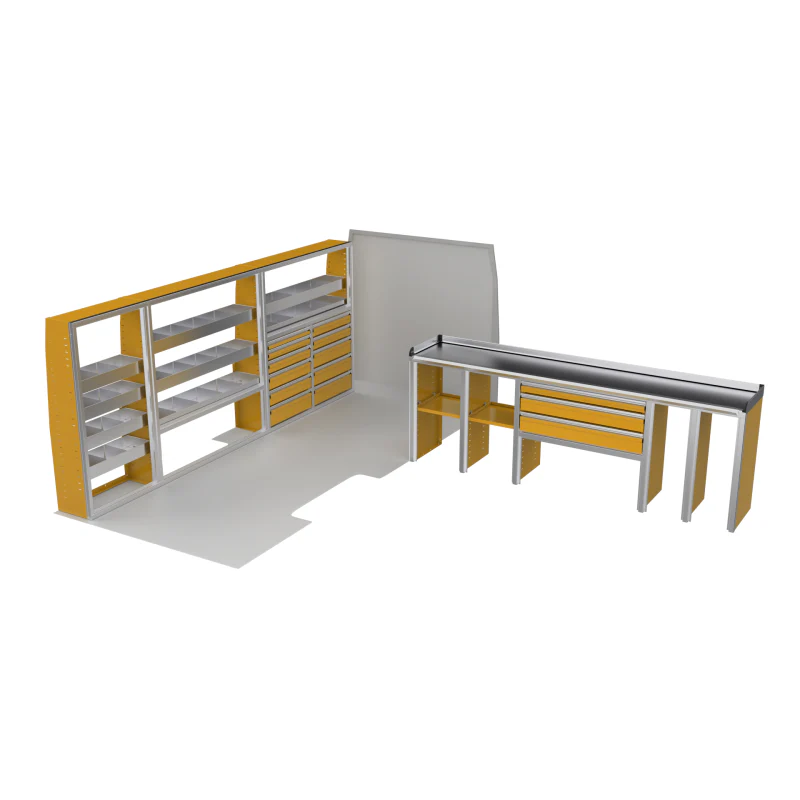

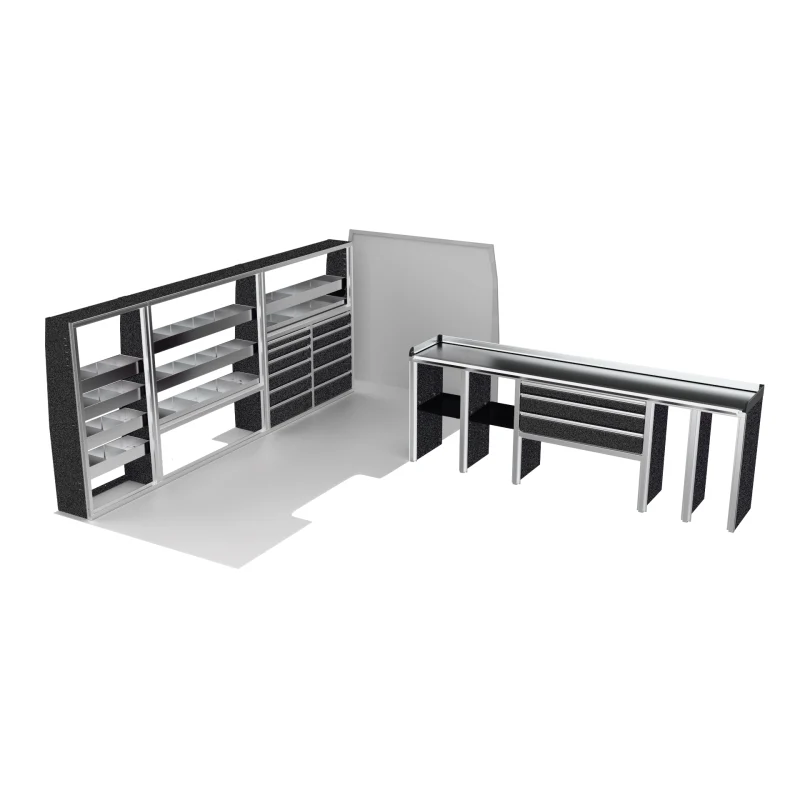

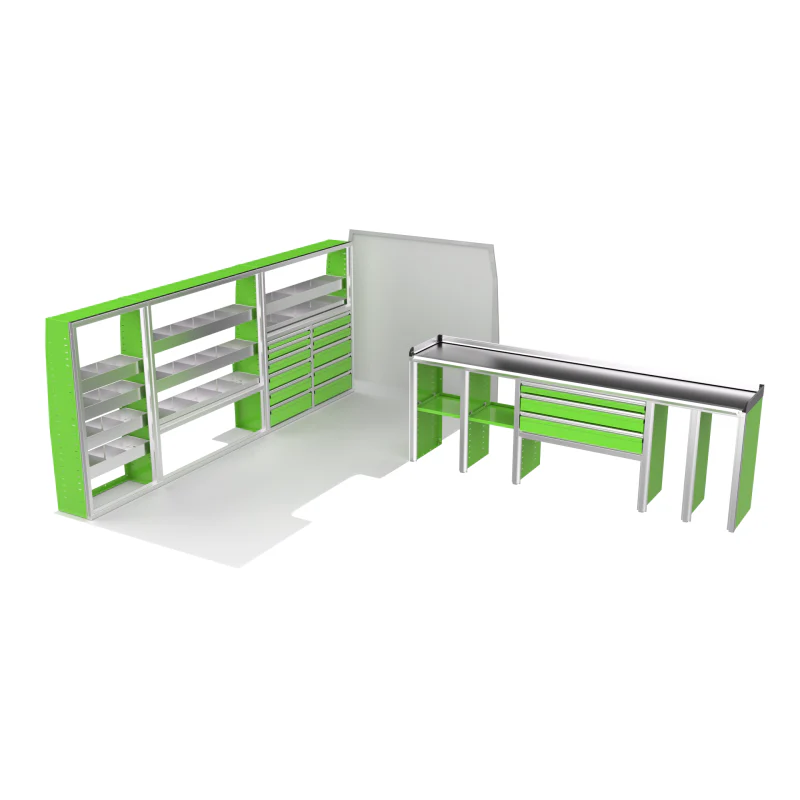

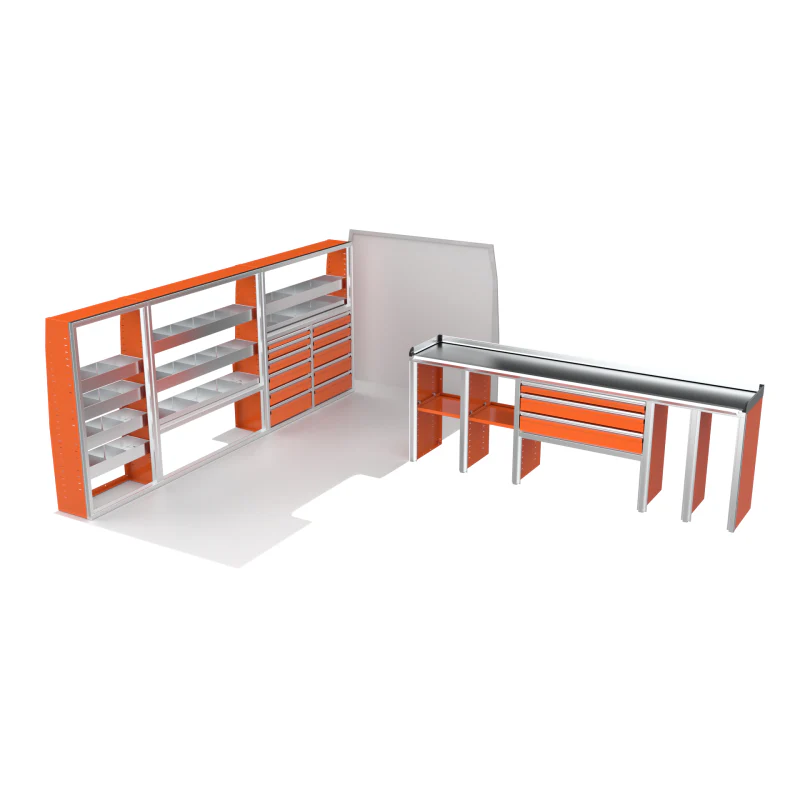

CTech VanPro Package ML3 Model MS-170-PRO-3

The VanPro Package ML3 for the Mercedes Sprinter 170 includes the MS300 Shelving Unit, MS305 Shelving Unit, MS312 Shelving Unit, and MS313 Workbench. This comprehensive package provides a perfect blend of customizable shelving, versatile storage options, and a high-performance workbench with motion-controlled drawers, all designed to maximize space and organization in your van. Tailored specifically for the Mercedes Sprinter 170, this package ensures an efficient and organized mobile workspace for your business or job site.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Options

• GasketLoc Countertop - Stainless Steel (MS-313)
• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Back Panel (where specified)
• Bottom Rail
• Top Panel
• Floor Panel (MS-312)
• Custom Deep Shelves with Dividers:
  - MS-300: 4 dividers
  - MS-305: 2 dividers
  - MS-312: 4 dividers
• Sprinter Profile

Opening Details

Model/Opening	Details
MS-312 - Opening 1	Size: 53"W x 23.375"H EMPTY Adjustable Shelf: 1 (54.758"W x 12"D)
MS-312 - Opening 2	Size: 25.75"W x 32.125"H Drawers: 3", 4", 5", 6", 6", 7" [Lnr] Slide Type: Medium Duty 12" (x6) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
MS-312 - Opening 3	Size: 25.75"W x 32.125"H Drawers: 5", 5", 7", 7", 7" [Lnr] Slide Type: Medium Duty 12" (x5) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
MS-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
MS-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
MS-305 - Single Opening	Size: 27"W x 57"H EMPTY Adjustable Shelves: 4 (28.758"W x 12"D)
MS-313 - Opening 1	Size: 17.5"W x 35"H EMPTY Adjustable Shelf: 1 (18.629"W x 18"D)
MS-313 - Opening 2	Size: 17.5"W x 35"H EMPTY Adjustable Shelf: 1 (18.001"W x 18"D)
MS-313 - Opening 3	Size: 40"W x 17"H Drawers: 4", 6", 6" [5 Row, Lnr, Sep:10] Slide Type: Medium Duty 16" (x3) Inside Drawer Dim: 35.53"W x 15.671"D Divider Clip Kit: QTY 7 Divider Screw Kit: QTY 6 Bottom Space: 0.952"
MS-313 - Opening 4	Size: 40"W x 16.5"H EMPTY
MS-313 - Opening 5	Size: 12"W x 35"H EMPTY
MS-313 - Opening 6	Size: 12"W x 35"H EMPTY

Vehicle Fitment

Product Application	Work Van
Vehicle	Mercedes Sprinter
Model Year	2019-2025
Wheelbase	170"
Cargo Length	Standard
Cargo Roof Height	High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
