CTech VanPro Package RPEXT3 Model RP-EXT-PRO-3

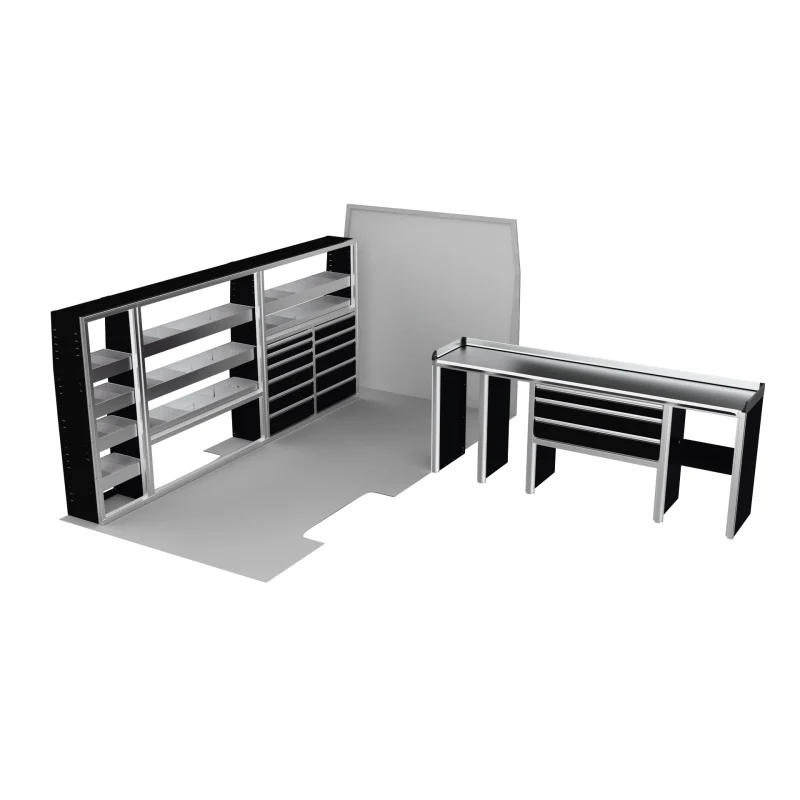

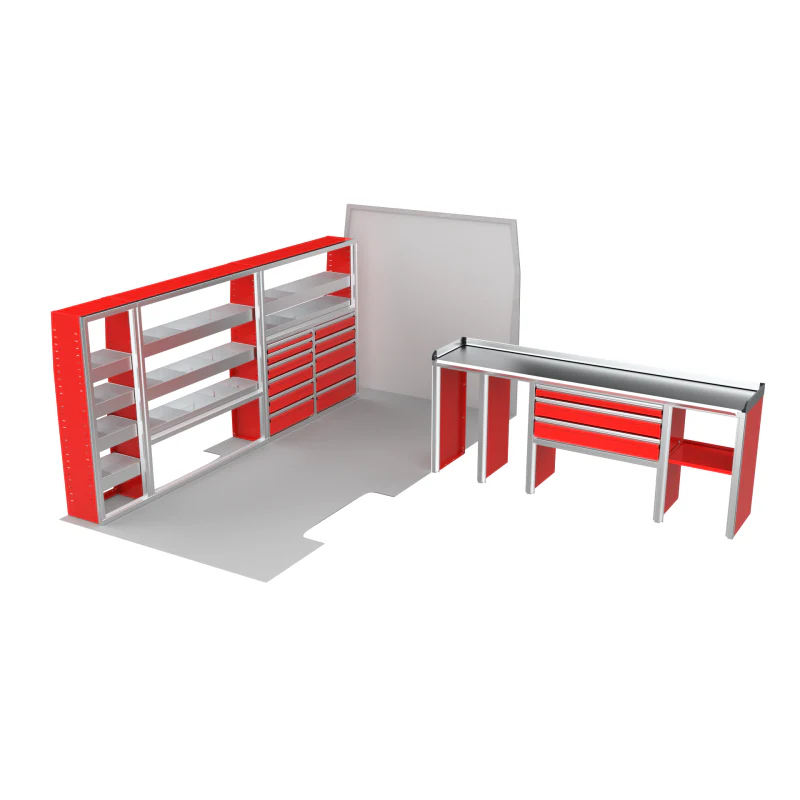

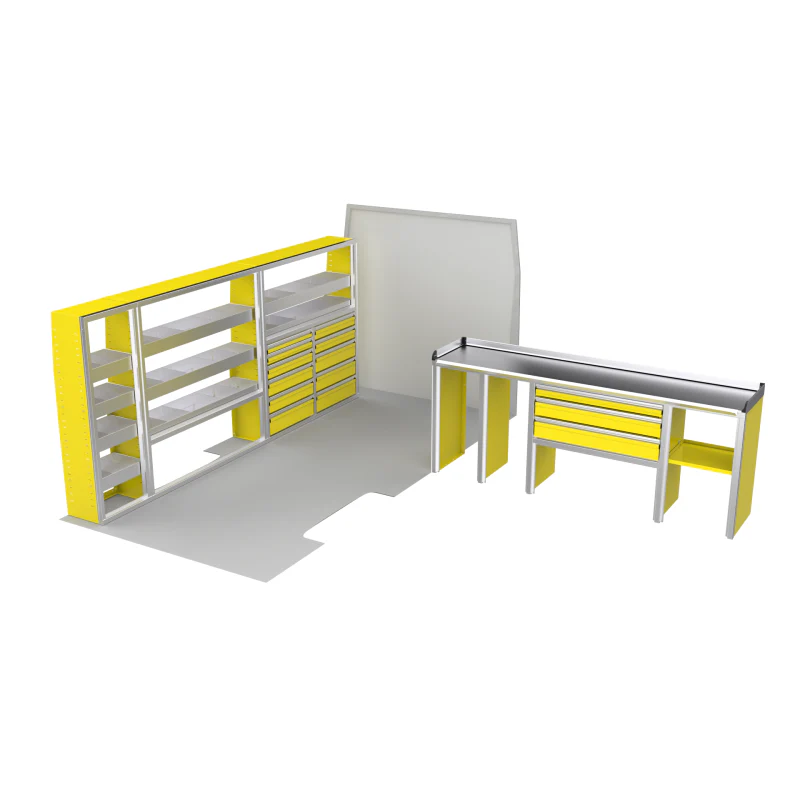

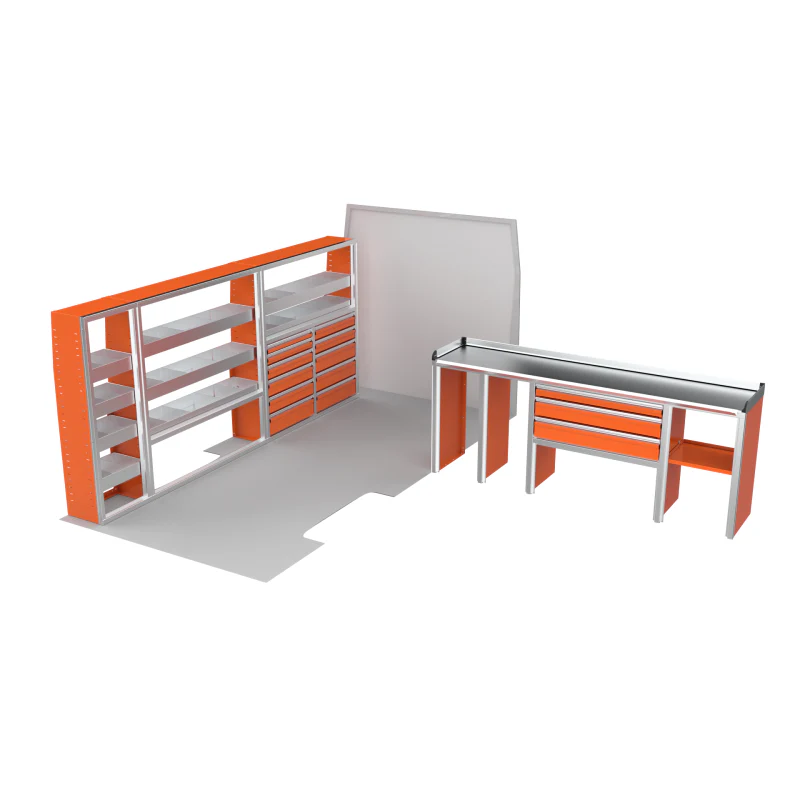

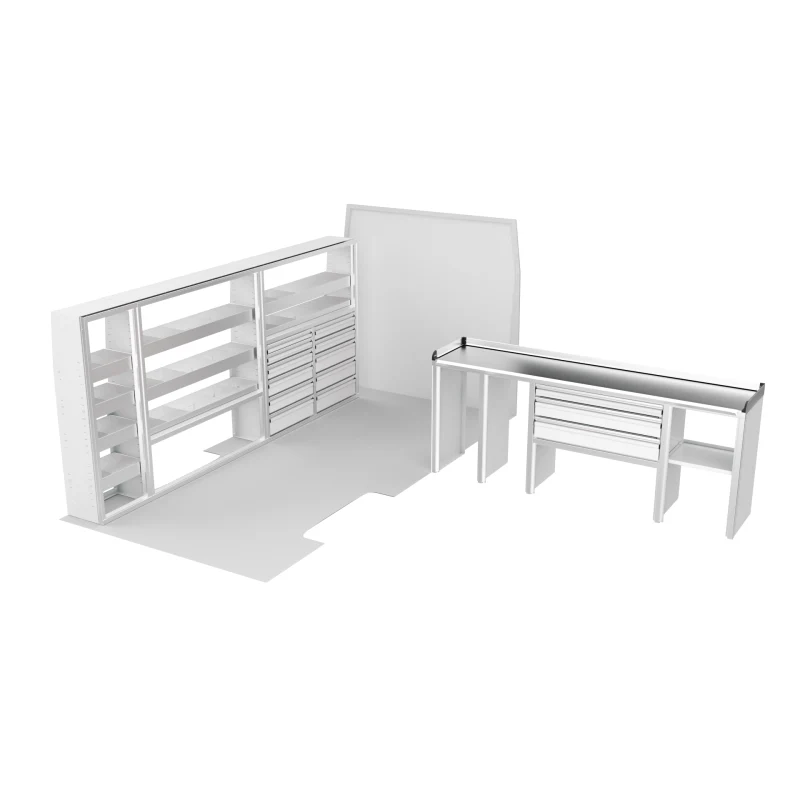

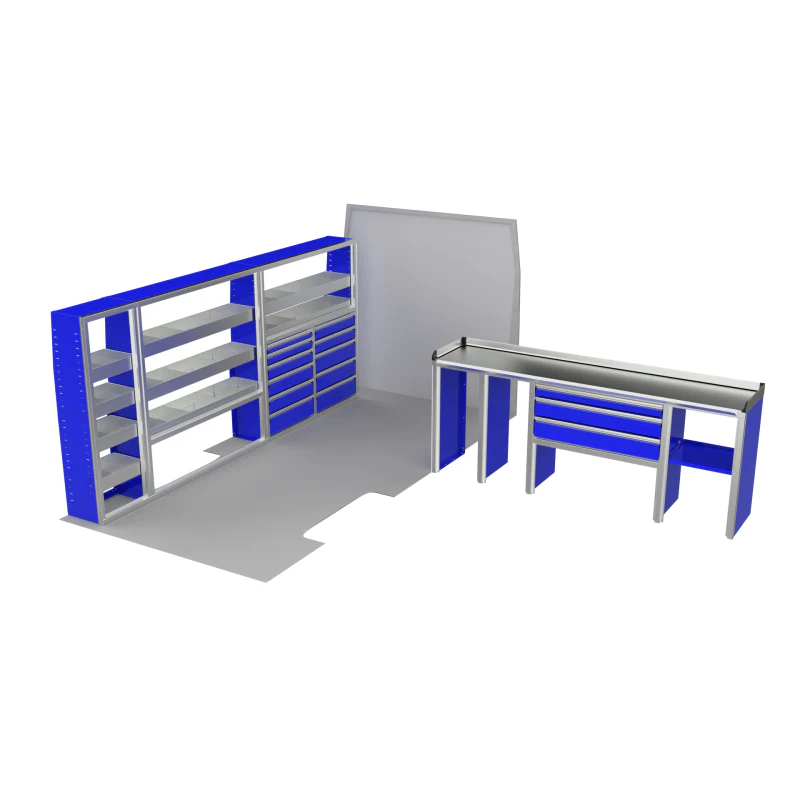

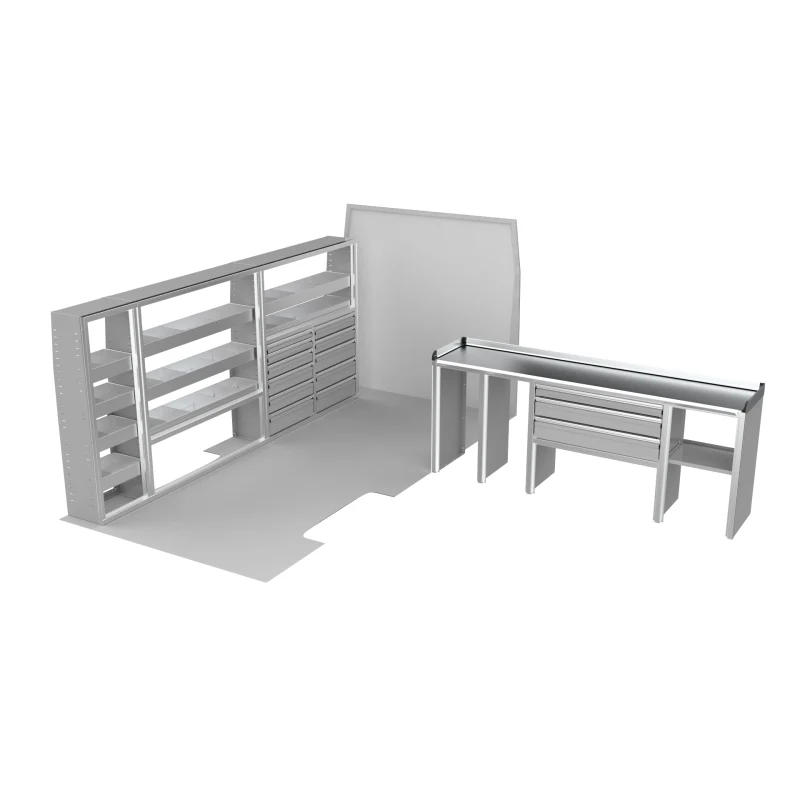

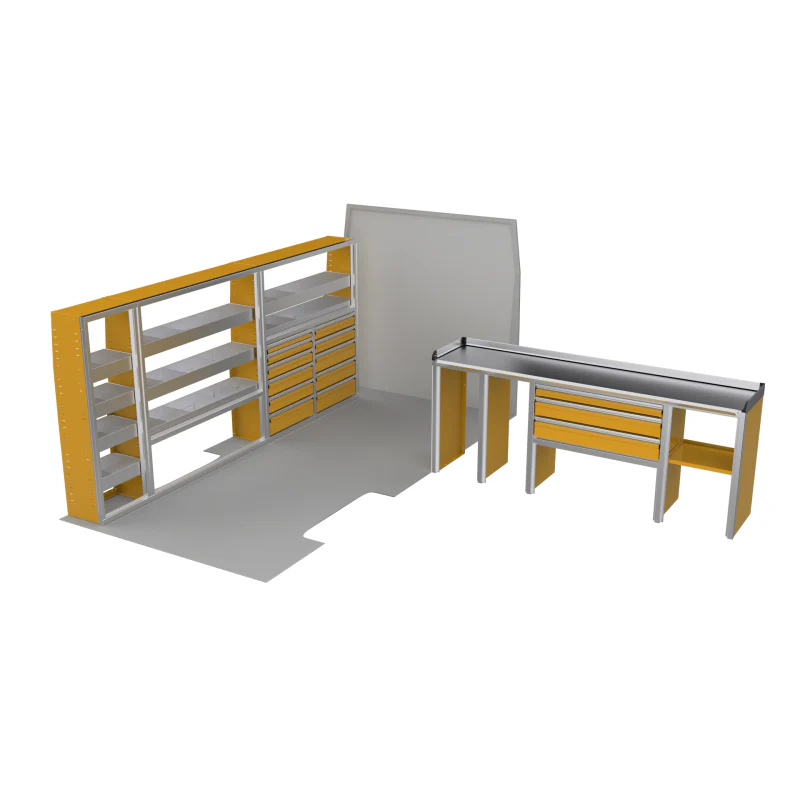

The VanPro Package RPEXT3 includes the RP-300 Shelving Unit, RP-305 Shelving Unit, RP-308 Shelving Unit, and RP-309 Workbench for a comprehensive storage and workspace solution. Specifically designed for the Ram ProMaster 2500/3500 EXT, this package features adjustable shelving, MotionLatch™ drawers, and a spacious workbench to ensure organized, easy-access storage. Made from lightweight, corrosion-resistant aluminum, it offers long-lasting durability, flexibility, and efficient use of space—ideal for maximizing your work van's functionality.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
RP-300	Quantity: 1 Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
RP-308 MotionLatch Cabinet	Quantity: 1 Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
RP-305	Quantity: 1 Overall Size: 20"W x 60"H x 14"D Frame Size: 20"W x 60"H x 14"D
RP-309 Workbench	Quantity: 1 Overall Size: 94"W x 37"H x 20"D Frame Size: 94"W x 37"H x 20"D Note: Cabinet height excludes 2.25" backsplash

Cabinet Options

• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Bottom Rail
• Top Panel
• Back Panel (where noted)
• Floor Panel (RP-308)
• GasketLoc Countertop - Stainless Steel (RP-309)
• Add Channel at Front of RP-309 Cabinet
• Custom Deep Shelves with Dividers (RP-300, RP-308: 4; RP-305: 2)
• ProMaster Profile

Opening Details

Model/Opening	Details
RP-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
RP-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
RP-308 - Opening 1	Size: 53"W x 23.375"H EMPTY Adjustable Shelf: 1 (54.758"W x 12"D)
RP-308 - Opening 2	Size: 25.75"W x 32.125"H Drawers: 3", 4", 5", 6", 6", 7" [Lnr] Slide Type: Medium Duty 12" (x6) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
RP-308 - Opening 3	Size: 25.75"W x 32.125"H Drawers: 5", 5", 7", 7", 7" [Lnr] Slide Type: Medium Duty 12" (x5) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
RP-305 - Single Opening	Size: 17"W x 57"H EMPTY Adjustable Shelves: 4 (18.758"W x 12"D) Custom Deep Shelves with 2 Dividers
RP-309 - Opening 1	Size: 14.75"W x 35"H EMPTY
RP-309 - Opening 2	Size: 14.75"W x 35"H EMPTY
RP-309 - Opening 3	Size: 38"W x 17"H Drawers: 4", 6", 6" [5 Row] [Lnr] [Sep:10] Divider Clip Kit: Qty 7 Divider Screw Kit: Qty 6 Slide Type: Medium Duty 16" (x3) Inside Drawer Dim: 33.53"W x 15.671"D Bottom Space: 0.952"
RP-309 - Opening 4	Size: 38"W x 16.5"H EMPTY
RP-309 - Opening 5	Size: 19"W x 35"H EMPTY Adjustable Shelf: 1 (20.129"W x 18"D)

Vehicle Fitment

Product Application	Work Van
Vehicle	RAM ProMaster
Model Year	2014-2025
Wheelbase	159"
Cargo Length	Standard, Extended
Cargo Roof Height	High, Super High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
