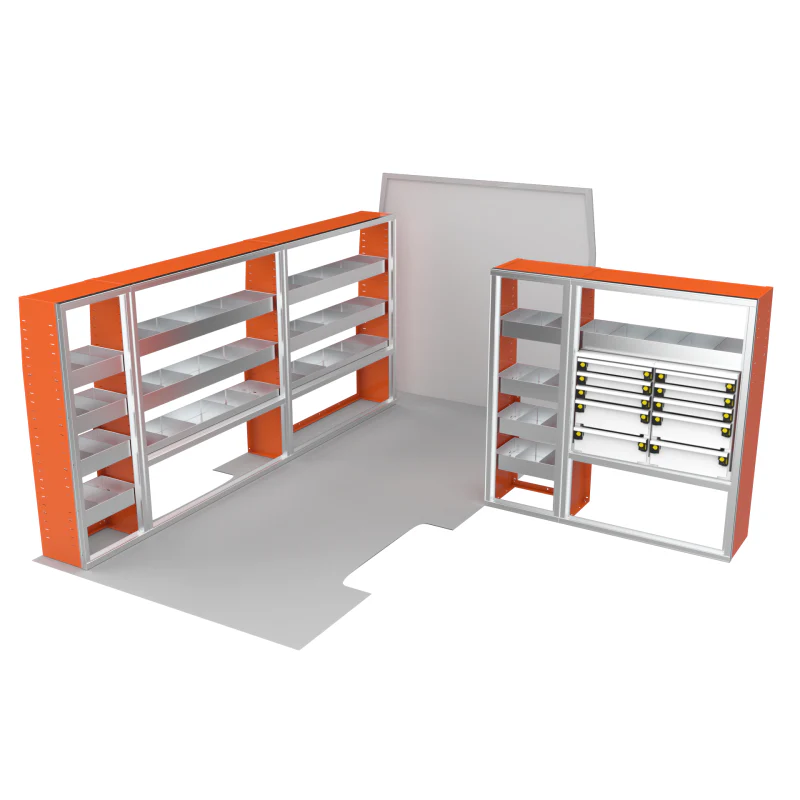

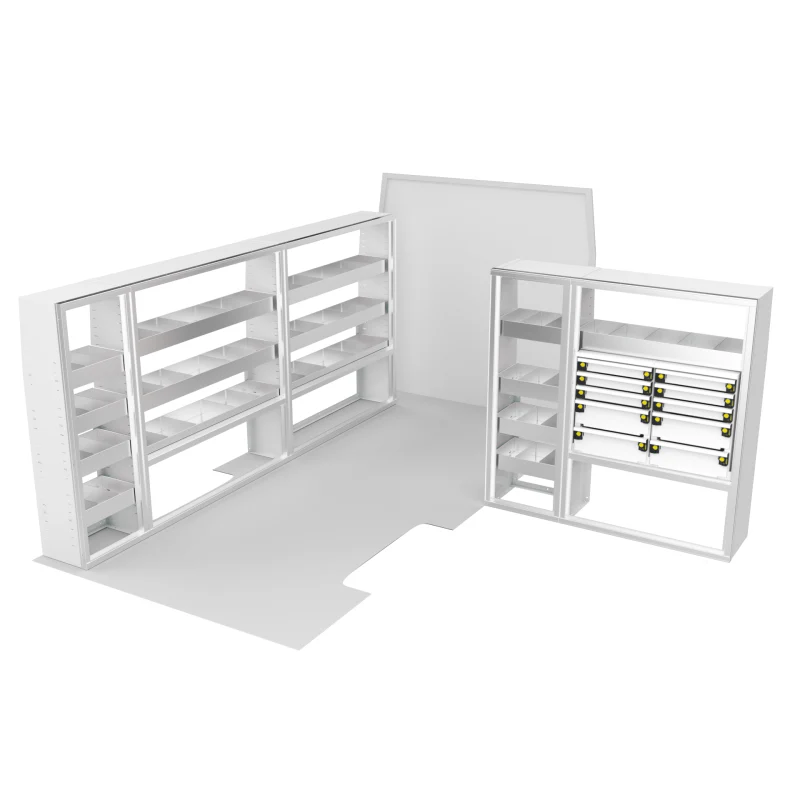

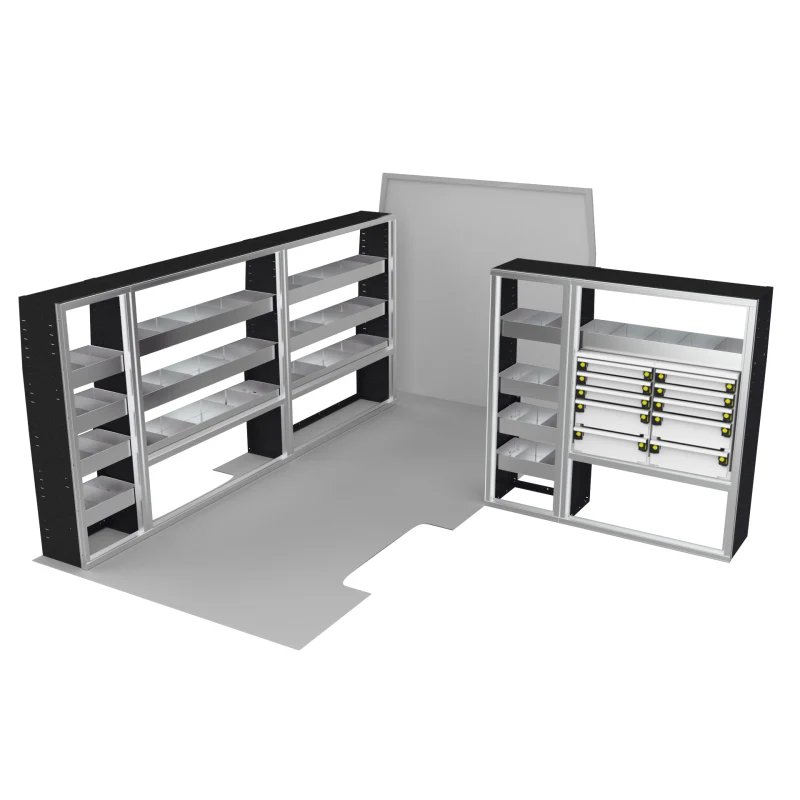

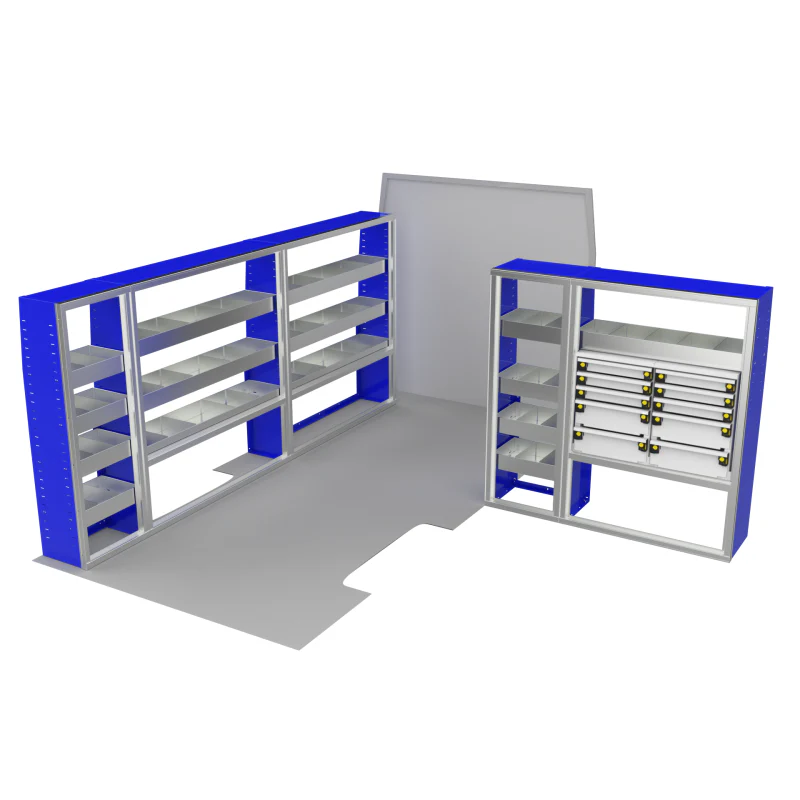

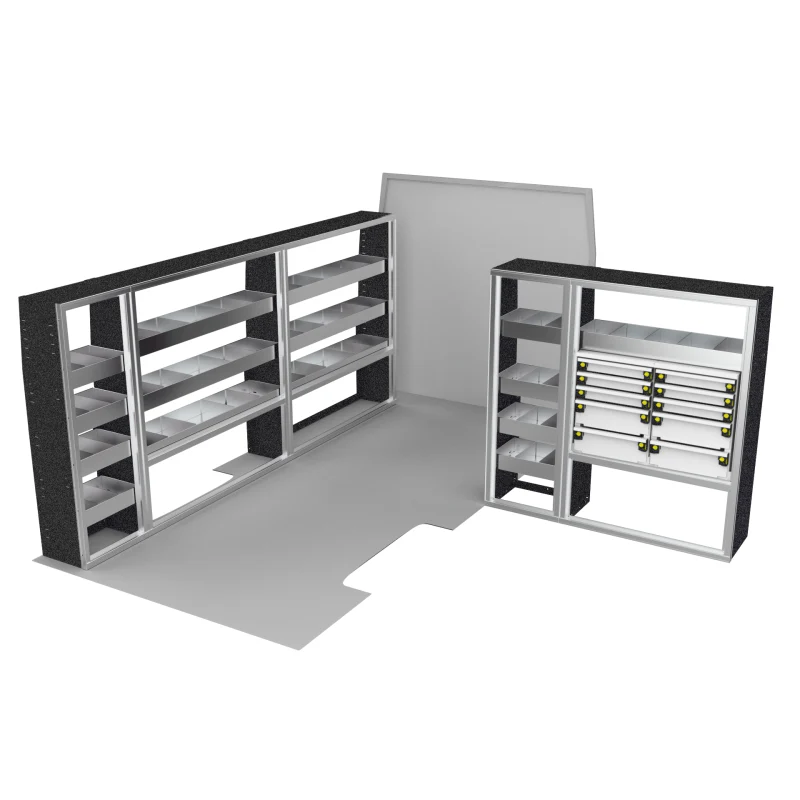

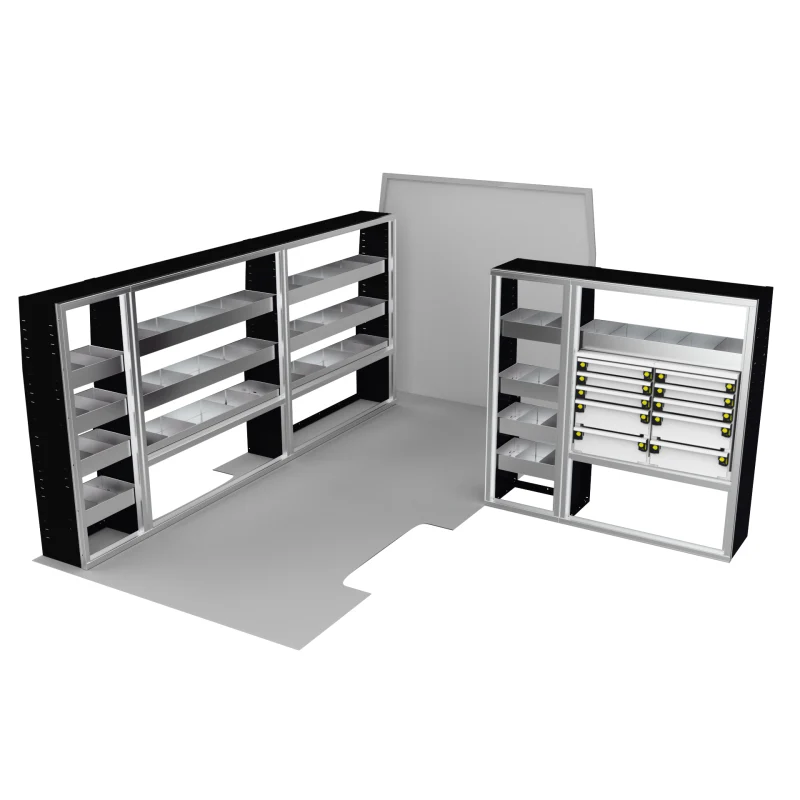

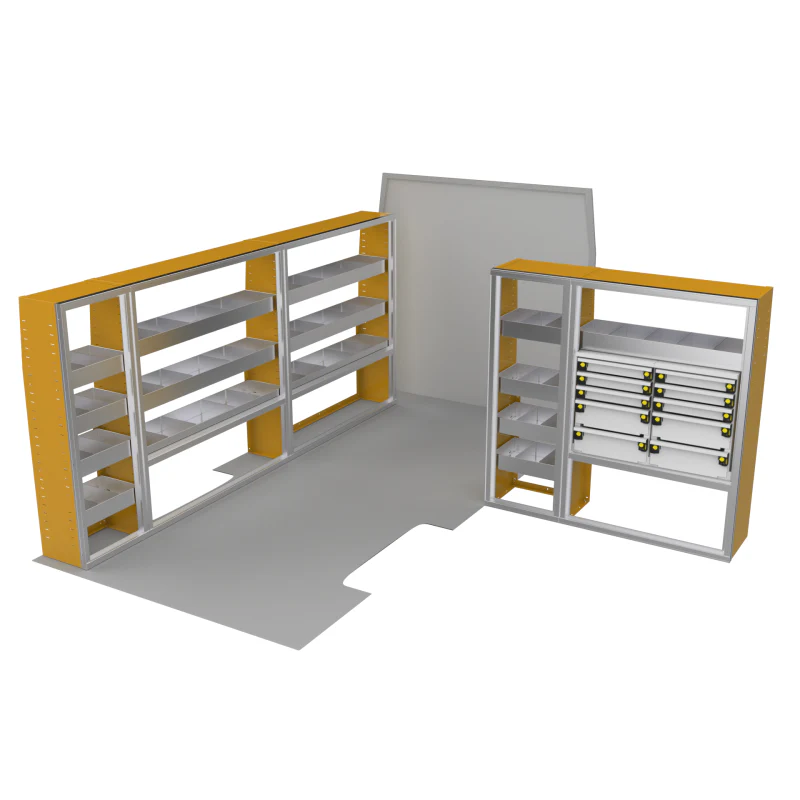

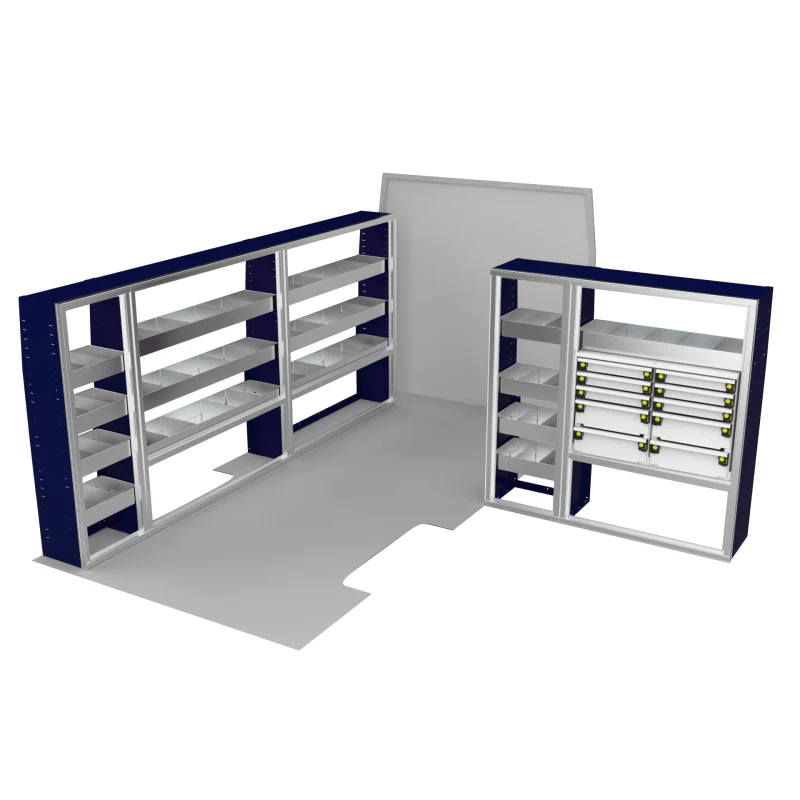

CTech VanPro Package RPEXT1 Model RP-EXT-PRO-1

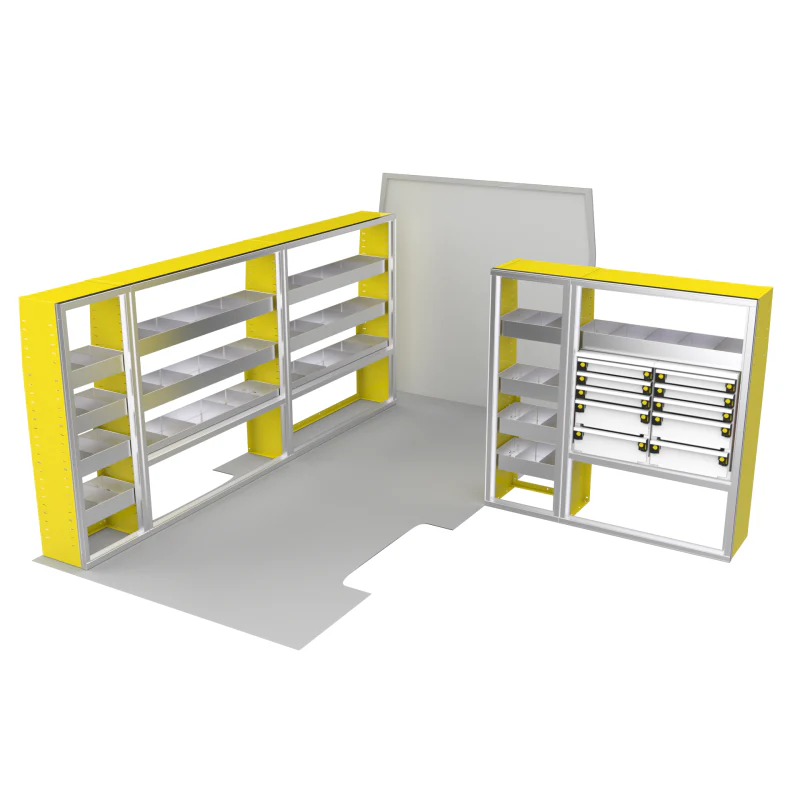

The VanPro Package RPEXT1 combines the RP300, RP-301, RP-305, and RP-306 units, offering a complete storage solution for the Ram ProMaster 2500/3500 EXT. This package includes adjustable shelving, MotionGlide technology, open-face shelving, and secure drawers for flexible, efficient storage. Made from lightweight, corrosion-resistant aluminum, it maximizes your van's storage capacity while providing durable and easy-to-move organization for mobile businesses and service professionals.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
RP-300	Quantity: 2 Location: — Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
RP-305	Quantity: 1 Location: — Overall Size: 20"W x 60"H x 14"D Frame Size: 20"W x 60"H x 14"D
RP-301 MotionGlide Cabinet	Quantity: 1 Location: — Overall Size: 41"W x 60"H x 16"D Frame Size: 41"W x 60"H x 16"D
RP-306	Quantity: 1 Location: — Overall Size: 20"W x 60"H x 16"D Frame Size: 20"W x 60"H x 16"D

Cabinet Options

• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Bottom Rail
• Top Panel
• Custom Deep Shelves with Dividers (see individual units)
• Two MG-9 Units Mounted on Fixed Shelf (RP-301)
• ProMaster Profile

Opening Details

Model/Opening	Details
RP-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
RP-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
RP-305 - Single Opening	Size: 17"W x 57"H EMPTY Adjustable Shelves: 4 (18.758"W x 12"D) Custom Deep Shelves with 2 Front-to-Back Dividers
RP-301 - Opening 1	Size: 38"W x 40"H EMPTY Adjustable Shelf: 1 (39.758"W x 14"D)
RP-301 - Opening 2	Size: 38"W x 15.5"H EMPTY Fixed Shelf with 2 MG-9 Units Mounted
RP-306 - Single Opening	Size: 17"W x 57"H EMPTY Adjustable Shelves: 4 (18.758"W x 14"D) Custom Deep Shelves with 2 Front-to-Back Dividers

Vehicle Fitment

Product Application	Work Van
Vehicle	RAM ProMaster
Model Year	2014-2025
Wheelbase	159"
Cargo Length	Extended
Cargo Roof Height	High, Super High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
