CTech VanPro Package RP3 Model RP-PRO-3

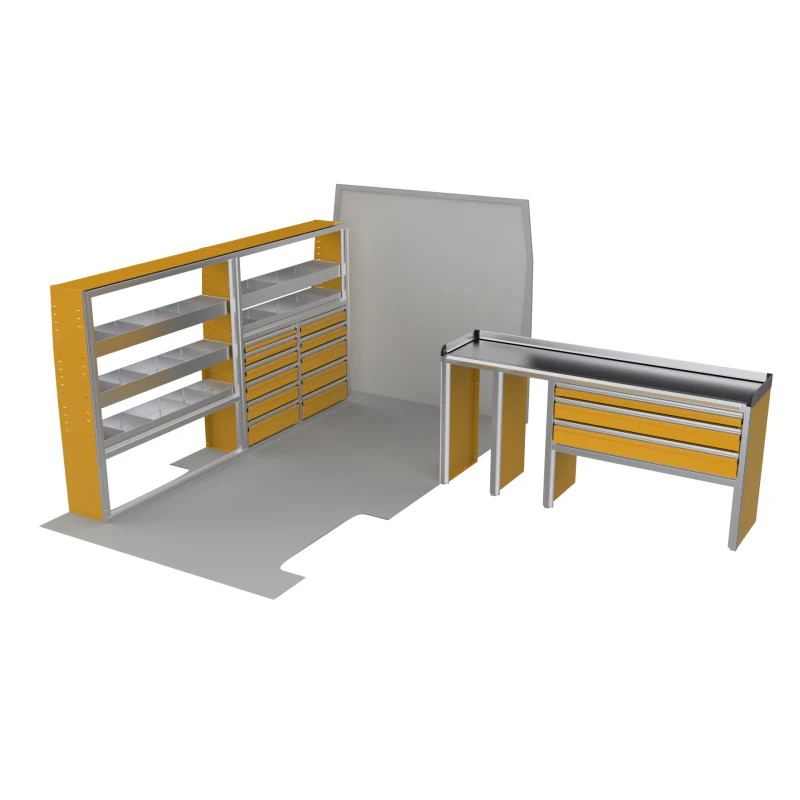

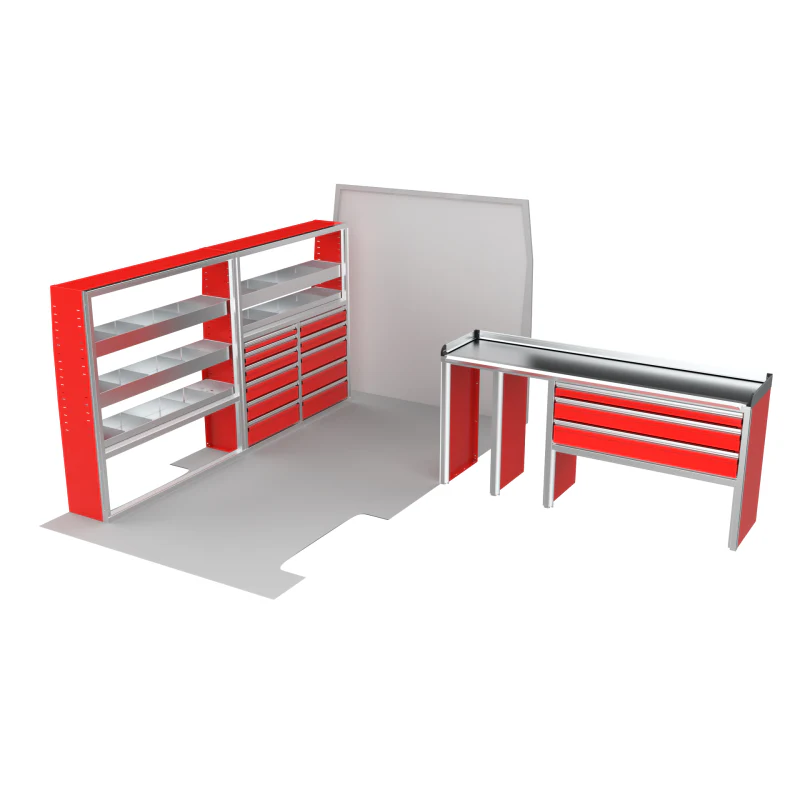

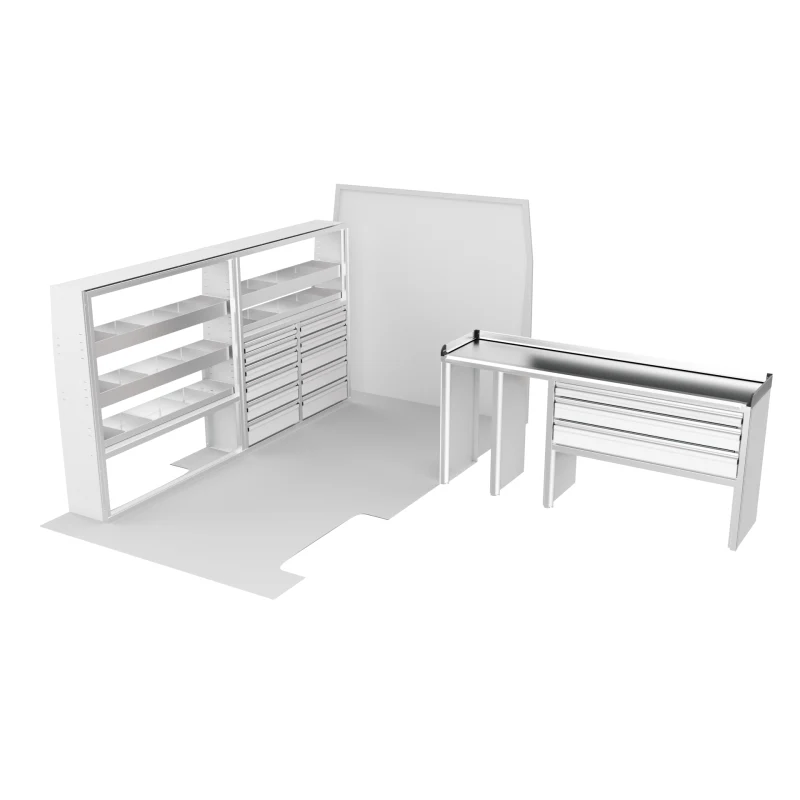

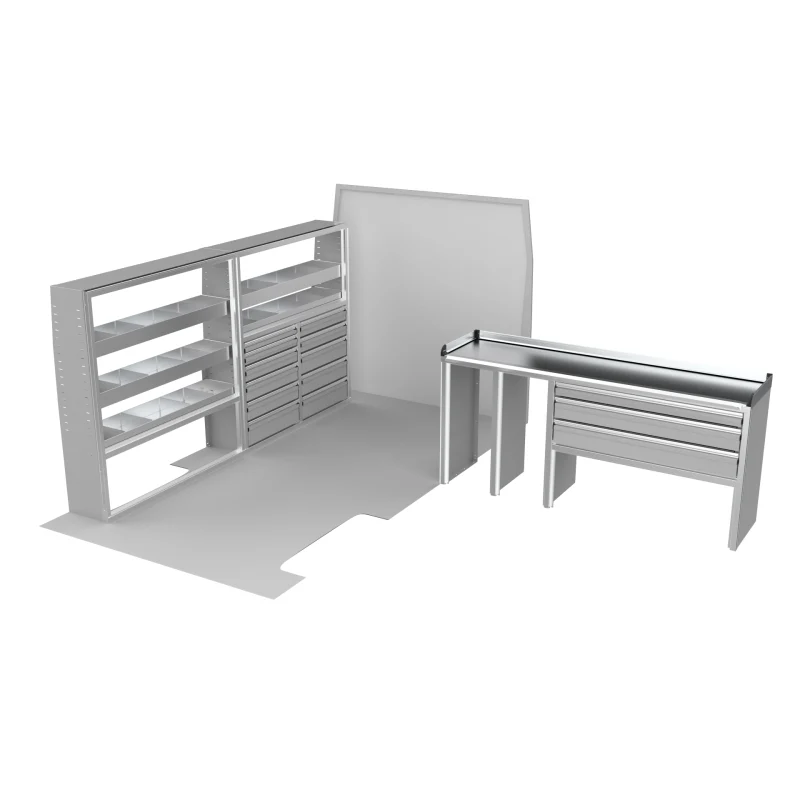

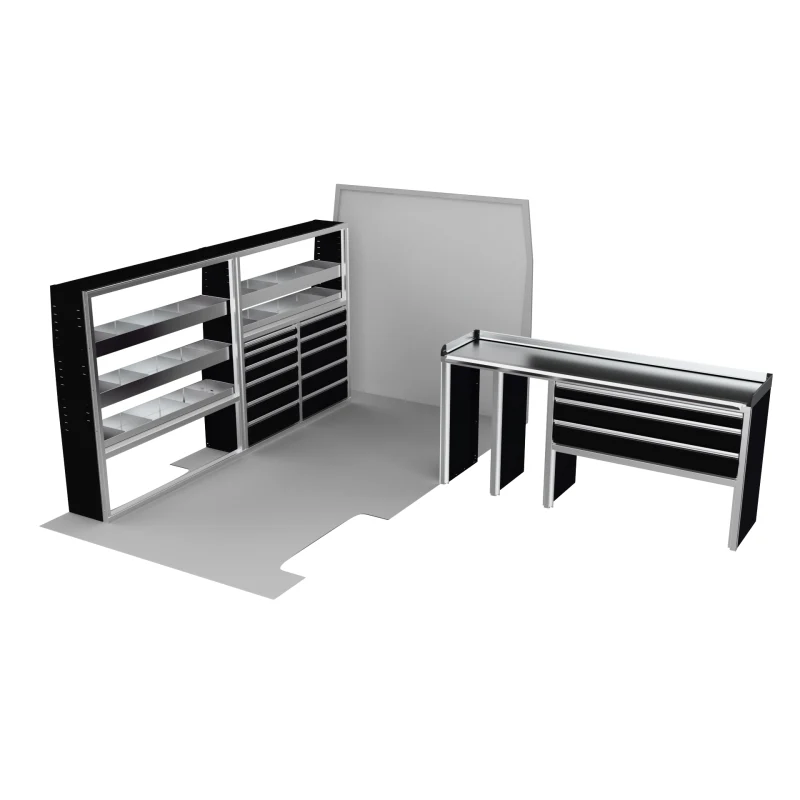

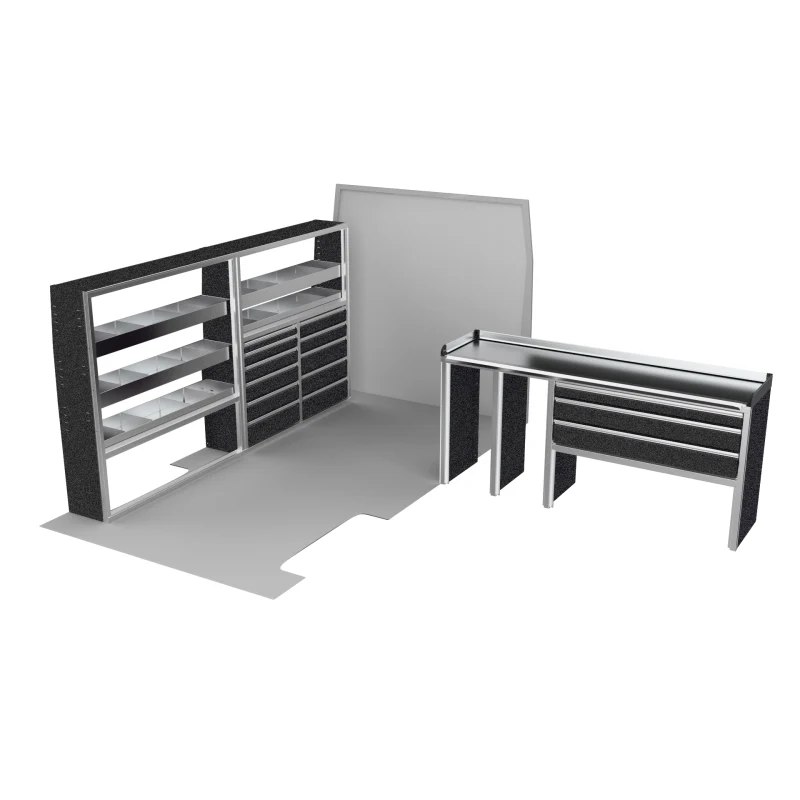

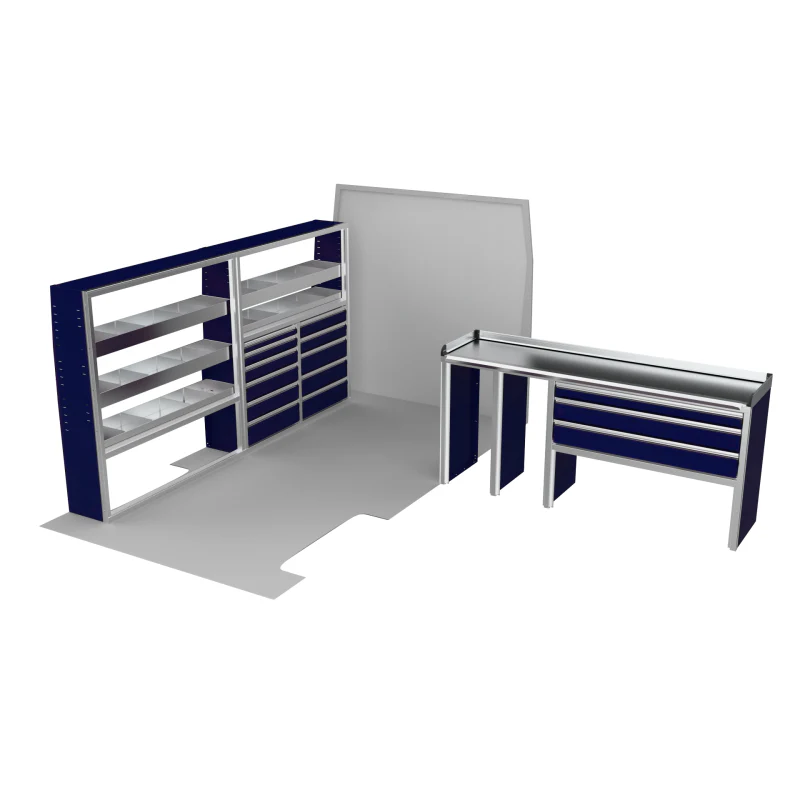

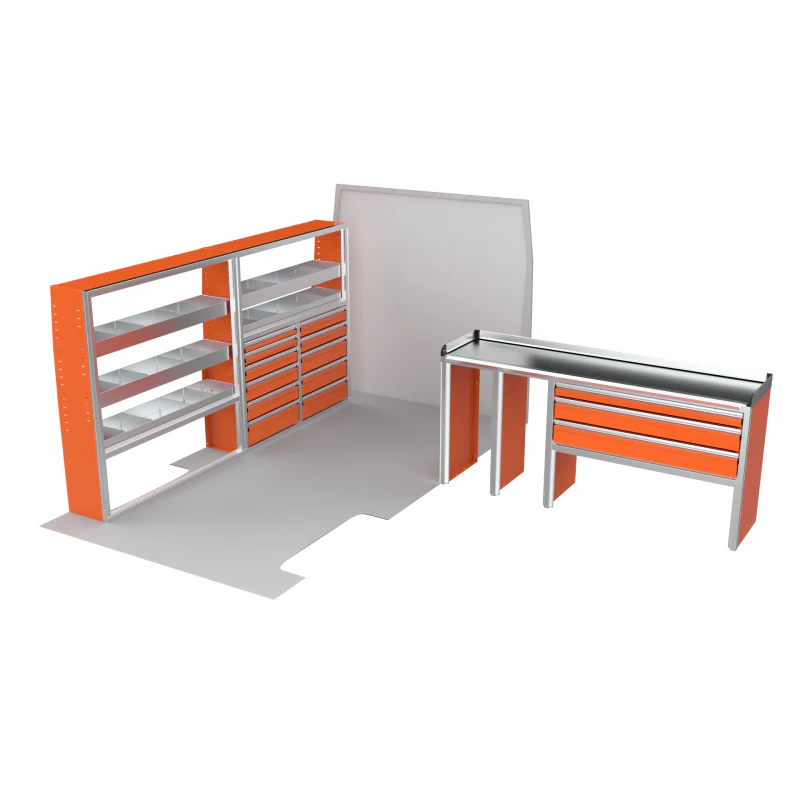

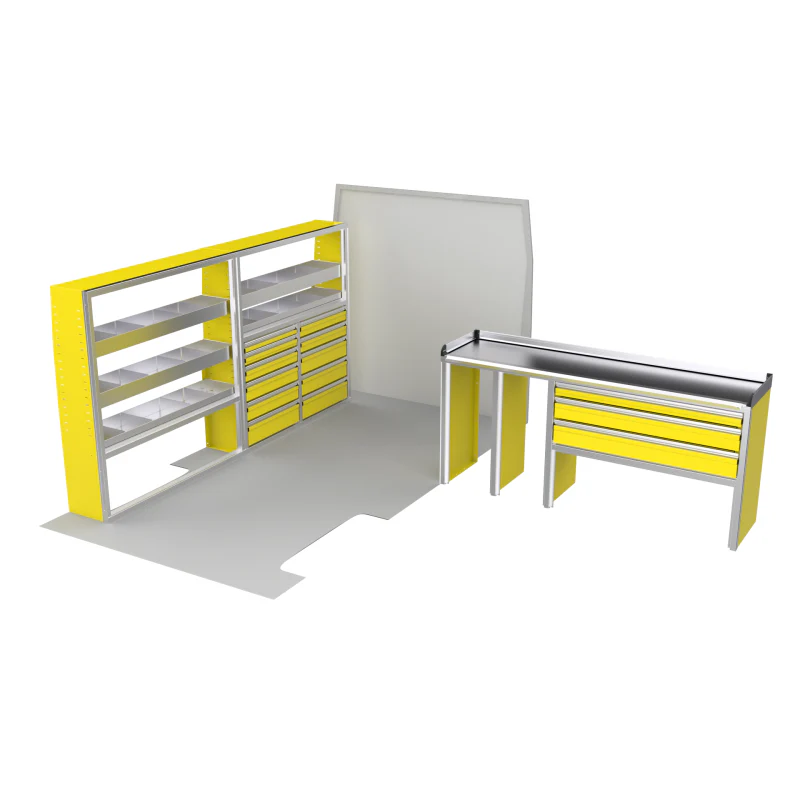

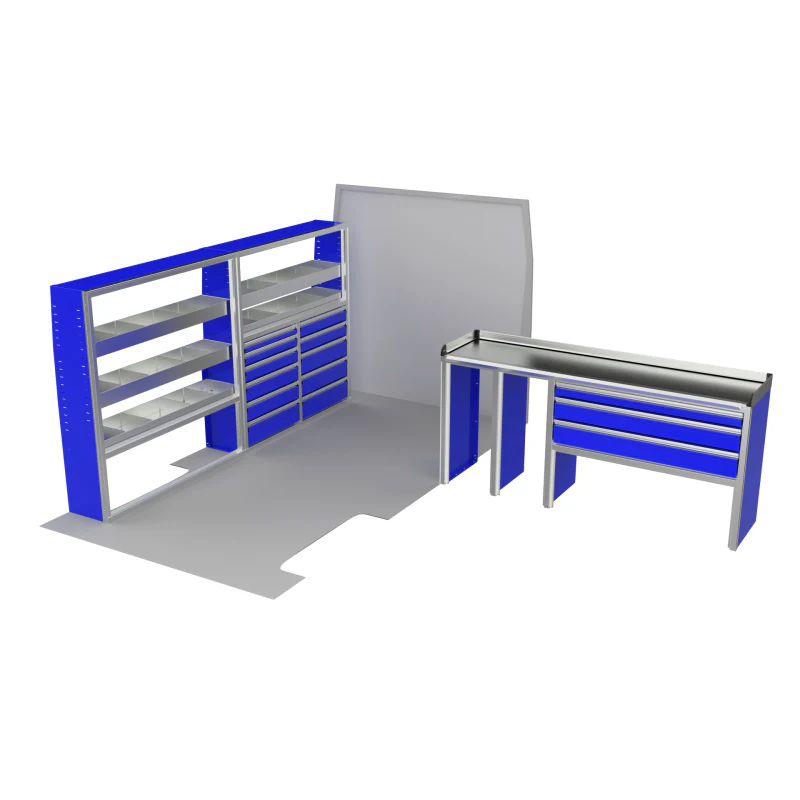

The VanPro Package RP3 includes the RP-300 Shelving Unit, RP-307 Workbench, and RP-308 Shelving Unit for a complete storage and workspace solution. Designed for the Ram ProMaster 2500/3500, this package combines adjustable shelving, MotionLatch™ drawers, and a durable workbench for secure and organized storage. Constructed with lightweight, corrosion-resistant aluminum, it’s built to withstand the demands of a work van while providing long-lasting durability, flexibility, and efficient use of space.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
RP-300	Quantity: 1 Location: — Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
RP-308 MotionLatch Cabinet	Quantity: 1 Location: — Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
RP-307 Workbench	Quantity: 1 Location: — Overall Size: 81"W x 37"H x 20"D Frame Size: 81"W x 37"H x 20"D Note: Cabinet height excludes 2.25" backsplash

Cabinet Options

• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Bottom Rail
• Top Panel
• Back Panel (where noted)
• Floor Panel (RP-308)
• GasketLoc Countertop - Stainless Steel (RP-307)
• Add Channel at Front of RP-307 Cabinet
• Custom Deep Shelves with 4 Dividers (RP-300, RP-308)
• ProMaster Profile

Opening Details

Model/Opening	Details
RP-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
RP-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
RP-308 - Opening 1	Size: 53"W x 23.375"H EMPTY Adjustable Shelves: 1 (54.758"W x 12"D)
RP-308 - Opening 2	Size: 25.75"W x 32.125"H Drawers: 3", 4", 5", 6", 6", 7" [Lnr] Slide Type: Medium Duty 12" (x6) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
RP-308 - Opening 3	Size: 25.75"W x 32.125"H Drawers: 5", 5", 7", 7", 7" [Lnr] Slide Type: Medium Duty 12" (x5) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
RP-307 - Opening 1	Size: 14"W x 35"H EMPTY
RP-307 - Opening 2	Size: 14"W x 35"H EMPTY
RP-307 - Opening 3	Size: 47"W x 17"H Drawers: 4", 6", 6" [5 Row] [Lnr] [Sep:10] Divider Clip Kit: Qty 7 Divider Screw Kit: Qty 6 Slide Type: Medium Duty 16" (x3) Inside Drawer Dim: 42.53"W x 15.671"D Bottom Space: 0.952"
RP-307 - Opening 4	Size: 47"W x 16.5"H EMPTY

Vehicle Fitment

Product Application	Work Van
Vehicle	RAM ProMaster
Model Year	2014-2025
Wheelbase	159"
Cargo Length	Standard
Cargo Roof Height	High, Super High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
