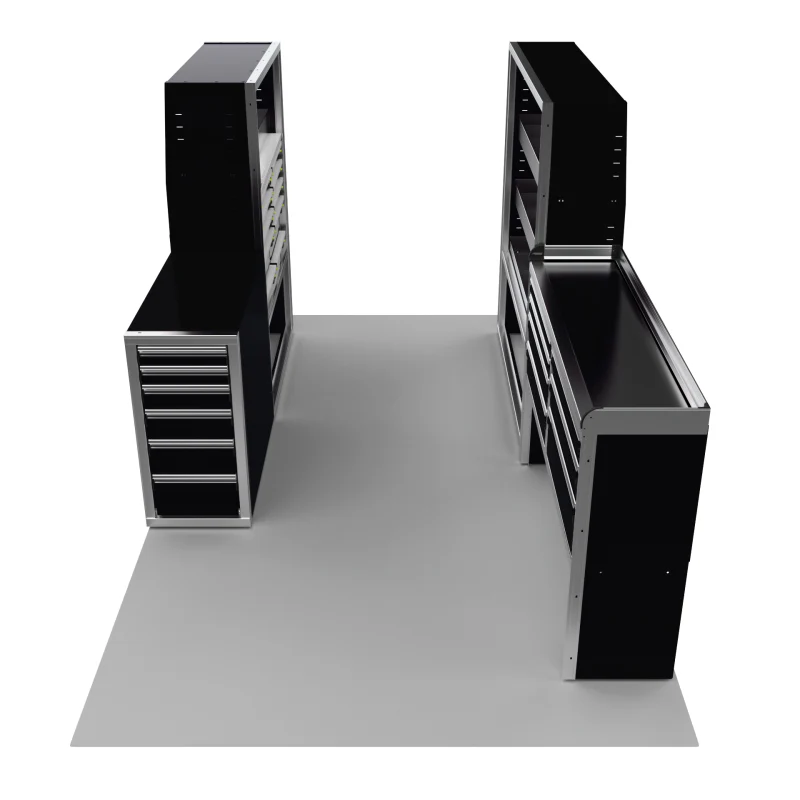

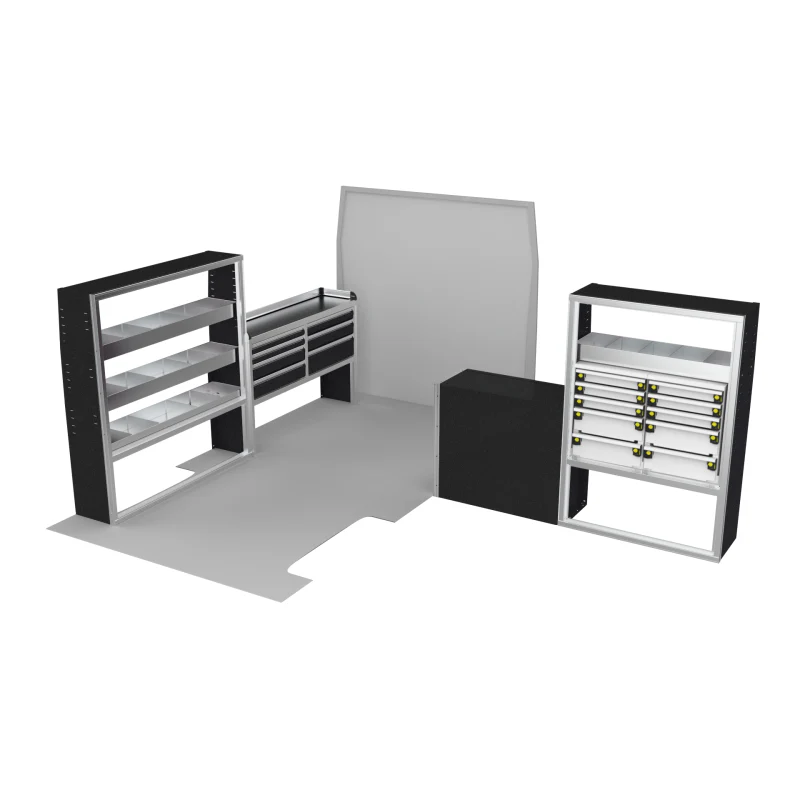

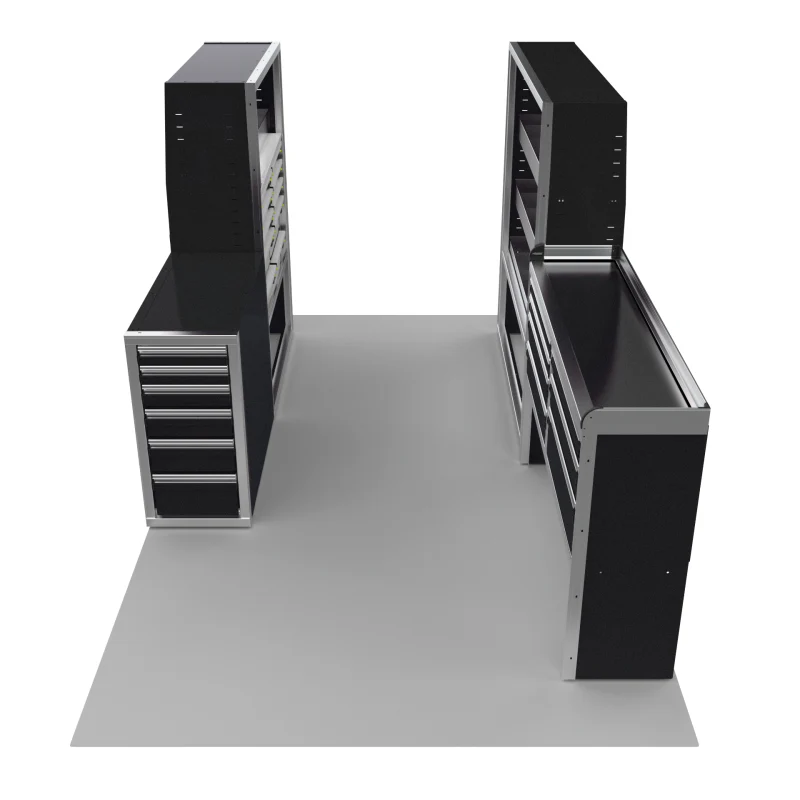

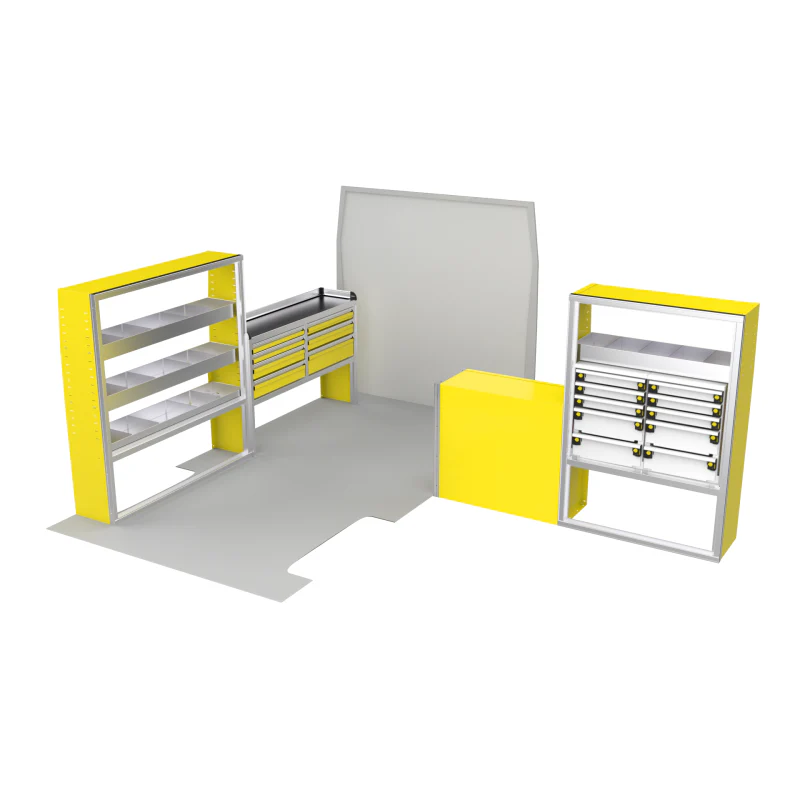

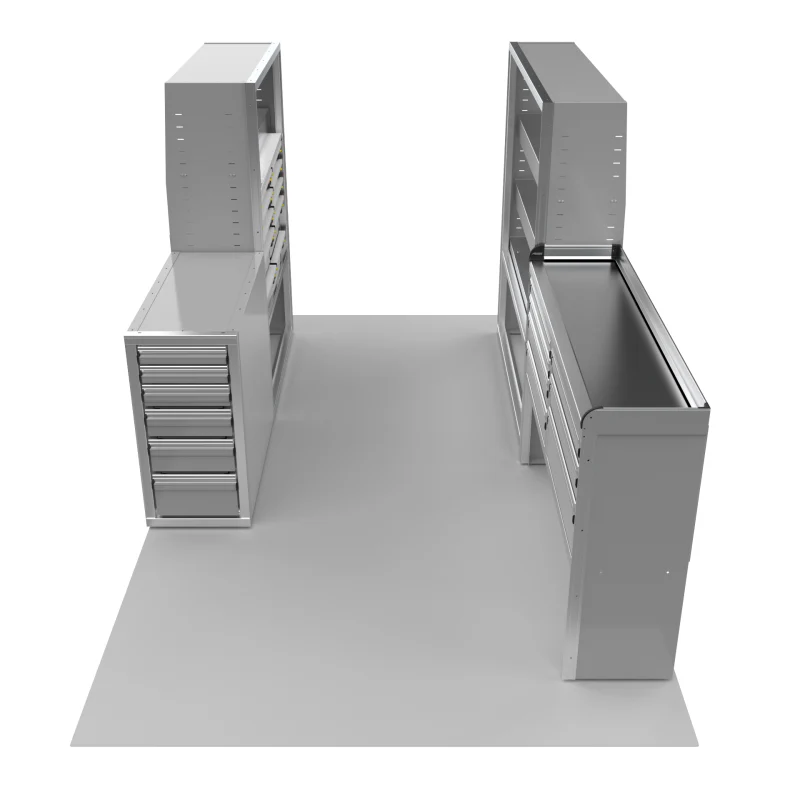

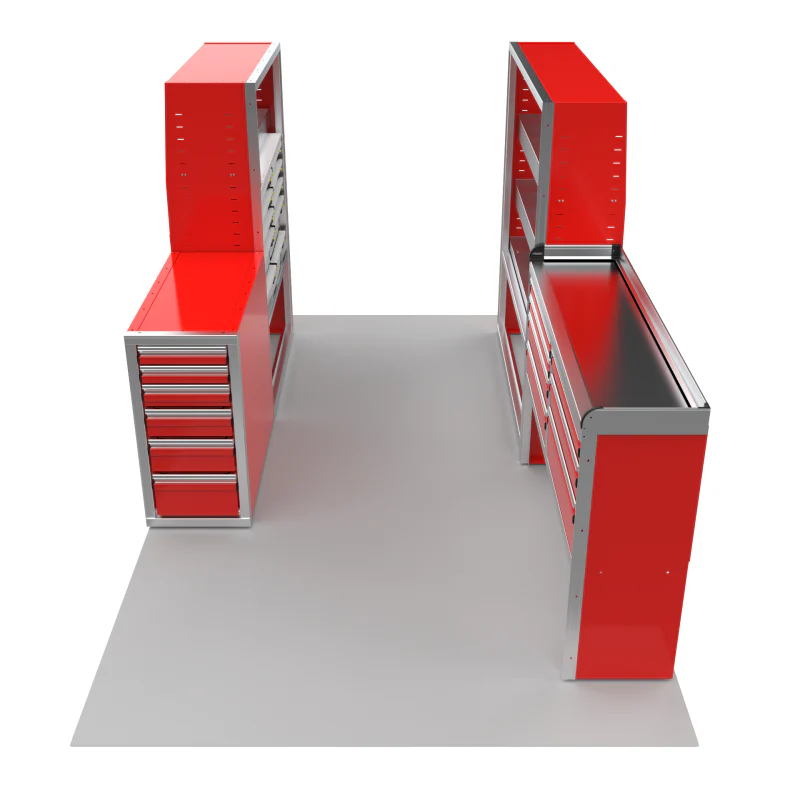

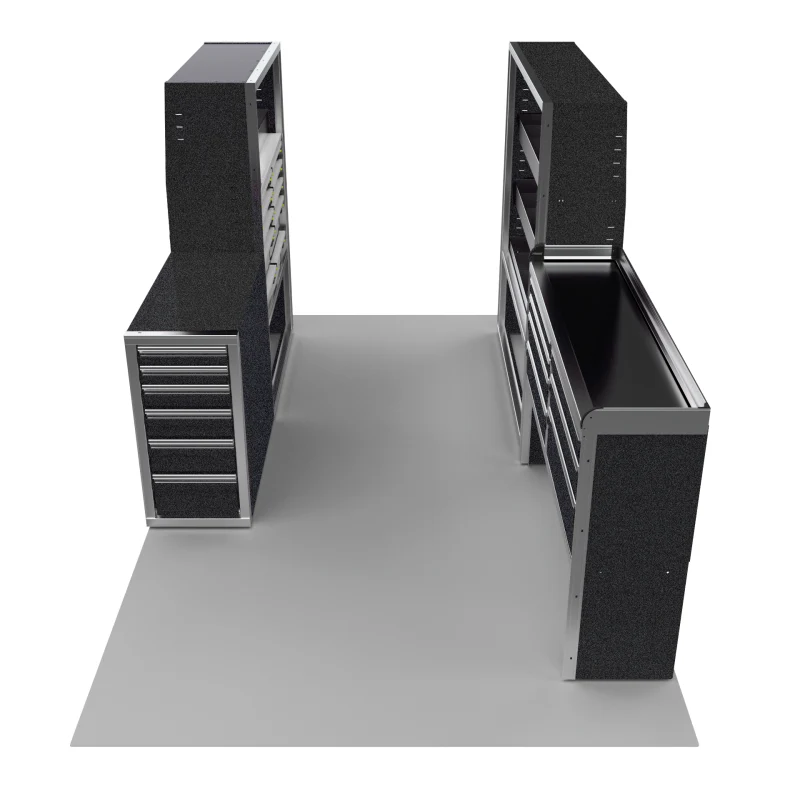

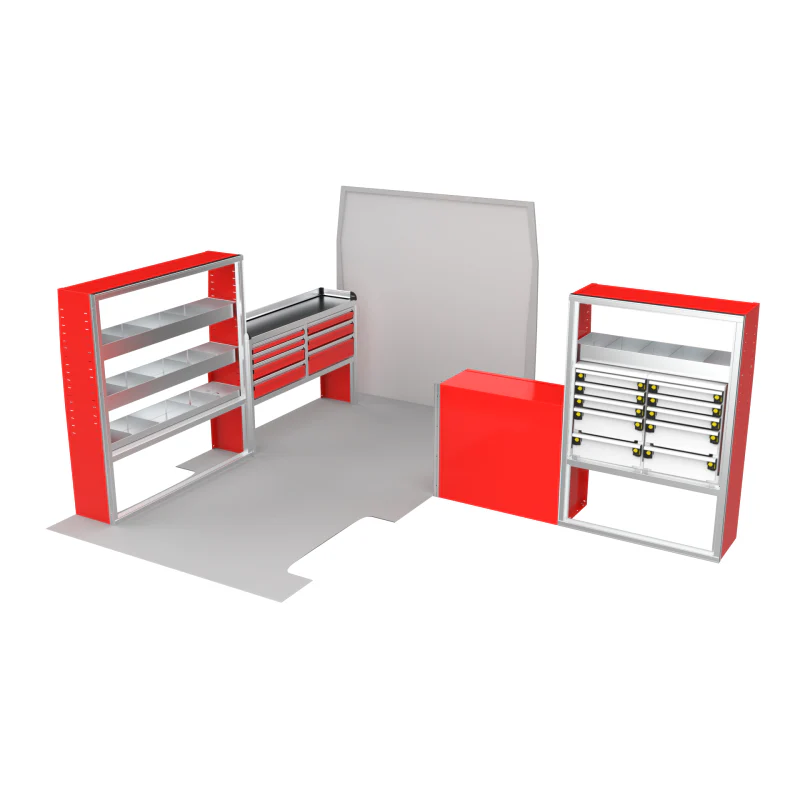

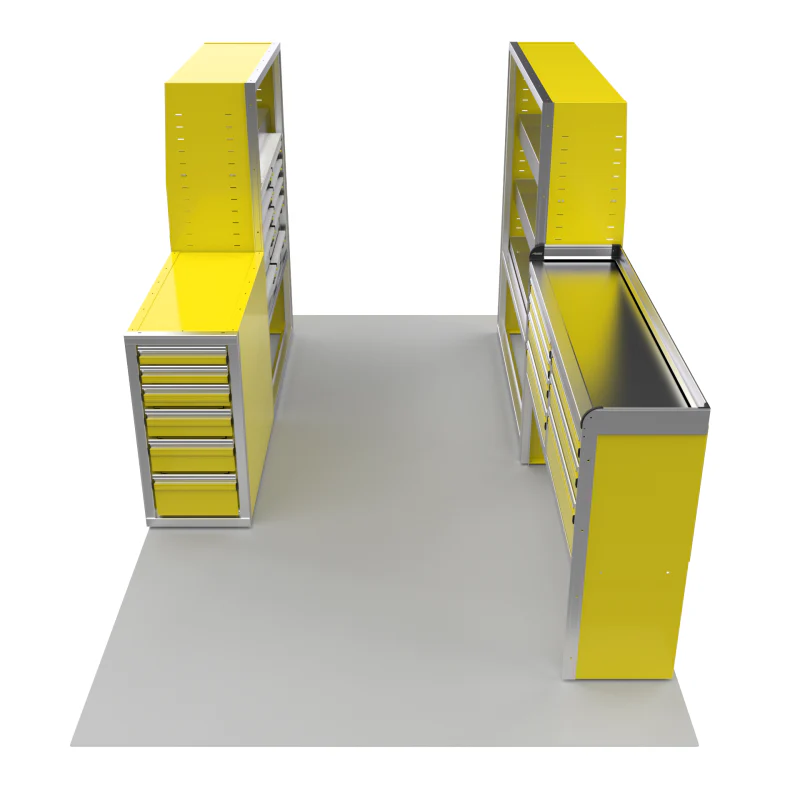

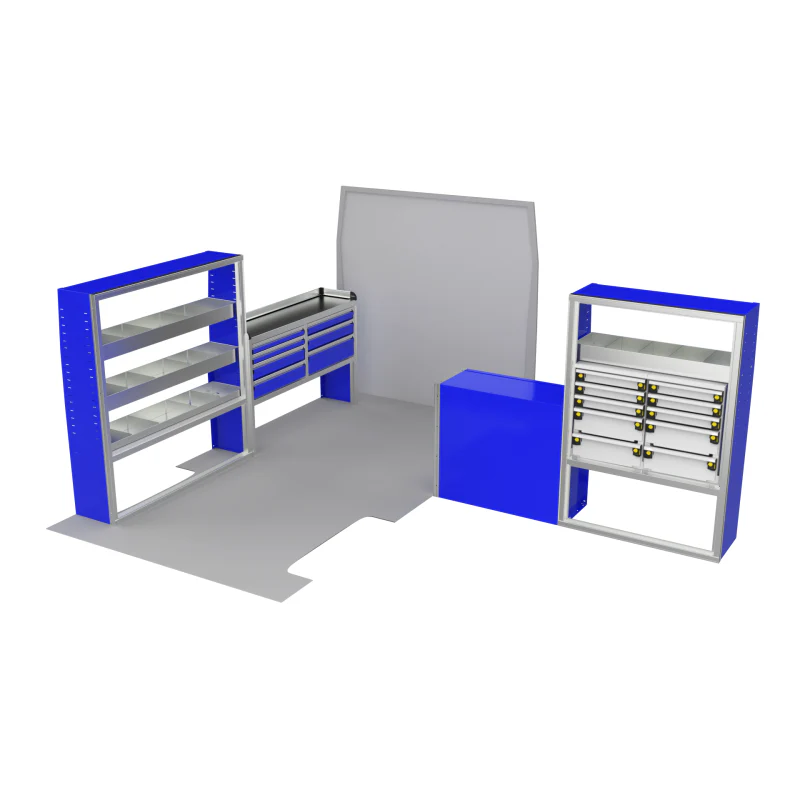

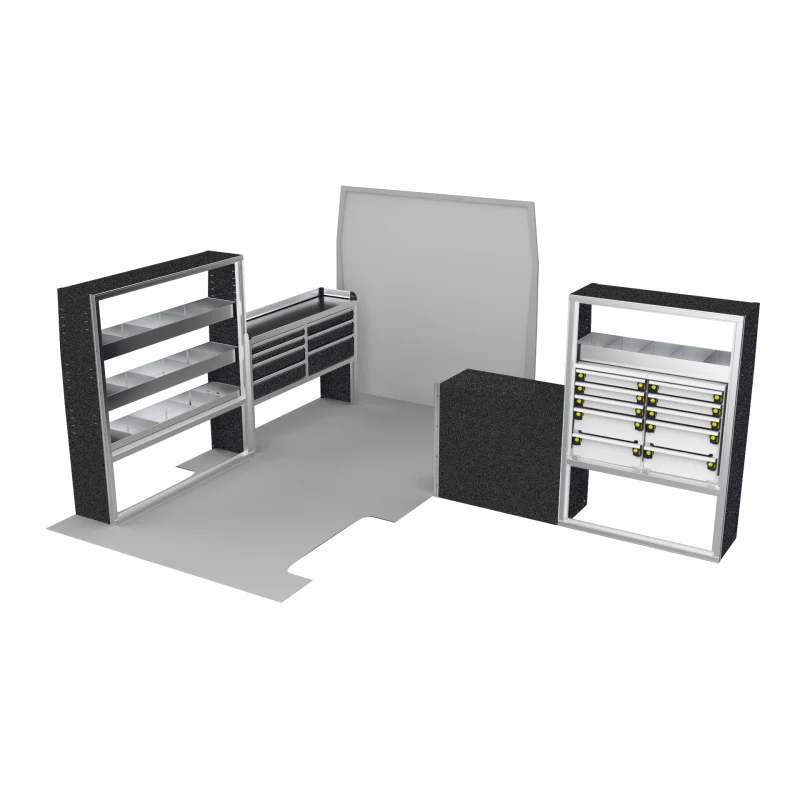

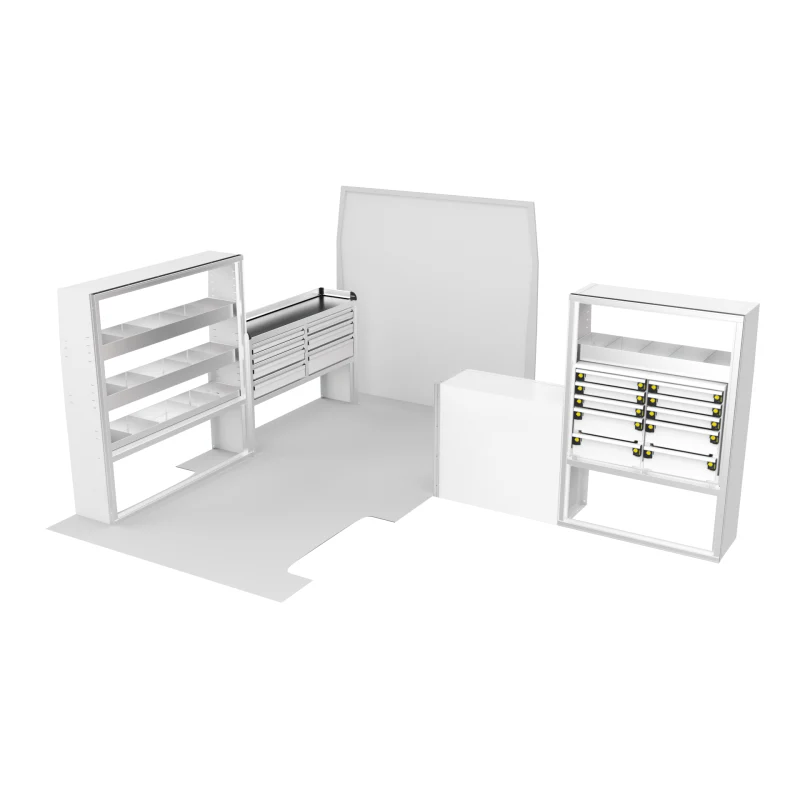

CTech VanPro Package RP2 Model RP-PRO-2

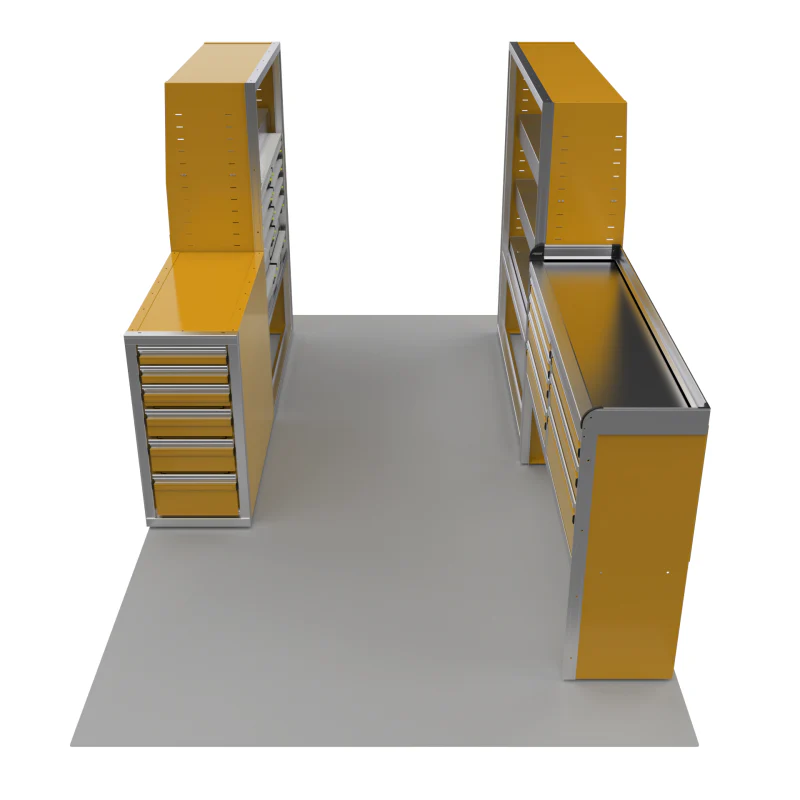

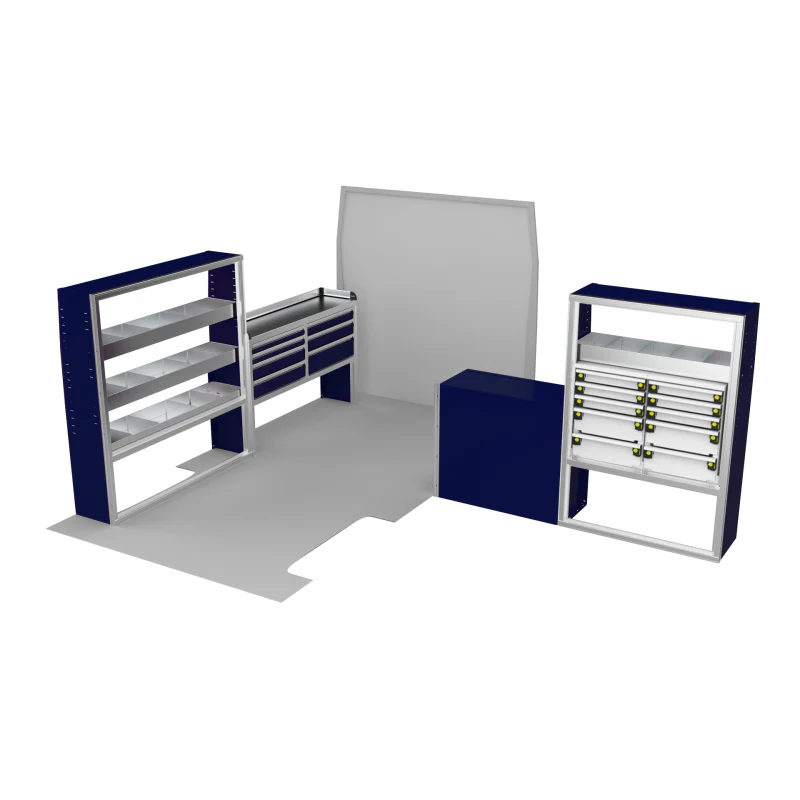

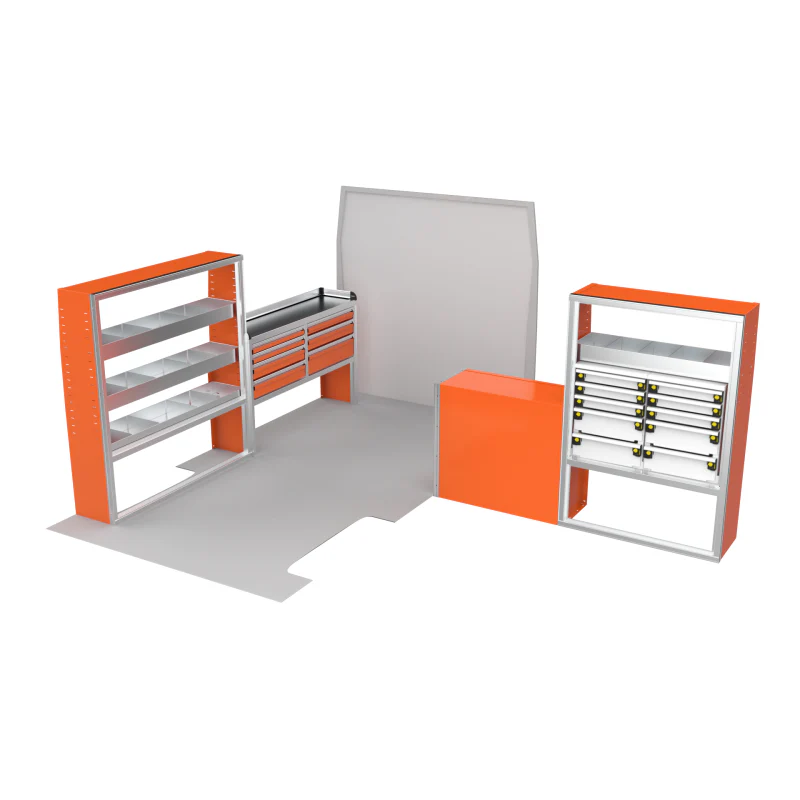

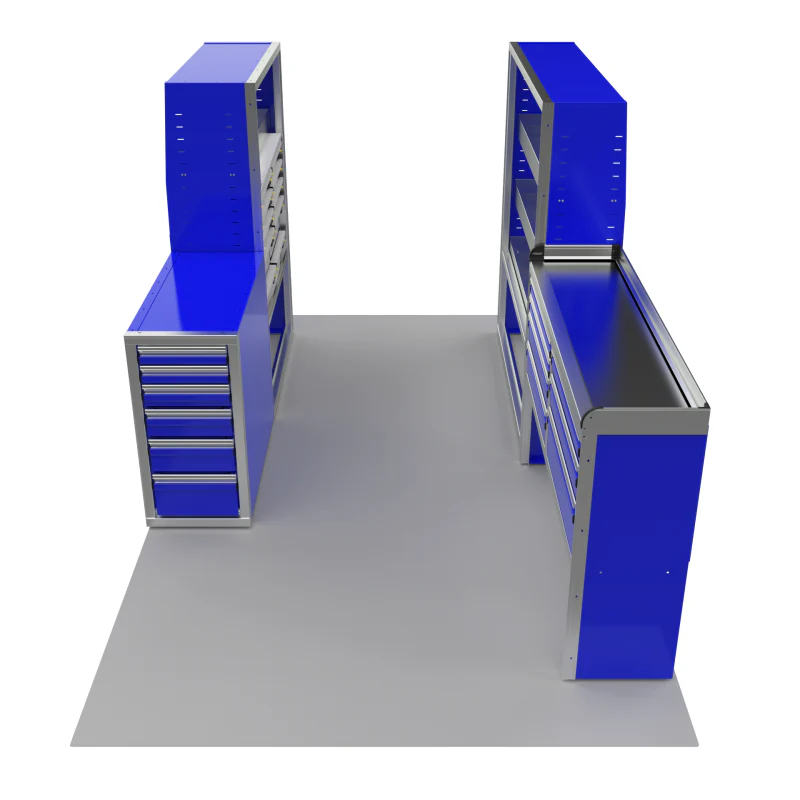

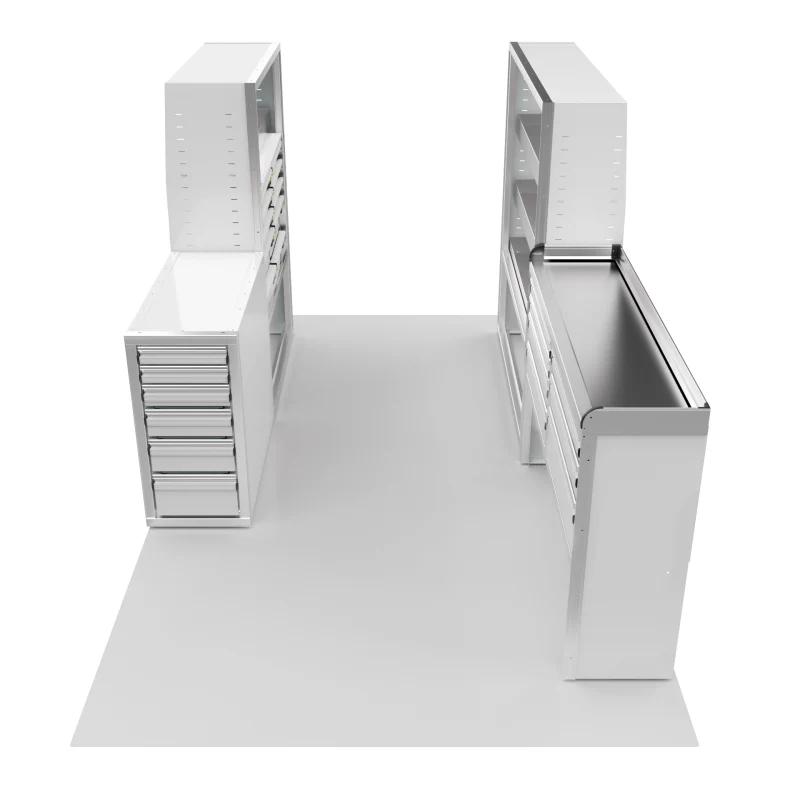

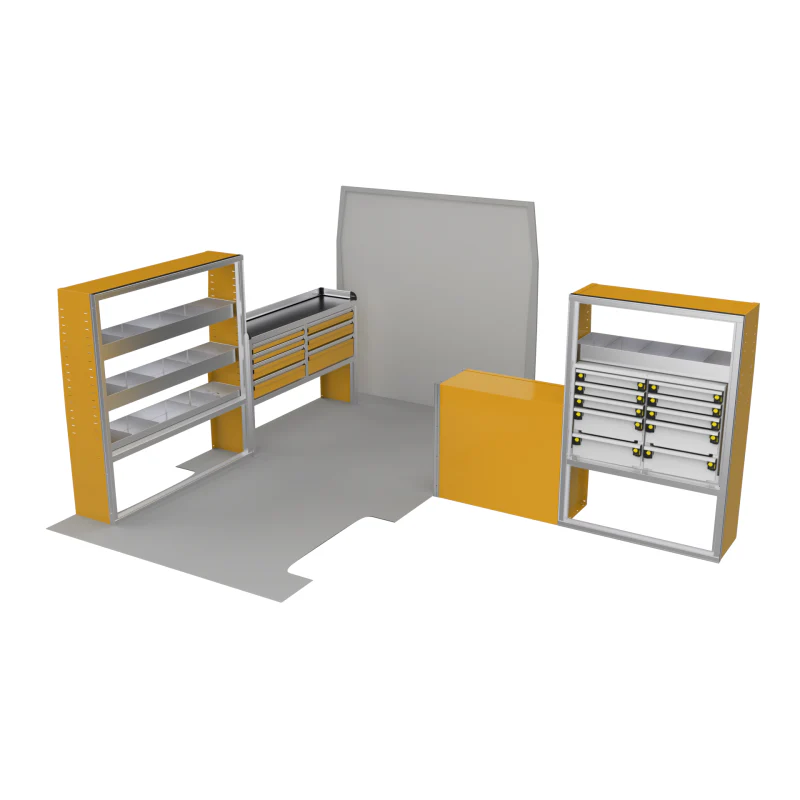

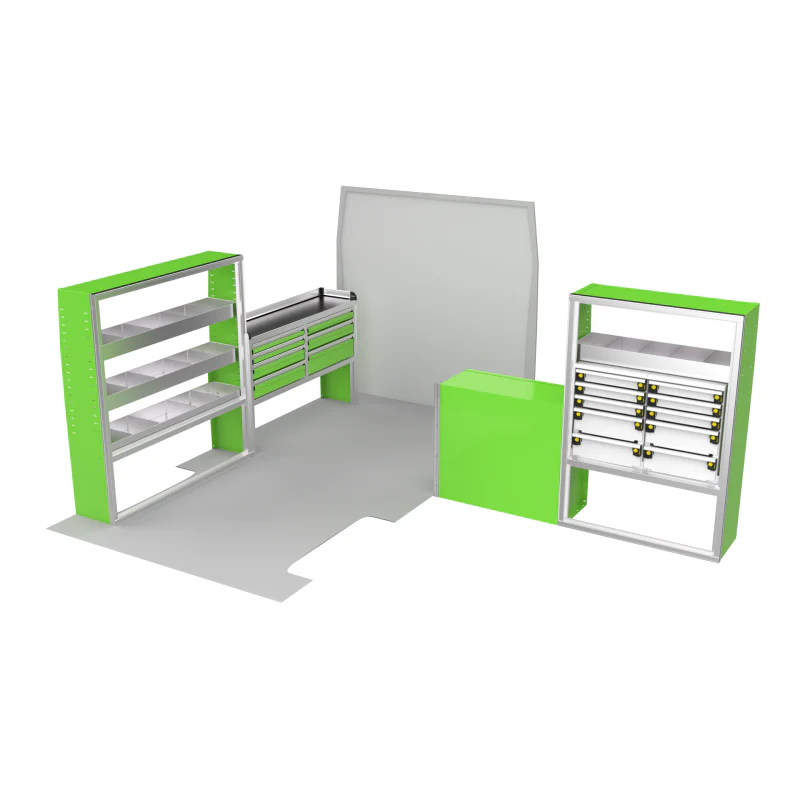

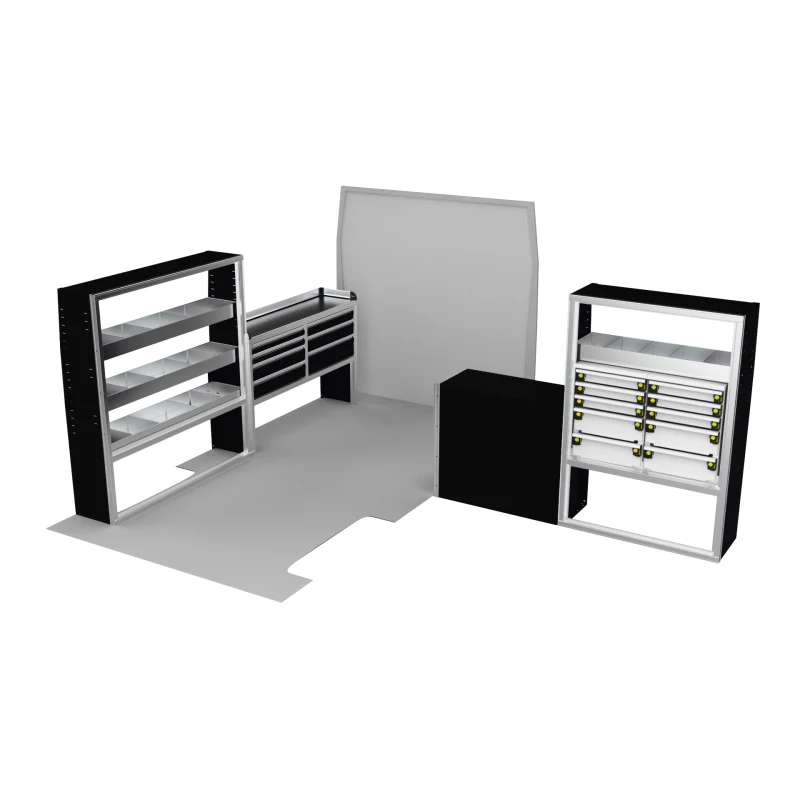

The VanPro Package RP2 includes the RP-300 Shelving Unit, RP-301 Shelving Unit, RP-303 Workbench, and RP-304 Drawer Housing for a comprehensive, efficient storage and workspace solution. Designed for the Ram ProMaster 2500/3500, this package features adjustable shelving, MotionGlide technology, and MotionLatch™ drawers for secure, easy-access organization. Constructed from lightweight, corrosion-resistant aluminum, it offers long-lasting durability, providing the flexibility and reliability your work van needs.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
RP-303 Workbench	Quantity: 1 Location: — Overall Size: 56"W x 36"H x 14"D Frame Size: 56"W x 36"H x 14"D Note: Cabinet height excludes 2.25" backsplash
RP-300	Quantity: 1 Location: — Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
RP-301 MotionGlide Cabinet	Quantity: 1 Location: — Overall Size: 41"W x 60"H x 16"D Frame Size: 41"W x 60"H x 16"D
RP-304 Drawer Housing	Quantity: 1 Location: — Overall Size: 16"W x 32"H x 36"D Frame Size: 16"W x 32"H x 36"D

Cabinet Options

• GasketLoc Countertop - Plastic Laminate (RP-303)
• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Back Panel (where noted)
• Bottom Rail
• Top Panel
• Floor Panel (RP-304)
• Delete Back Panel in RP-303 Opening 2
• Custom Deep Shelves with 4 Dividers (RP-300)
• Two MG-9 Units Mounted on Fixed Shelf (RP-301)
• ProMaster Profile

Opening Details

Model/Opening	Details
RP-303 - Opening 1	Size: 25.75"W x 17"H Drawers: 3", 3", 5", 5" [Lnr] Slide Type: Medium Duty 12" (x4) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
RP-303 - Opening 3	Size: 25.75"W x 17"H Drawers: 4", 5", 7" [Lnr] Slide Type: Medium Duty 12" (x3) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
RP-303 - Opening 2	Size: 53"W x 15.5"H EMPTY Additional Option: Delete Back Panel
RP-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
RP-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
RP-301 - Opening 1	Size: 38"W x 40"H EMPTY Adjustable Shelf: 1 (39.758"W x 14"D)
RP-301 - Opening 2	Size: 38"W x 15.5"H EMPTY Fixed Shelf with 2 MG-9 Units Mounted
RP-304 - Single Opening	Size: 13"W x 29"H Drawers: 3", 3", 4", 5", 6", 7" [Lnr] Slide Type: Medium Duty 34" (x6) Inside Drawer Dim: 8.53"W x 33.671"D Bottom Space: 0.952"

Vehicle Fitment

Product Application	Work Van
Vehicle	RAM ProMaster
Model Year	2014-2025
Wheelbase	159"
Cargo Length	Standard
Cargo Roof Height	High, Super High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
