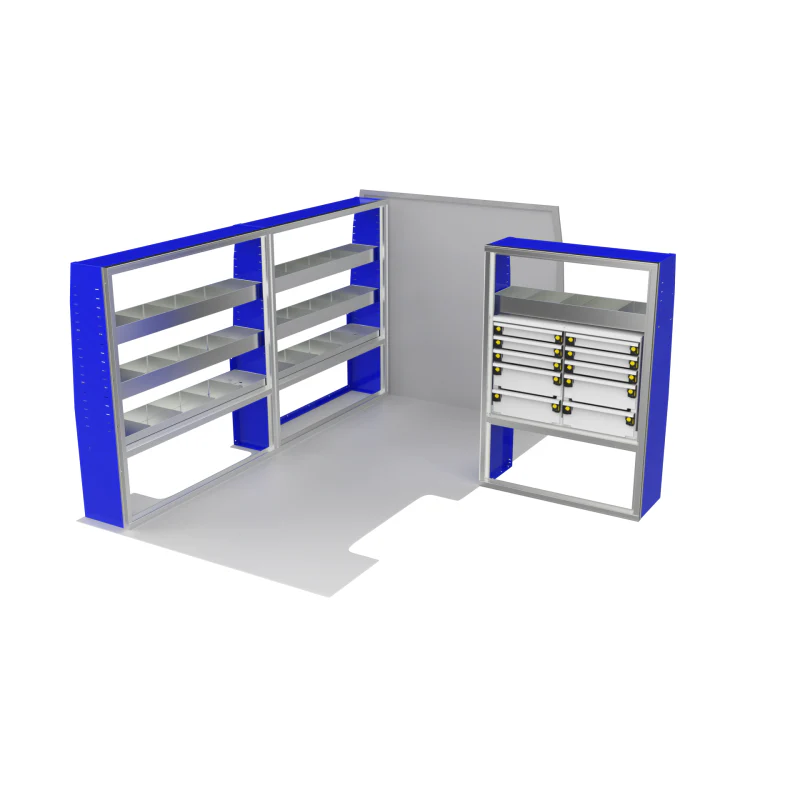

CTech VanPro Package MS1 Model MS-144-PRO-1

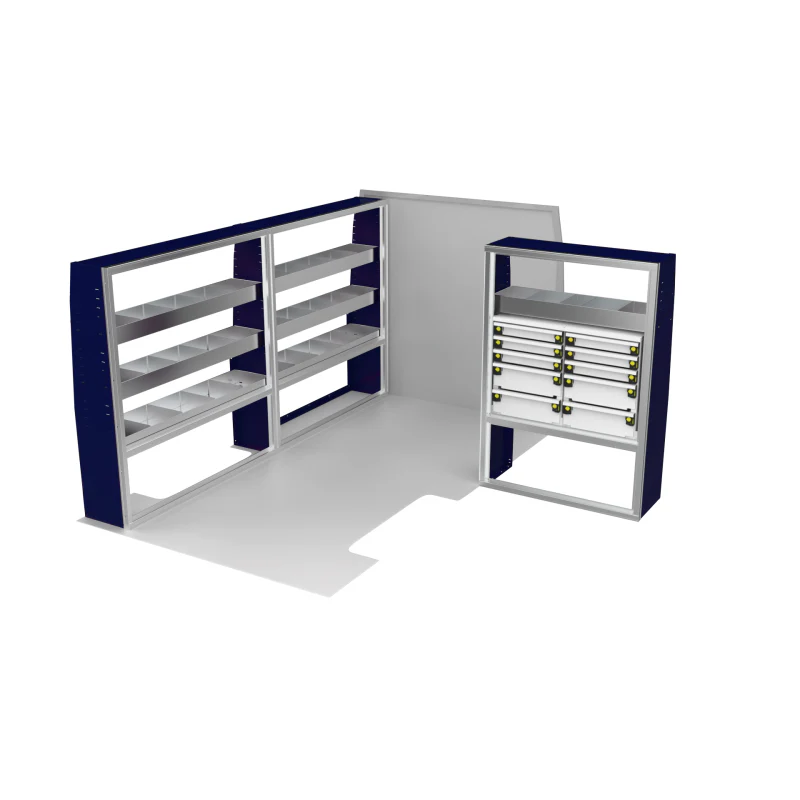

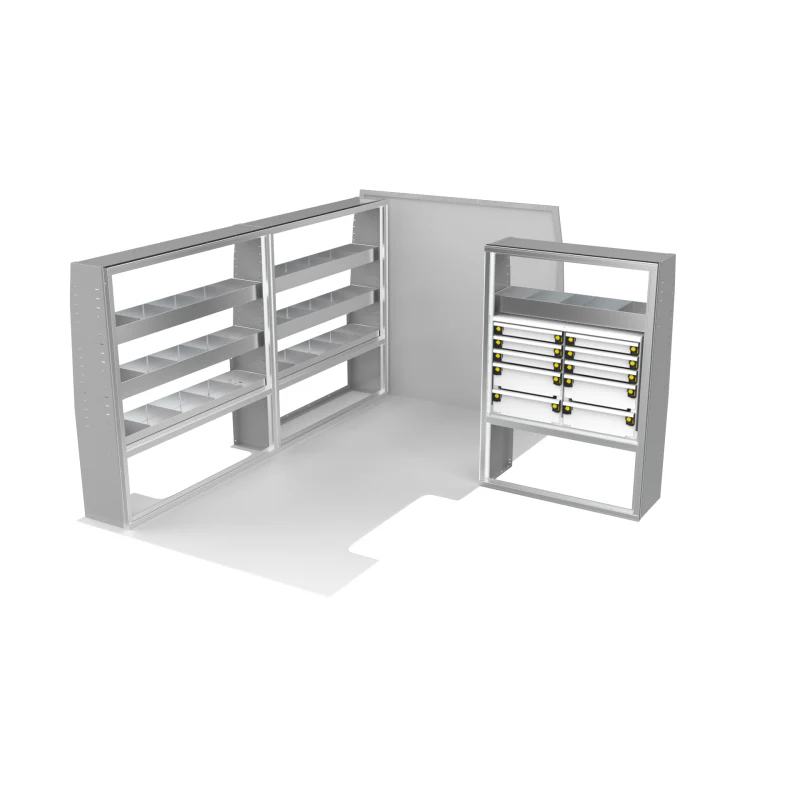

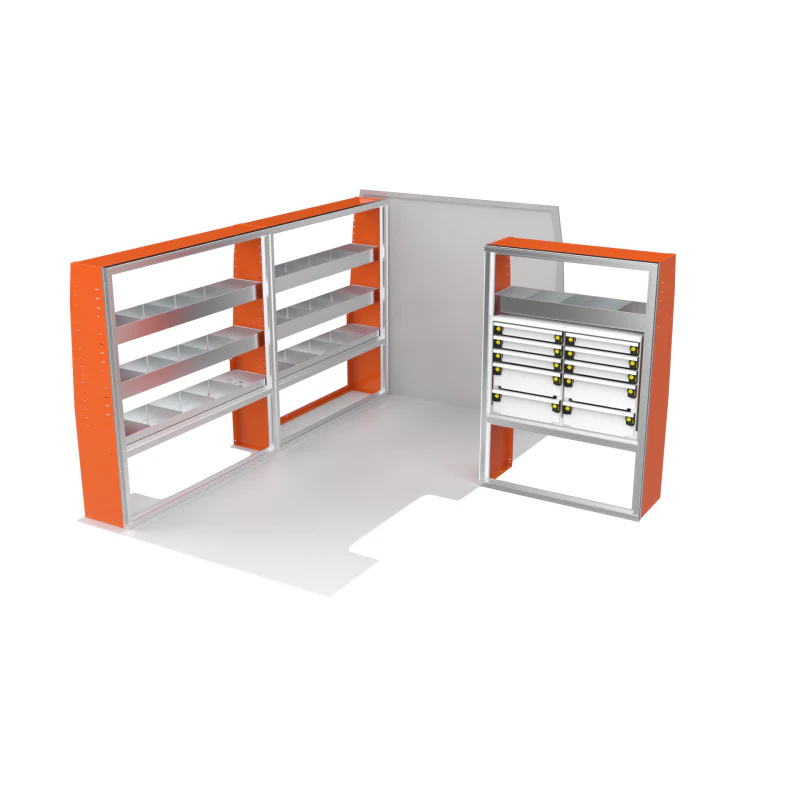

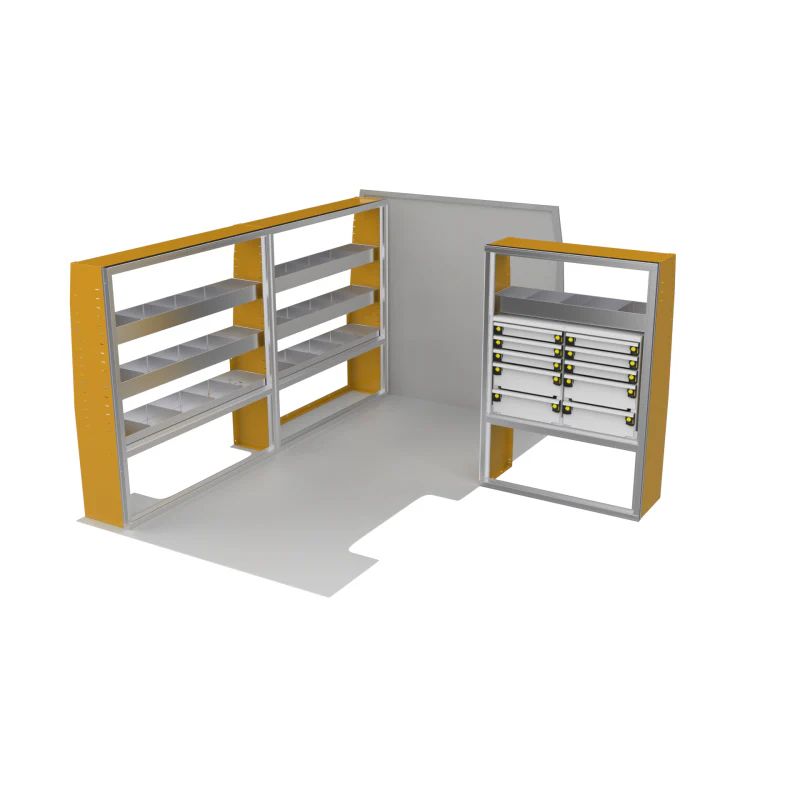

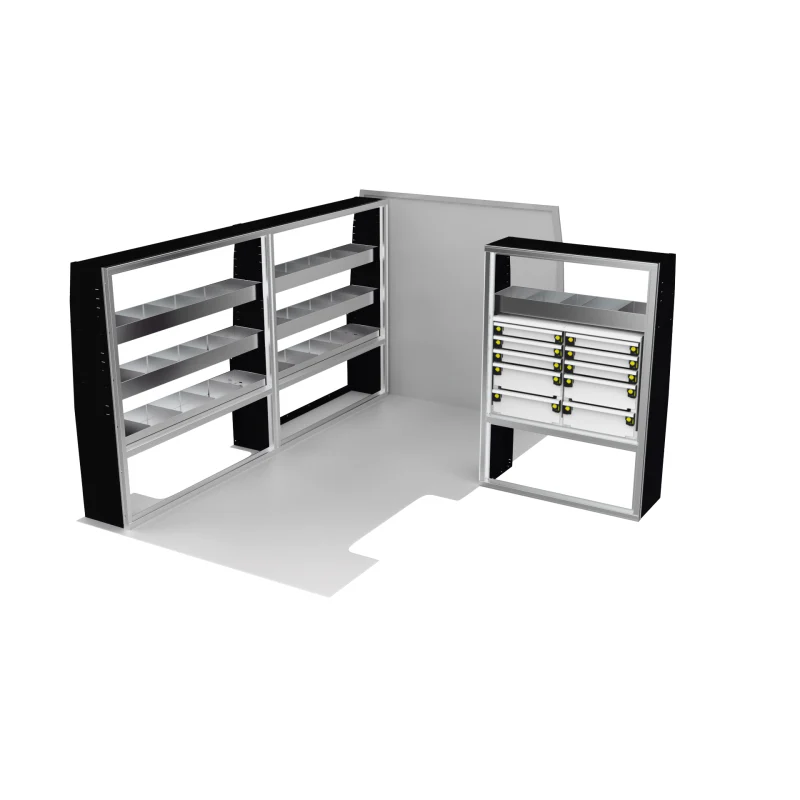

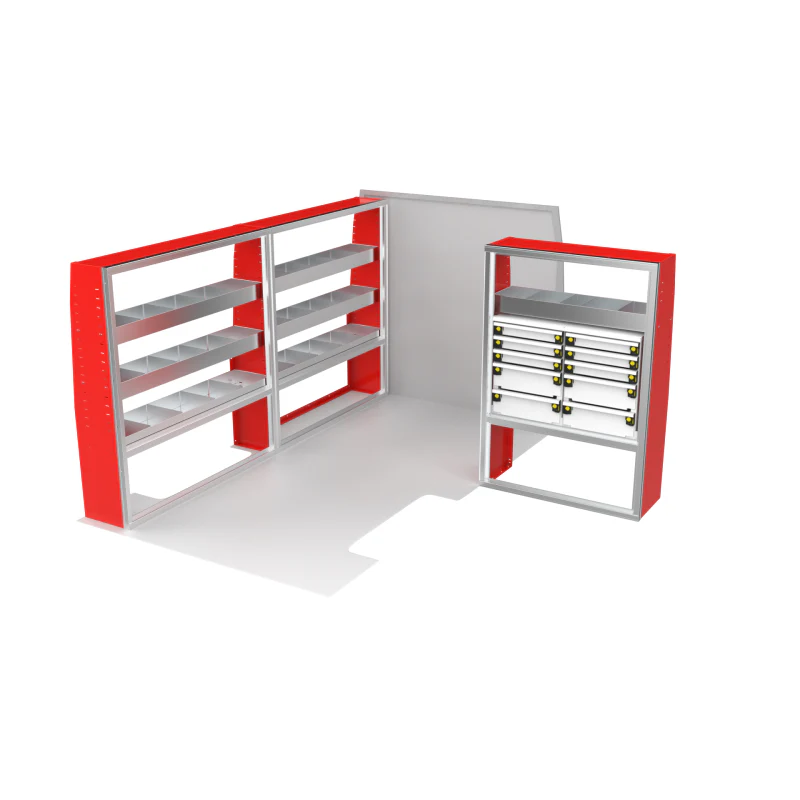

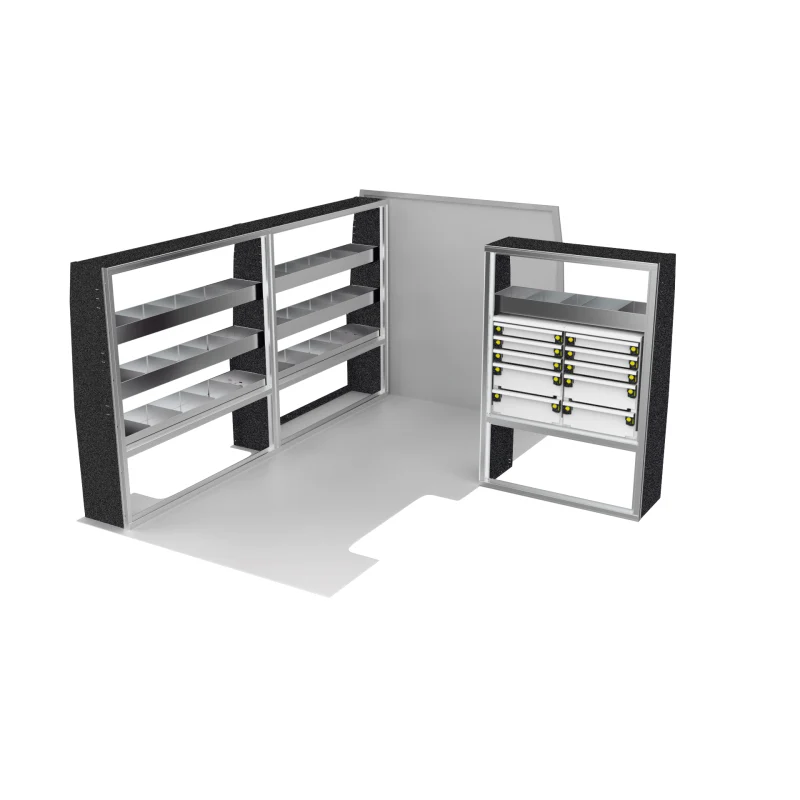

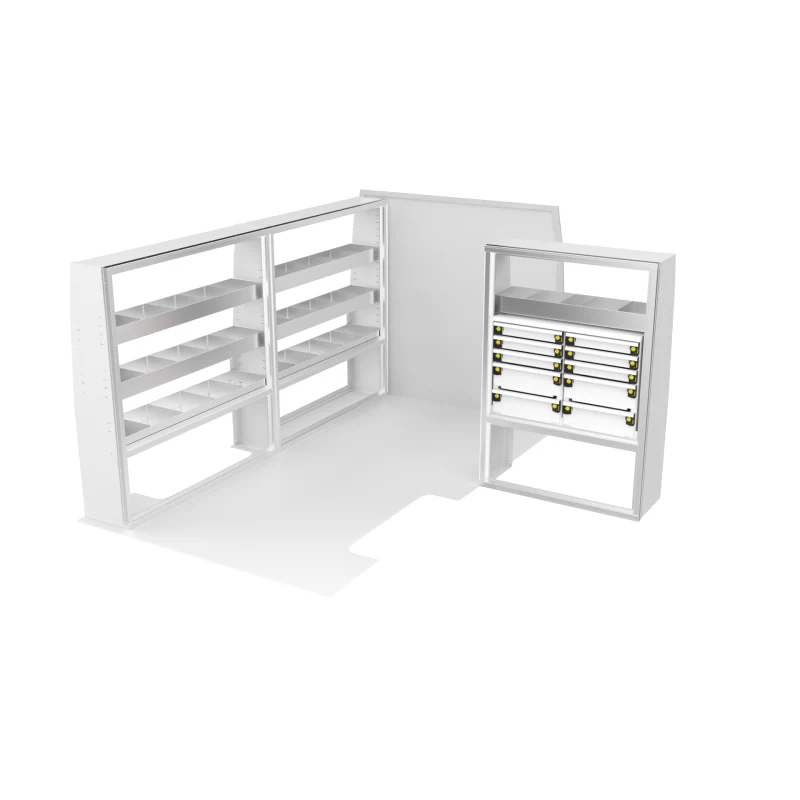

The VanPro Package MS1 for Mercedes Sprinter 144 includes the MS300 Shelving Unit with adjustable shelves and the MS301 MotionGlide Shelving Unit, offering easy access and optimized storage for your mobile workspace.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
MS-300	Quantity: 2 Location: — Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
MS-301 MotionGlide Cabinet	Quantity: 1 Location: — Overall Size: 41"W x 60"H x 16"D Frame Size: 41"W x 60"H x 16"D
MG-9 MotionGlide Unit	Quantity: 2 Mounted in: MS-301 Unit Size: 18"W x 25"H x 14"D Drawer Heights: 3", 3", 3", 6", 6"

Cabinet Options

• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Bottom Rail
• Top Panel
• Custom Deep Shelves with 4 Dividers (MS-300)
• Two MG-9 Units Mounted on Fixed Shelf (MS-301)
• Sprinter Profile

Opening Details

Model/Opening	Details
MS-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
MS-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
MS-301 - Opening 1	Size: 38"W x 40"H EMPTY Adjustable Shelf: 1 (39.758"W x 14"D)
MS-301 - Opening 2	Size: 38"W x 15.5"H EMPTY Fixed Shelf with 2 MG-9 Units Mounted

Vehicle Fitment

Product Application	Work Van
Vehicle	Mercedes Sprinter
Model Year	2019-2025
Wheelbase	144"
Cargo Length	Standard
Cargo Roof Height	High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
