CTech VanPro Package ML1 Model MS-170-PRO-1

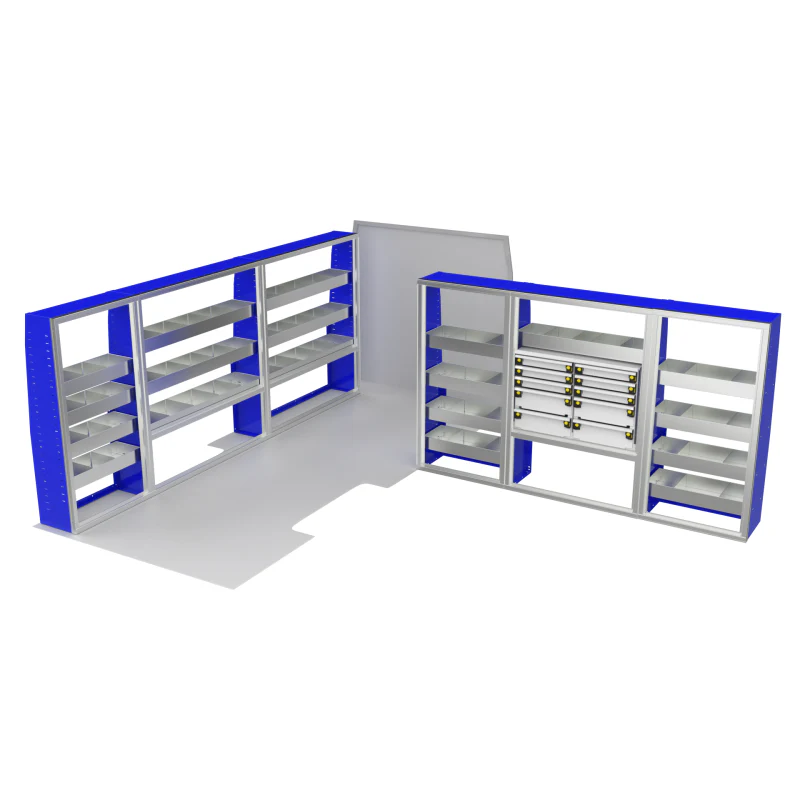

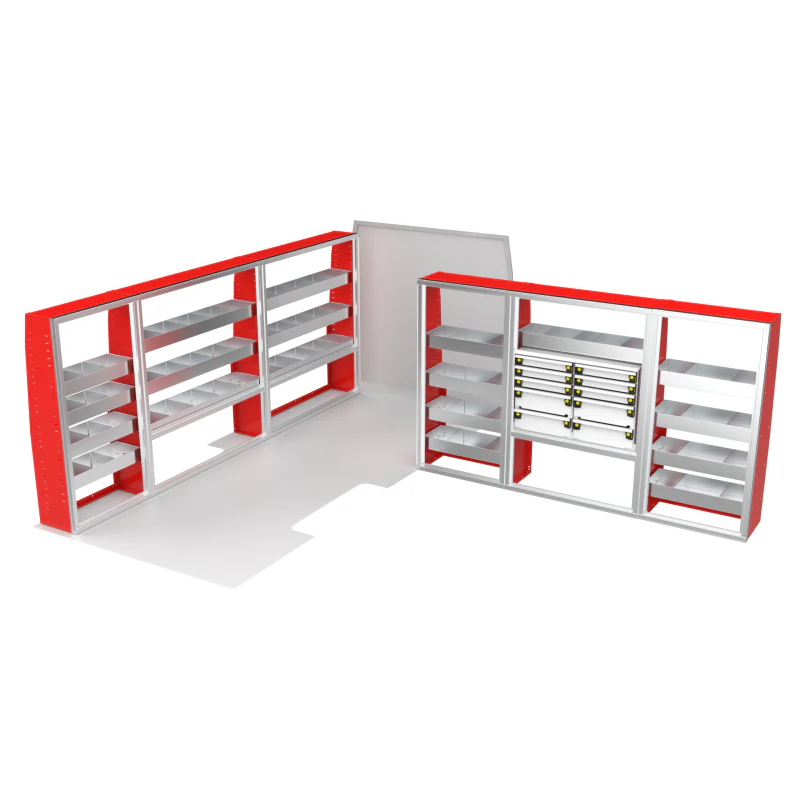

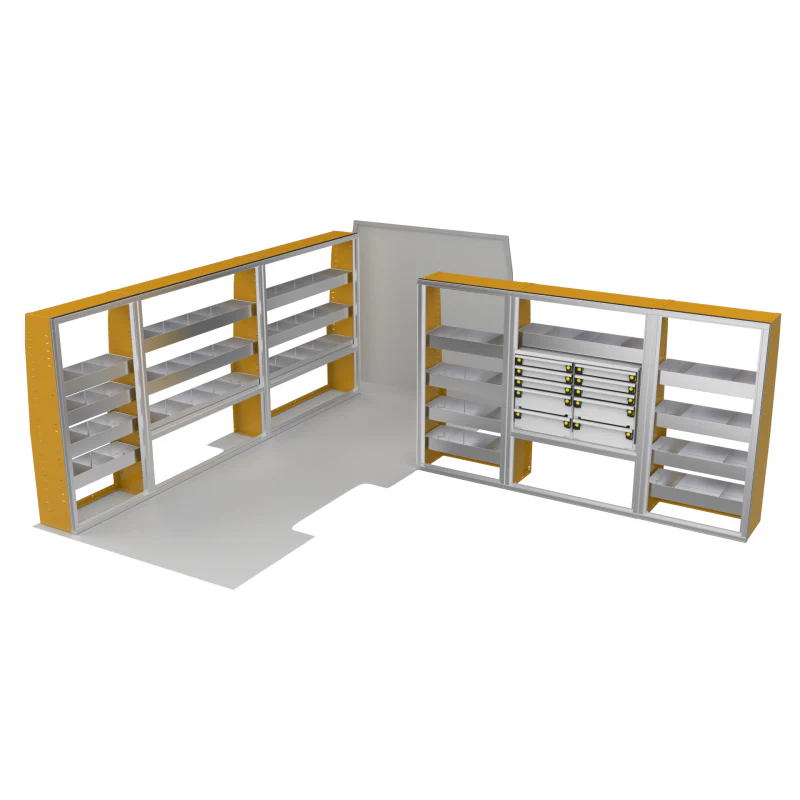

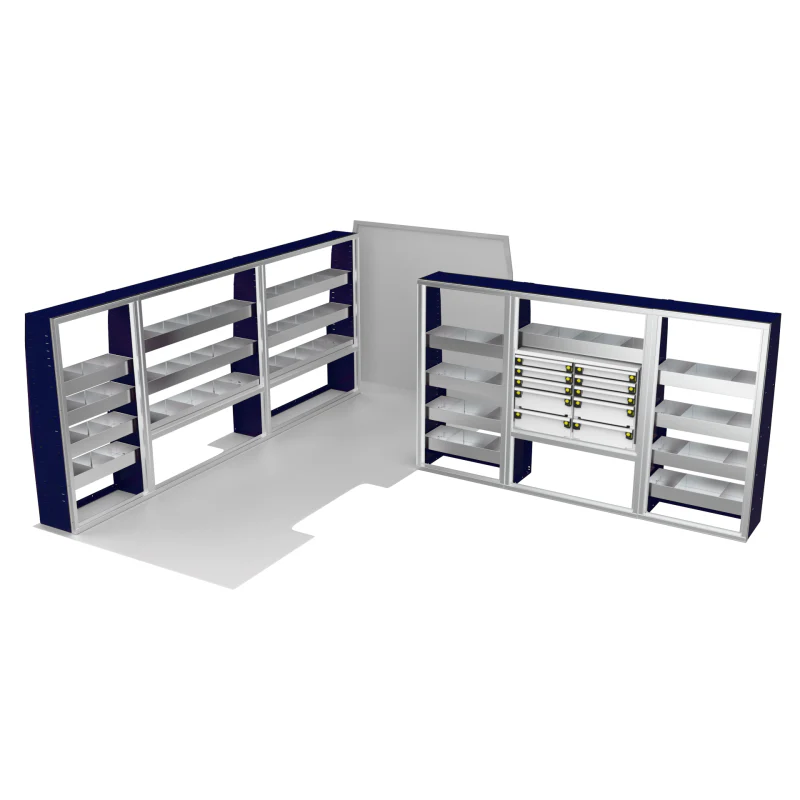

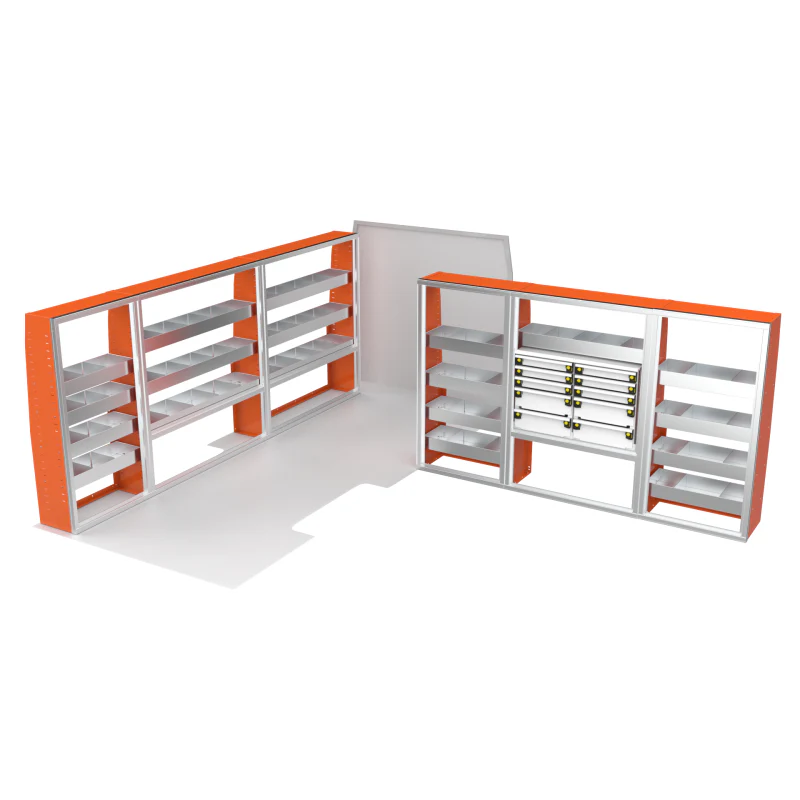

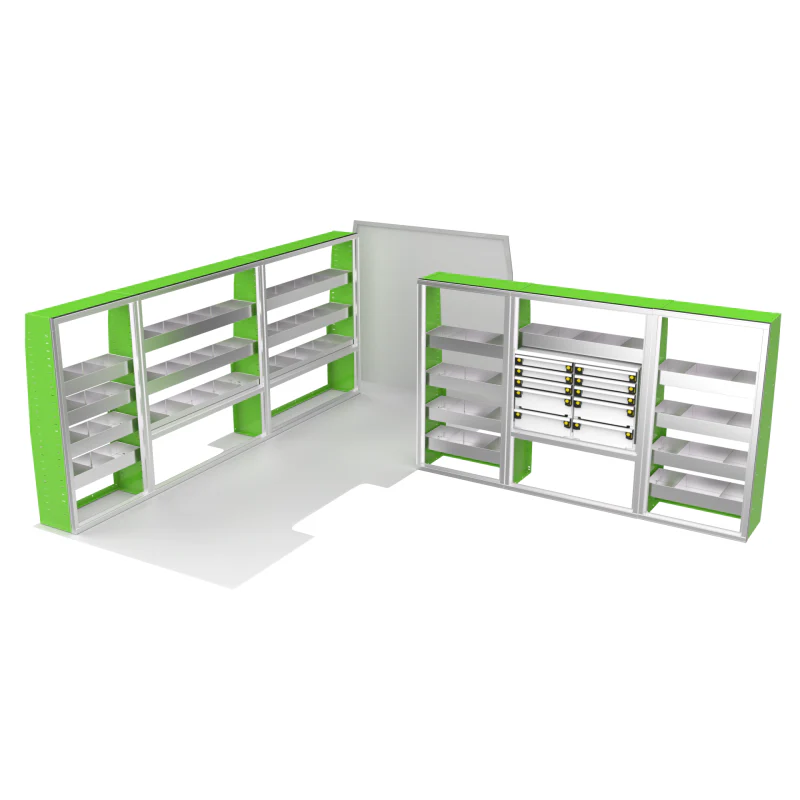

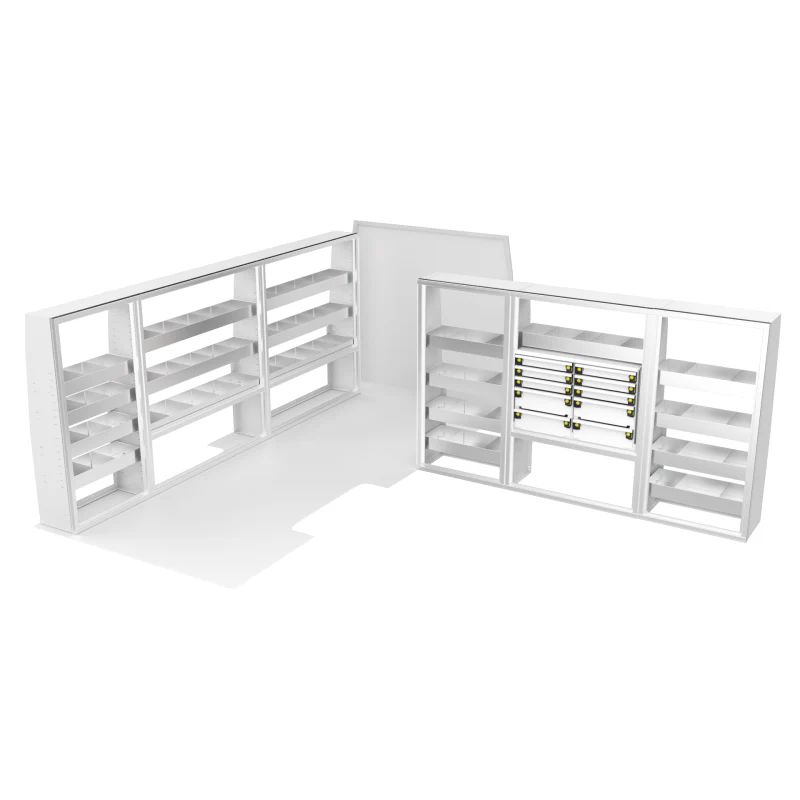

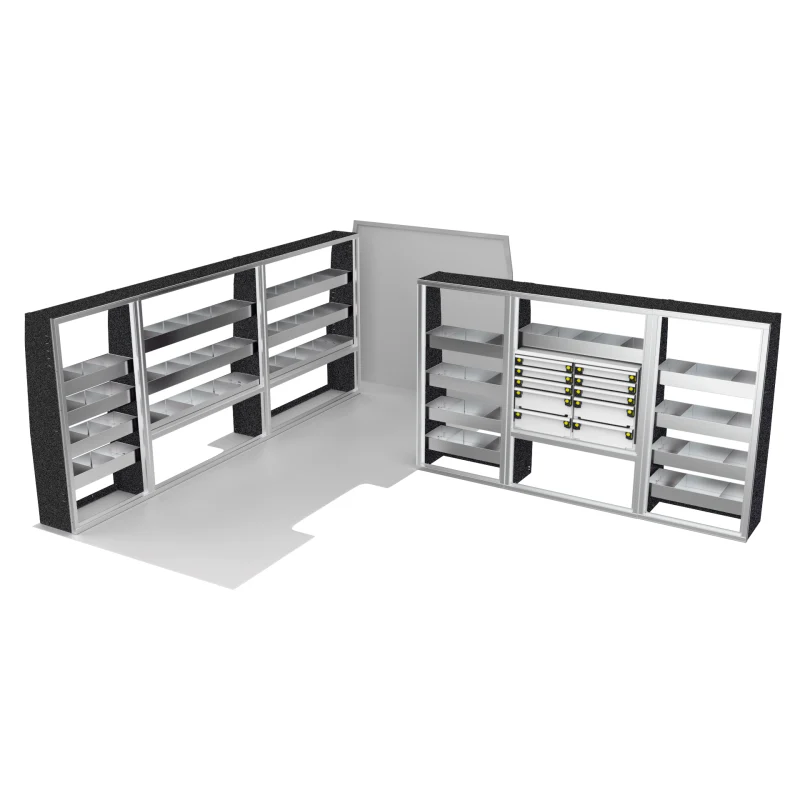

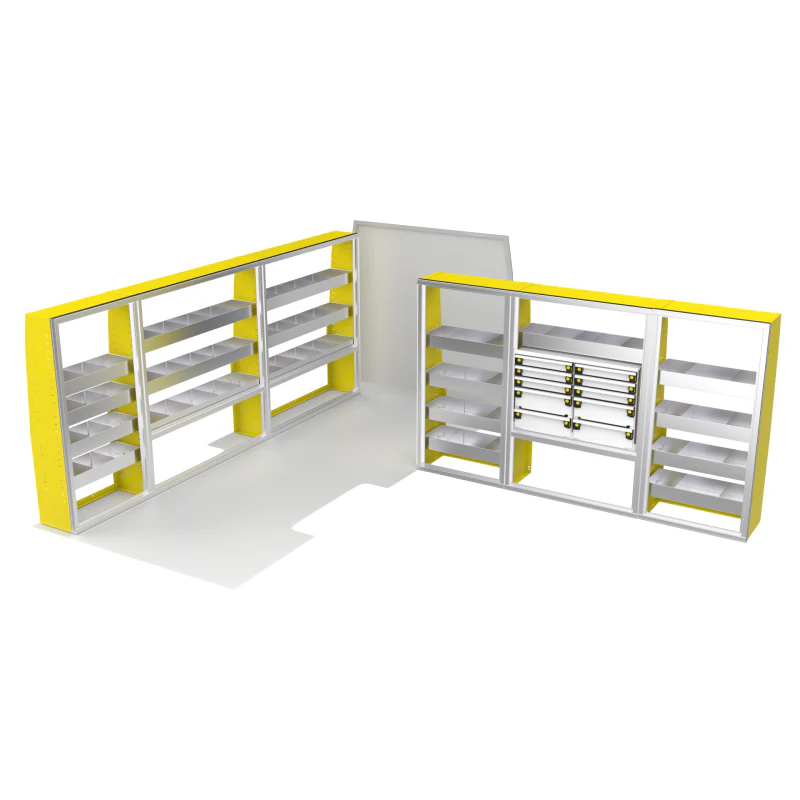

The VanPro Package ML1 for Mercedes Sprinter 170 combines the MS300 Shelving Unit, MS301 MotionGlide Shelving Unit, MS305 Shelving Unit, and MS306 Shelving Unit to provide an all-encompassing storage solution for your work van. Featuring custom deep shelves, adjustable shelves, motion-controlled shelving, and dividers for enhanced organization, this package is designed to maximize your storage space, ensuring tools and equipment are easily accessible and securely stored.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
MS-300	Quantity: 2 Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
MS-305	Quantity: 1 Overall Size: 30"W x 60"H x 14"D Frame Size: 30"W x 60"H x 14"D
MS-301 MotionGlide Cabinet	Quantity: 1 Overall Size: 41"W x 60"H x 16"D Frame Size: 41"W x 60"H x 16"D
MG-9 MotionGlide Unit	Quantity: 2 Mounted in: MS-301 Unit Size: 18"W x 25"H x 14"D Drawer Heights: 3", 3", 3", 6", 6"
MS-306	Quantity: 1 Overall Size: 30"W x 60"H x 16"D Frame Size: 30"W x 60"H x 16"D

Cabinet Options

• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Bottom Rail
• Top Panel
• Custom Deep Shelves with Dividers
  - MS-300: 4 Dividers Each
  - MS-305: 2 Dividers
  - MS-306: 2 Dividers
• Two MG-9 Units Mounted on Fixed Shelf (MS-301)
• Sprinter Profile

Opening Details

Model/Opening	Details
MS-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
MS-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
MS-305 - Single Opening	Size: 27"W x 57"H EMPTY Adjustable Shelves: 4 (28.758"W x 12"D)
MS-301 - Opening 1	Size: 38"W x 40"H EMPTY Adjustable Shelf: 1 (39.758"W x 14"D)
MS-301 - Opening 2	Size: 38"W x 15.5"H EMPTY Fixed Shelf with 2 MG-9 Units Mounted
MS-306 - Single Opening	Size: 27"W x 57"H EMPTY Adjustable Shelves: 4 (28.758"W x 14"D)

Vehicle Fitment

Product Application	Work Van
Vehicle	Mercedes Sprinter
Model Year	2019-2025
Wheelbase	170"
Cargo Length	Standard
Cargo Roof Height	High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
