CTech VanPro Package MEXT3 Model MS-170EXT-PRO-3

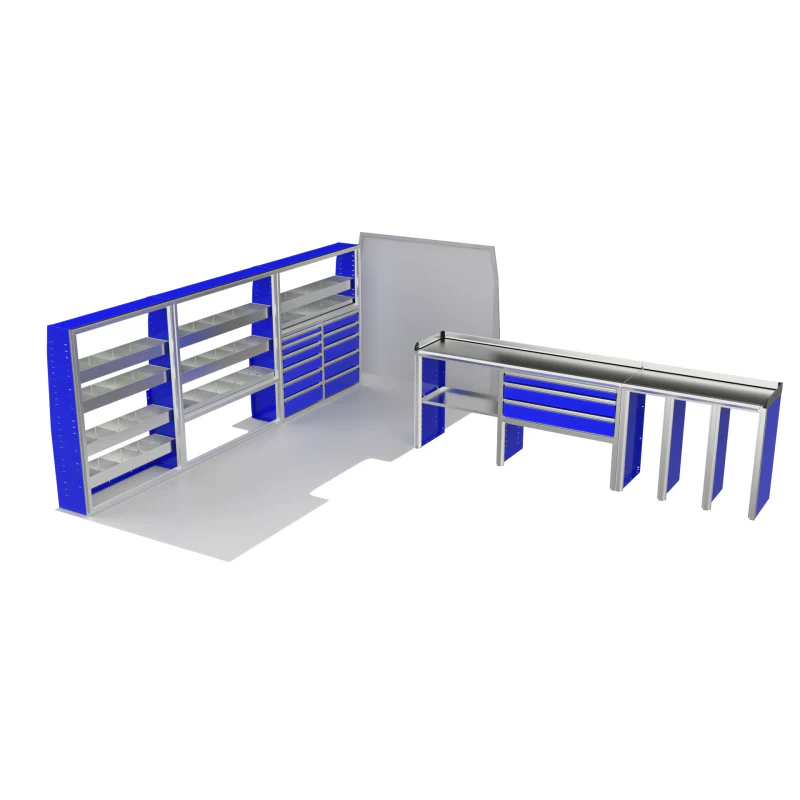

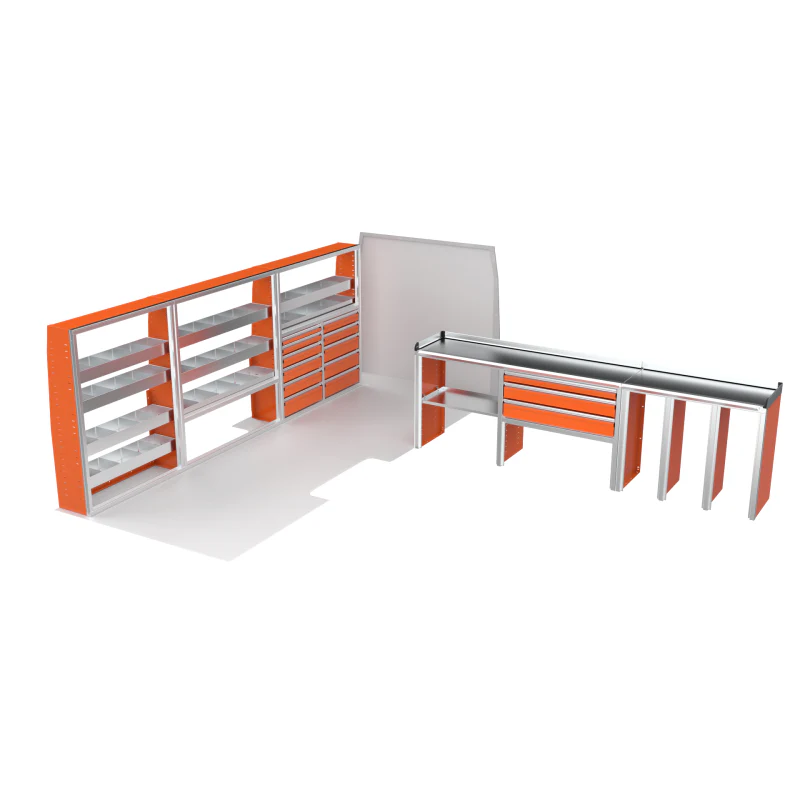

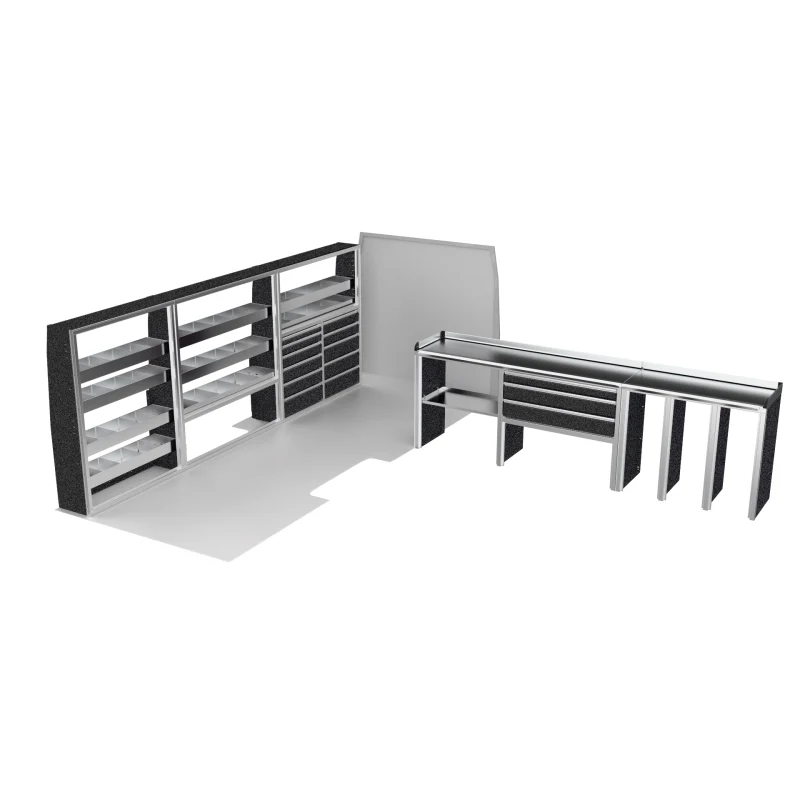

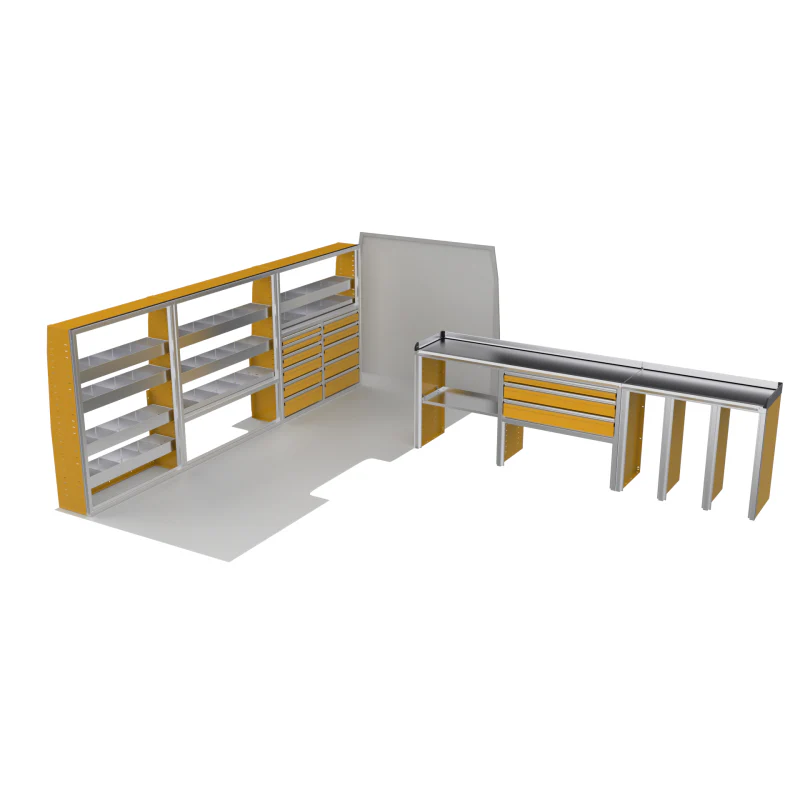

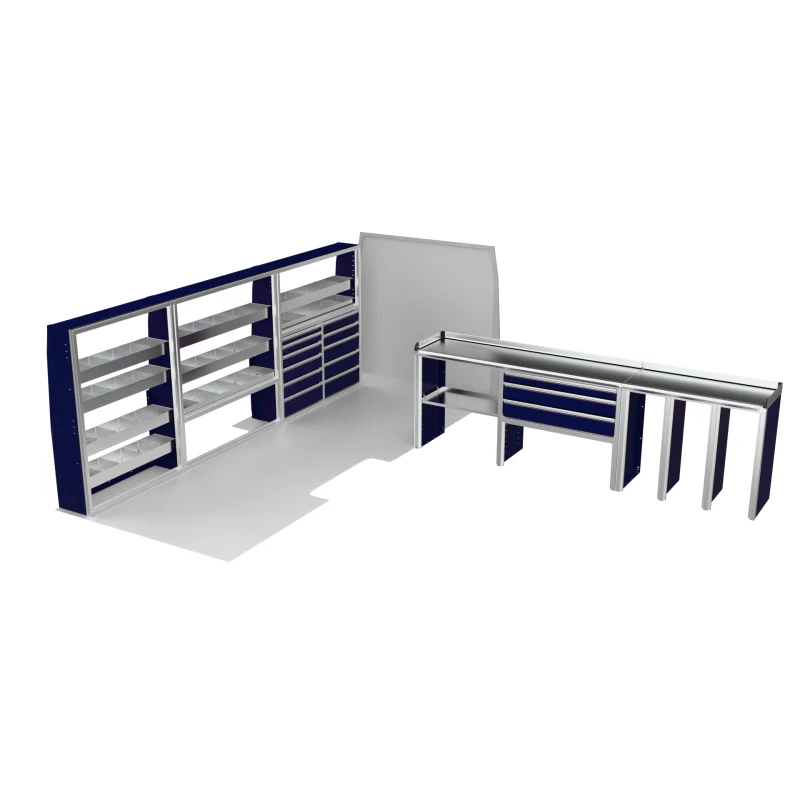

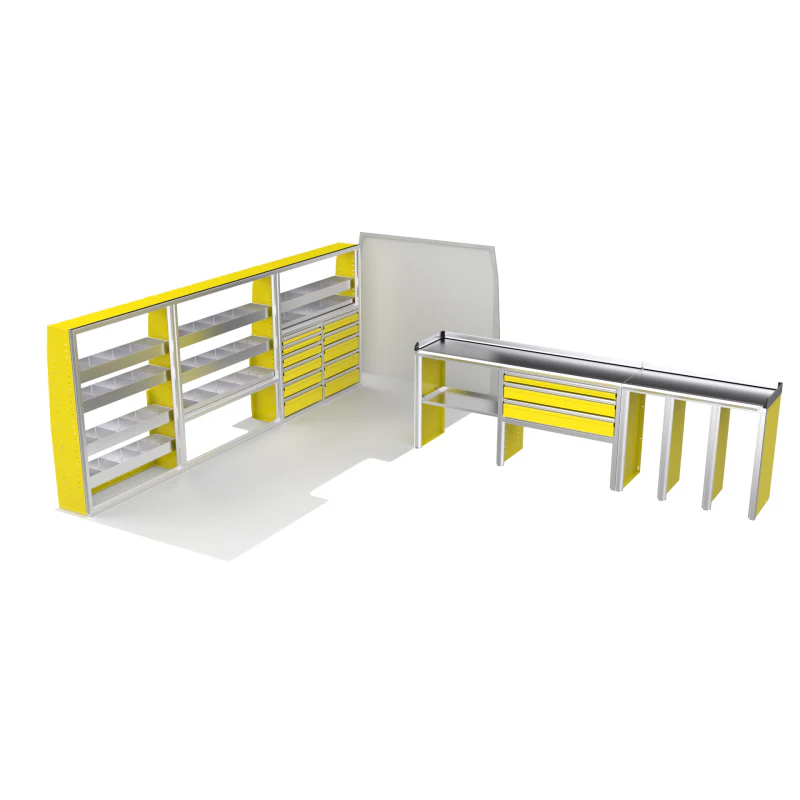

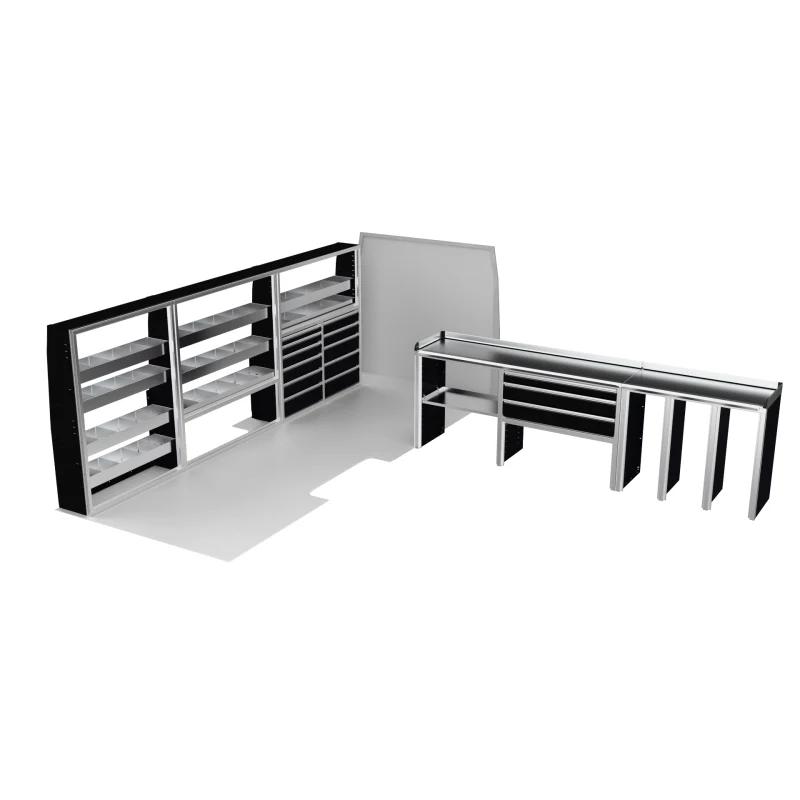

The VanPro Package MEXT3 for the Mercedes Sprinter 170 EXT includes the MS300 Shelving Unit, MS302 Shelving Unit, MS312 Shelving Unit, MS314A Workbench, and MS314B Workbench. This package combines robust shelving solutions with flexible workstations, designed to optimize storage and workspace in the extended Mercedes Sprinter. Offering customizable shelving and motion-latch drawers, this package provides durability and efficiency for mobile businesses and professionals who need a high-performance van setup.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
MS-312 MotionLatch Parts Cabinet	Quantity: 1 Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
MS-300 Shelving Unit	Quantity: 1 Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
MS-302 Shelving Unit	Quantity: 1 Overall Size: 44"W x 60"H x 14"D Frame Size: 44"W x 60"H x 14"D
MS-314A Workbench (Right)	Quantity: 1 Overall Size: 76"W x 37"H x 20"D Frame Size: 76"W x 37"H x 20"D Note: Offset countertop joint
MS-314B Workbench (Left)	Quantity: 1 Overall Size: 45"W x 37"H x 20"D Frame Size: 45"W x 37"H x 20"D Note: Offset countertop joint

Cabinet Options

• GasketLoc Countertop - Stainless Steel (MS-314A & MS-314B)
• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Back Panel (where specified)
• Bottom Rail
• Top Panel
• Floor Panel (MS-312)
• Custom Deep Shelves with Dividers:
  - MS-300: 4 dividers
  - MS-302: 4 dividers
  - MS-312: 4 dividers
• Sprinter Profile

Opening Details

Model/Opening	Details
MS-312 - Opening 1	Size: 53"W x 23.375"H EMPTY Adjustable Shelf: 1 (54.758"W x 12"D)
MS-312 - Opening 2	Size: 25.75"W x 32.125"H Drawers: 3", 4", 5", 6", 6", 7" [Lnr] Slide Type: Medium Duty 12" (x6) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
MS-312 - Opening 3	Size: 25.75"W x 32.125"H Drawers: 5", 5", 7", 7", 7" [Lnr] Slide Type: Medium Duty 12" (x5) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
MS-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
MS-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
MS-302 - Single Opening	Size: 41"W x 57"H EMPTY Adjustable Shelves: 4 (42.758"W x 12"D)
MS-314A - Opening 1	Size: 31.5"W x 35"H EMPTY Adjustable Shelf: 1 (32.629"W x 18"D)
MS-314A - Opening 2	Size: 40"W x 17"H Drawers: 4", 6", 6" [5 Row, Lnr, Sep:10] Slide Type: Medium Duty 16" (x3) Inside Drawer Dim: 35.53"W x 15.671"D Divider Clip Kit: QTY 7 Divider Screw Kit: QTY 6 Bottom Space: 0.952"
MS-314A - Opening 3	Size: 40"W x 16.5"H EMPTY
MS-314B - Opening 1	Size: 13"W x 35"H EMPTY
MS-314B - Opening 2	Size: 13"W x 35"H EMPTY
MS-314B - Opening 3	Size: 13"W x 35"H EMPTY

Vehicle Fitment

Product Application	Work Van
Vehicle	Mercedes Sprinter
Model Year	2019-2025
Wheelbase	170"
Cargo Length	Extended
Cargo Roof Height	High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
