CTech VanPro Package MEXT2 Model MS-170EXT-PRO-2

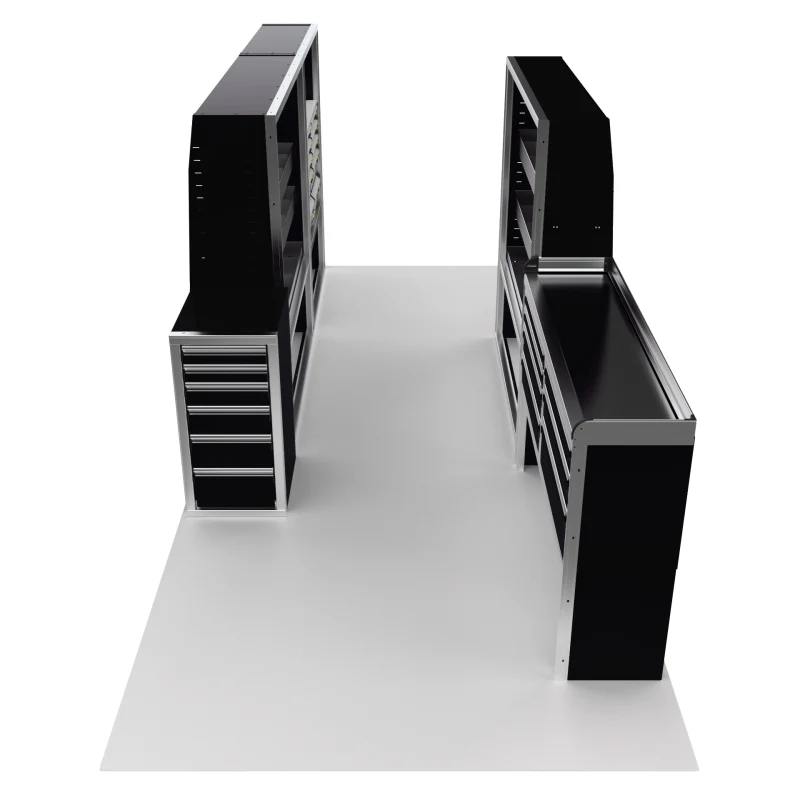

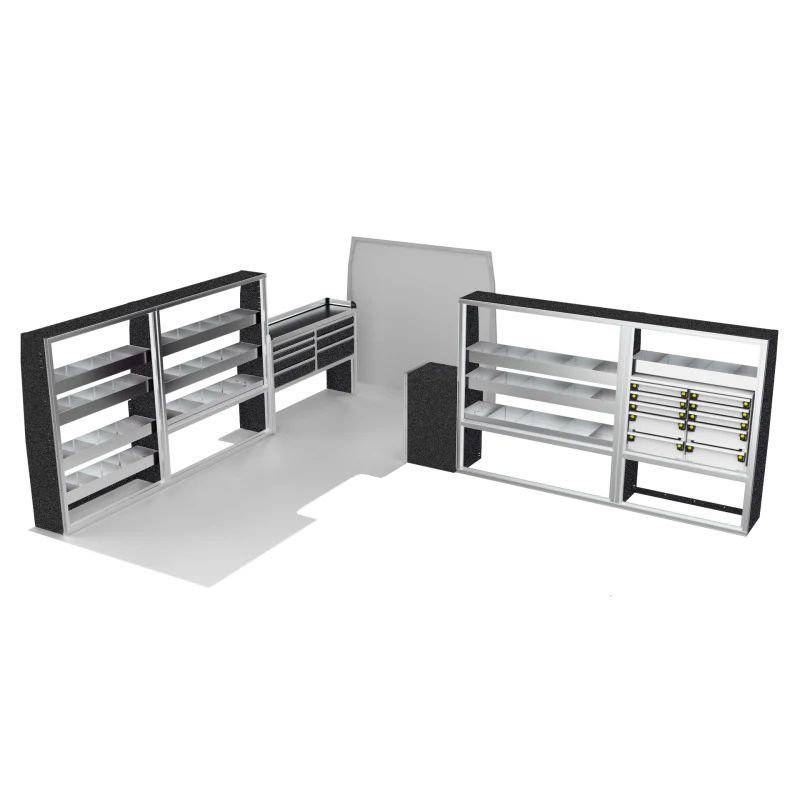

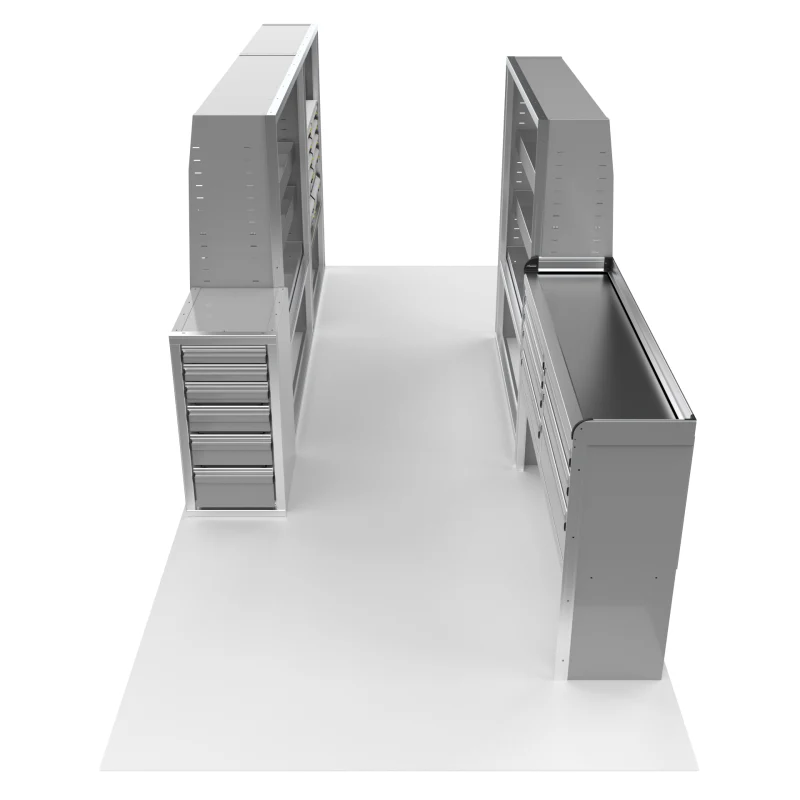

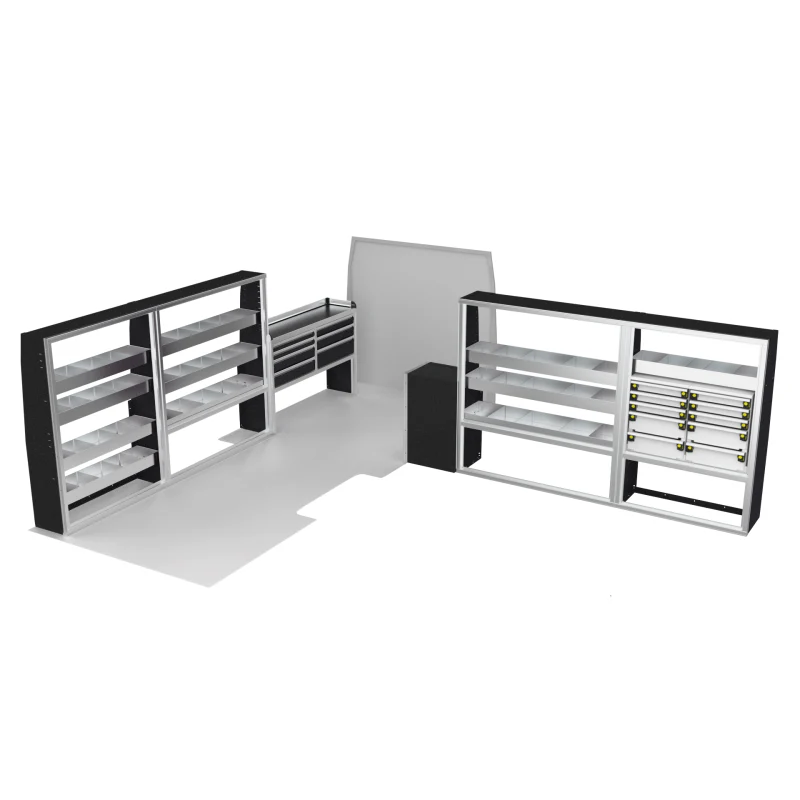

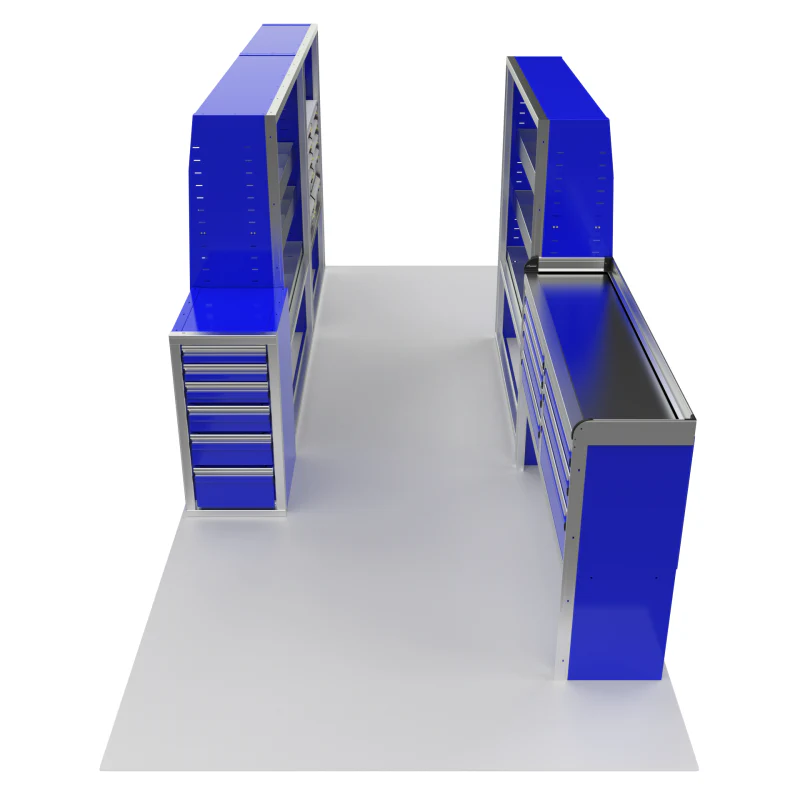

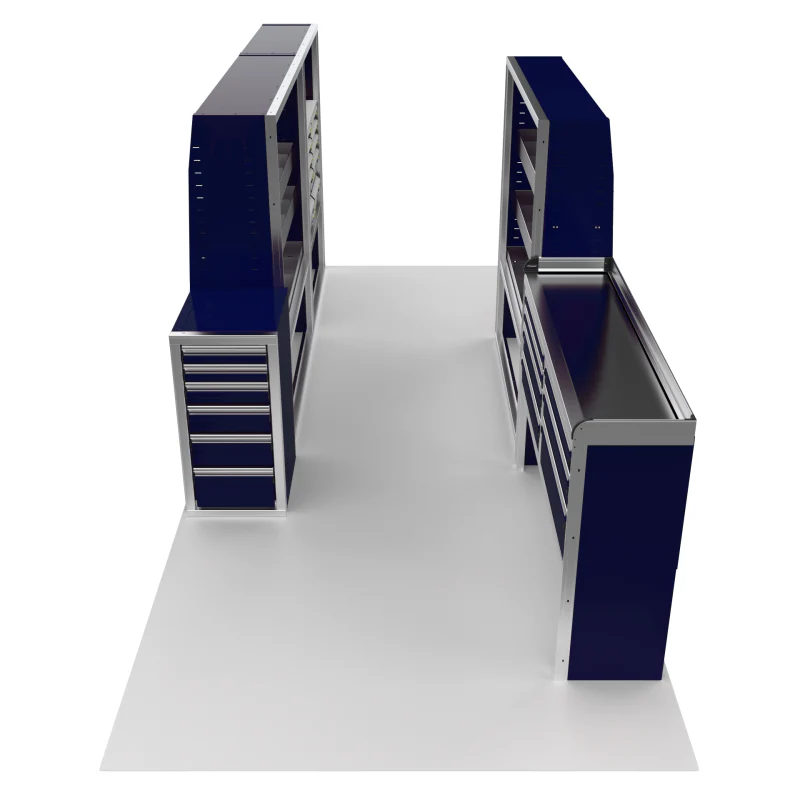

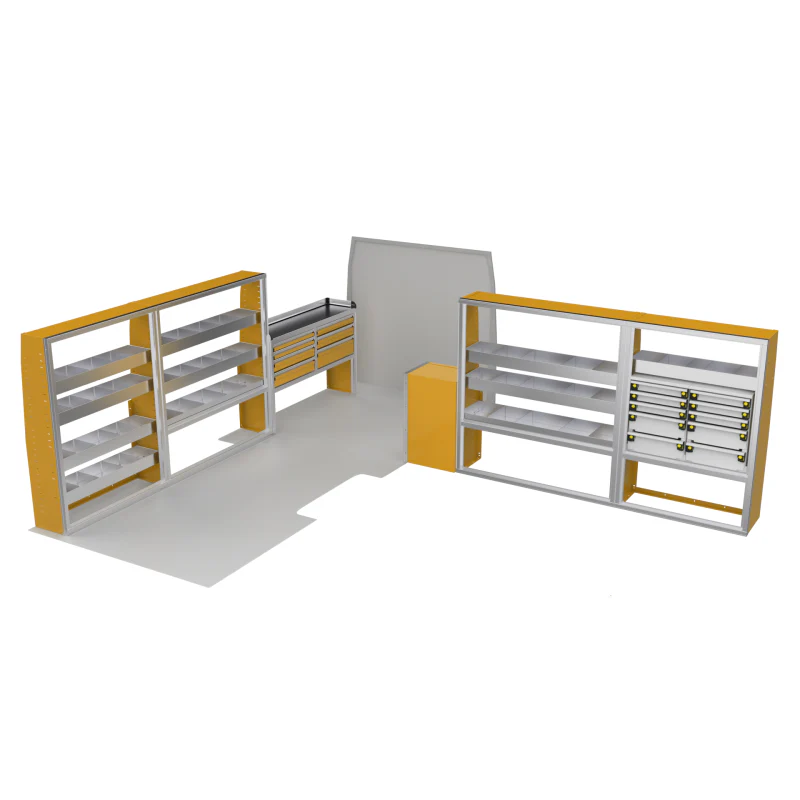

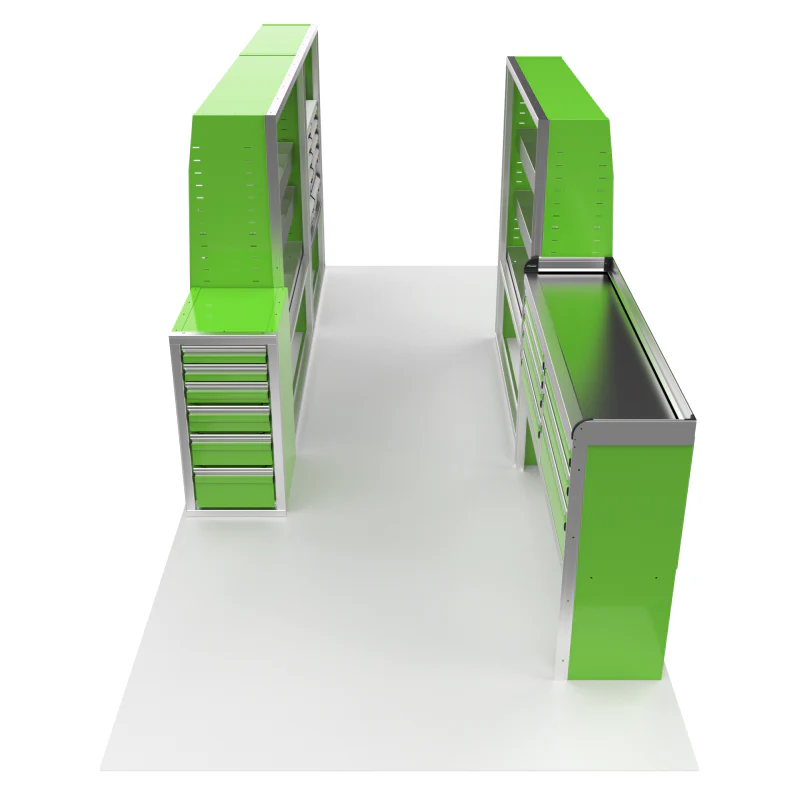

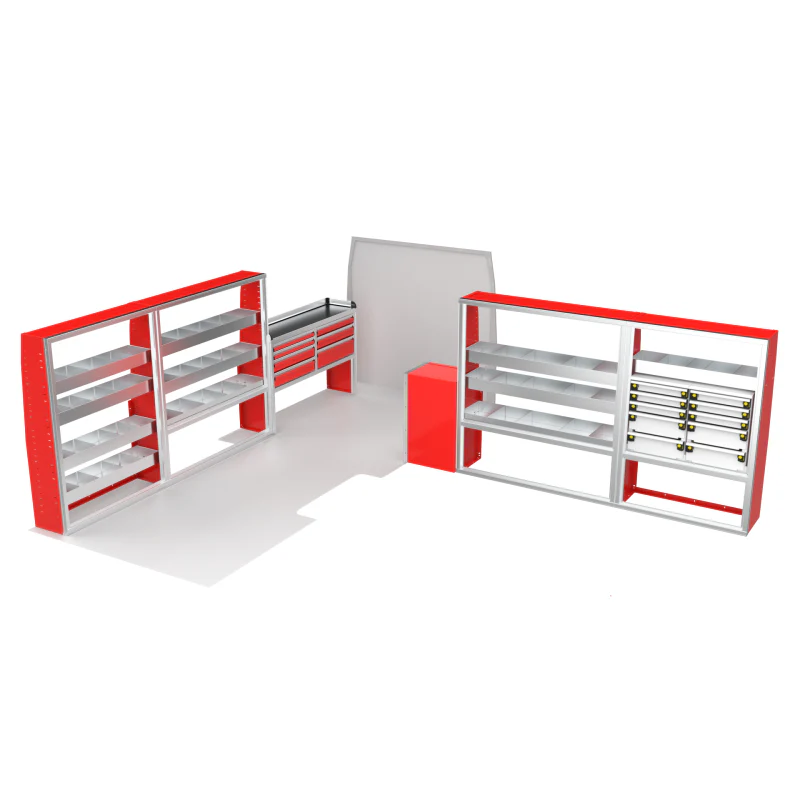

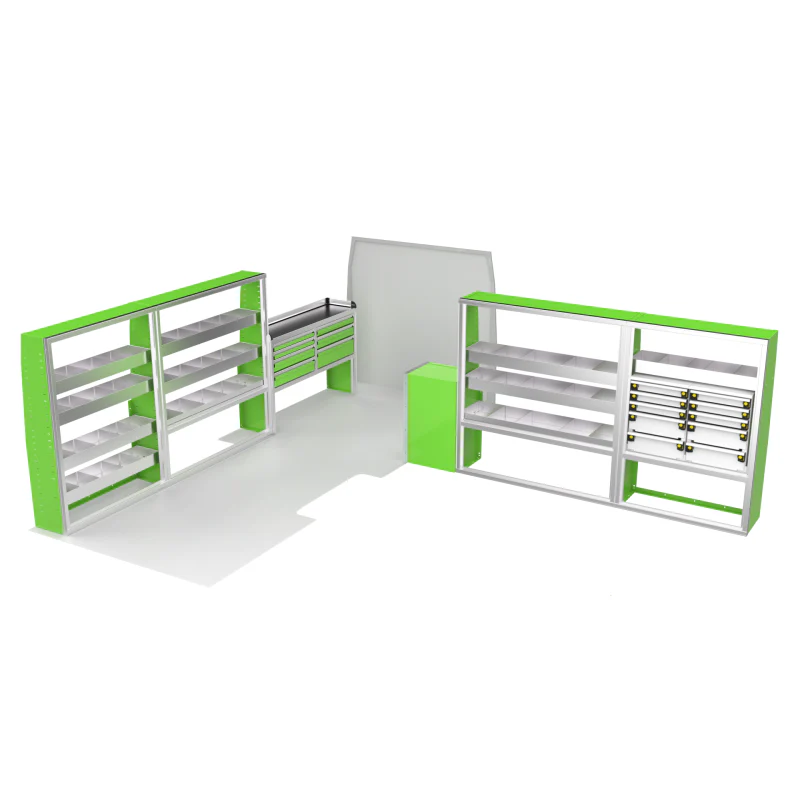

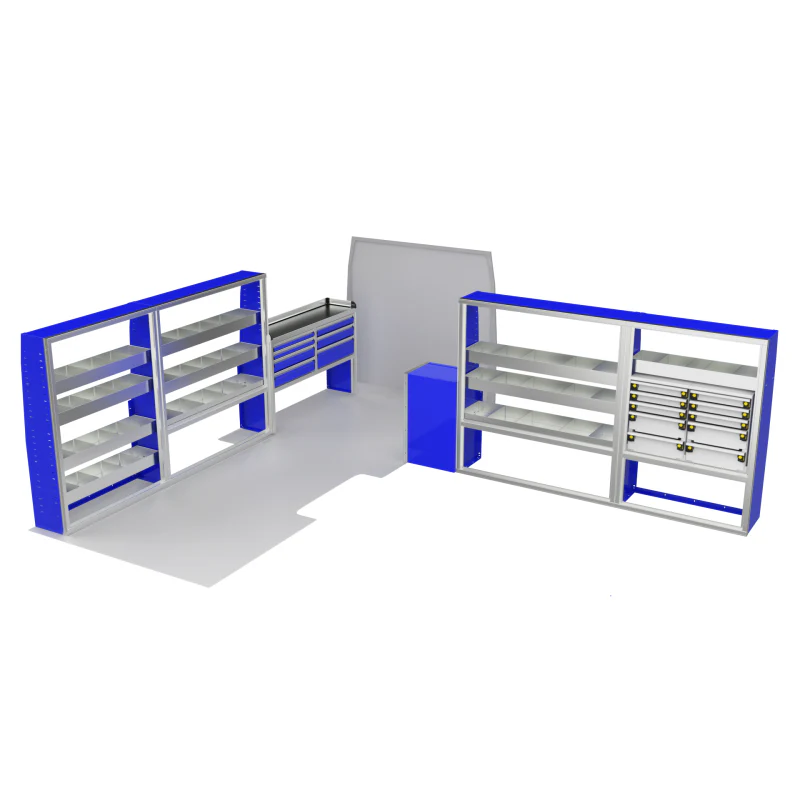

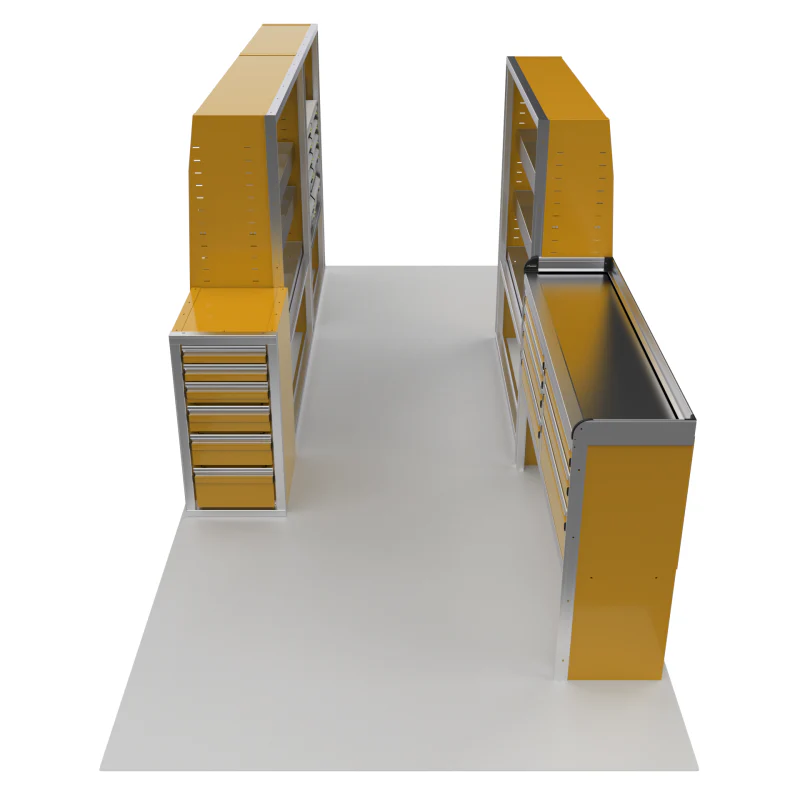

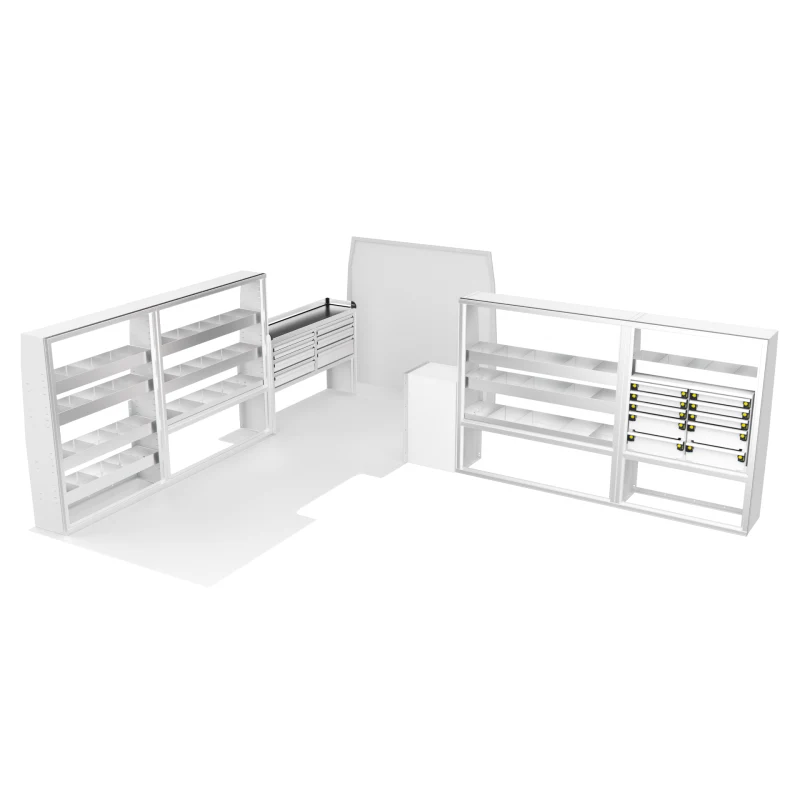

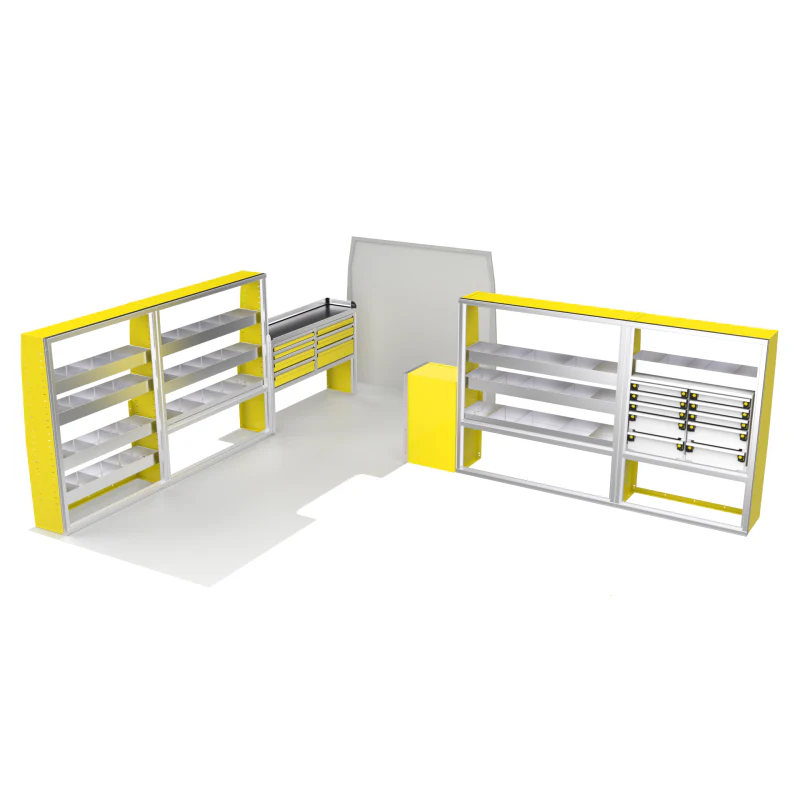

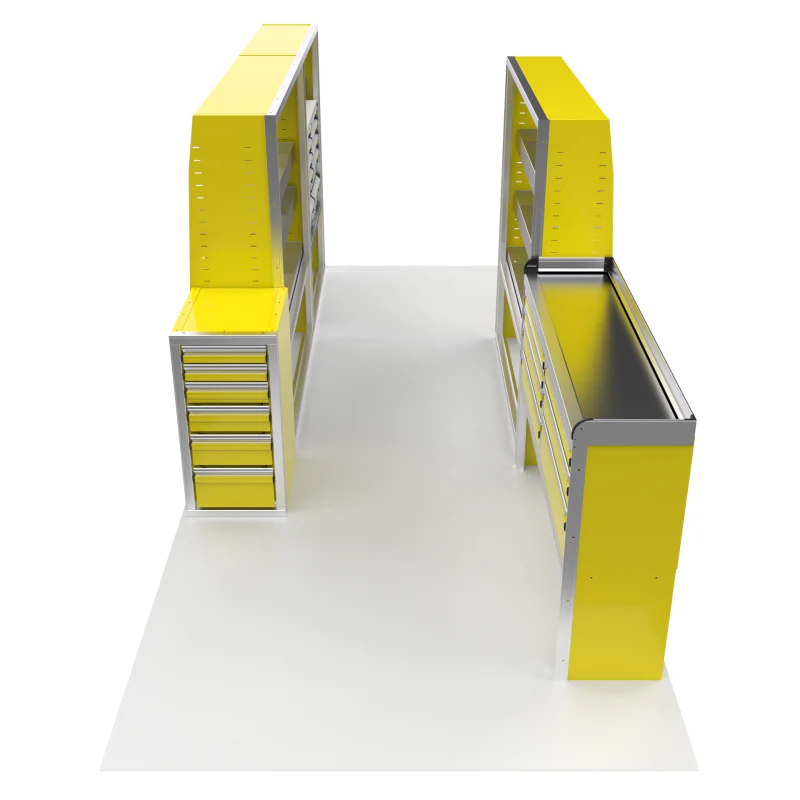

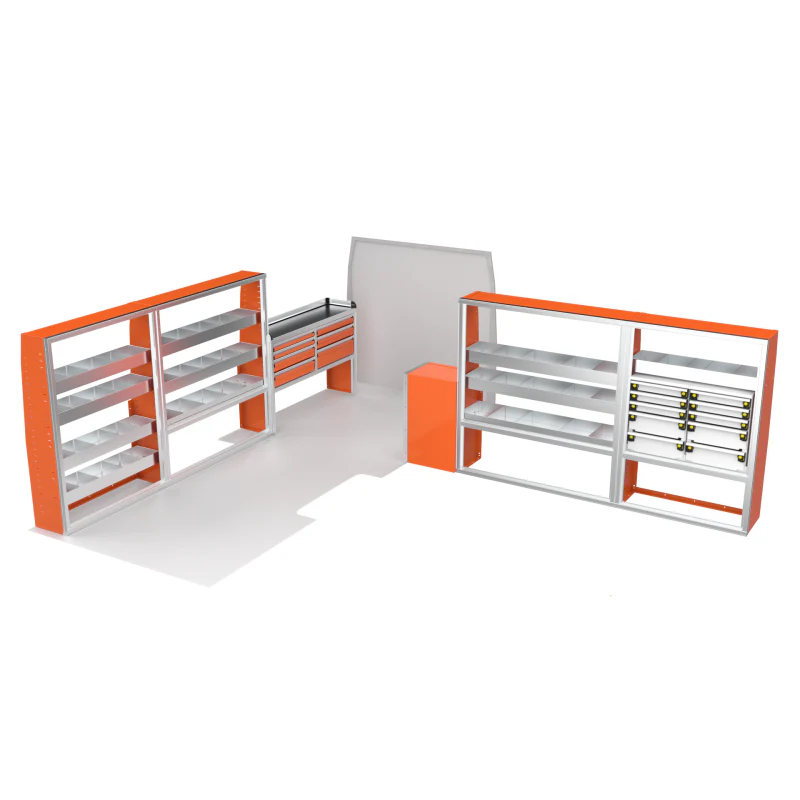

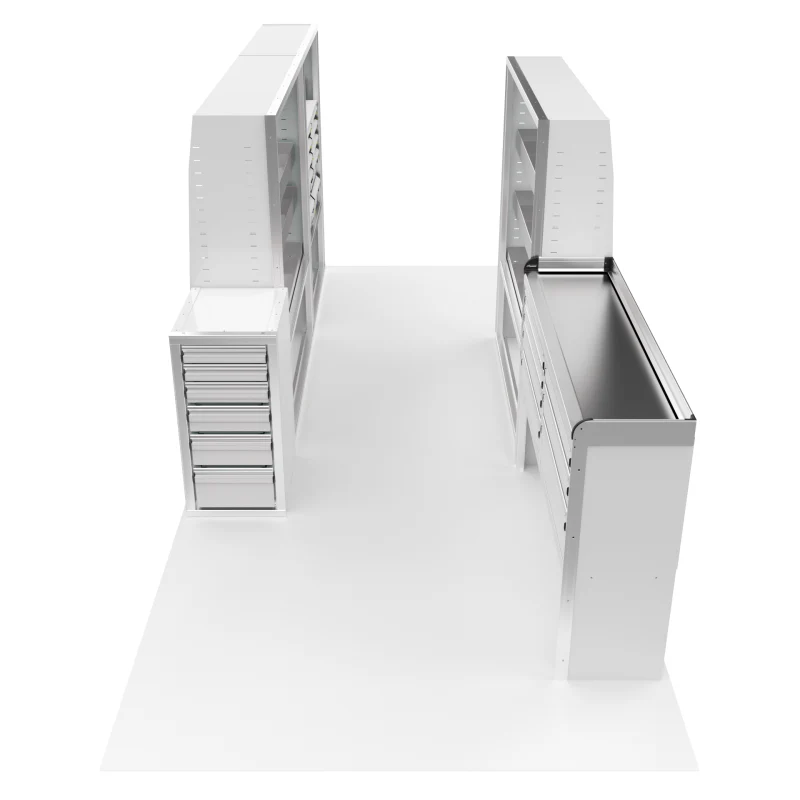

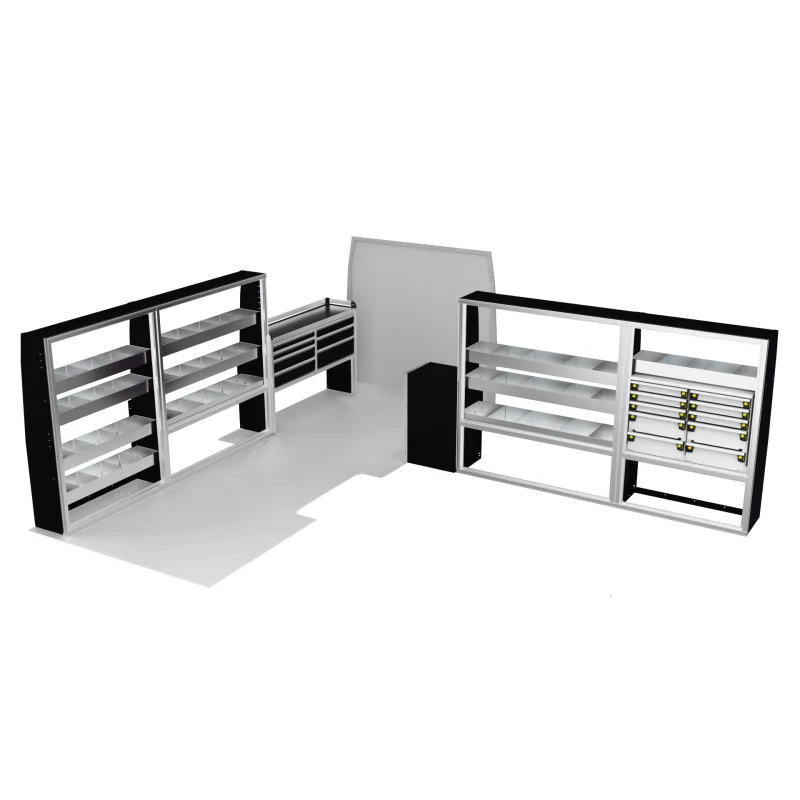

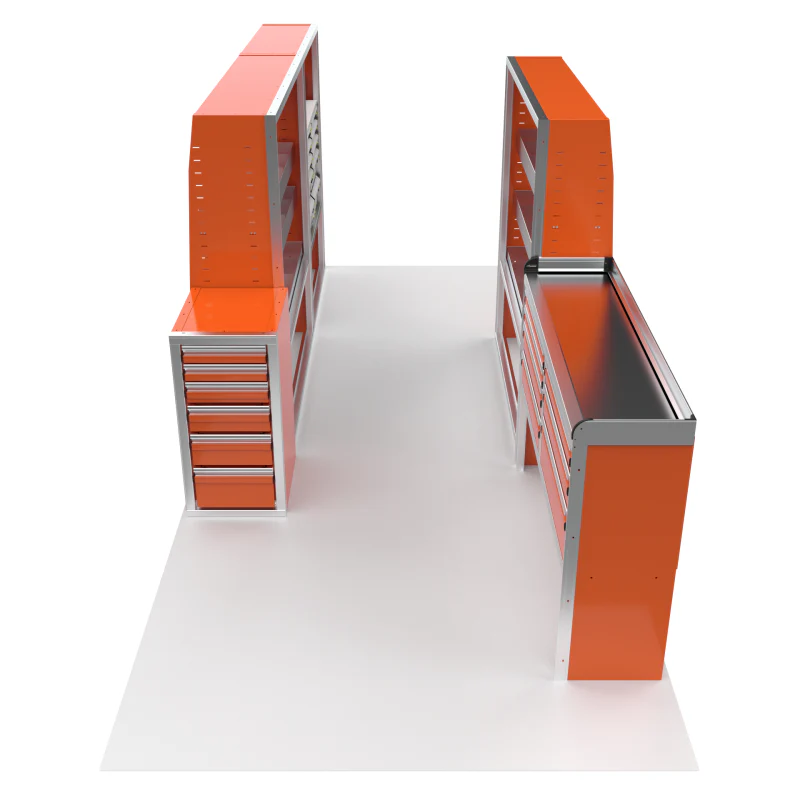

The VanPro Package MEXT2 for the Mercedes Sprinter 170 EXT includes the MS300 Shelving Unit, MS301 MotionGlide Shelving Unit, MS302 Shelving Unit, MS303 Shelving Unit, MS307 Workbench, and MS310 Drawer Housing. This package combines adjustable shelving, motion-controlled access, and versatile drawer housing to provide a fully optimized storage solution for your mobile workspace. Designed for the Mercedes Sprinter 170 EXT, it maximizes storage capacity while keeping tools and equipment neatly organized and easily accessible.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
MS-307 Workbench	Quantity: 1 Overall Size: 56"W x 36"H x 14"D Frame Size: 56"W x 36"H x 14"D Note: Cabinet height excludes 2.25" backsplash
MS-300	Quantity: 1 Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
MS-302	Quantity: 1 Overall Size: 44"W x 60"H x 14"D Frame Size: 44"W x 60"H x 14"D
MS-301 MotionGlide Cabinet	Quantity: 1 Overall Size: 41"W x 60"H x 16"D Frame Size: 41"W x 60"H x 16"D
MG-9 MotionGlide Unit	Quantity: 2 Mounted in: MS-301 Unit Size: 18"W x 25"H x 14"D Drawer Heights: 3", 3", 3", 6", 6"
MS-303	Quantity: 1 Overall Size: 56"W x 60"H x 16"D Frame Size: 56"W x 60"H x 16"D
MS-310 Drawer Housing	Quantity: 1 Overall Size: 16"W x 32"H x 20"D Frame Size: 16"W x 32"H x 20"D

Cabinet Options

• GasketLoc Countertop - Plastic Laminate (MS-307)
• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Back Panel (where noted)
• Bottom Rail
• Top Panel
• Floor Panel (MS-310)
• Custom Deep Shelves with Dividers:
  - MS-300: 4 Dividers
  - MS-302: 4 Dividers
  - MS-303: 4 Dividers
• Two MG-9 Units Mounted on Fixed Shelf (MS-301)
• Sprinter Profile

Opening Details

Model/Opening	Details
MS-307 - Opening 1	Size: 25.75"W x 17"H Drawers: 3", 3", 5", 5" [Lnr] Slide Type: Medium Duty 12" (x4) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
MS-307 - Opening 3	Size: 25.75"W x 17"H Drawers: 4", 5", 7" [Lnr] Slide Type: Medium Duty 12" (x3) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
MS-307 - Opening 2	Size: 53"W x 15.5"H EMPTY
MS-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
MS-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
MS-302 - Single Opening	Size: 41"W x 57"H EMPTY Adjustable Shelves: 4 (42.758"W x 12"D)
MS-301 - Opening 1	Size: 38"W x 40"H EMPTY Adjustable Shelf: 1 (39.758"W x 14"D)
MS-301 - Opening 2	Size: 38"W x 15.5"H EMPTY Fixed Shelf with 2 MG-9 Units Mounted
MS-303 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 14"D)
MS-303 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
MS-310 - Single Opening	Size: 13"W x 29"H Drawers: 3", 3", 4", 5", 6", 7" [Lnr] Slide Type: Medium Duty 18" (x6) Inside Drawer Dim: 8.53"W x 17.671"D Bottom Space: 0.952"

Vehicle Fitment

Product Application	Work Van
Vehicle	Mercedes Sprinter
Model Year	2019-2025
Wheelbase	170"
Cargo Length	Extended
Cargo Roof Height	High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
