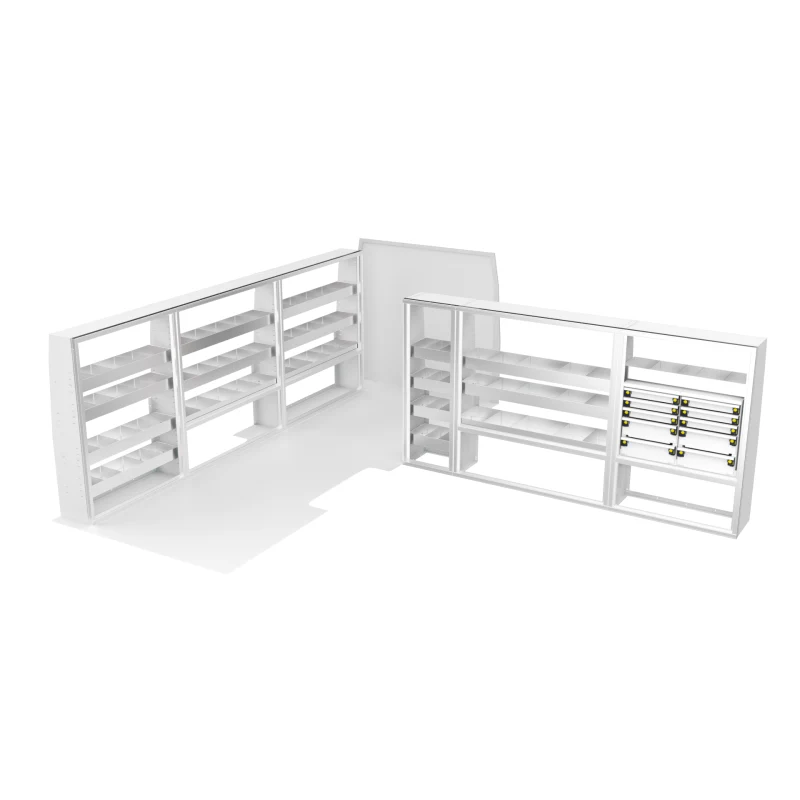

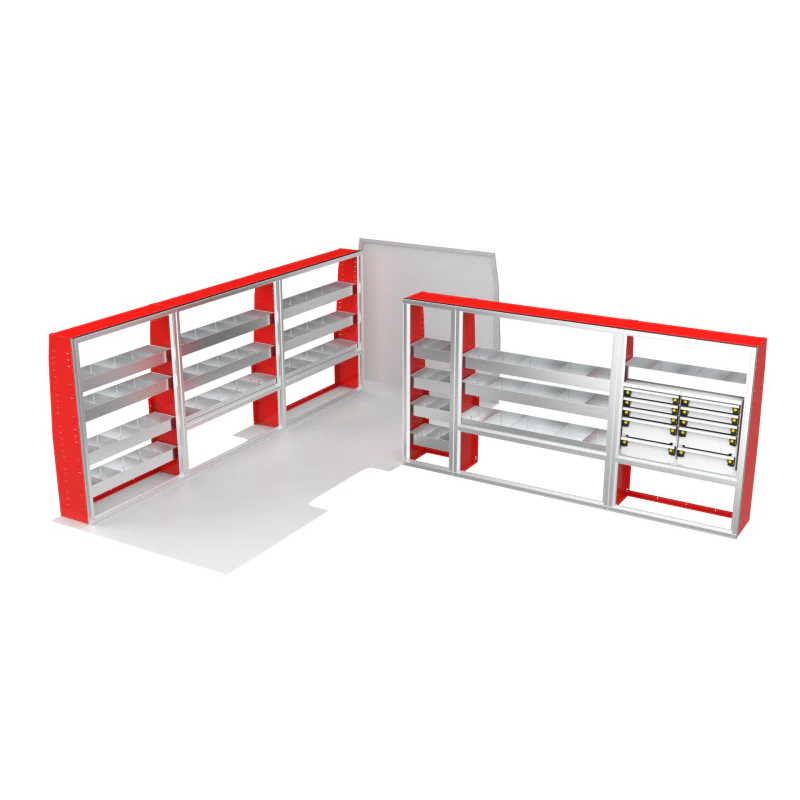

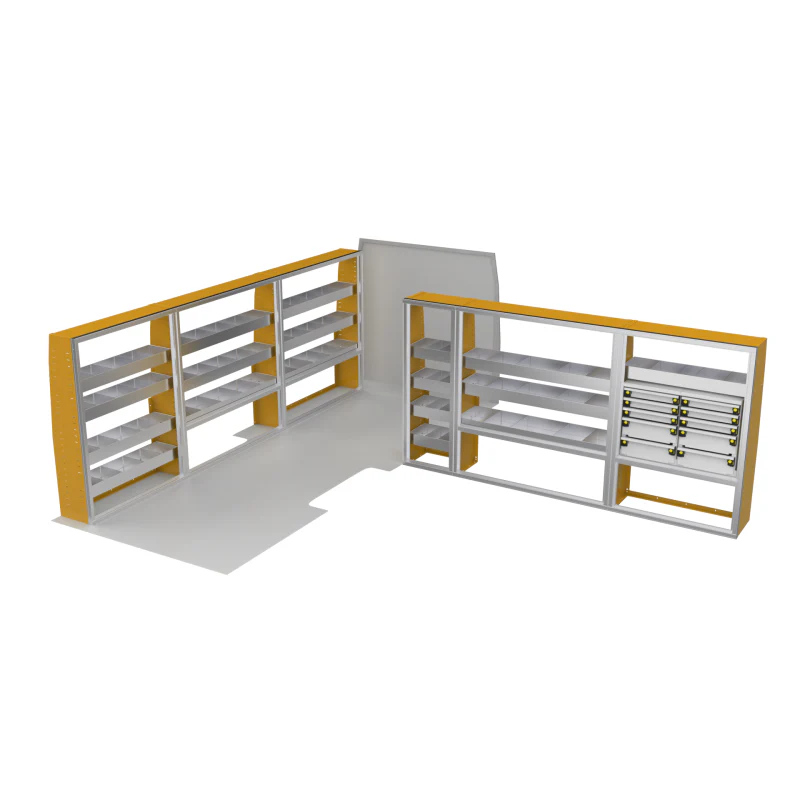

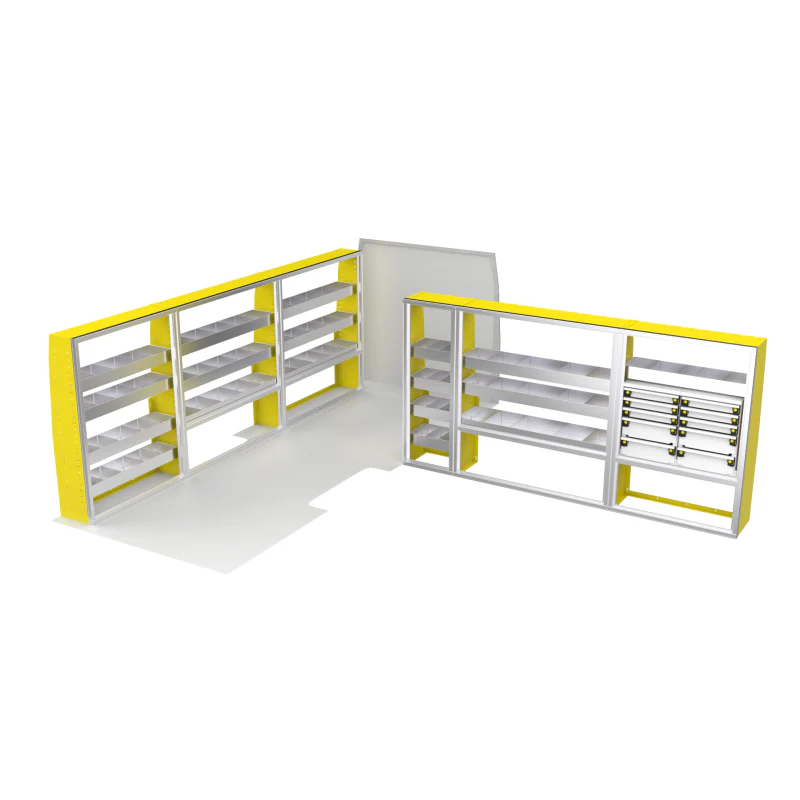

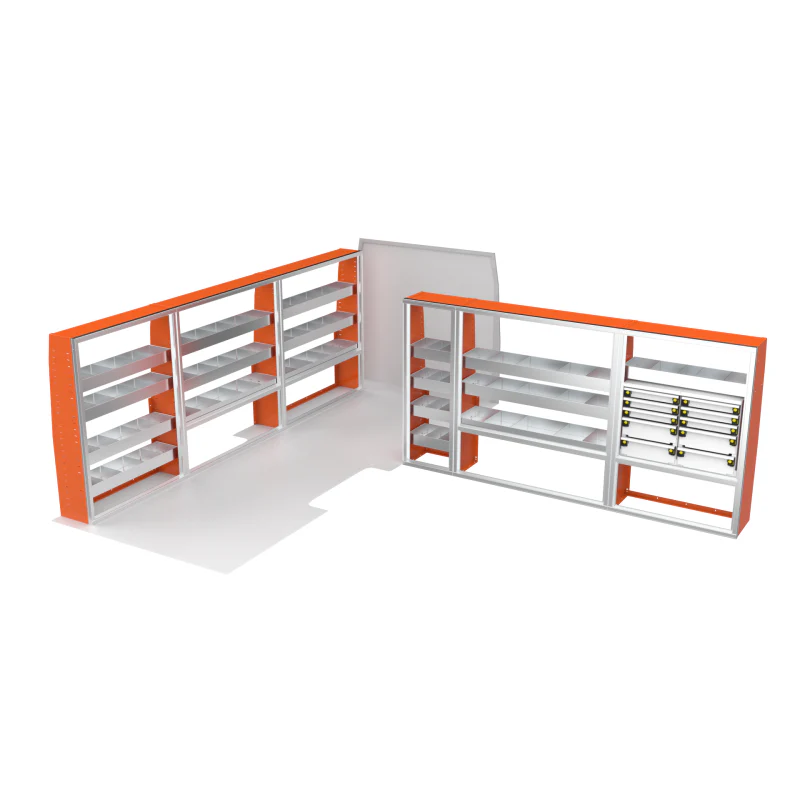

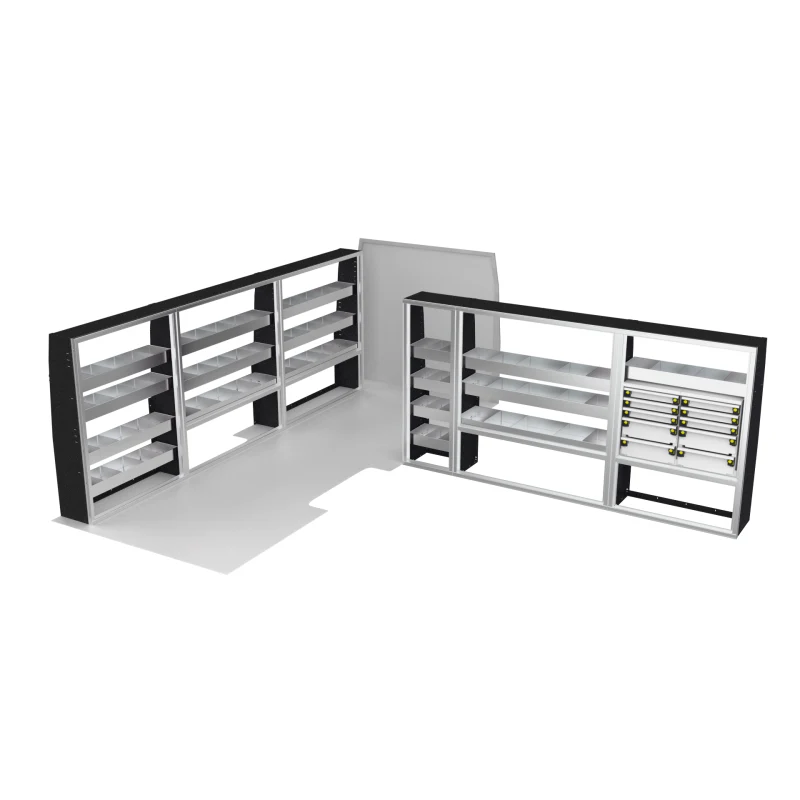

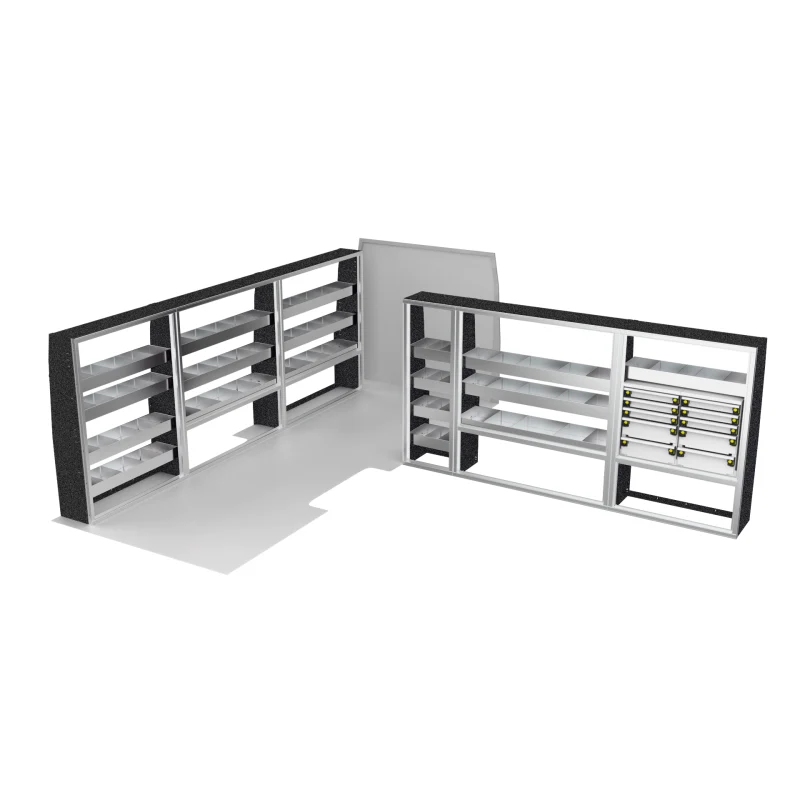

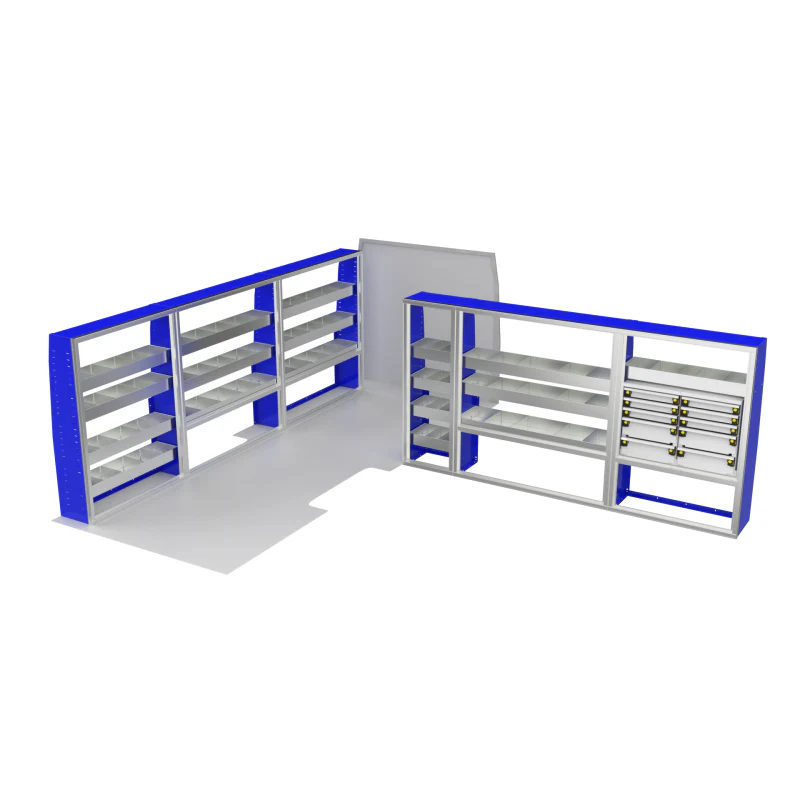

CTech VanPro Package MEXT1 Model MS-170EXT-PRO-1

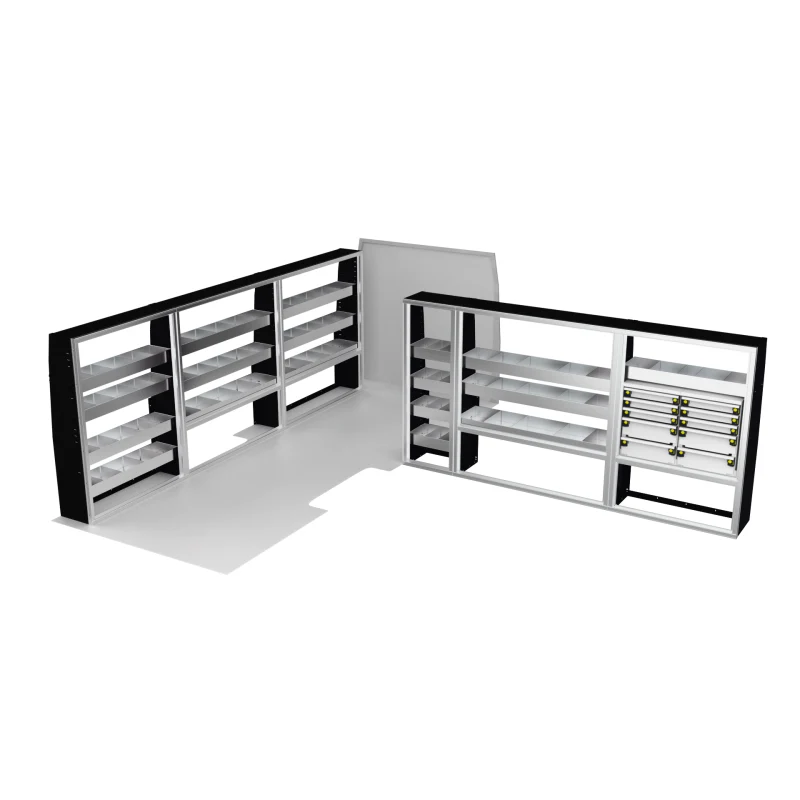

The VanPro Package MEXT1 for the Mercedes Sprinter 170 EXT combines the MS300 Shelving Unit, MS301 MotionGlide Shelving Unit, MS302 Shelving Unit, MS303 Shelving Unit, and MS304 Shelving Unit to offer a comprehensive and customizable storage solution for your extended work van. Featuring a mix of adjustable shelves, motion-controlled shelving, deep shelves with dividers, and ample storage space, this package is designed to maximize efficiency and organization. With a perfect fit for the Sprinter 170 EXT, it ensures your tools and equipment are neatly stored and easily accessible, improving productivity on the go.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
MS-300	Quantity: 2 Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
MS-302	Quantity: 1 Overall Size: 44"W x 60"H x 14"D Frame Size: 44"W x 60"H x 14"D
MS-301 MotionGlide Cabinet	Quantity: 1 Overall Size: 41"W x 60"H x 16"D Frame Size: 41"W x 60"H x 16"D
MG-9 MotionGlide Unit	Quantity: 2 Mounted in: MS-301 Unit Size: 18"W x 25"H x 14"D Drawer Heights: 3", 3", 3", 6", 6"
MS-303	Quantity: 1 Overall Size: 56"W x 60"H x 16"D Frame Size: 56"W x 60"H x 16"D
MS-304	Quantity: 1 Overall Size: 20"W x 60"H x 16"D Frame Size: 20"W x 60"H x 16"D

Cabinet Options

• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Bottom Rail
• Top Panel
• Custom Deep Shelves with Dividers:
  - MS-300: 4 Dividers Each
  - MS-302: 4 Dividers
  - MS-303: 4 Dividers
  - MS-304: 2 Dividers
• Two MG-9 Units Mounted on Fixed Shelf (MS-301)
• Sprinter Profile

Opening Details

Model/Opening	Details
MS-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
MS-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
MS-302 - Single Opening	Size: 41"W x 57"H EMPTY Adjustable Shelves: 4 (42.758"W x 12"D)
MS-301 - Opening 1	Size: 38"W x 40"H EMPTY Adjustable Shelf: 1 (39.758"W x 14"D)
MS-301 - Opening 2	Size: 38"W x 15.5"H EMPTY Fixed Shelf with 2 MG-9 Units Mounted
MS-303 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 14"D)
MS-303 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
MS-304 - Single Opening	Size: 17"W x 57"H EMPTY Adjustable Shelves: 4 (18.758"W x 14"D)

Vehicle Fitment

Product Application	Work Van
Vehicle	Mercedes Sprinter
Model Year	2019-2025
Wheelbase	170"
Cargo Length	Extended
Cargo Roof Height	High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
