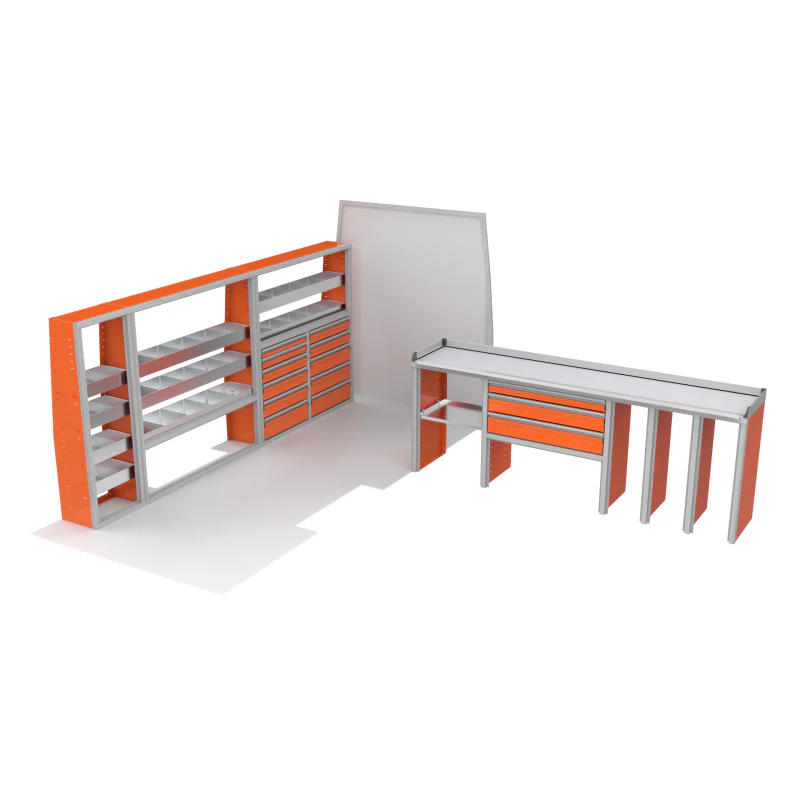

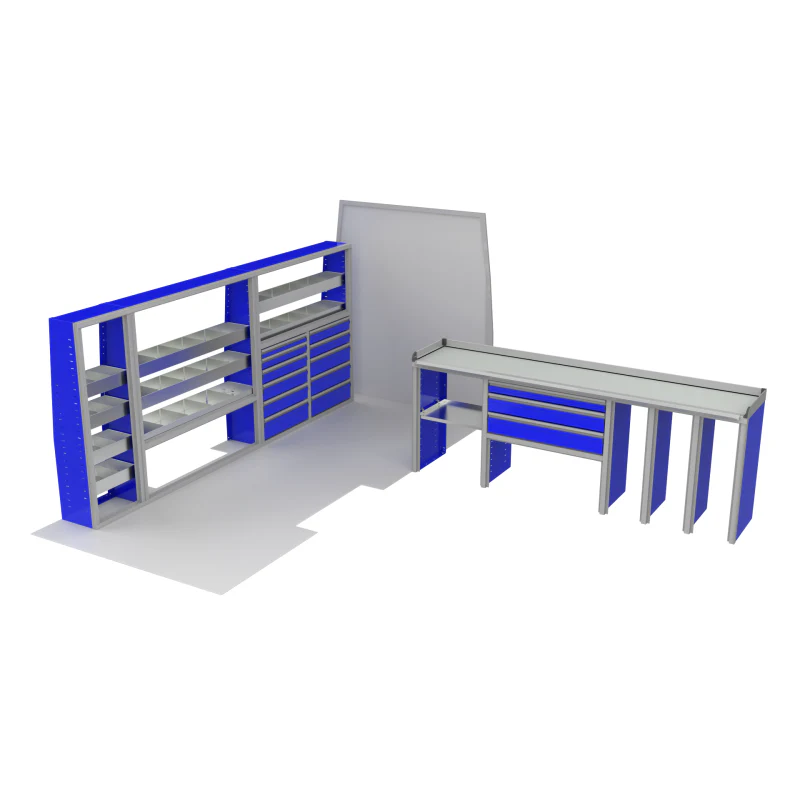

CTech VanPro Package FTEXT3 Model FT-EXT-PRO-3

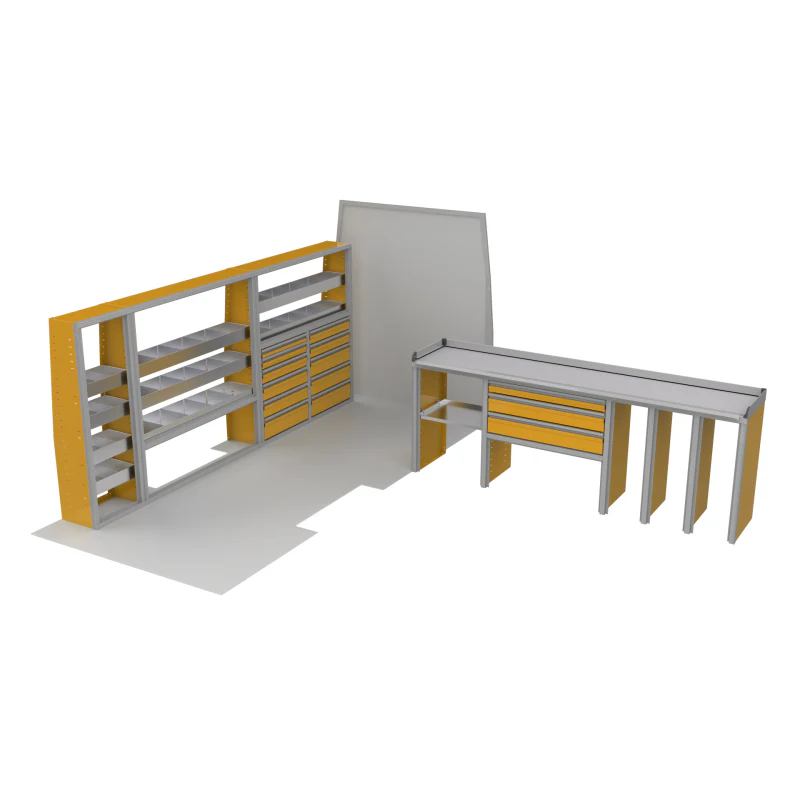

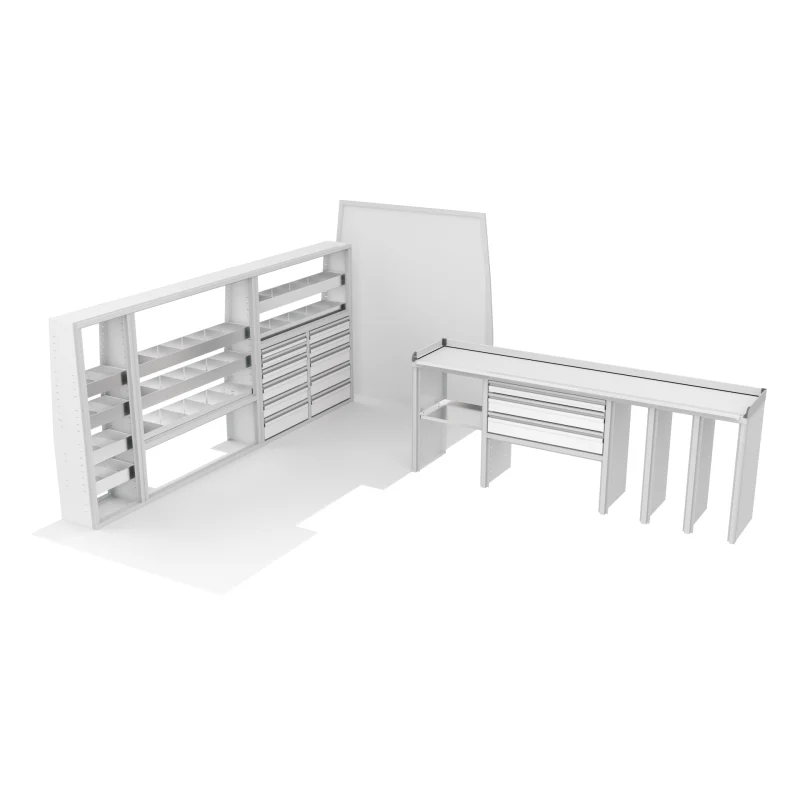

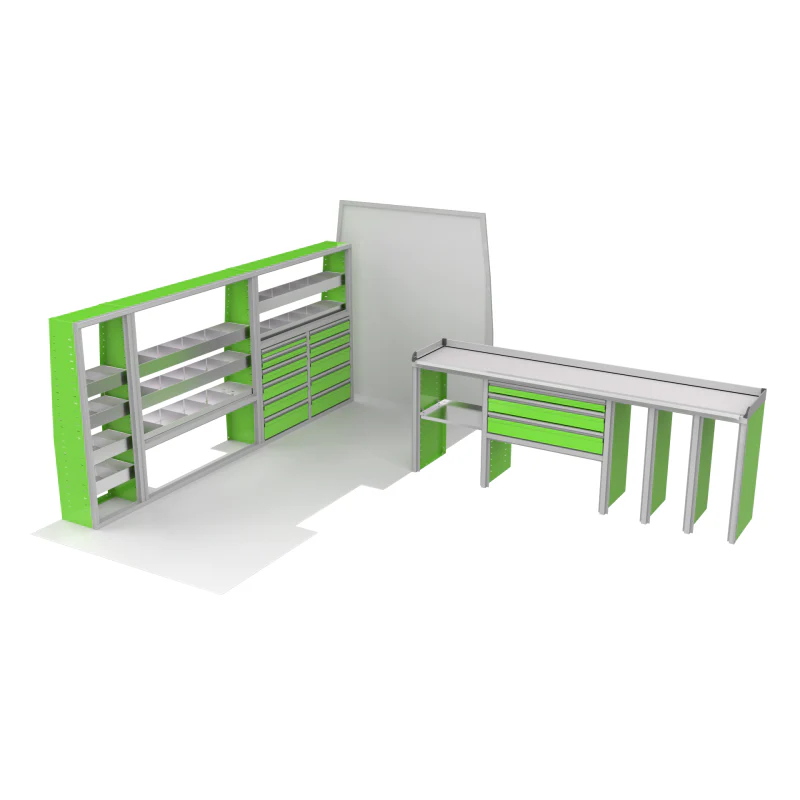

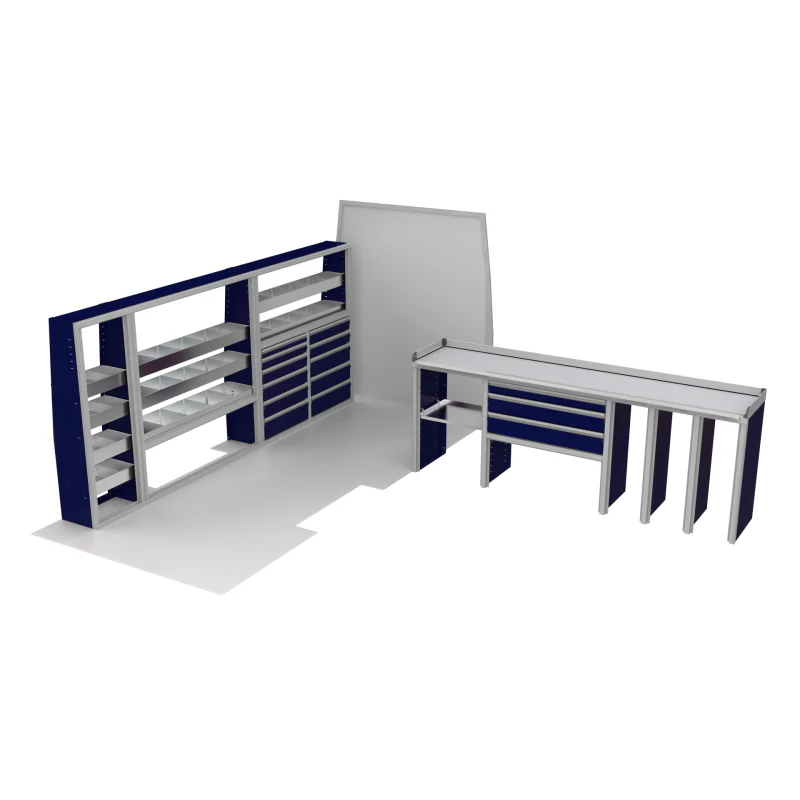

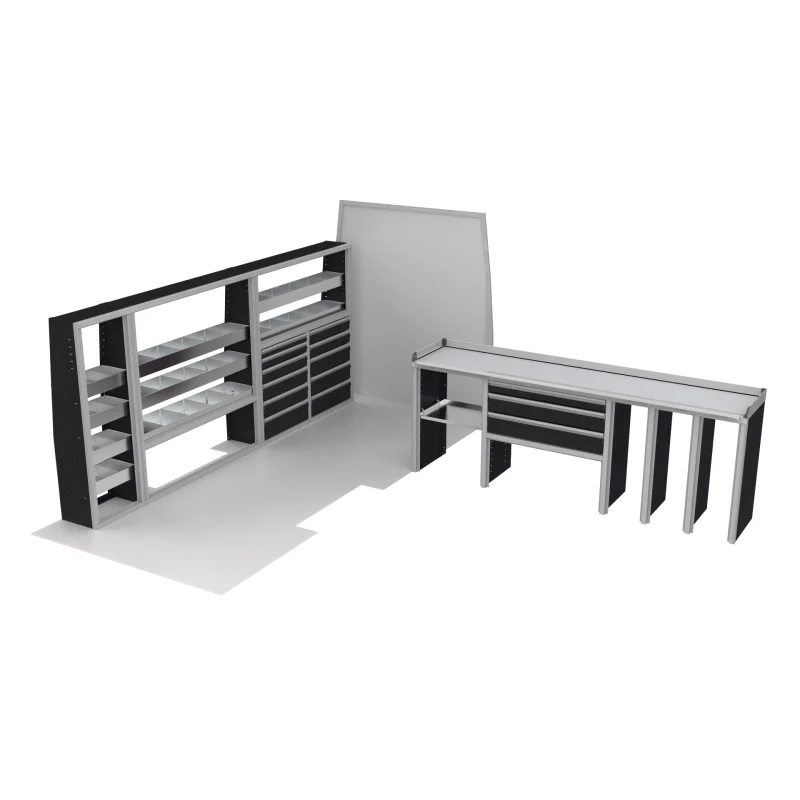

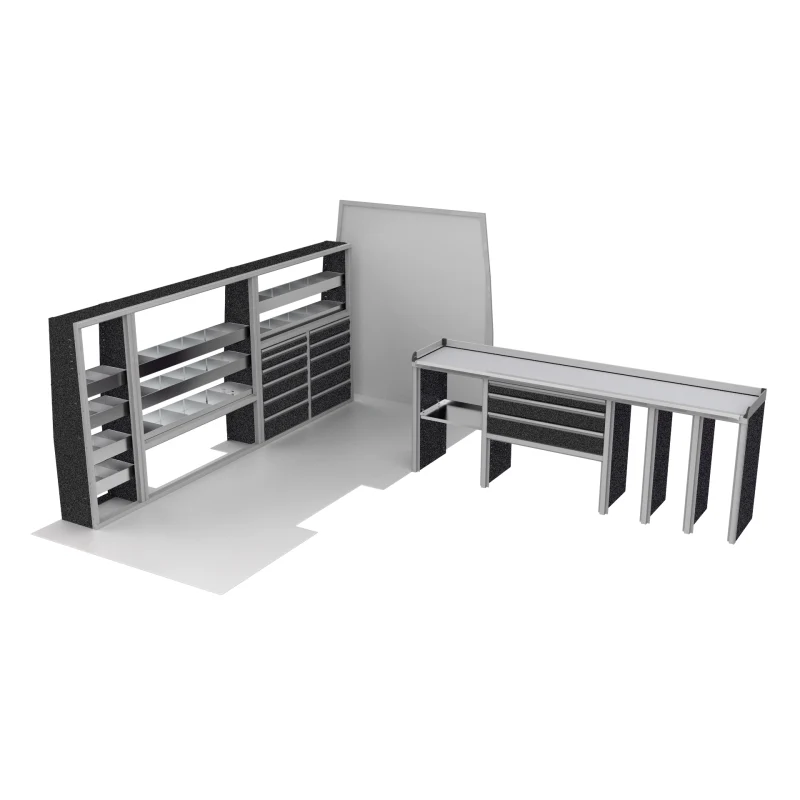

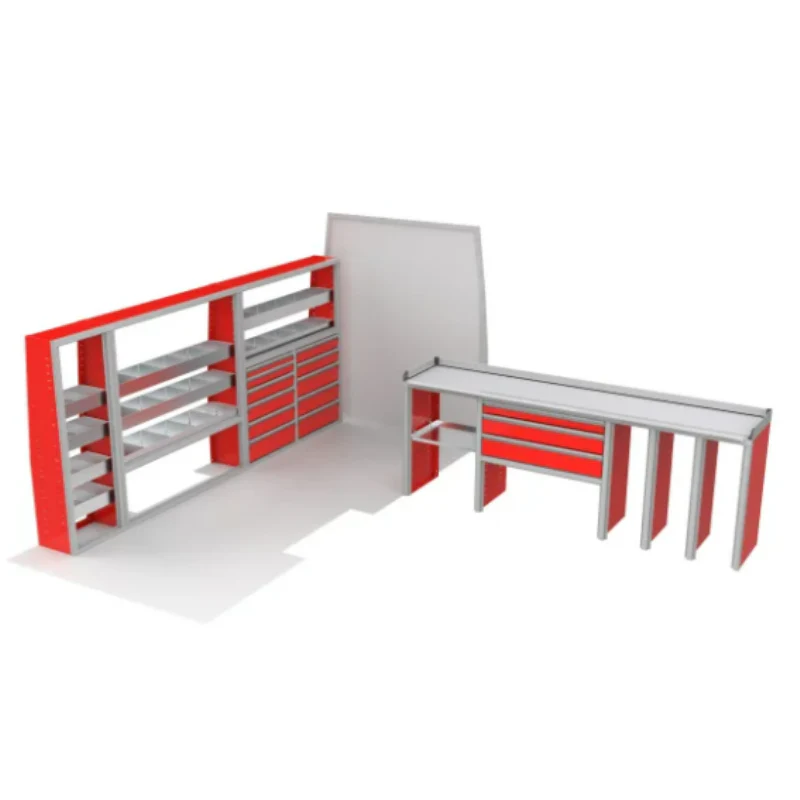

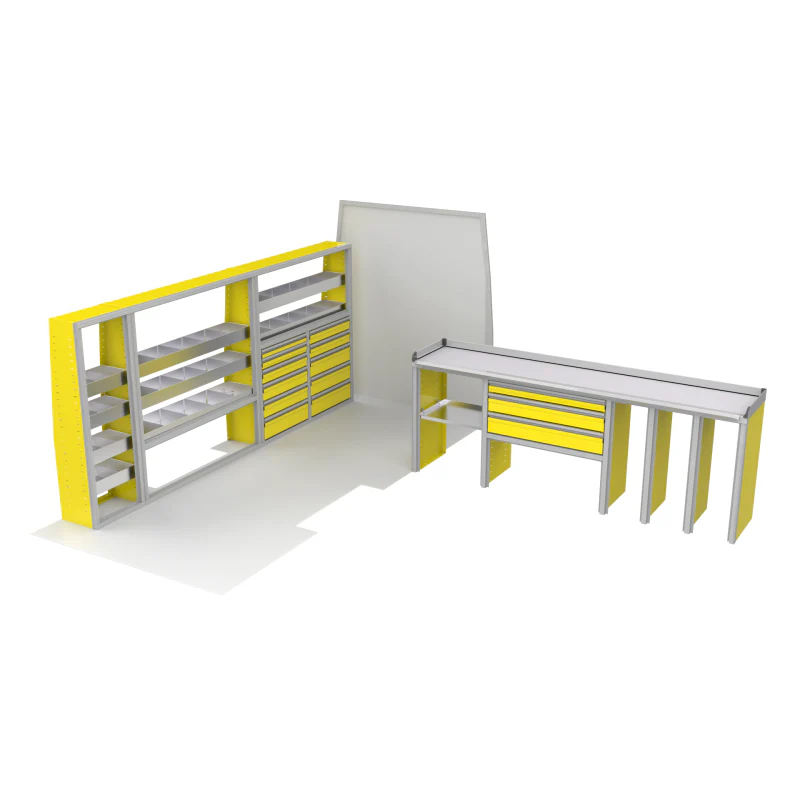

Take your Ford Transit 150/250/350 Extended to the next level with the VanPro Package FTEXT3, designed for medium or high roof models. This all-in-one storage solution features multiple shelving units and a durable workbench, creating a highly efficient mobile workspace. Built from lightweight, corrosion-resistant aluminum, this package ensures that tools, materials, and equipment stay secure and organized, even on the move.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
FT-306	Quantity: 1 Location: Front Streetside Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
FT-300	Quantity: 1 Location: Middle Streetside Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
FT-303	Quantity: 1 Location: Rear Streetside Overall Size: 20"W x 60"H x 14"D Frame Size: 20"W x 60"H x 14"D
FT-307	Quantity: 1 Location: Curbside Overall Size: 102"W x 37"H x 20"D Frame Size: 102"W x 37"H x 20"D Note: Cabinet height excludes 2.25" backsplash

Cabinet Options

• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Back Panel (where noted)
• Bottom Rail
• Top Panel
• Floor Panel (FT-306)
• GasketLoc Countertop - Stainless Steel (FT-307)
• Custom Deep Shelves with 4 Dividers (FT-306, FT-300, FT-303)
• Transit Profile on All Units
• Add Channel at Front of FT-307

Opening Details

Model/Opening	Details
FT-306 - Opening 1	Size: 53"W x 23.375"H EMPTY Adjustable Shelves: 1 (54.758"W x 12"D)
FT-306 - Opening 2	Size: 25.75"W x 32.125"H Drawers: 3", 4", 5", 6", 6", 7" [Lnr] Slide Type: Medium Duty 12" (x6) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
FT-306 - Opening 3	Size: 25.75"W x 32.125"H Drawers: 5", 5", 7", 7", 7" [Lnr] Slide Type: Medium Duty 12" (x5) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
FT-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
FT-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
FT-303 - Opening	Size: 17"W x 57"H EMPTY Adjustable Shelves: 4 (18.758"W x 12"D)
FT-307 - Opening 1	Size: 23"W x 35"H EMPTY Adjustable Shelf: 1 (24.129"W x 18"D)
FT-307 - Opening 2	Size: 37"W x 17"H EXTREME DUTY Drawers: 4", 6", 6" [5 Row] [Lnr] [Sep:10] Divider Clip Kit: Qty 7 Divider Screw Kit: Qty 6 Slide Type: Heavy Duty 16" (x3) Inside Drawer Dim: 32.51"W x 15.651"D Bottom Space: 0.952"
FT-307 - Opening 3	Size: 37"W x 16.5"H EMPTY
FT-307 - Opening 4	Size: 11"W x 35"H EMPTY
FT-307 - Opening 5	Size: 11"W x 35"H EMPTY
FT-307 - Opening 6	Size: 11"W x 35"H EMPTY

Vehicle Fitment

Product Application	Work Van
Vehicle	Ford Transit
Model Year	2014-2025
Wheelbase	148"
Cargo Length	Extended
Cargo Roof Height	High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
