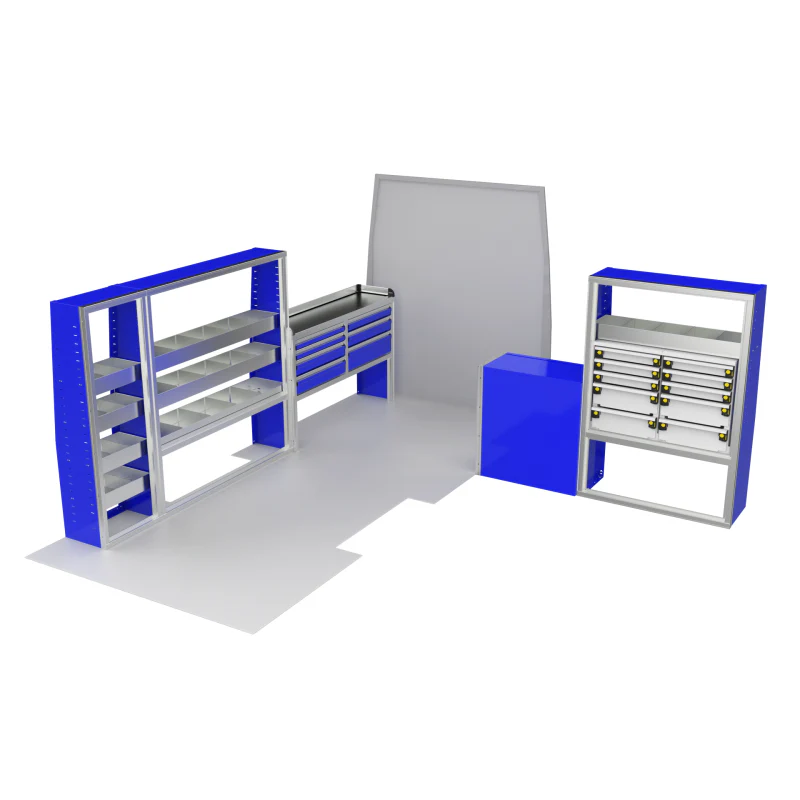

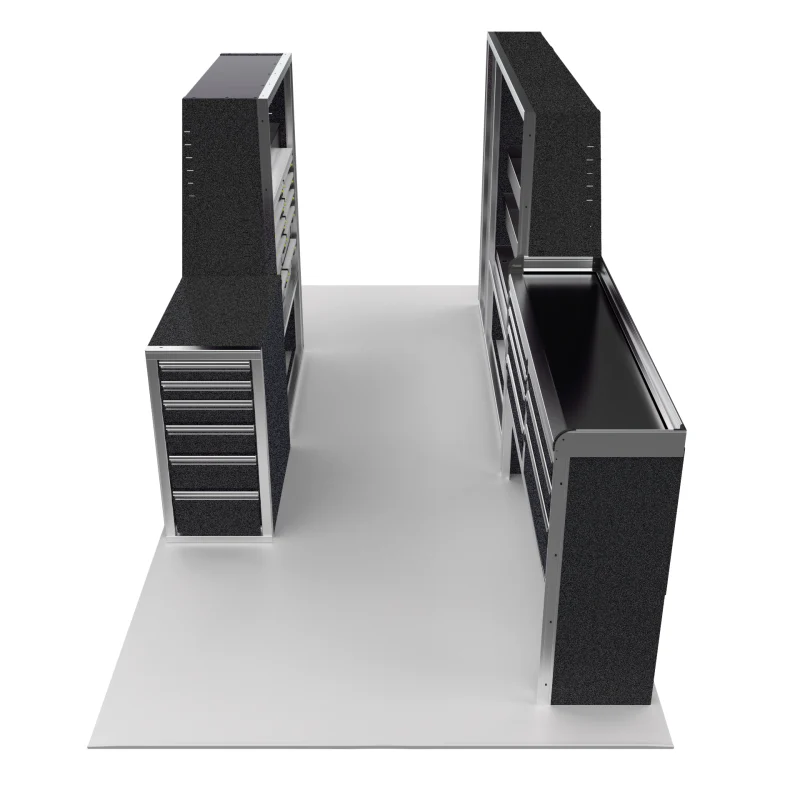

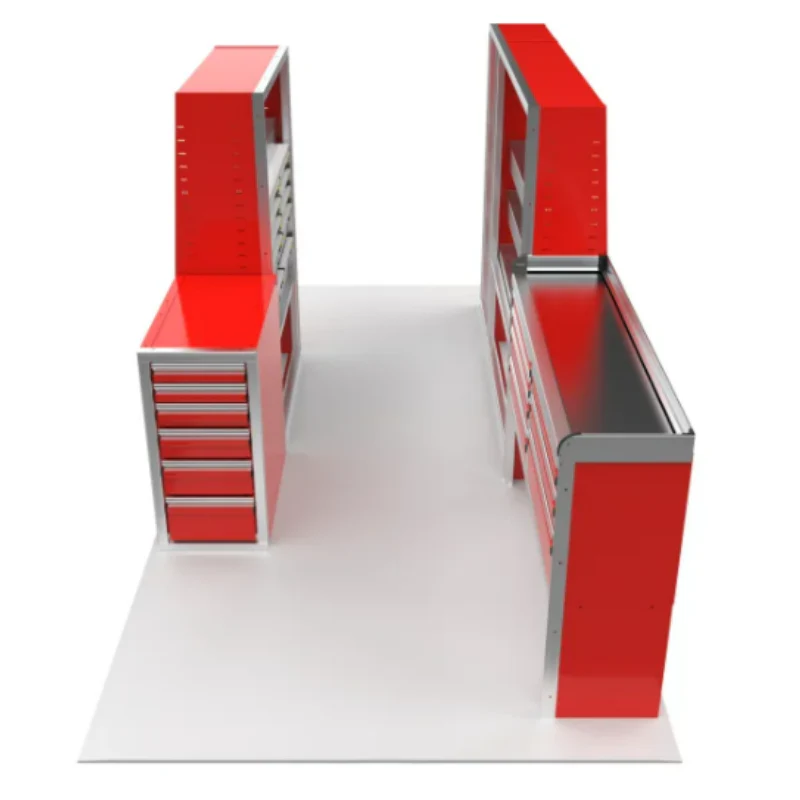

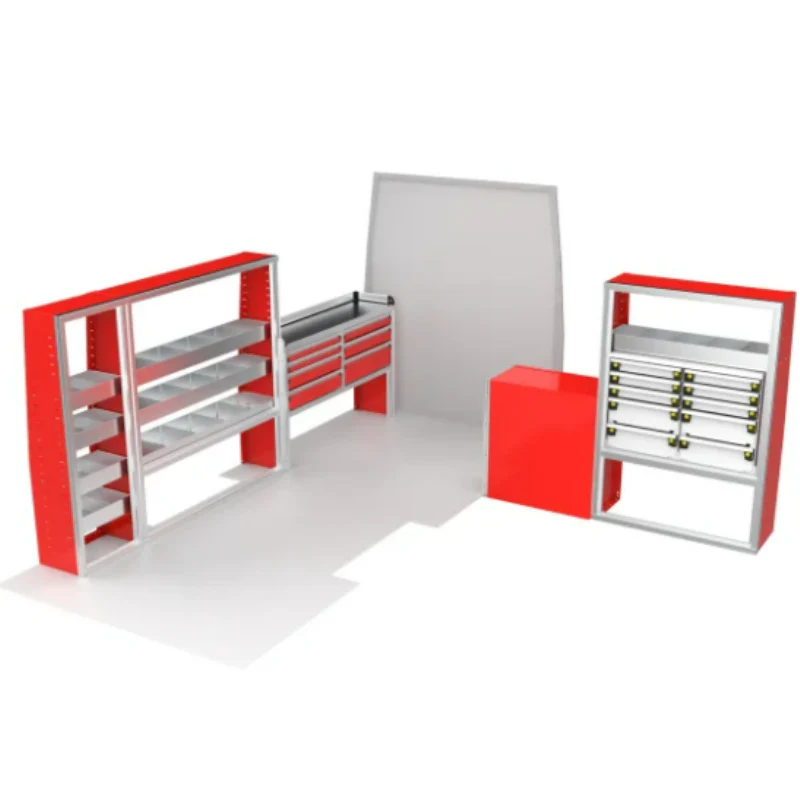

CTech VanPro Package FTEXT2 Model FT-EXT-PRO-2

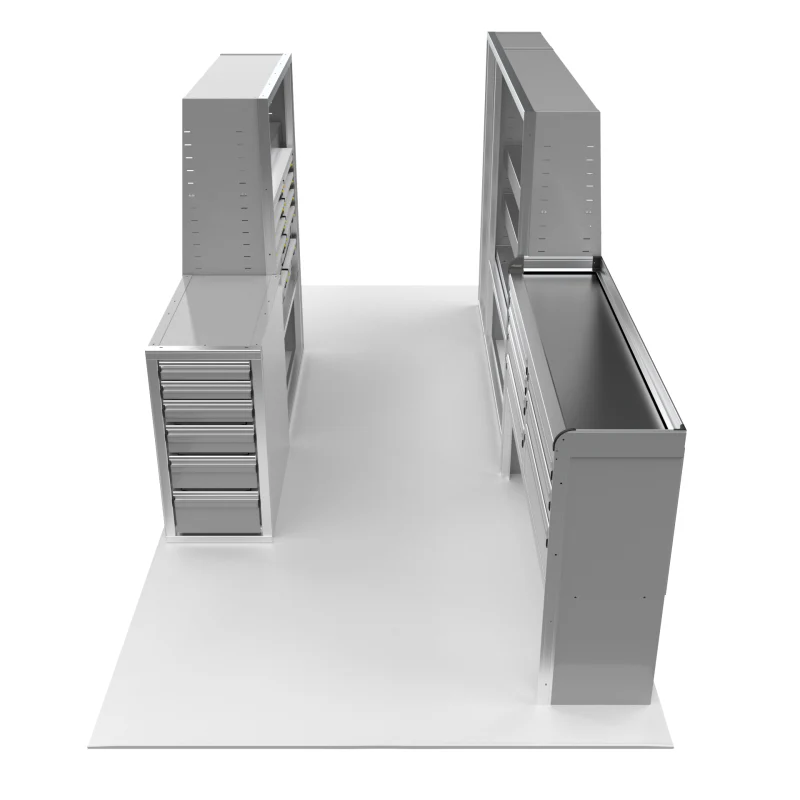

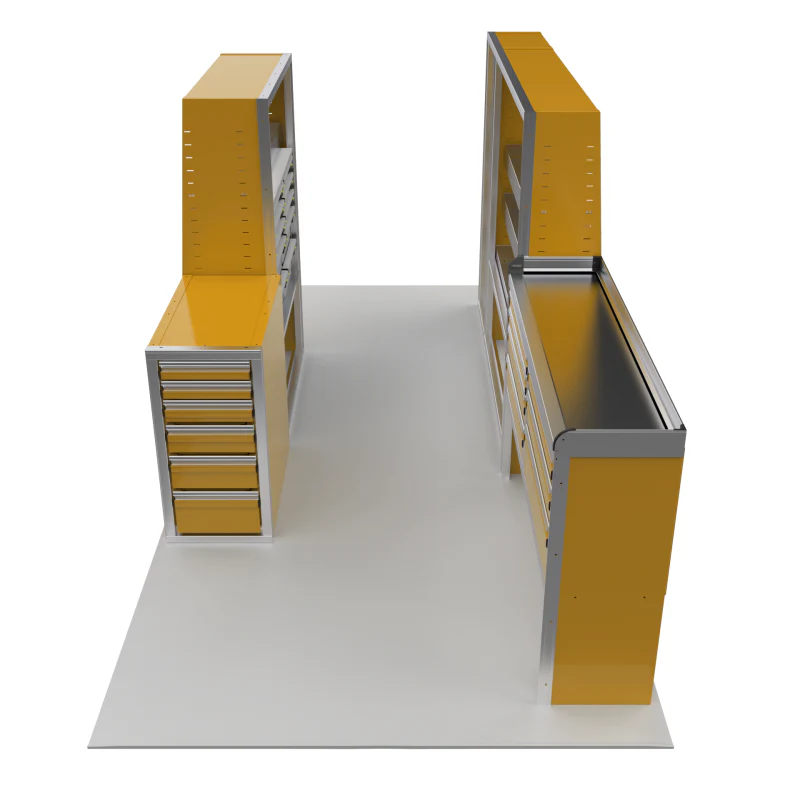

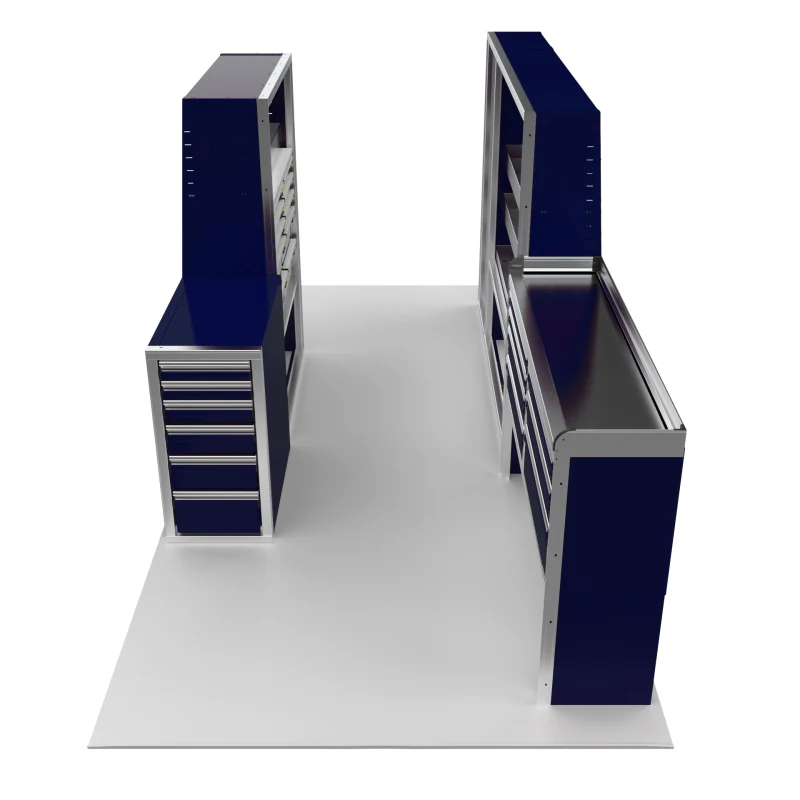

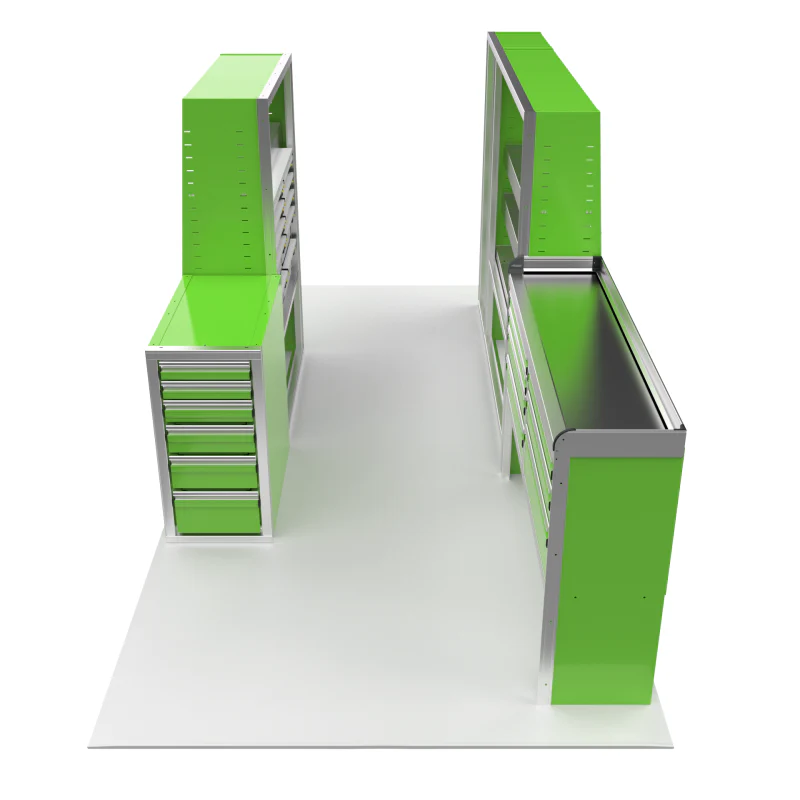

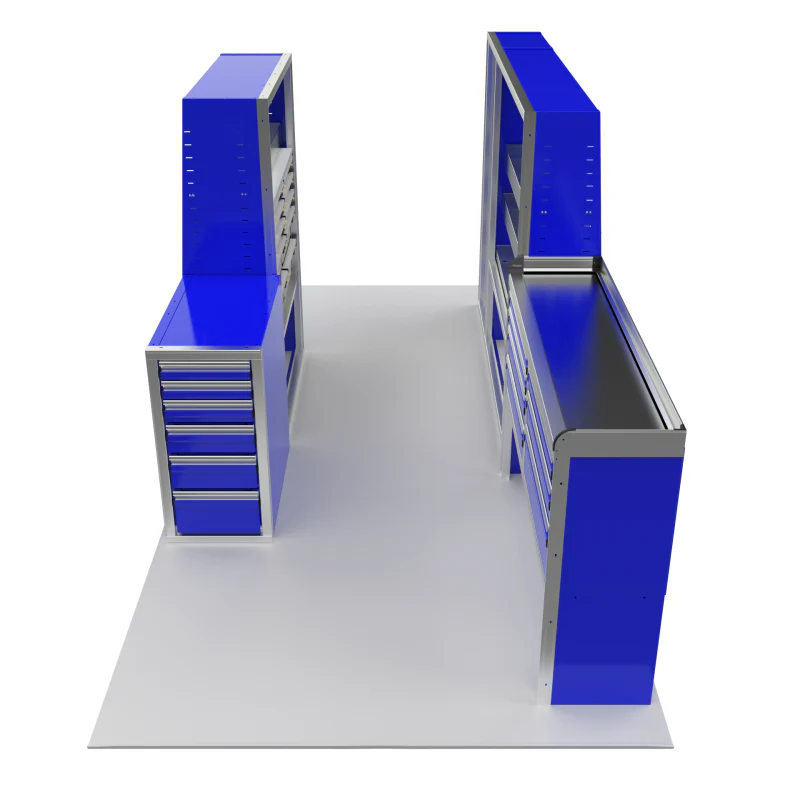

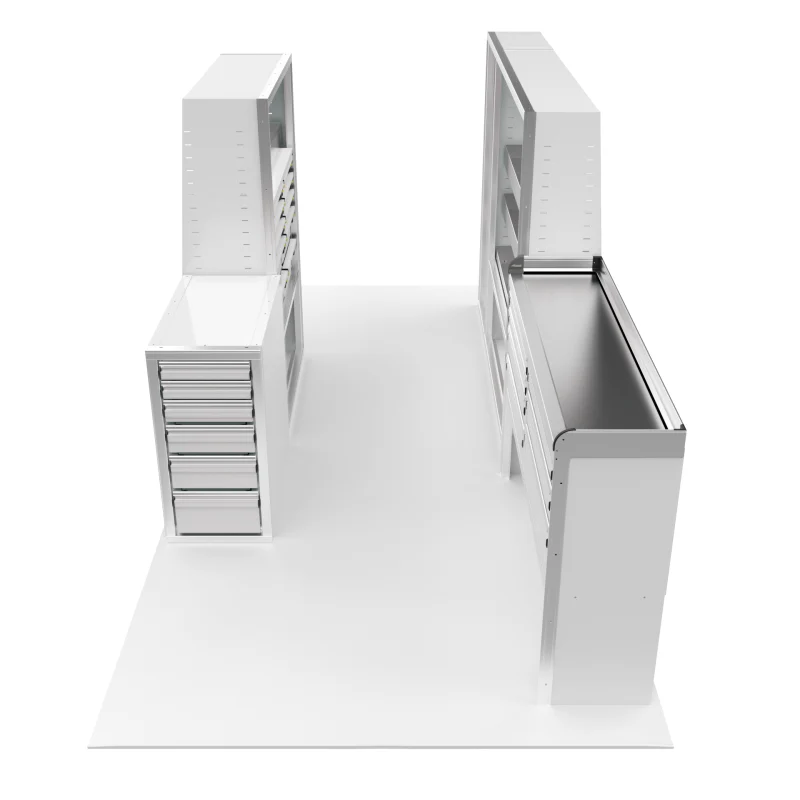

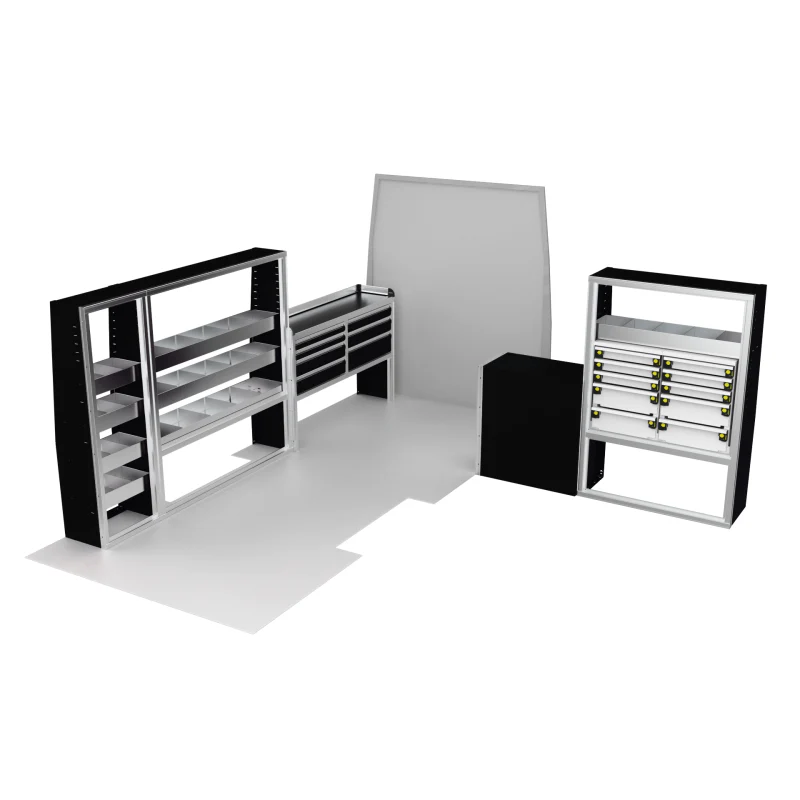

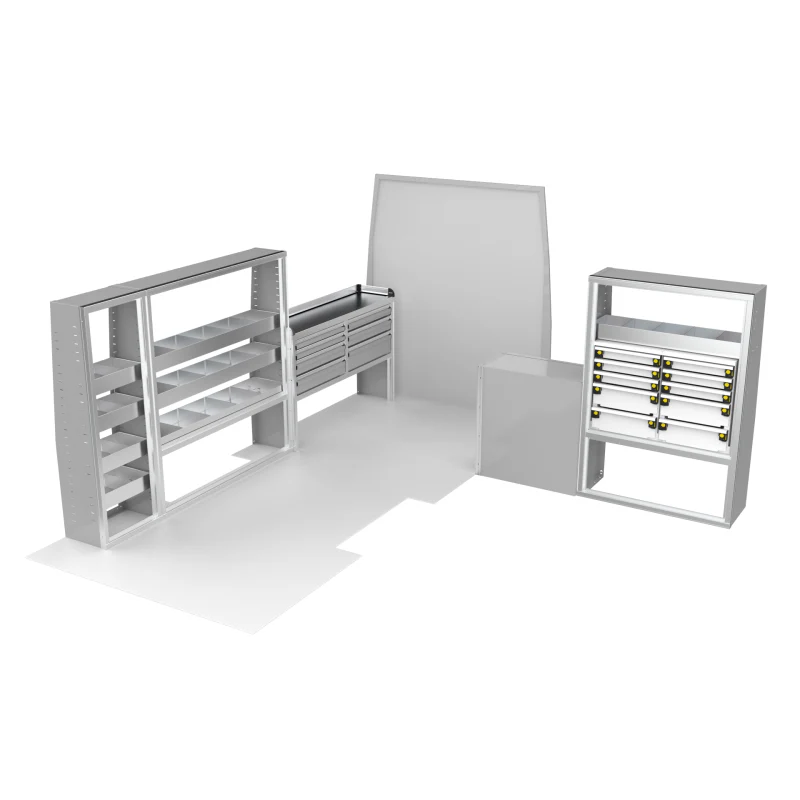

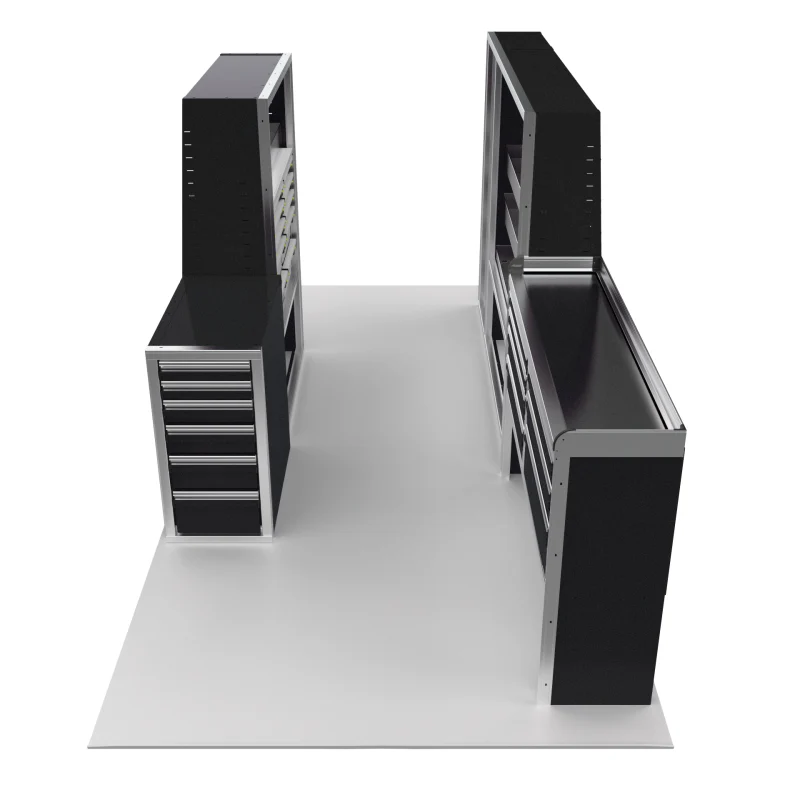

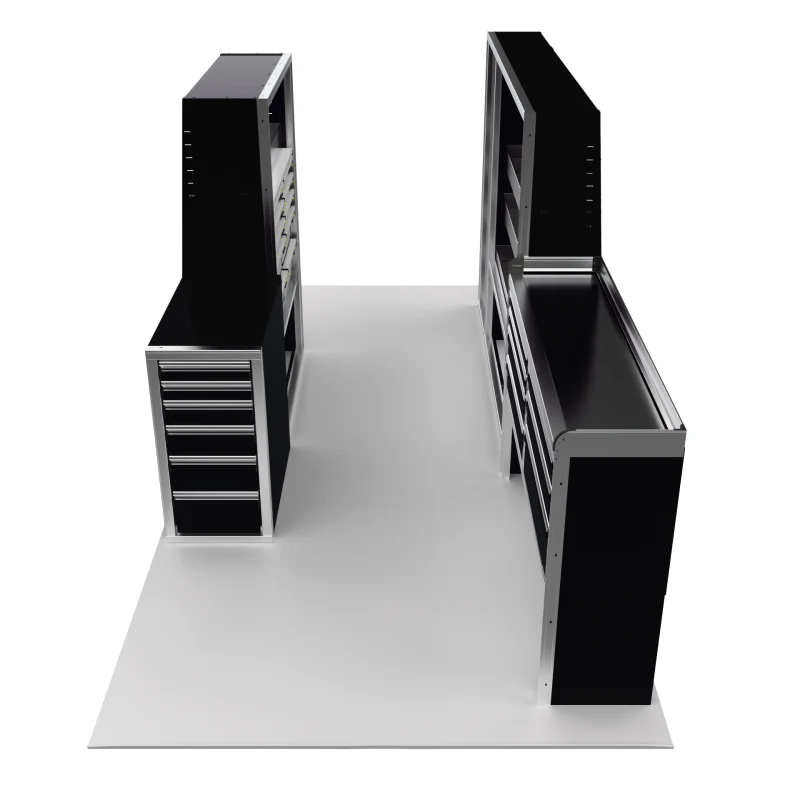

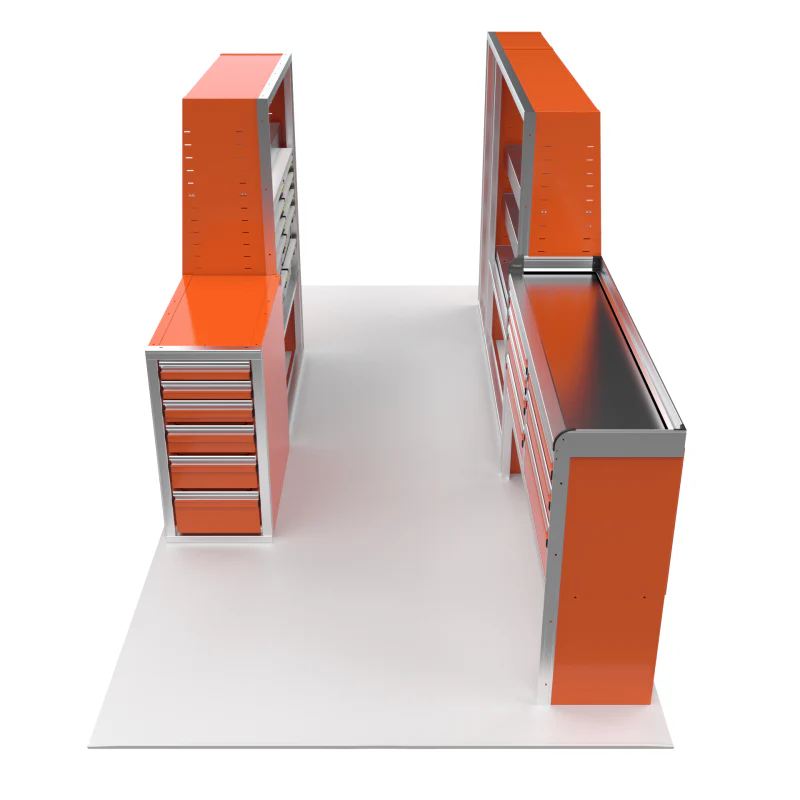

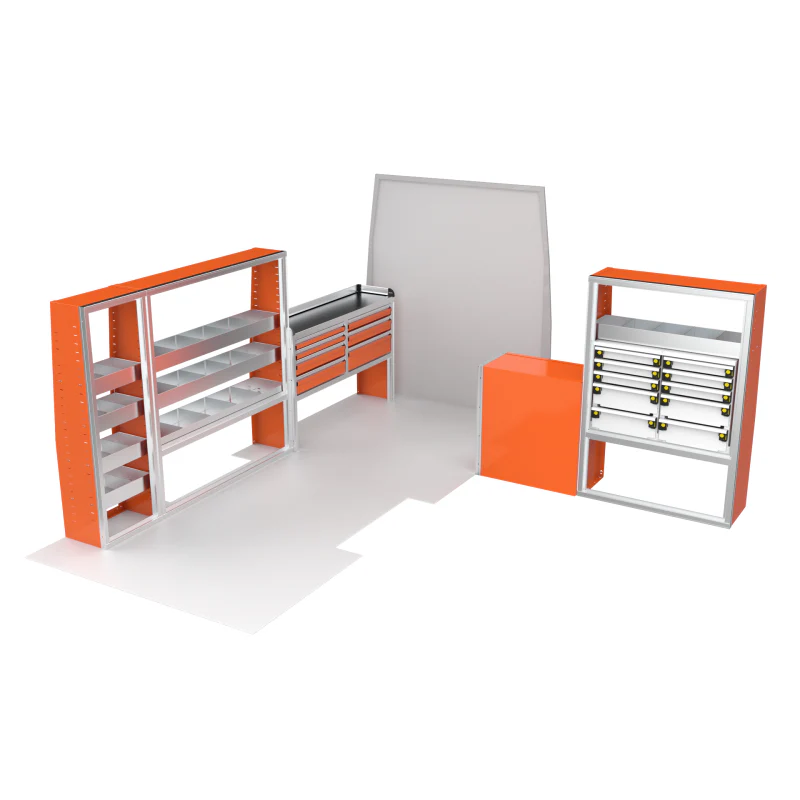

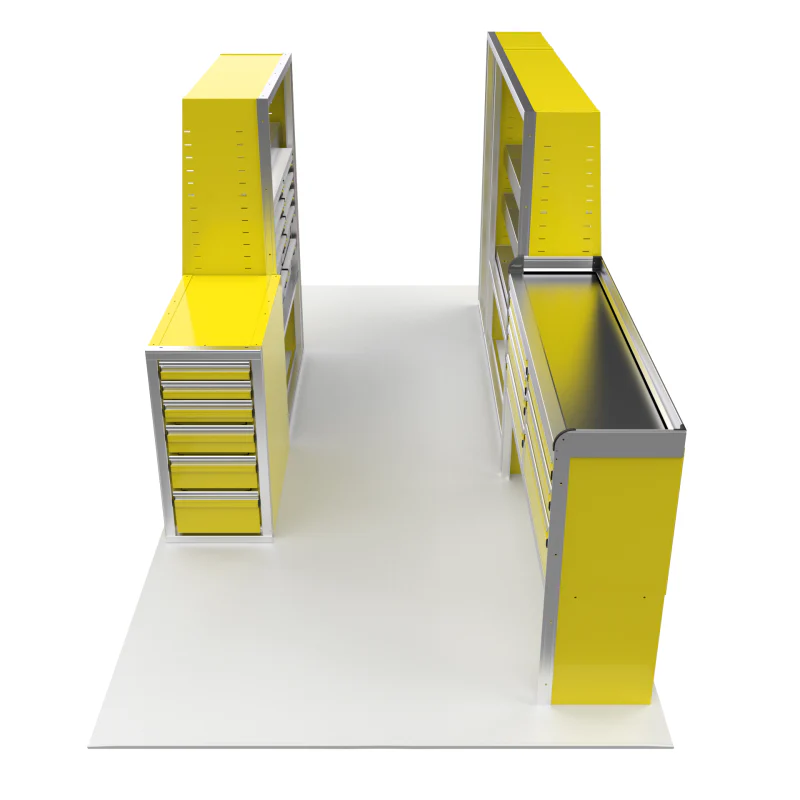

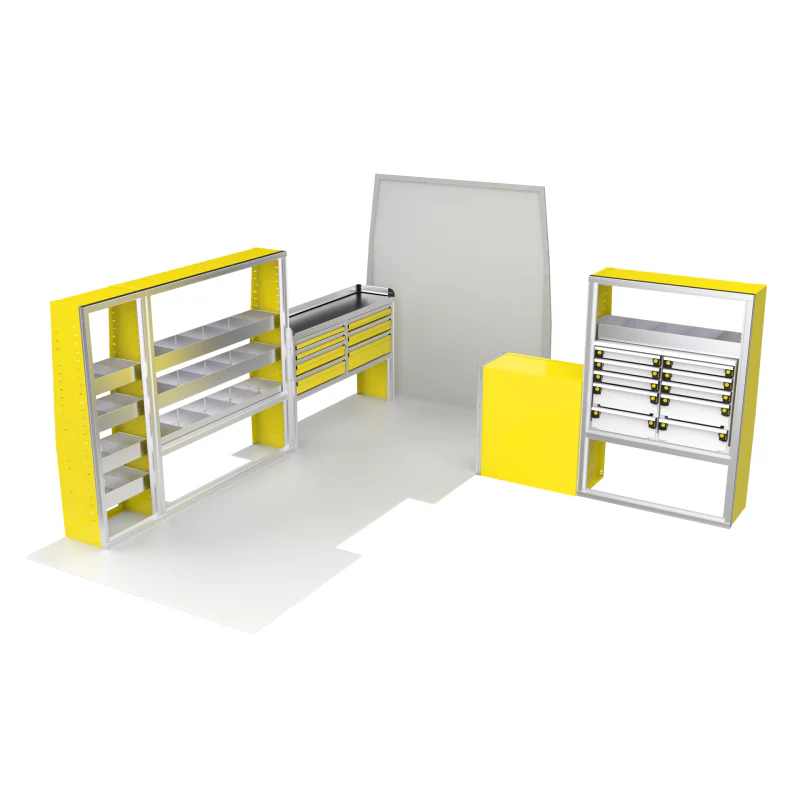

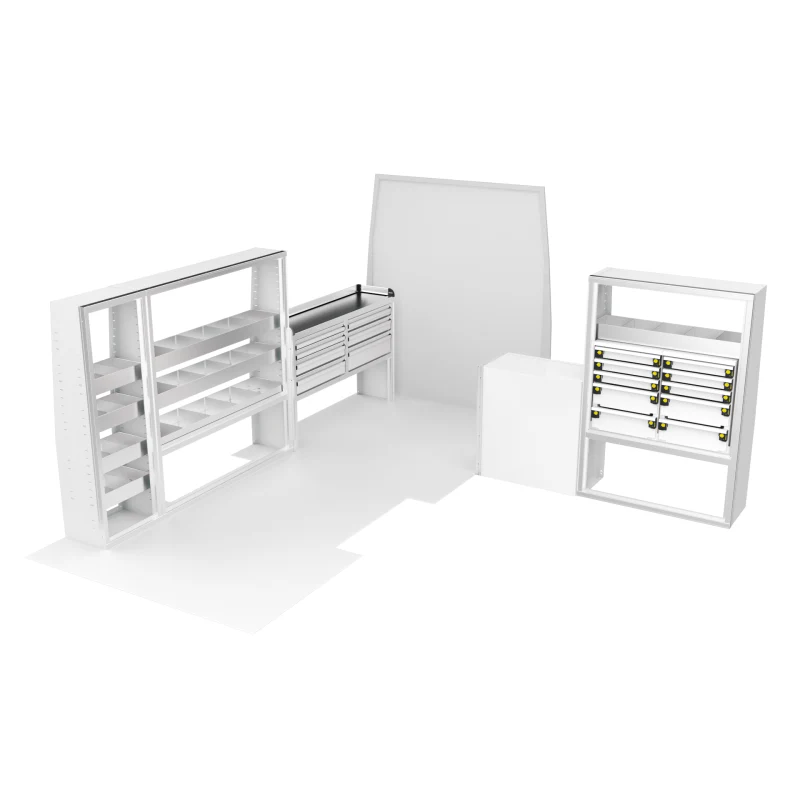

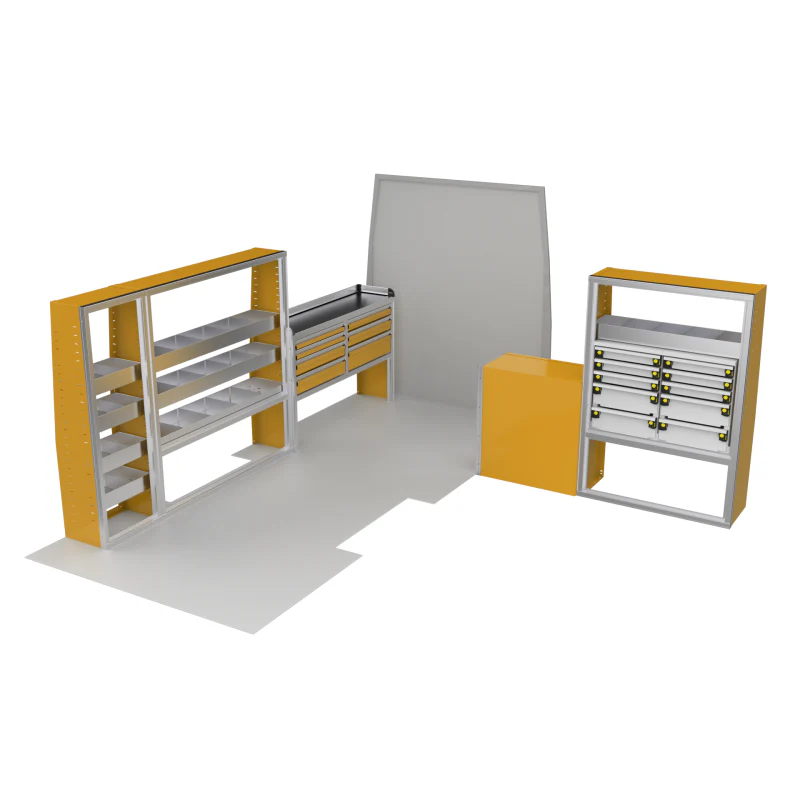

For the ultimate storage solution in your Ford Transit Extended model, the VanPro Package FTEXT2 has everything you need. Designed for medium or high roof Transit 150/250/350 vans, this system includes versatile shelving, a durable workbench, and a drawer housing for additional small-item storage. Crafted from premium aluminum and built to withstand the toughest demands, this package offers easy access and maximized space to keep your tools and equipment organized and ready to go.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
FT-304	Quantity: 1 Location: Front Streetside Overall Size: 56"W x 36"H x 14"D Frame Size: 56"W x 36"H x 14"D Note: Cabinet height excludes 2.25" backsplash
FT-300	Quantity: 1 Location: Middle Streetside Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
FT-303	Quantity: 1 Location: Rear Streetside Overall Size: 20"W x 60"H x 14"D Frame Size: 20"W x 60"H x 14"D
FT-301	Quantity: 1 Location: Rear Curbside Overall Size: 41"W x 60"H x 16"D Frame Size: 41"W x 60"H x 16"D
MG-9 Drawer Unit	Quantity: 2 Mounted in: FT-301 Unit Size: 18"W x 25"H x 14"D Weight: 36 lbs Finish: Tool Cabinet White (Powder Coat & Extrusion)
FT-305 Drawer Housing	Quantity: 1 Location: Front Curbside Overall Size: 16"W x 32"H x 30"D Frame Size: 16"W x 32"H x 30"D

Cabinet Options

• GasketLoc Countertop - Plastic Laminate (FT-304)
• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Back Panel (where noted)
• Bottom Rail
• Top Panel
• Floor Panel (FT-305)
• Custom Deep Shelves with Dividers (FT-300, FT-303)
• Transit Profile on All Units

Opening Details

Model/Opening	Details
FT-304 - Opening 1	Size: 25.75"W x 17"H Drawers: 3", 3", 5", 5" [Lnr] Slide Type: Medium Duty 12" (x4) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
FT-304 - Opening 3	Size: 25.75"W x 17"H Drawers: 4", 5", 7" [Lnr] Slide Type: Medium Duty 12" (x3) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
FT-304 - Opening 2	Size: 53"W x 15.5"H EMPTY Additional Option: Delete back panel
FT-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
FT-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
FT-303 - Opening	Size: 17"W x 57"H EMPTY Adjustable Shelves: 4 (18.758"W x 12"D)
FT-301 - Opening 1	Size: 38"W x 40"H EMPTY Adjustable Shelf: 1 (39.758"W x 14"D)
FT-301 - Opening 2	Size: 38"W x 15.5"H EMPTY Fixed Shelf
MG-9 Drawer Heights	3", 3", 3", 6", 6"
FT-305 - Single Opening	Size: 13"W x 29"H Drawers: 3", 3", 4", 5", 6", 7" [Lnr] [Sep:4] [STS] Divider Clip Kit: Qty 4 Slide Type: Medium Duty 28" (x6) Inside Drawer Dim: 8.53"W x 27.671"D Bottom Space: 0.952"

Vehicle Fitment

Product Application	Work Van
Vehicle	Ford Transit
Model Year	2014-2025
Wheelbase	148"
Cargo Length	Extended
Cargo Roof Height	High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
