CTech VanPro Package FTEXT1 Model FT-EXT-PRO-1

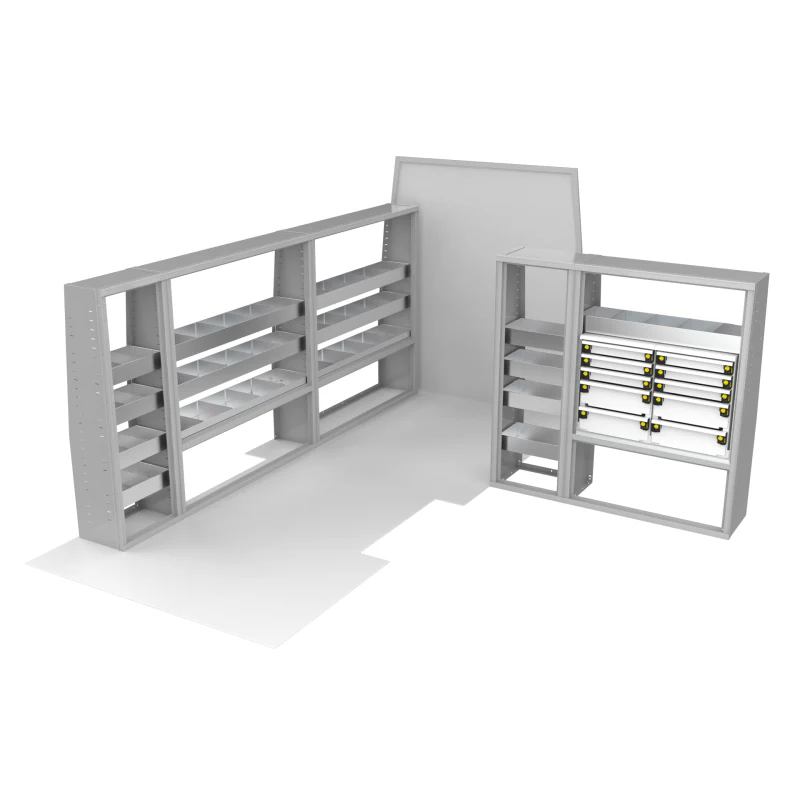

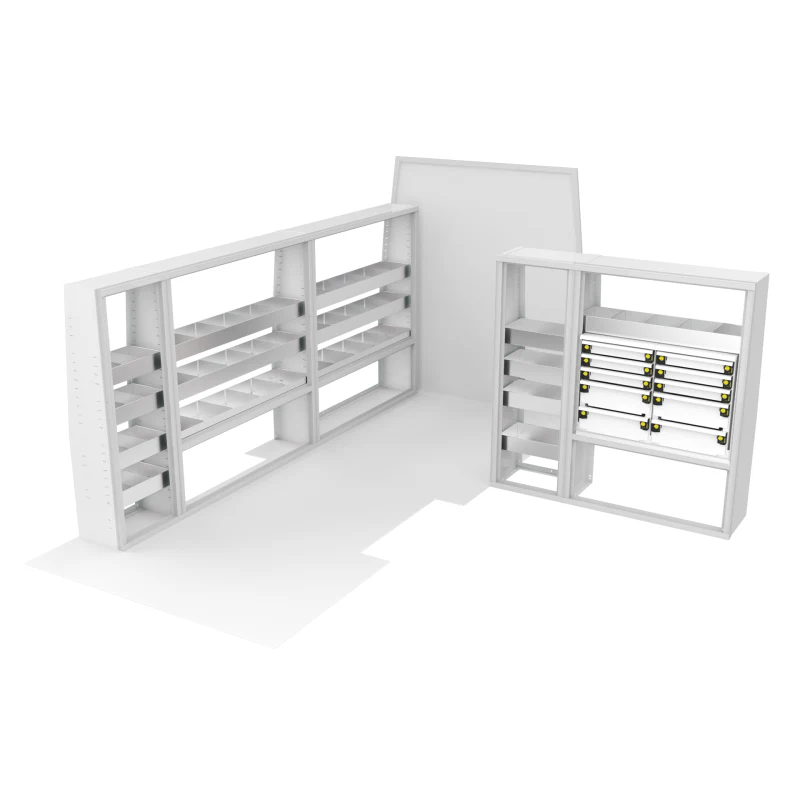

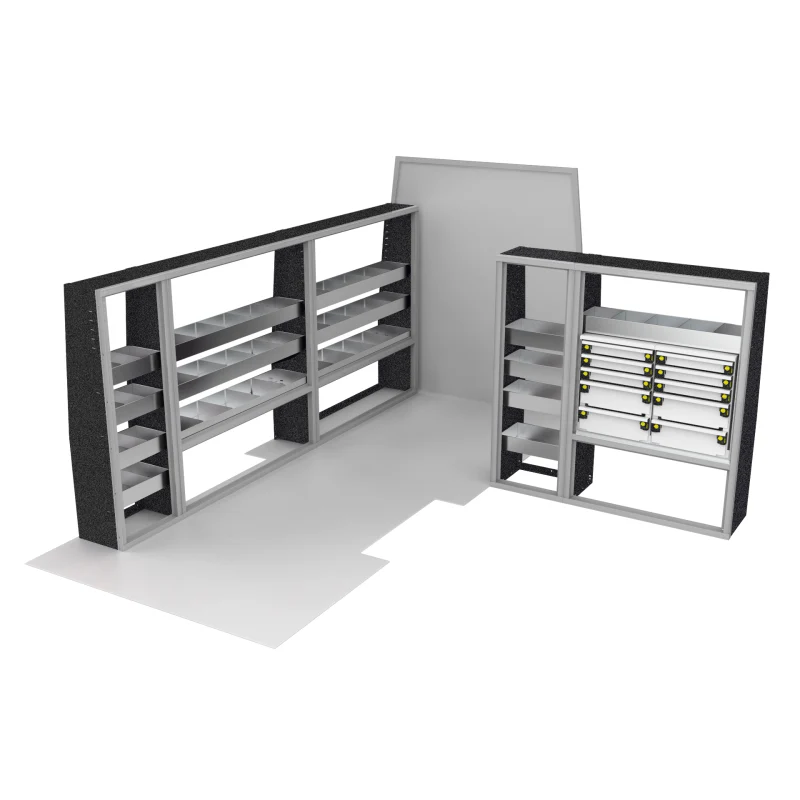

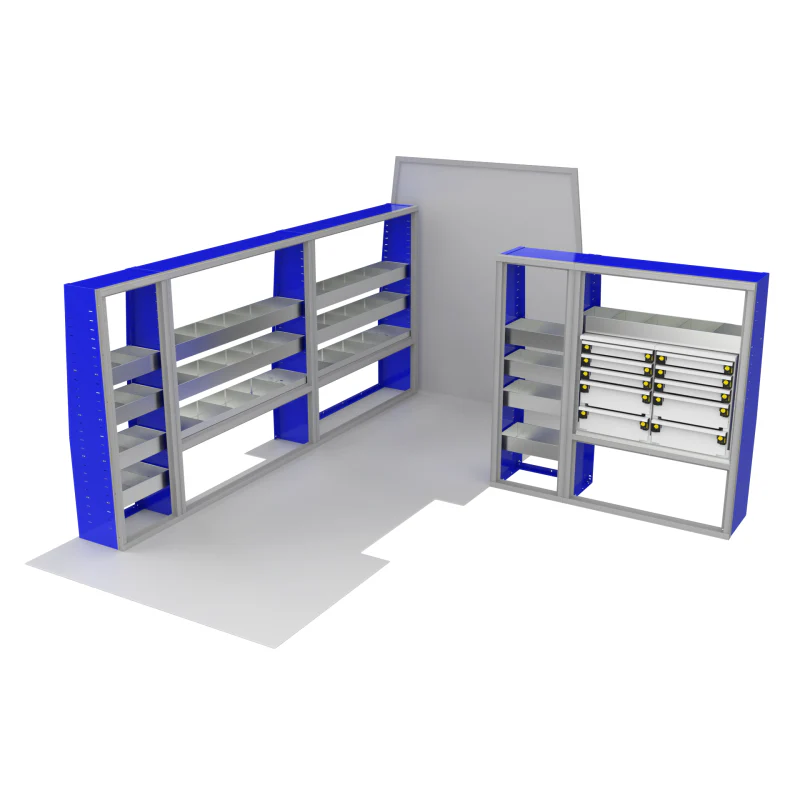

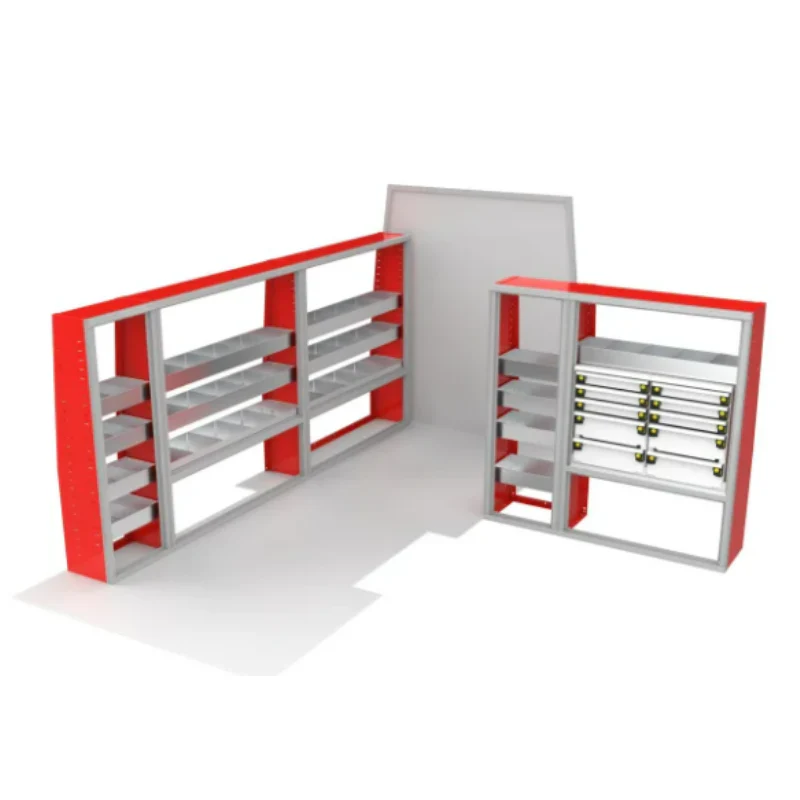

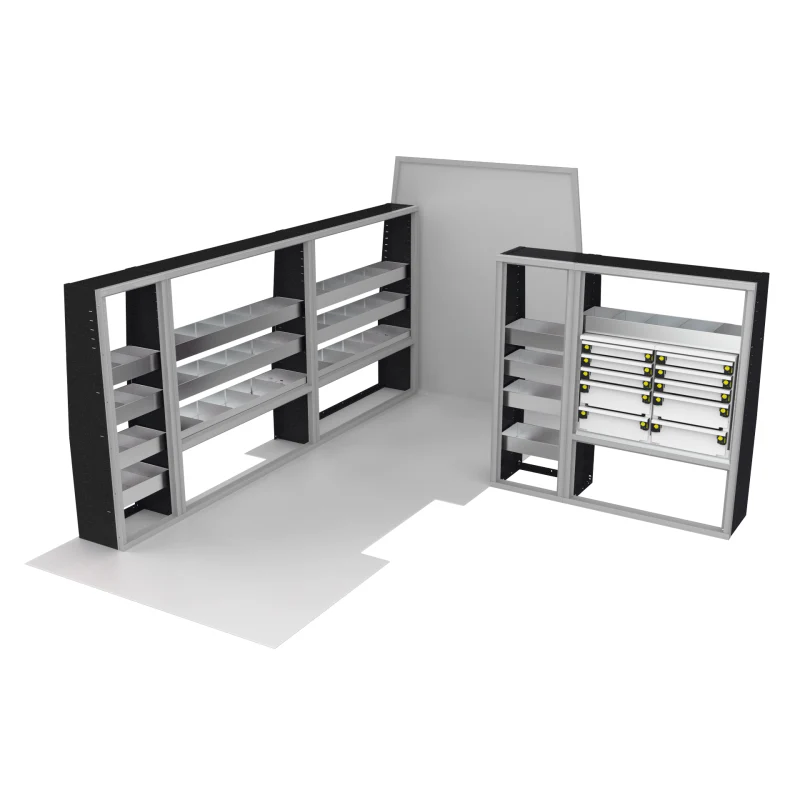

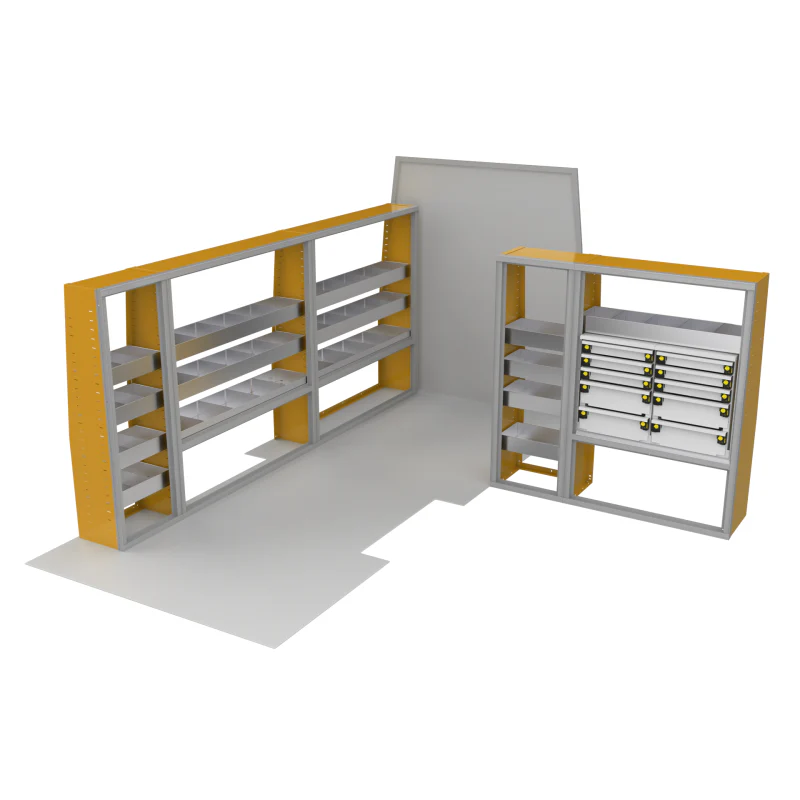

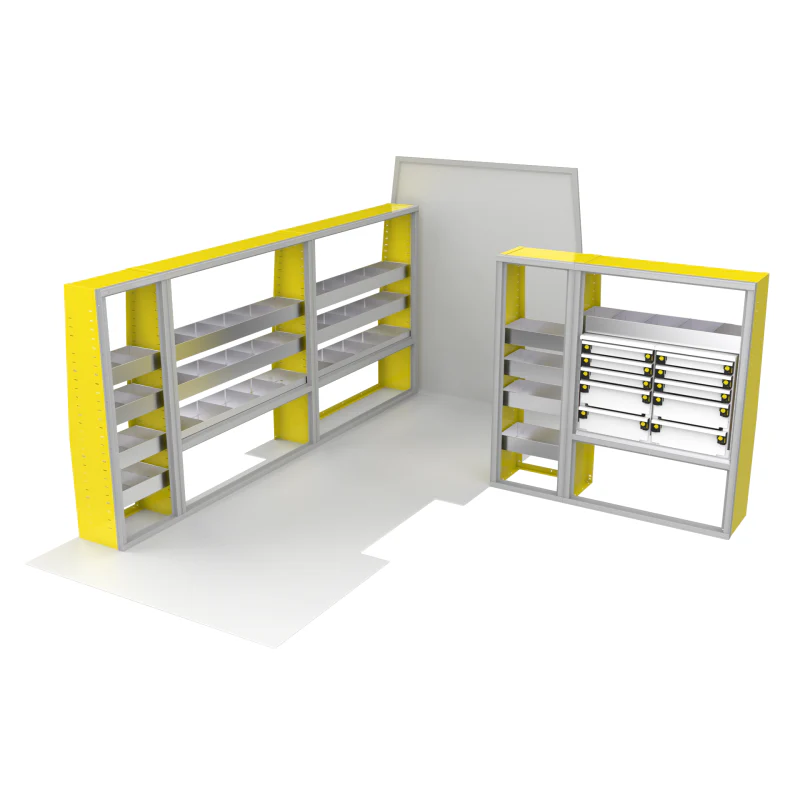

Upgrade your Ford Transit Extended with the VanPro Package FTEXT1—a complete storage system built to meet the demands of mobile workspaces. Specifically designed for the Ford Transit 150/250/350 Extended models with a medium or high roof, this package includes four specialized shelving units—including MotionGlide—that maximize your van's cargo space. Crafted from lightweight aluminum for durability and ease of installation, it offers an efficient and rugged solution to keep your tools and equipment organized during your daily work routine.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

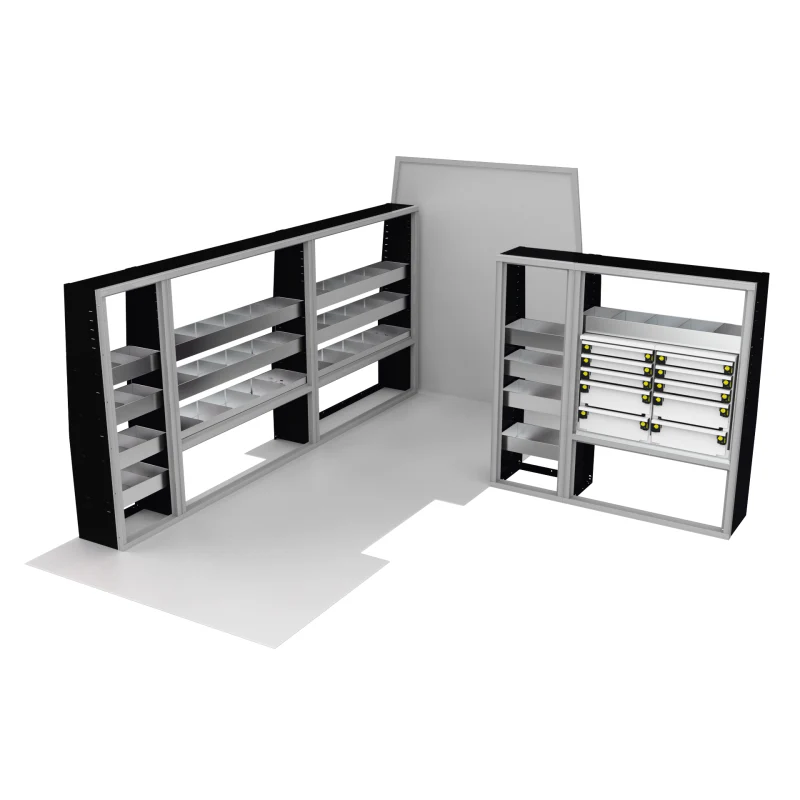

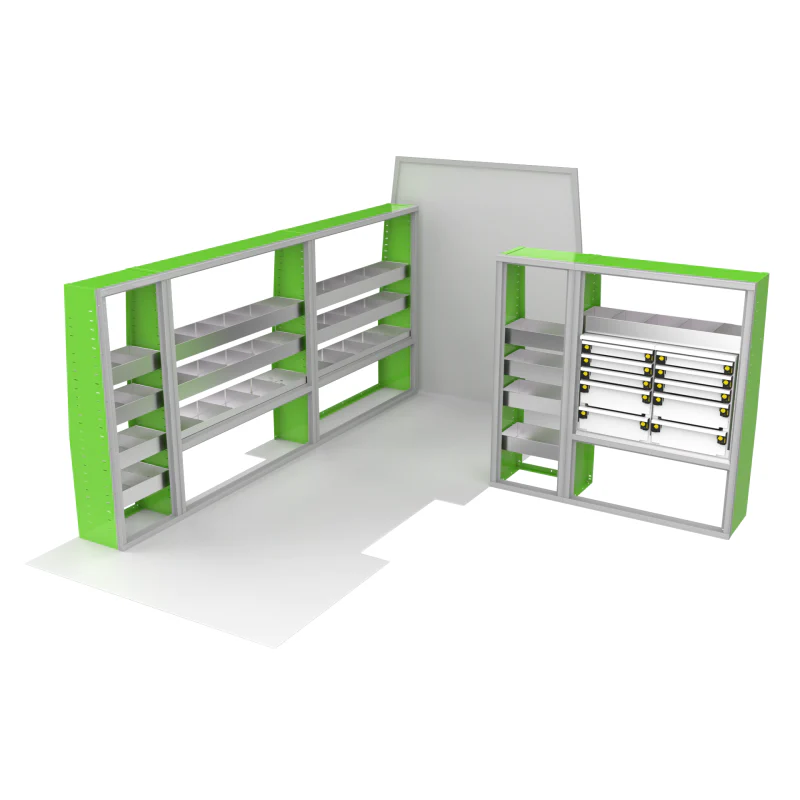

Cabinet Overview

Model/Part	Details
FT-300	Quantity: 2 Locations: Front Streetside, Middle Streetside Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
FT-303	Quantity: 1 Location: Rear Streetside Overall Size: 20"W x 60"H x 14"D Frame Size: 20"W x 60"H x 14"D
FT-301	Quantity: 1 Location: Front Curbside Overall Size: 41"W x 60"H x 16"D Frame Size: 41"W x 60"H x 16"D
FT-302	Quantity: 1 Location: — Overall Size: 20"W x 60"H x 16"D Frame Size: 20"W x 60"H x 16"D
MG-9 Drawer Unit	Quantity: 2 Mounted in: FT-301 Unit Size: 18"W x 25"H x 14"D Weight: 36 lbs Finish: Tool Cabinet White (Powder Coat & Extrusion)

Cabinet Options

• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Bottom Rail
• Top Panel
• Custom Deep Shelves with 4 Dividers (where noted)
• Transit Profile on All Units

Opening Details

Model/Opening	Details
FT-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
FT-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
FT-303 - Opening	Size: 17"W x 57"H EMPTY Adjustable Shelves: 4 (18.758"W x 12"D)
FT-301 - Opening 1	Size: 38"W x 40"H EMPTY Adjustable Shelves: 1 (39.758"W x 14"D)
FT-301 - Opening 2	Size: 38"W x 15.5"H EMPTY Fixed Shelf
FT-302 - Opening	Size: 17"W x 57"H EMPTY Adjustable Shelves: 4 (18.758"W x 14"D)
MG-9 Drawer Heights	3", 3", 3", 6", 6"

Vehicle Fitment

Product Application	Work Van
Vehicle	Ford Transit
Model Year	2014-2025
Wheelbase	148"
Cargo Length	Extended
Cargo Roof Height	High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
