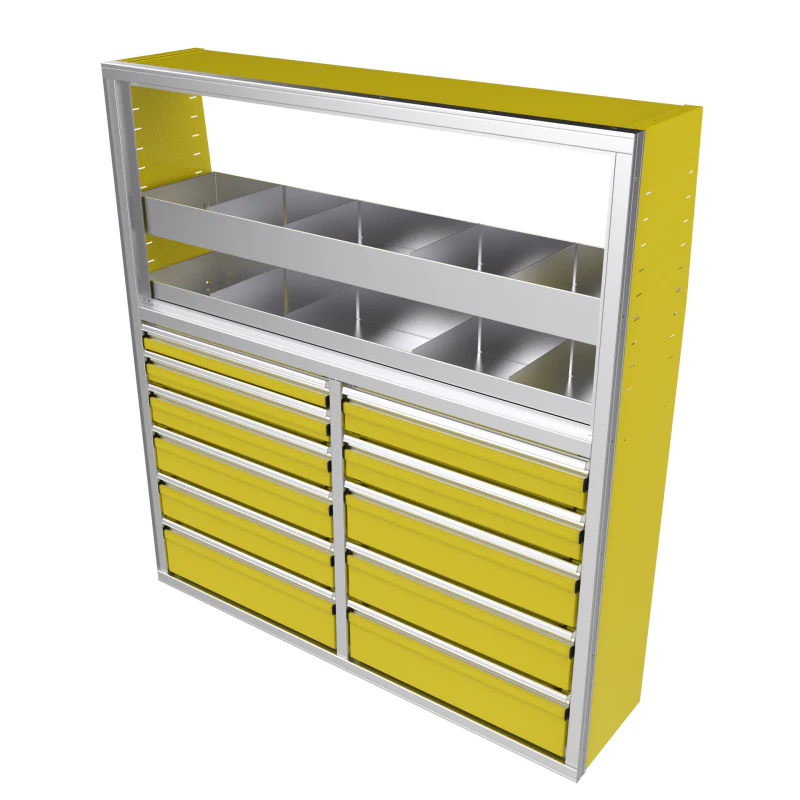

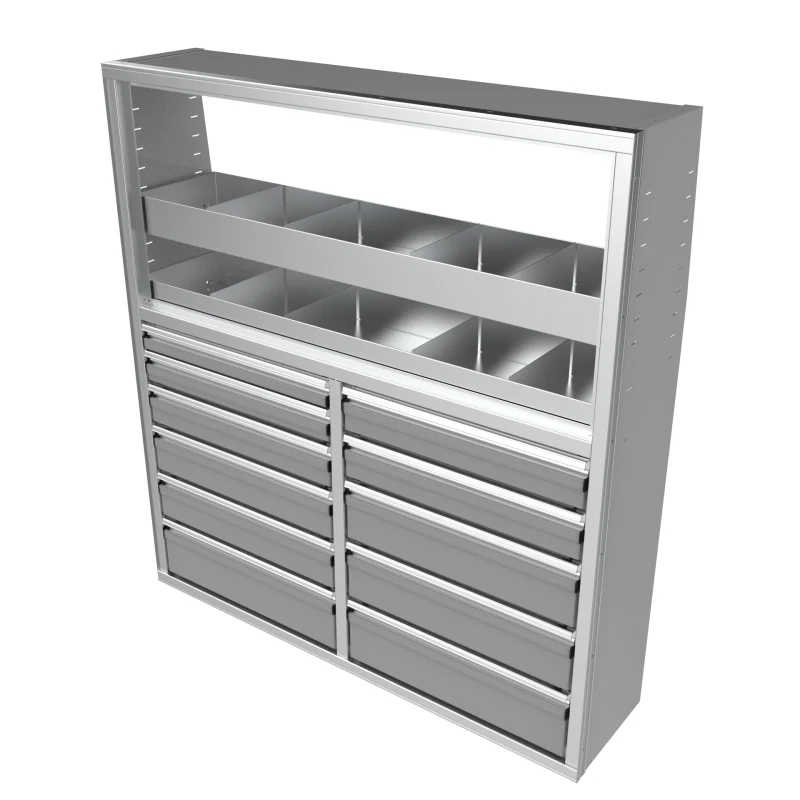

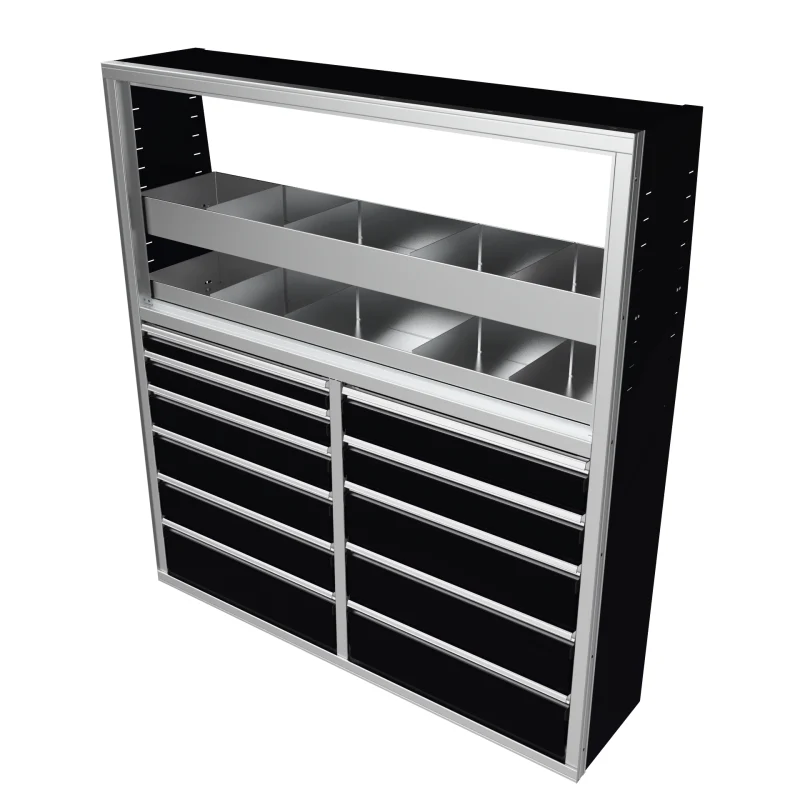

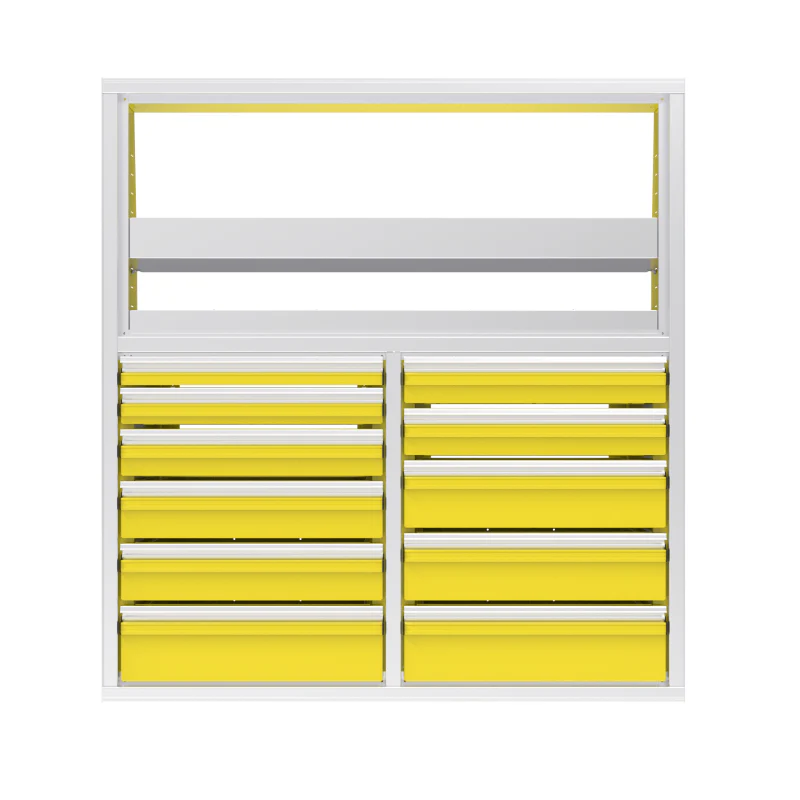

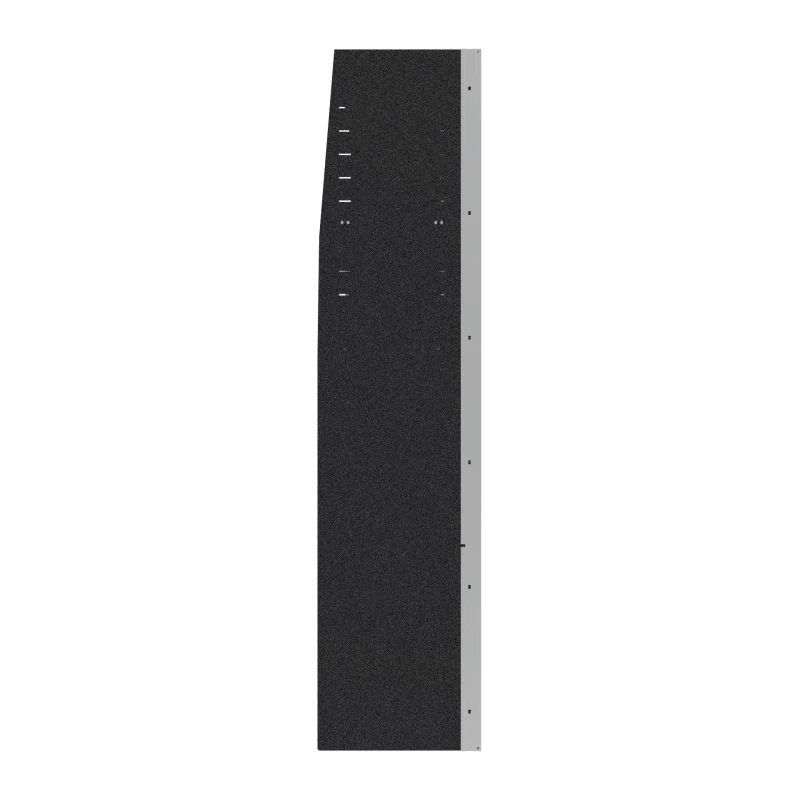

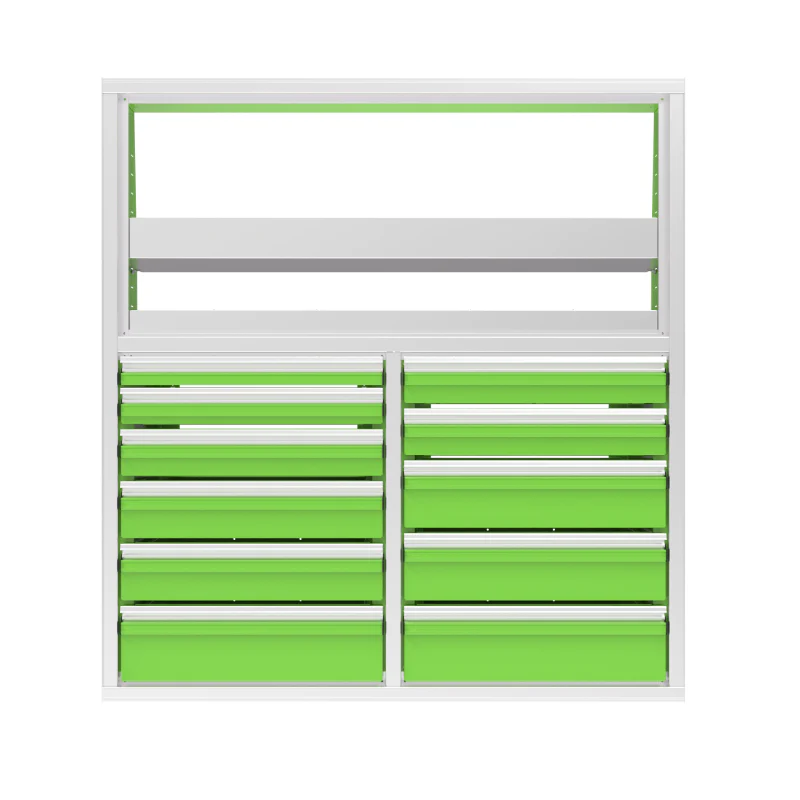

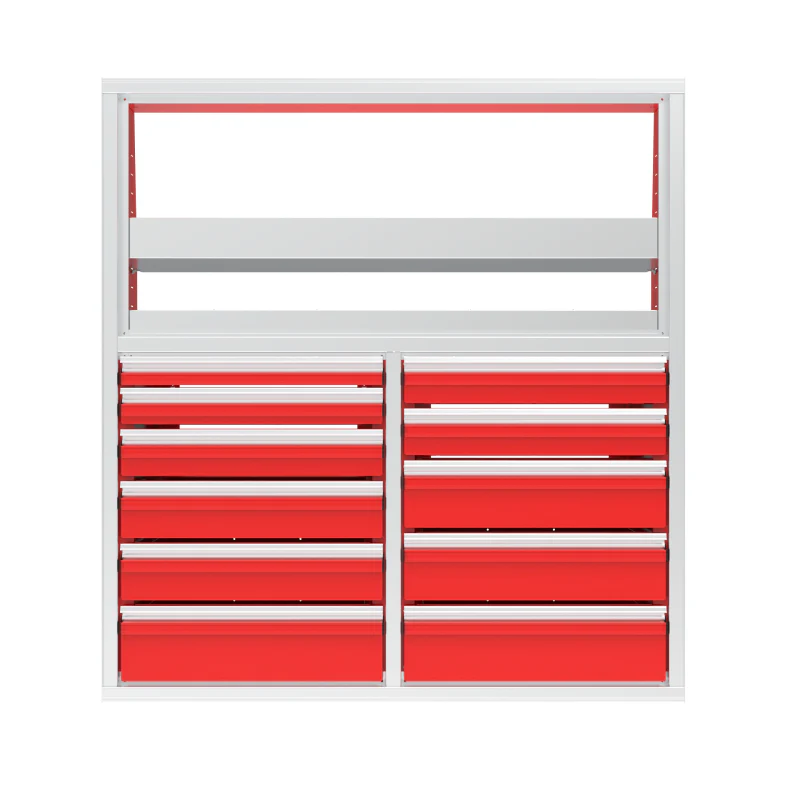

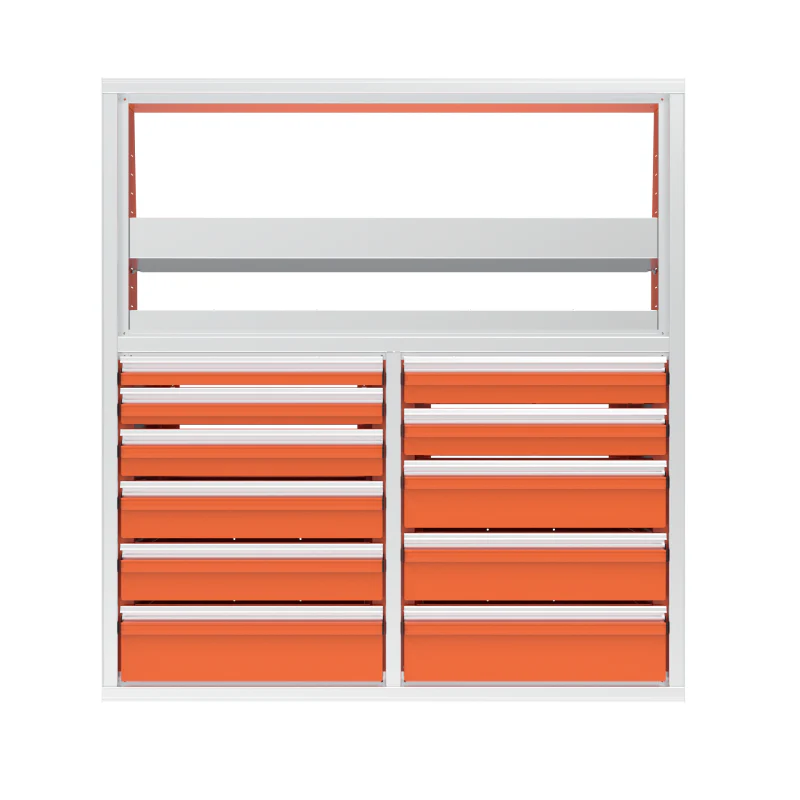

CTech VanPro MotionLatch Parts Cabinet RP308 Model RP-308

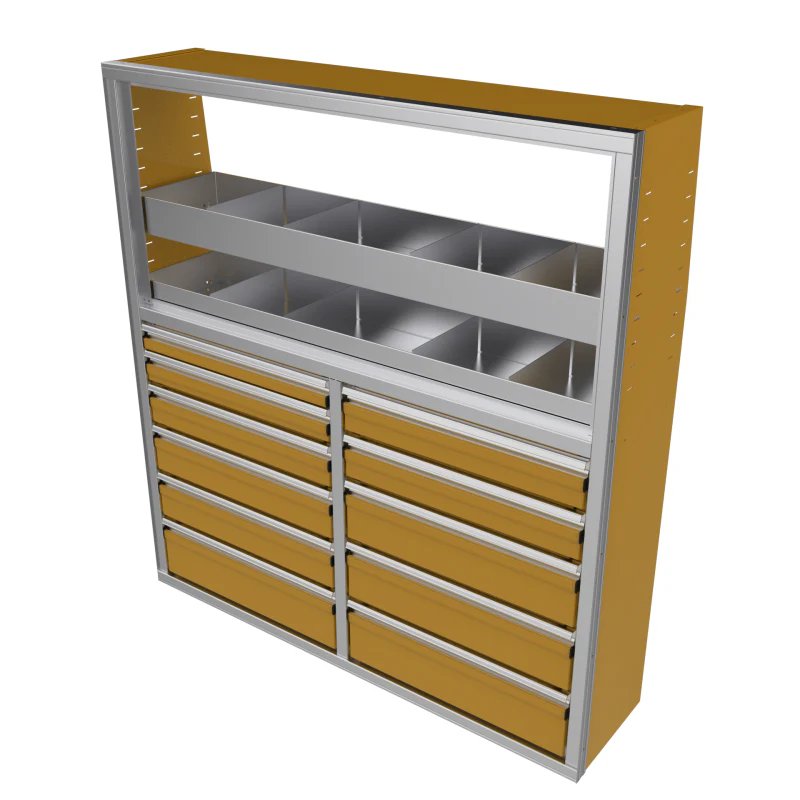

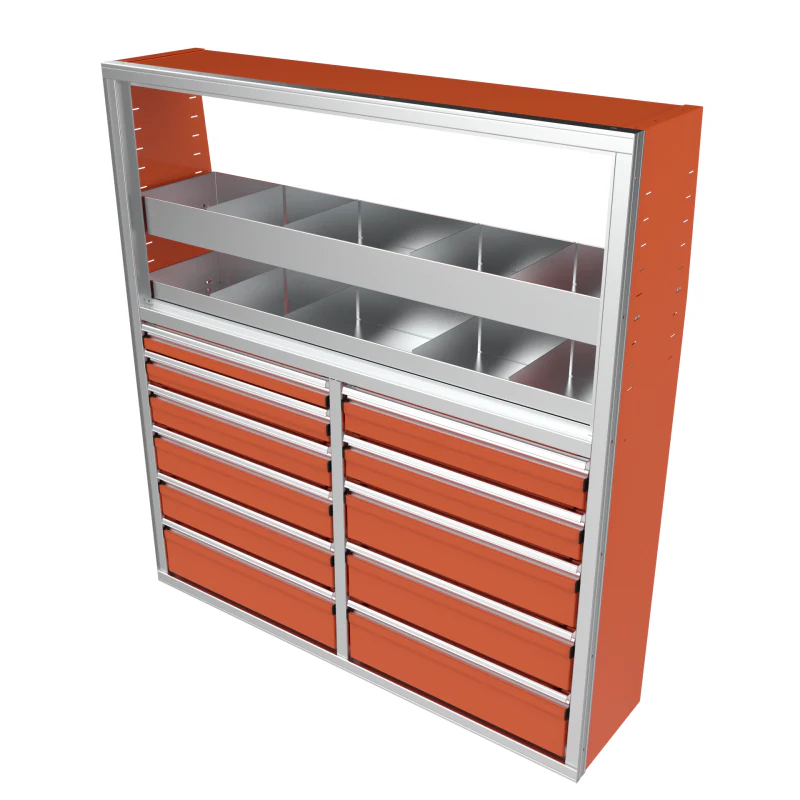

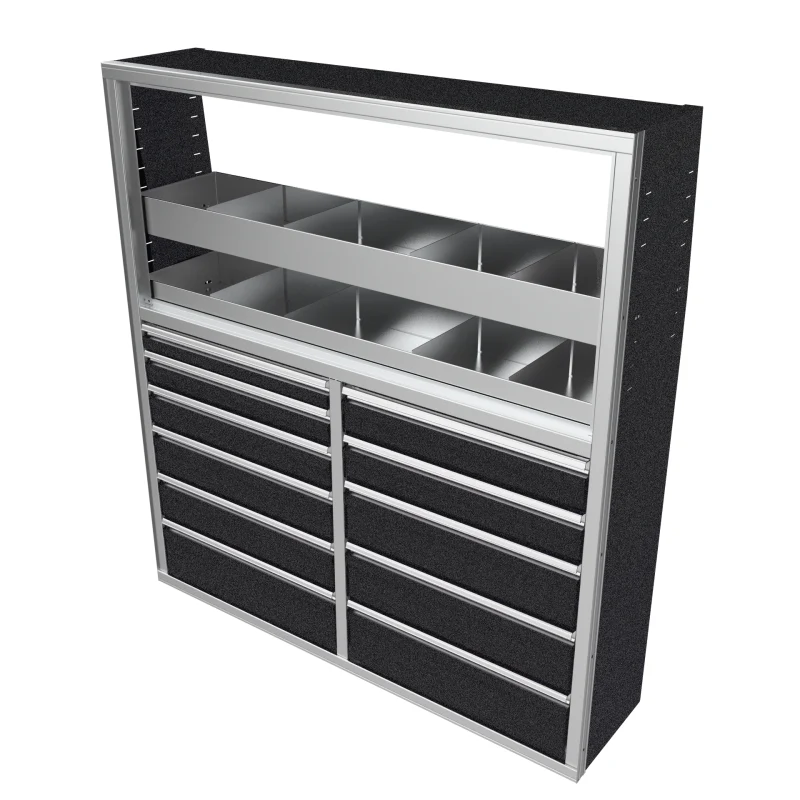

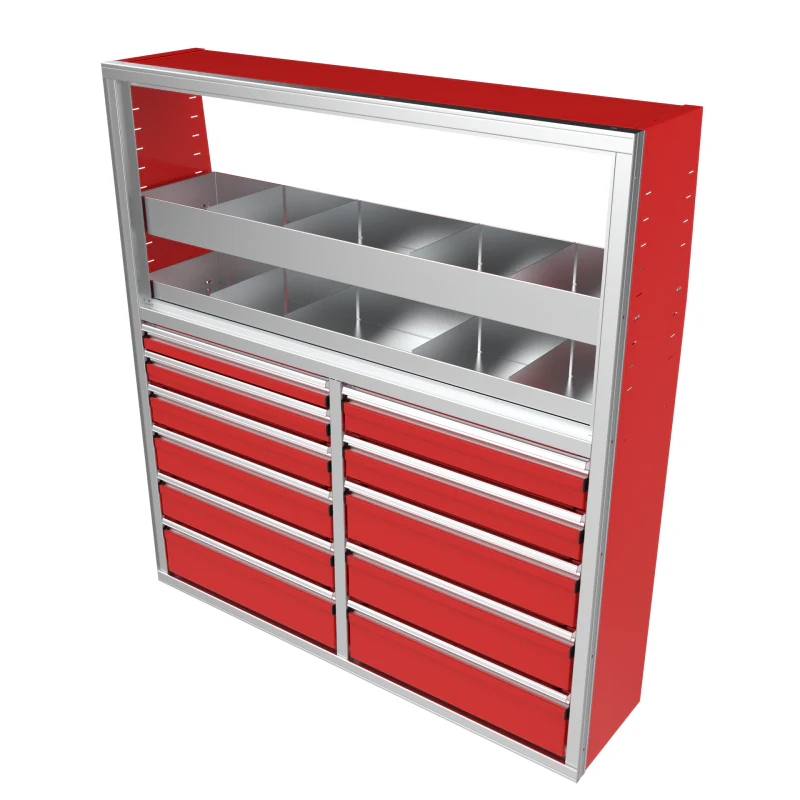

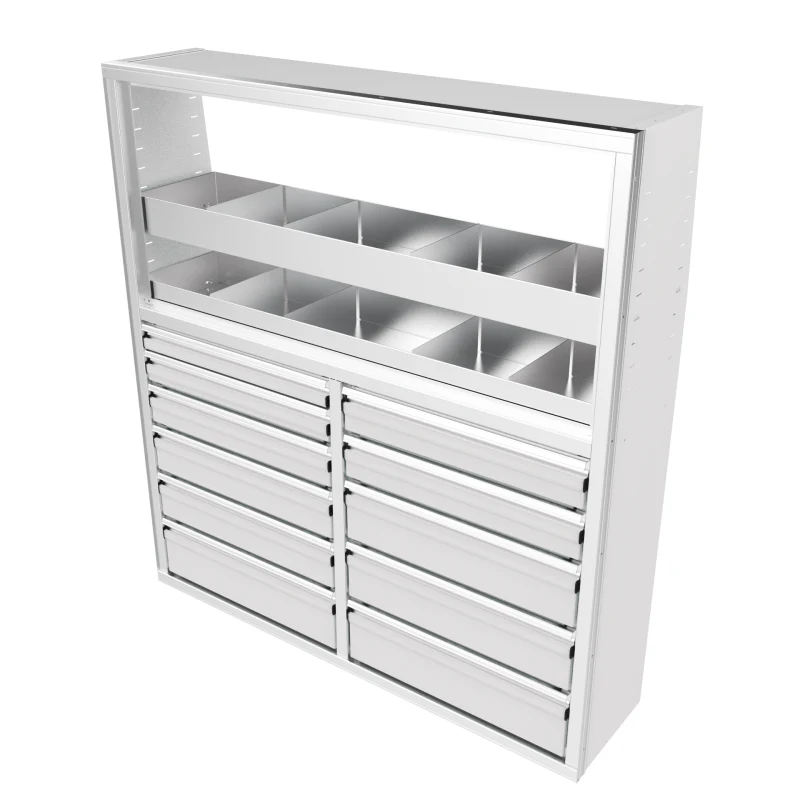

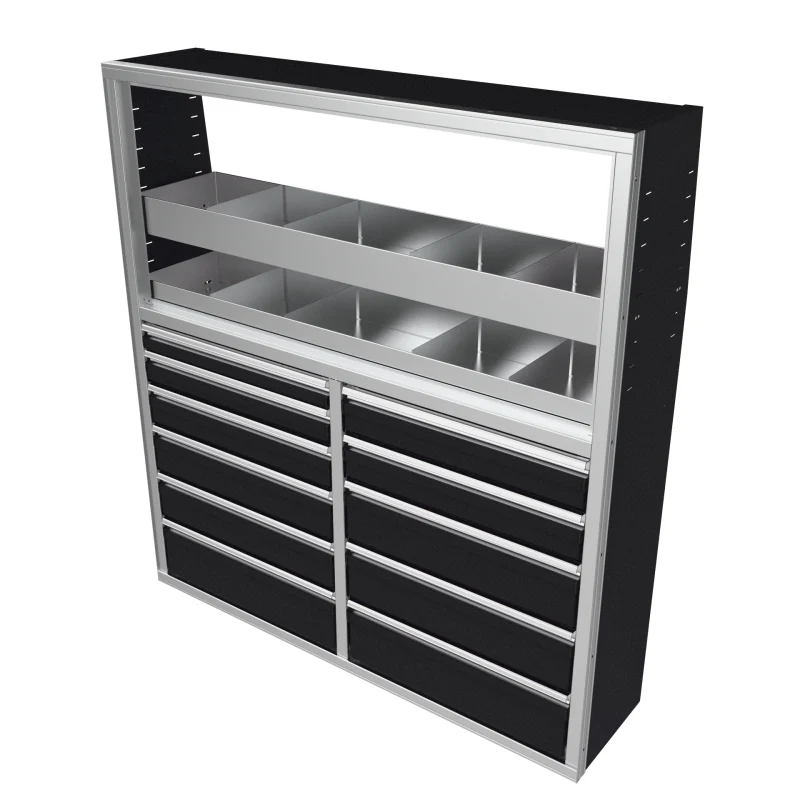

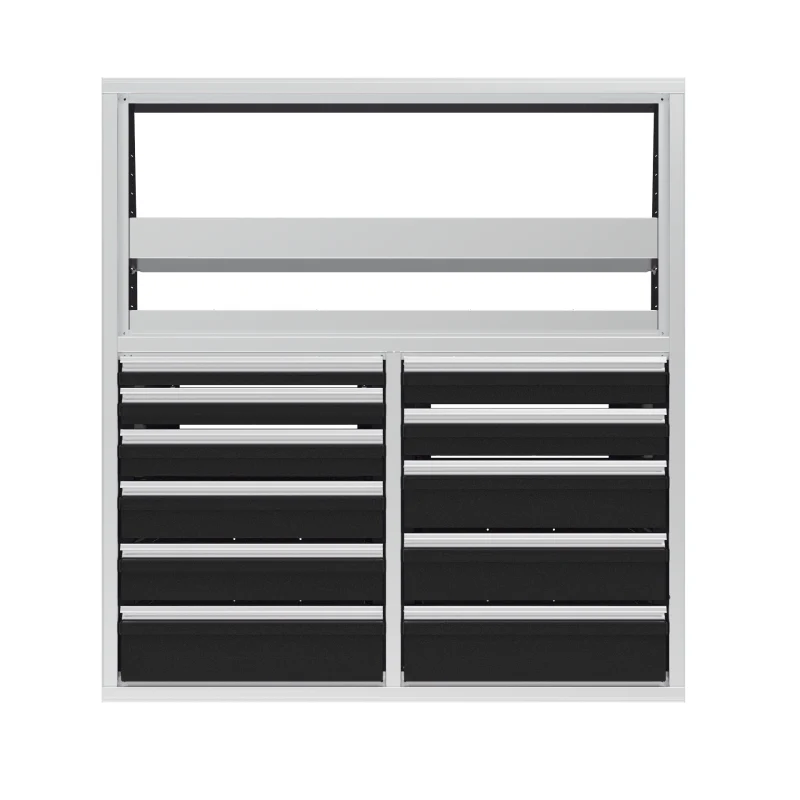

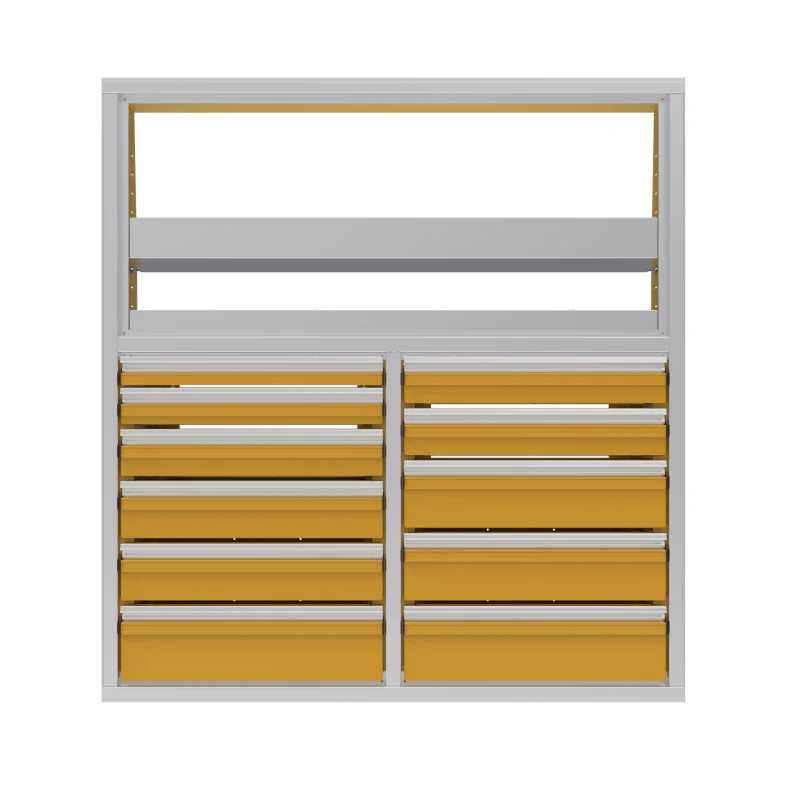

The VanPro MotionLatch Parts Cabinet RP308 for Ram ProMaster 2500/3500 combines adjustable open shelving up top with secure drawers below, giving you quick access to frequently used items and protected storage for valuable gear. Built from lightweight aluminum, it’s a durable, all-in-one storage solution for life on the job.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
RP-308	Quantity: 1 Location: — Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D

Cabinet Options

• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Back Panel
• Bottom Rail
• Floor Panel
• Top Panel
• Back Panel Behind Drawers Only
• Custom Deep Shelves with 4 Dividers
• ProMaster Profile

Opening Details

Model/Opening	Details
RP-308 - Opening 1	Size: 53"W x 23.375"H EMPTY Adjustable Shelf: 1 (54.758"W x 12"D)
RP-308 - Opening 2	Size: 25.75"W x 32.125"H Drawers: 3", 4", 5", 6", 6", 7" [Lnr] Slide Type: Medium Duty 12" (x6) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
RP-308 - Opening 3	Size: 25.75"W x 32.125"H Drawers: 5", 5", 7", 7", 7" [Lnr] Slide Type: Medium Duty 12" (x5) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"

Vehicle Fitment

Product Application	Work Van
Vehicle	RAM ProMaster
Model Year	2014-2025
Wheelbase	159"
Cargo Length	Standard, Extended
Cargo Roof Height	High, Super High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
