CTech VanPro Drawer Housing MS309 Model MS-309

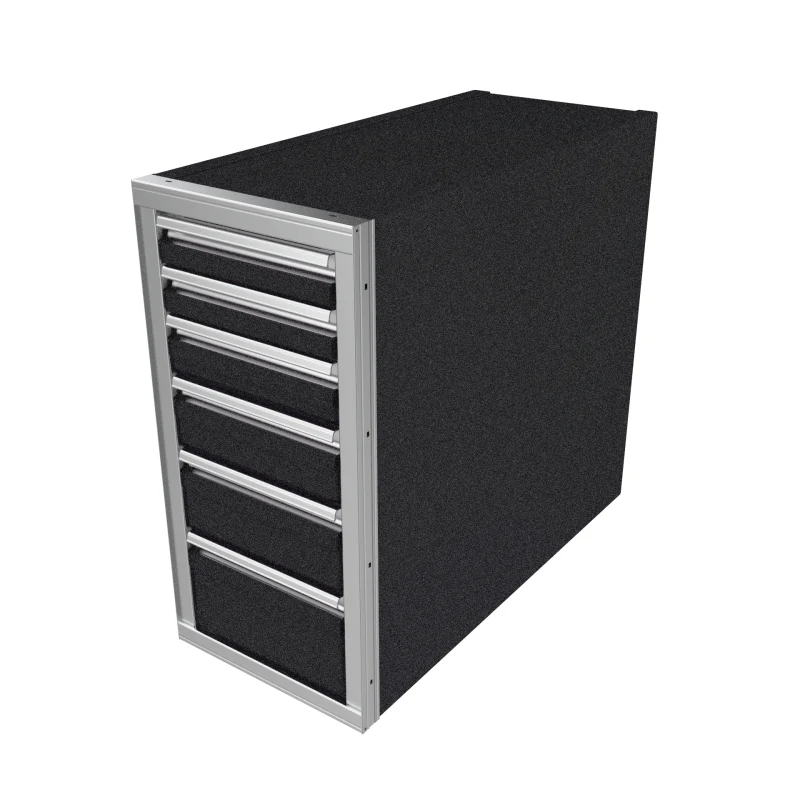

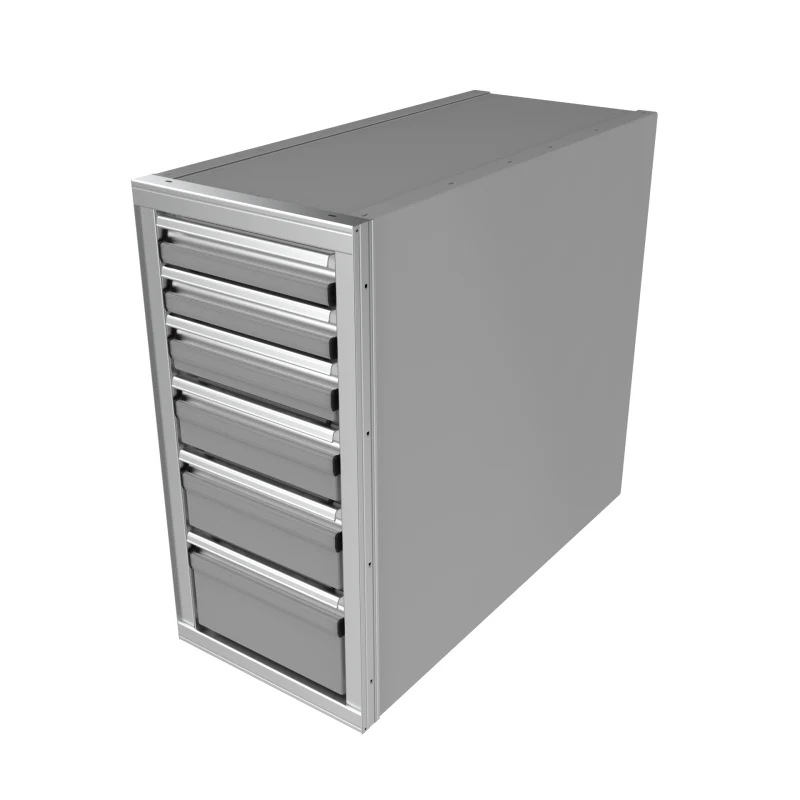

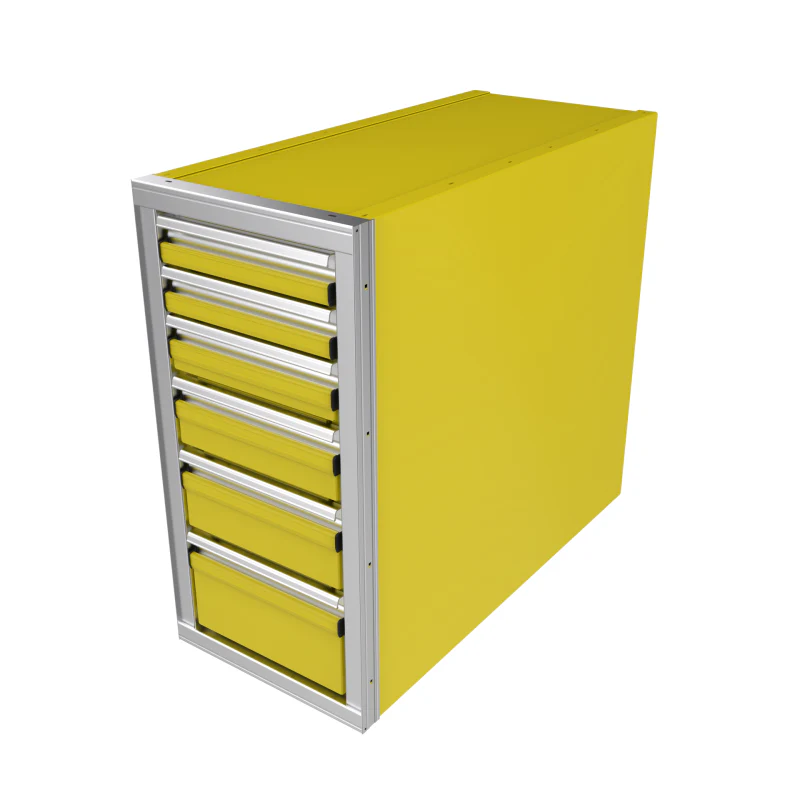

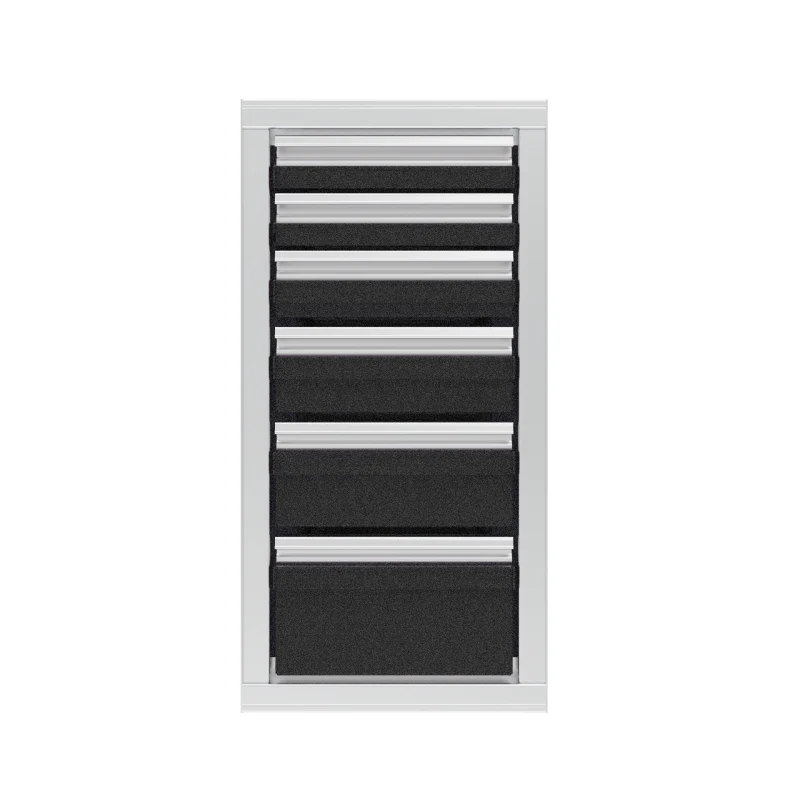

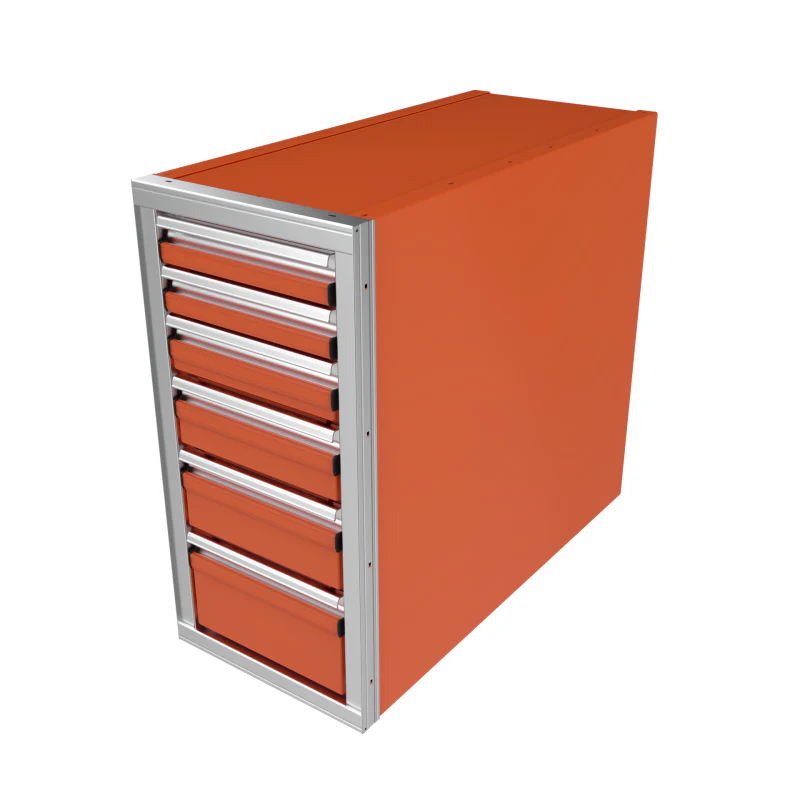

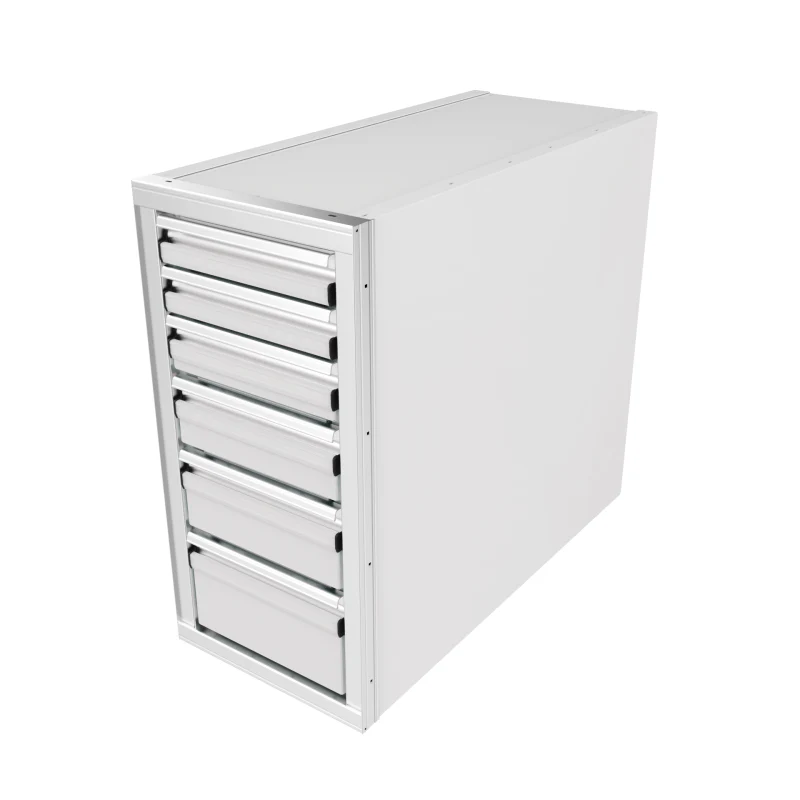

Optimize your Mercedes Sprinter with the VanPro MS309 Drawer Housing. This 16"W x 32"H x 36"D unit is designed to provide durable, secure storage with its dual-latching MotionLatch™ drawer system. Perfect for storing large tools and equipment, it’s built from corrosion-resistant aluminum and custom-fit for the Sprinter profile, offering a rugged, space-saving storage solution for your work van.

Features:

• Lightweight

Cabinet Overview

Model/Part	Details
MS-309 Drawer Housing	Quantity: 1 Overall Size: 16"W x 32"H x 36"D Frame Size: 16"W x 32"H x 36"D

Cabinet Options

• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Back Panel
• Bottom Rail
• Floor Panel
• Top Panel

Opening Details

Model/Opening	Details
MS-309 - Single Opening	Size: 13"W x 29"H Tabbed Drawer Covers Drawers: 3in [Lnr], 3in [Lnr], 4in [Lnr], 5in [Lnr], 6in [Lnr], 7in [Lnr] Slide Type: Medium Duty 34 inch Slide (x6) Bottom Space: .952 Inside Drawer Dimensions: 8.53"W x 33.671"D

Vehicle Fitment

Product Application	Work Van
Vehicle	Mercedes Sprinter
Model Year	2019-2025
Wheelbase	144"
Cargo Length	Standard, Extended
Cargo Roof Height	High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
