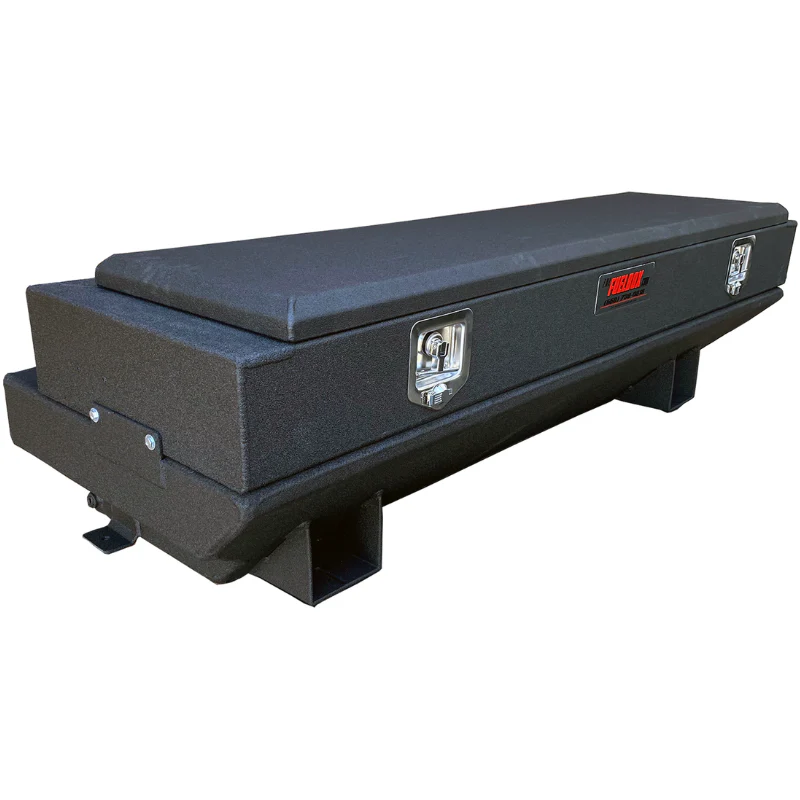

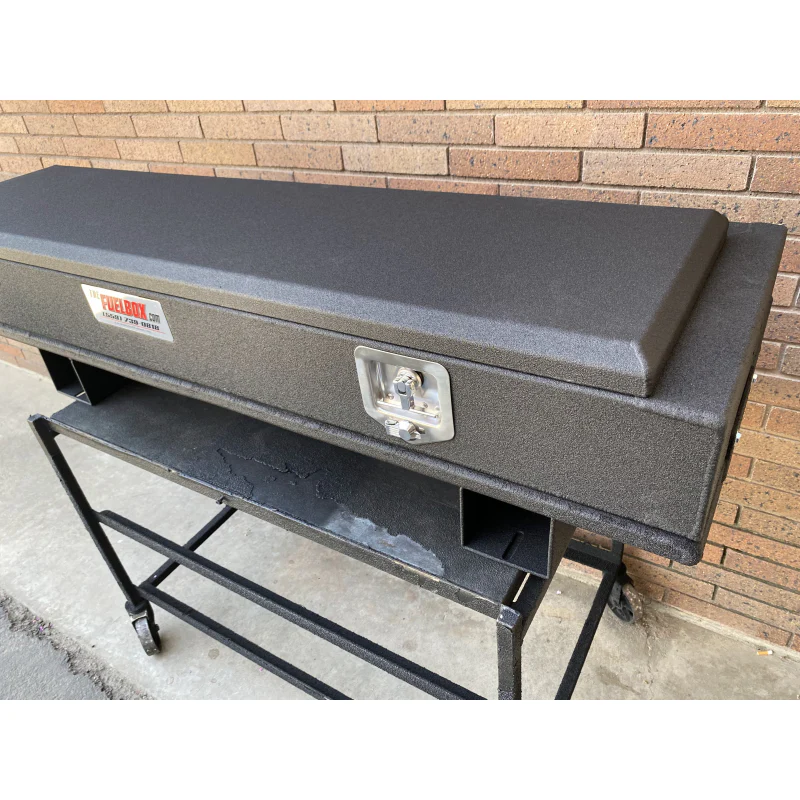

The FuelBox Tank and Tool Box Combo 40 Gallon Tonneau Cover Application Smooth Spray Liner Finish Model FTC44TMS

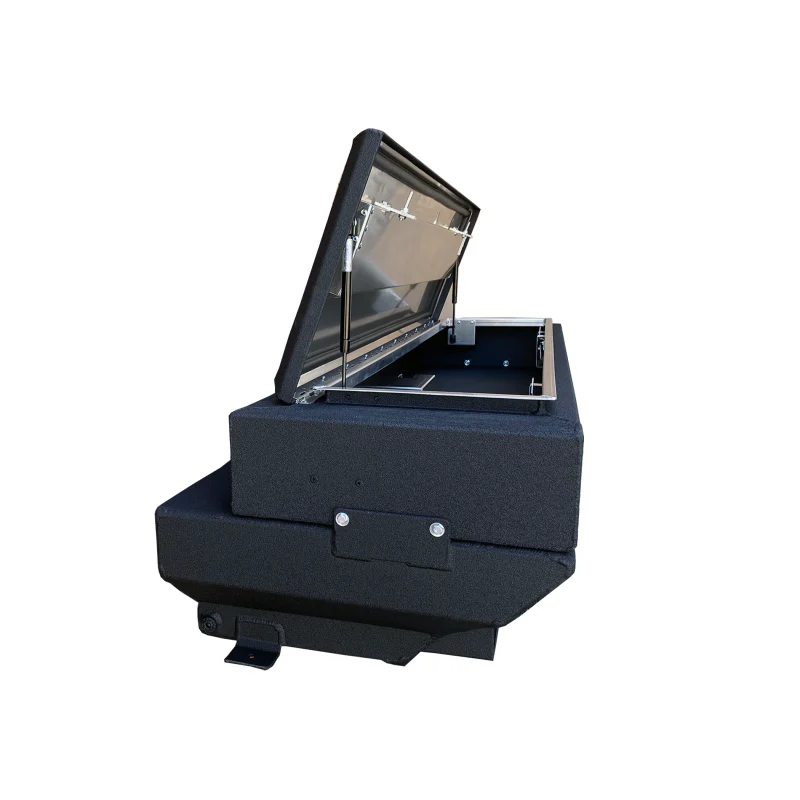

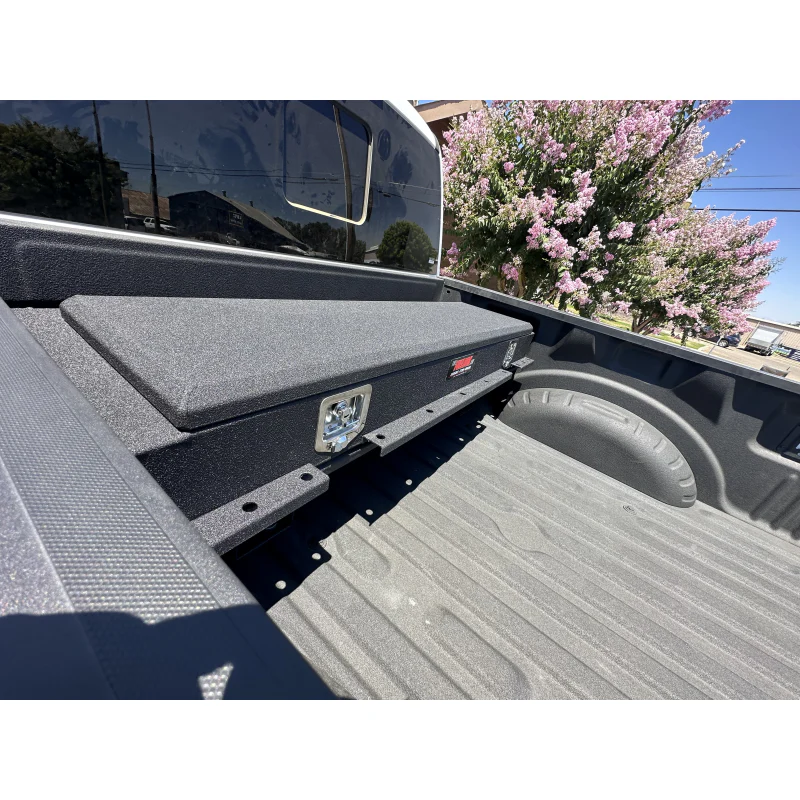

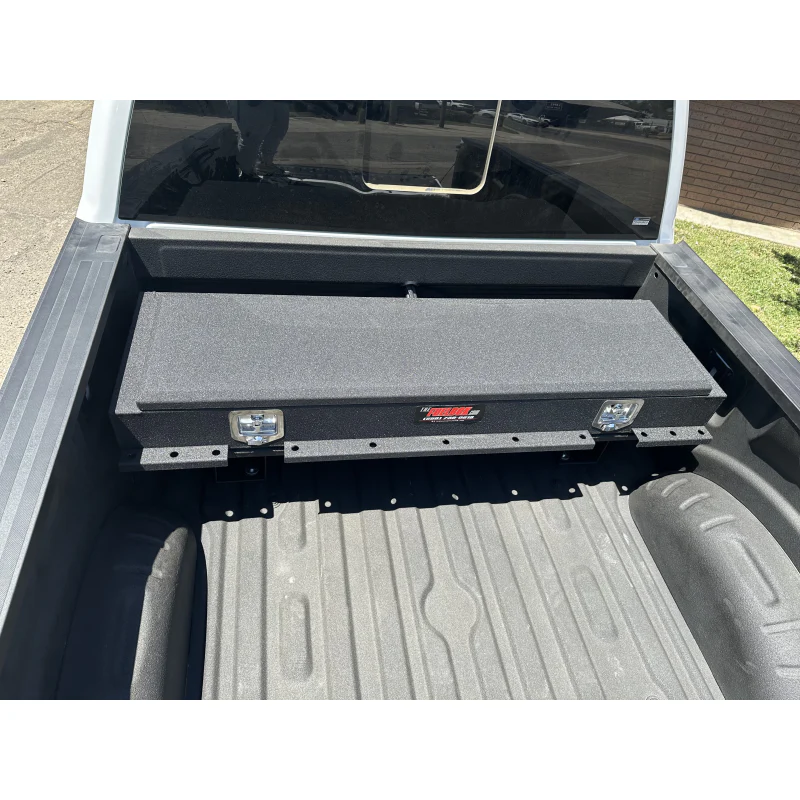

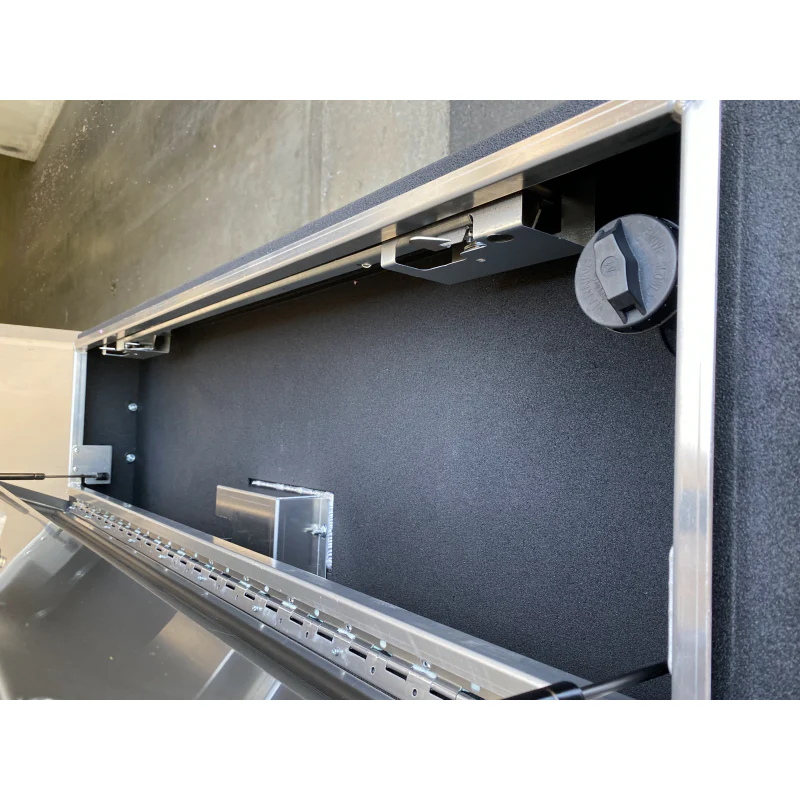

FTC44T designed to work with most tonneau covers. Revised dimensions and recessed lid allow full opening under covers. Sits below bed rails; clears most gooseneck and fifth wheel hitches. Fuel tank made from .125 marine grade aluminum with two interior baffles. 90-degree flange reinforced seams improve weld strength. Toolbox and lid constructed from .100 marine-grade aluminum with stiffener. Includes stainless steel latch/lock assemblies and full-length hinge. Neoprene-lined rain channel ensures weather-tight seal. Toolbox bottom separated from fuel tank top for added durability. DOT & EPA compliant for diesel use in all 50 states. All mounting hardware is included.

Warning: Proper Use of Auxiliary Tanks

To ensure safety and optimal performance, do not fill your auxiliary tank to 100% capacity. Auxiliary Tanks require sufficient headspace to allow for fuel expansion and vapor buildup. Overfilling the tank can lead to:

• Fuel Leaks: Excess fuel may escape through vents or seals, posing safety and environmental risks.
• Increased Pressure: Without adequate space for vapor, pressure buildup can damage the tank or connected systems.
• Compliance Issues: Overfilled tanks may violate local or federal regulations for fuel transport.

Safe Filling Recommendations

• Fill the tank to 90% of its capacity to allow room for fuel expansion.
• Use proper venting systems and check all connections for leaks before transport.
• Follow all local, state, and federal guidelines for the storage and transport of fuel.

By adhering to these precautions, you can ensure the safe and reliable use of your transfer tank while protecting your vehicle, environment, and compliance with regulations.

If you have any questions about proper usage or tank specifications, please contact our customer service team for assistance."

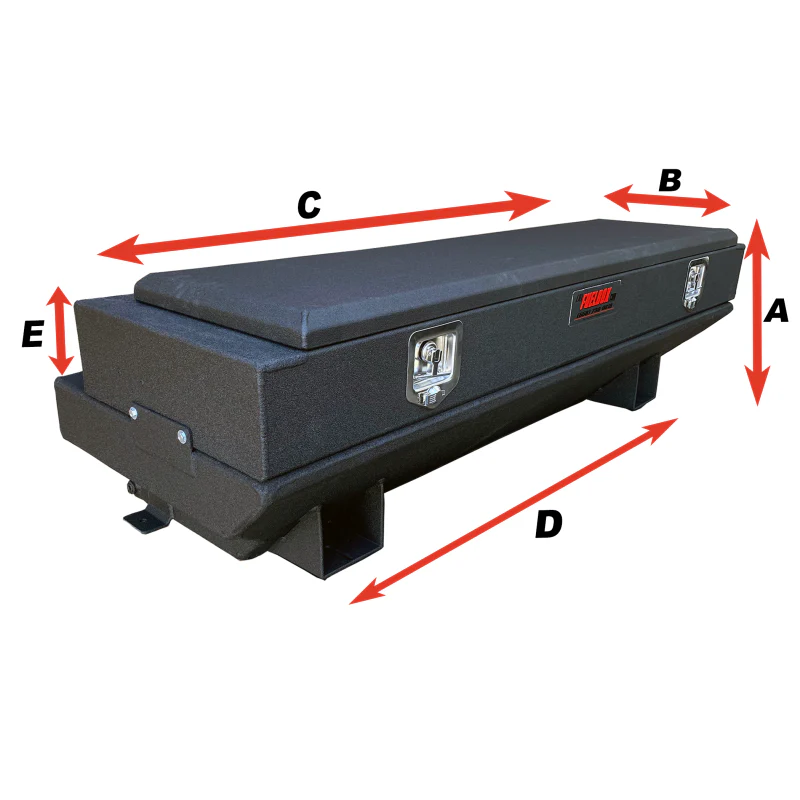

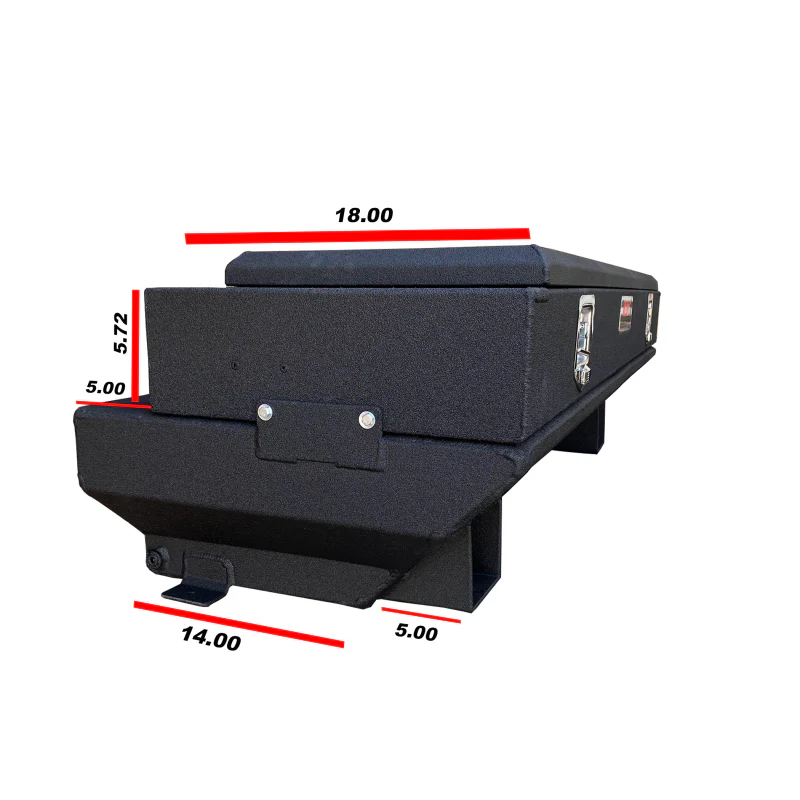

Specifications and Dimensions

Gal.	40*
A	17.5 in.
B	23 in.
C	62 in.
D	53 in.
E	5.75 in.

*Approximate Gallon Capacity

Fitment:

• Any 6.5" Short Bed GM, RAM, and Fords
• Any 8" Long Bed GM, RAM, and Fords
