The FuelBox 50 Gallon Fuel Tank Smooth Spray Liner Finish Model FT50MS

In-bed fuel tank only Fuelbox designed to work with most tonneau covers. Made from .125 marine grade aluminum with a minimum of two interior baffles. 90-degree flange reinforced seams double weld joint thickness. Pressure tested under water to ensure weld integrity. Compatible with Auto Fuel Controller systems. 2" bung available for external transfer pump. DOT & EPA compliant for diesel use in all 50 states.

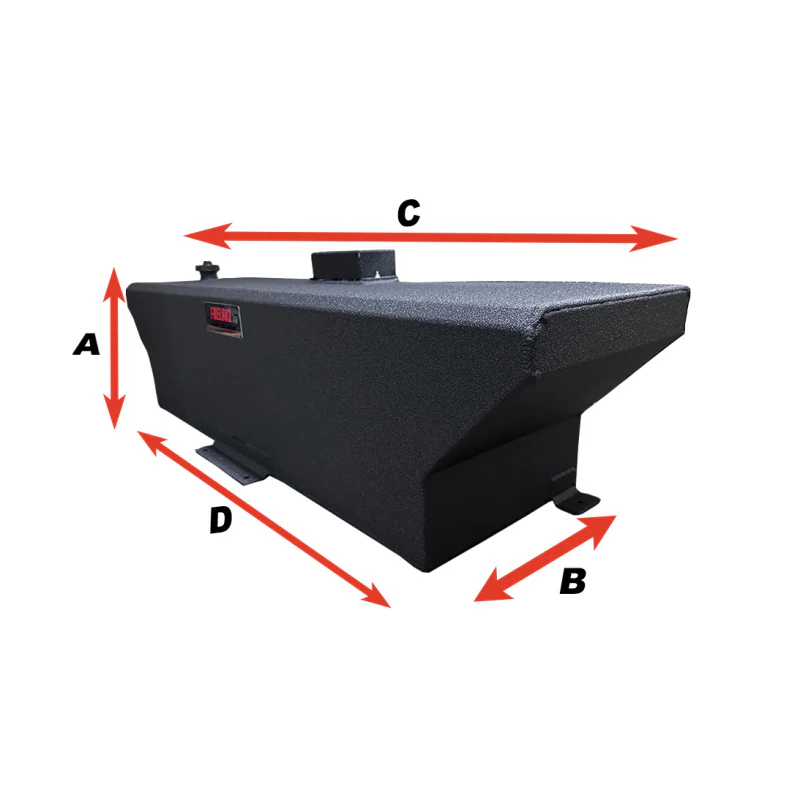

Specifications and Dimensions

Gal.	50*
A	15 in.
B	16 in.
C	60 in.
D	48 in.
E	N/A

*Approximate Gallon Capacity

Fitment:

• Any 6.5" Short Bed GM, RAM, and Fords
• Any 8" Short Bed GM, RAM, and Fords
