Ranger Design Max Rack 2.0 for Mercedes Sprinter 144" & 170" Wheelbase - Single Model 1870-DH
Ranger Design Max Rack 2.0 for Mercedes Sprinter 144" & 170" Wheelbase - Single Model 1870-DH

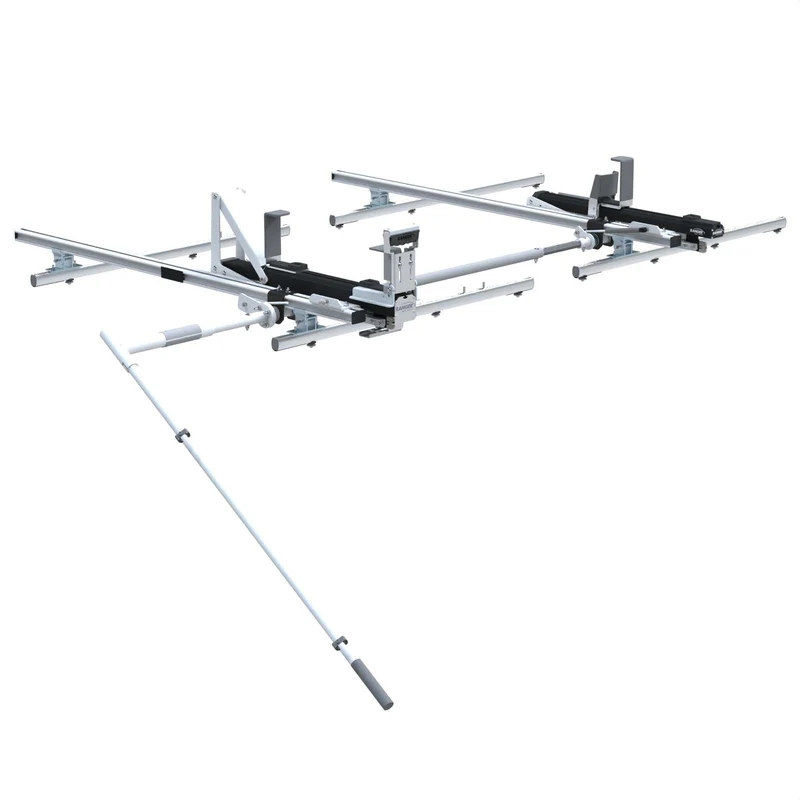

Ranger Design Max Rack 2.0 for Mercedes Sprinter - Single Model 1870-DH

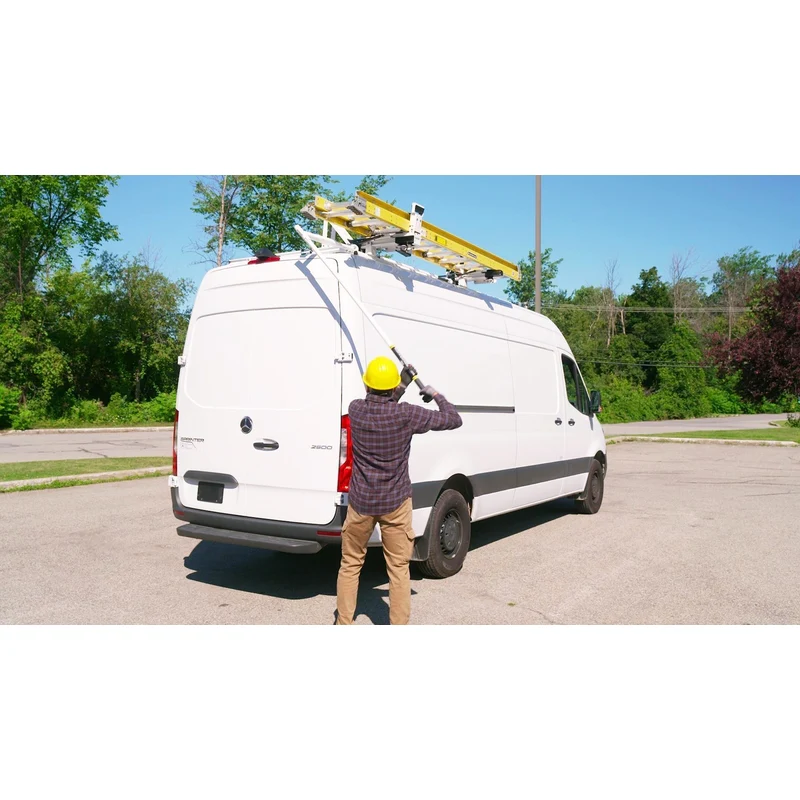

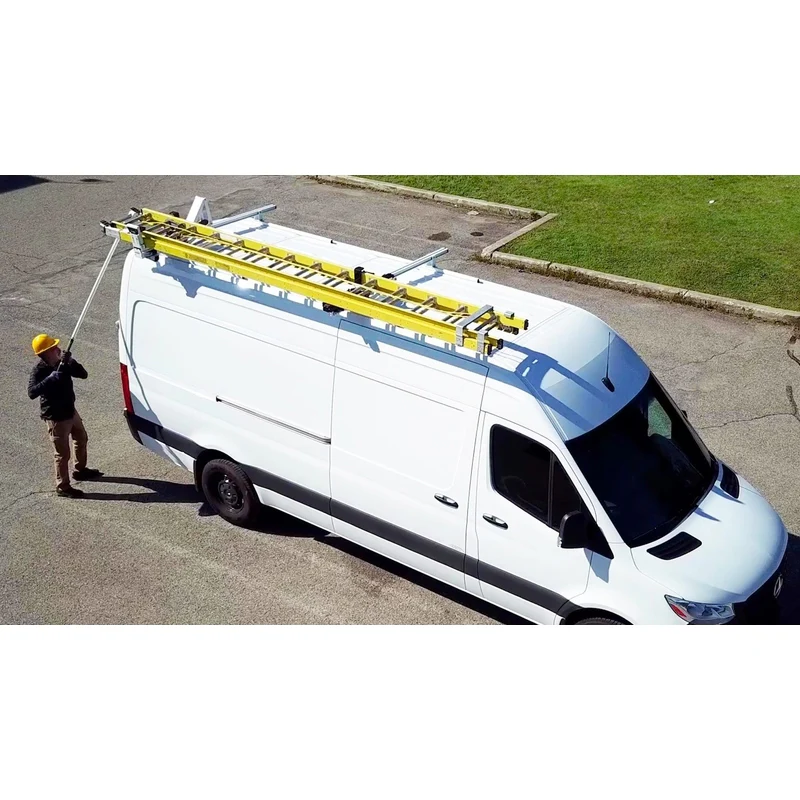

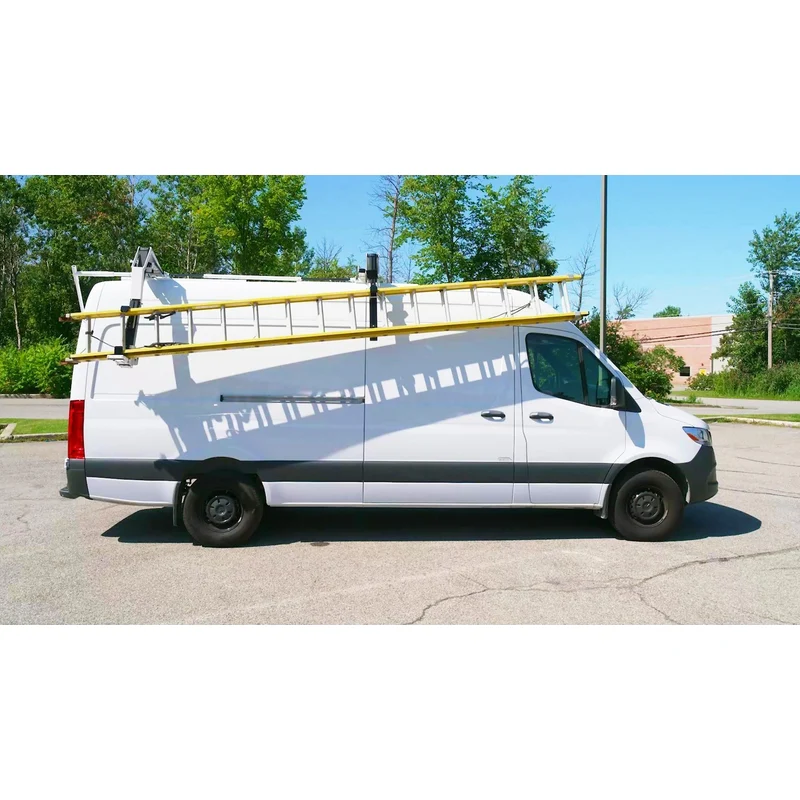

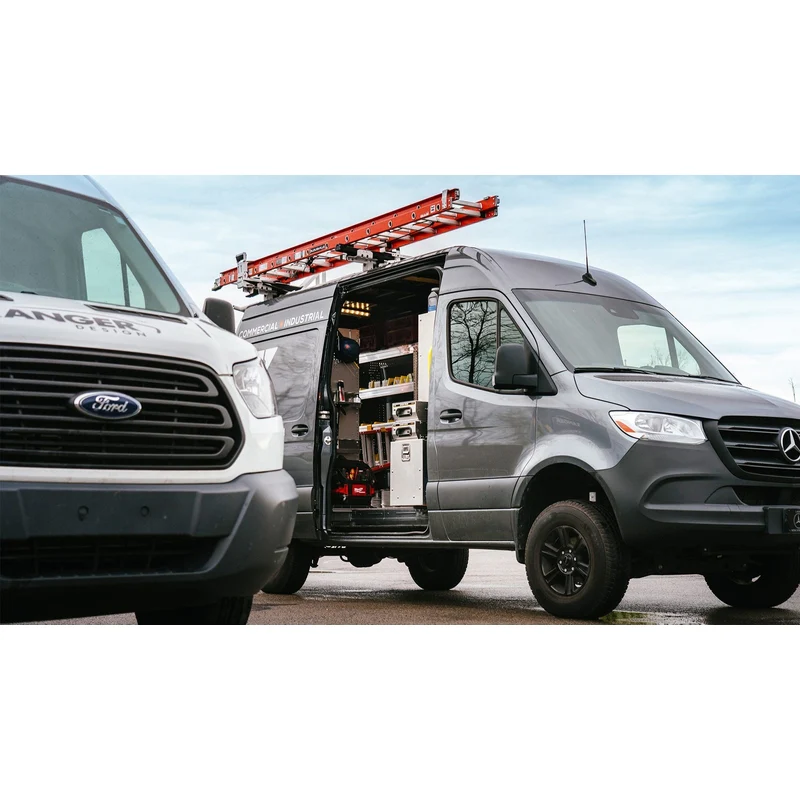

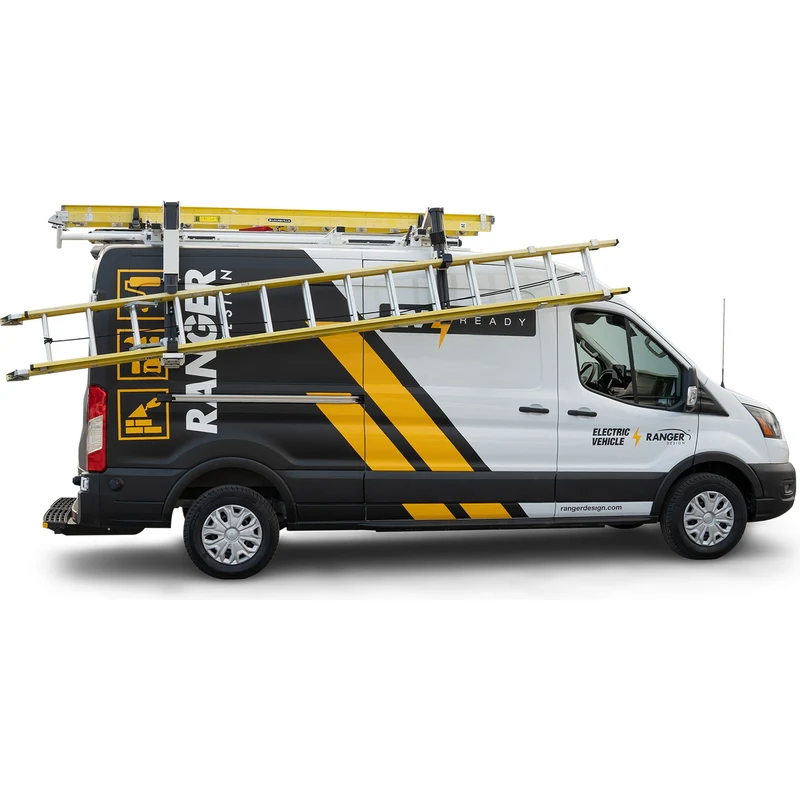

Designed for high-roof vans, the Max Rack 2.0 – Single provides safe, controlled, ground-level access to a single ladder. The system lowers the ladder in one smooth, fluid motion using a gas shock–assisted mechanism that significantly reduces lifting effort. Its single-motion design allows the operator to remain safely behind the vehicle at all times—eliminating the need for secondary releases or standing beneath the ladder. Engineered for durability and tested in extreme conditions, the Max Rack 2.0 delivers reliable, user-friendly performance for daily professional use.
- Controlled Descent System - Lowers ladders in one smooth, fluid motion for safe and predictable operation.

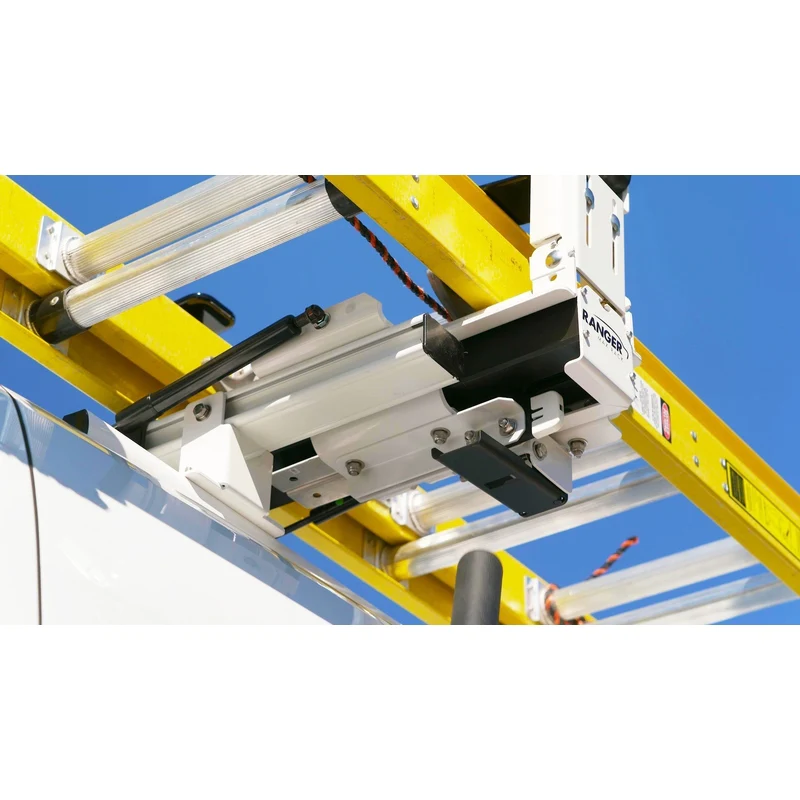

- Gas Shock Assist - Reduces strain when lifting and lowering ladders, making operation easy for users of all experience levels.
- Designed for Operator Safety - Single-motion lowering mechanism allows the user to stay clear of the ladder’s path and remain safely behind the vehicle—no secondary release required.
- Optimized Sweep Angle - Handle moves only 81°, while the system rotates a full 141°, minimizing operator movement and effort.

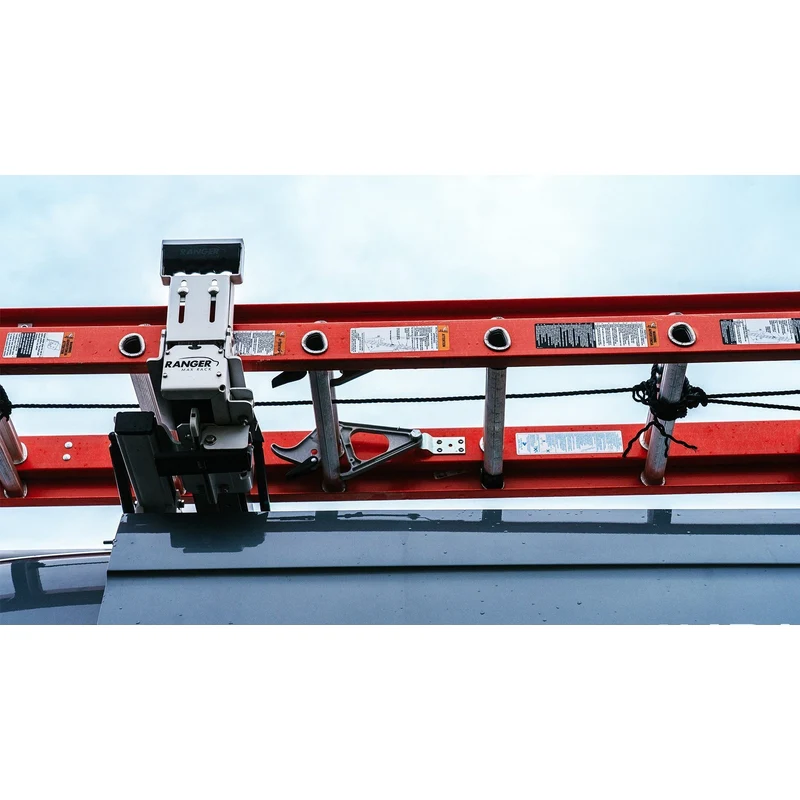

- Durable Interlocking Ladder Hooks - Aluminum hooks with a protective plastic coating prevent ladder wear while securing ladders firmly in place.
- Wind-Latch Locking Mechanism - Prevents accidental deployment during transit and includes a padlock hole for added security.
- Extreme Condition Tested - Mechanism tested in both extreme heat and cold for dependable year-round performance.
- Made to Fit - Compatible with Ford Transit, Mercedes-Benz Sprinter, Ram ProMaster, and other leading high-roof van models.
Specifications
| Weight | 104.9 lbs |
| Width | 76.69" |
| Length | 137.93" |
| Height | 16.96" |
| Install Time (hrs) | 2 |
| Application | Exterior |
| Composition | Aluminum |
| Finish | Powder Coated White |
| Quickship | Yes |
| Weight Capacity | 480 lbs |
Product Guide
Layout Guide
Installation Instructions
Original: $2,103.30
-70%$2,103.30
$630.99Product Information
