Erickson Manufacturing 2 In X 7.5Ft 4500Lb E-Track ATV Wheel Chock and Strap Kit Model 09160

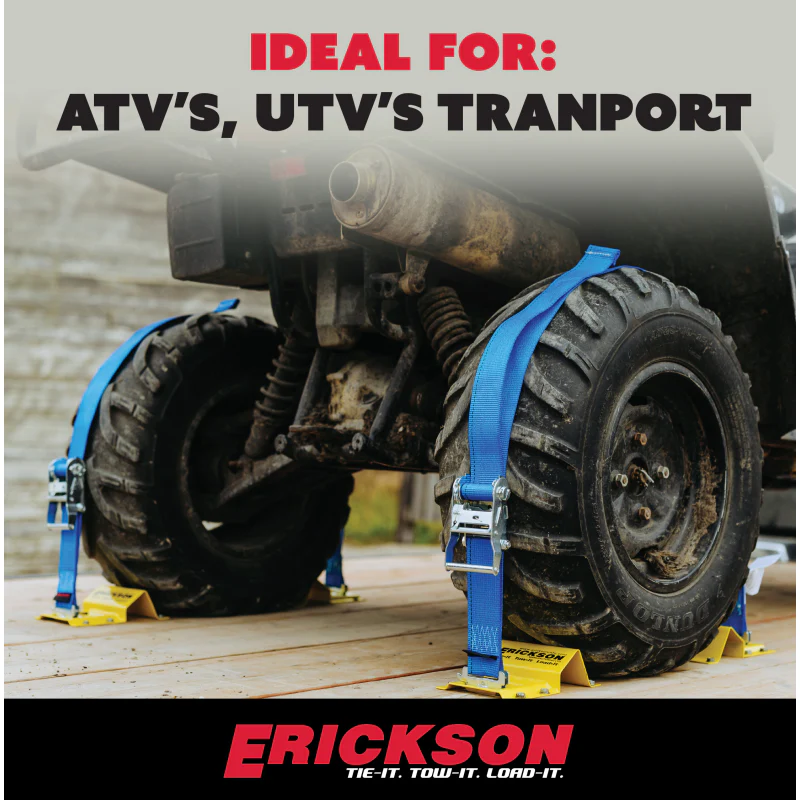

This comprehensive kit is designed to securely anchor ATVs, lawn mowers, and other small vehicles by locking two wheels into permanently mounted chocks. The system features 7.5-foot blue polyester straps with double-slotted E-fittings that adjust to accommodate tire diameters ranging from 10 to 30 inches. Engineered for efficiency, the low-profile brackets allow you to simply drive over them during loading and unloading while supporting a maximum vehicle weight of 1,500 lbs.

Features and Benefits

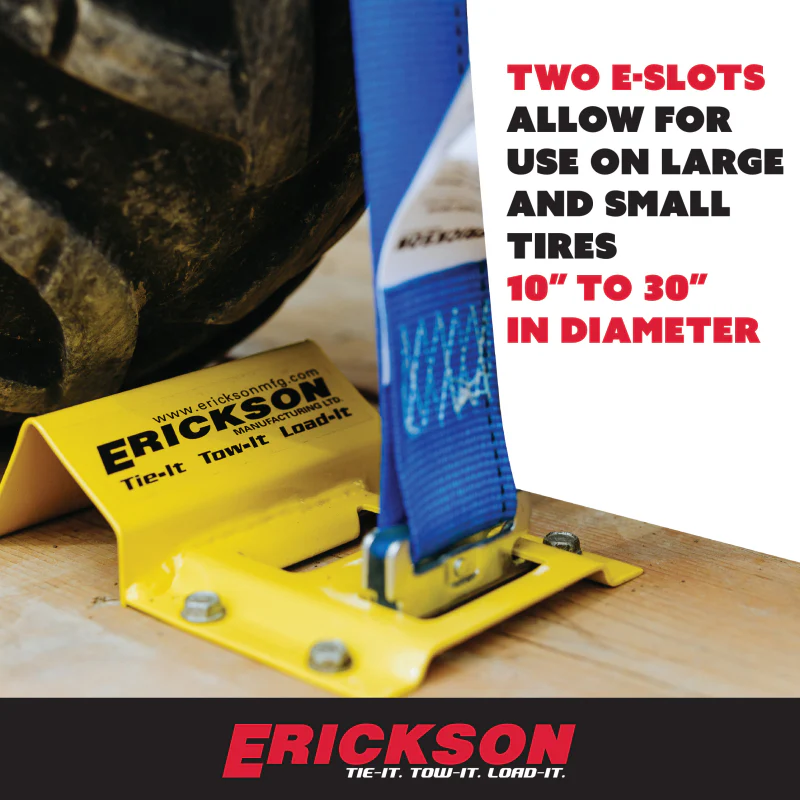

• Universal Tire Compatibility: Versatile straps are engineered to work with tires as small as 10 inches and as large as 30 inches in diameter.

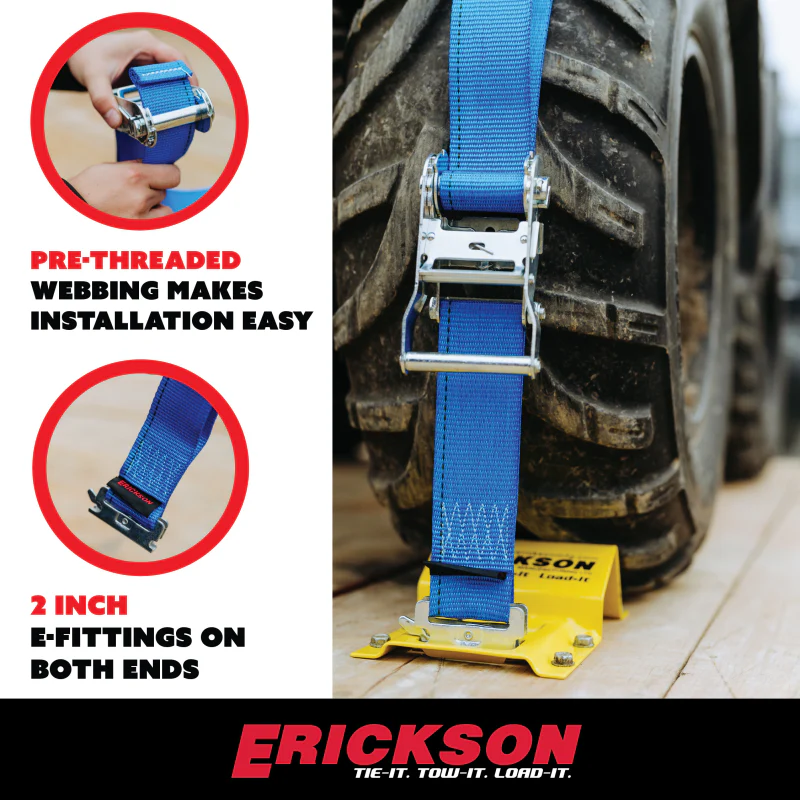

• Adjustable E-Fitting System: Features a double-slotted E-fitting design that ensures a proper, secure hook-up regardless of tire size.

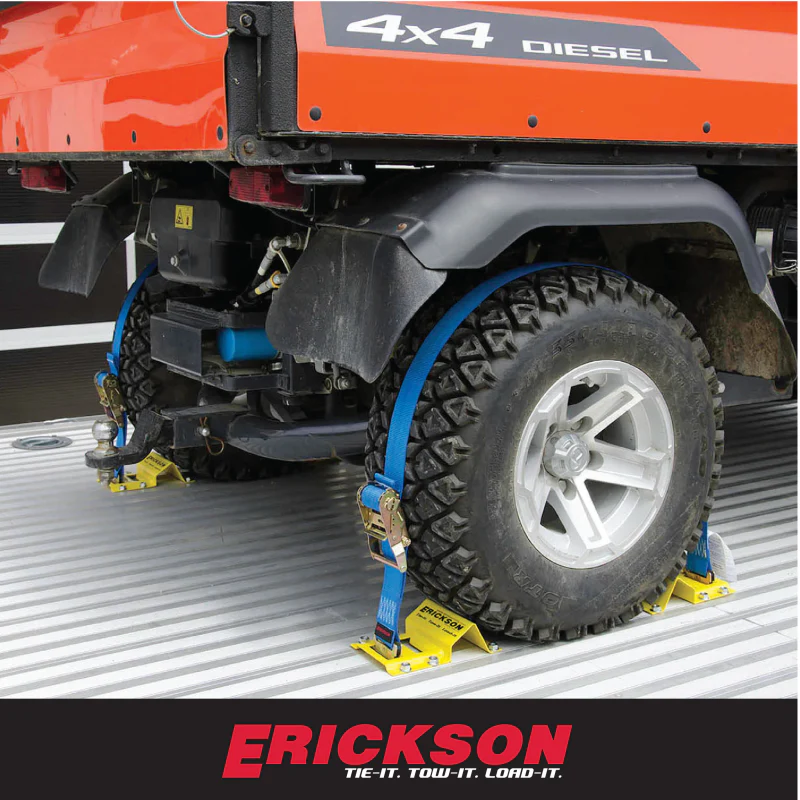

• Permanent Drive-Over Mounts: Wheel chocks stay permanently fixed to your trailer or truck bed, allowing you to drive directly over the brackets for fast loading.

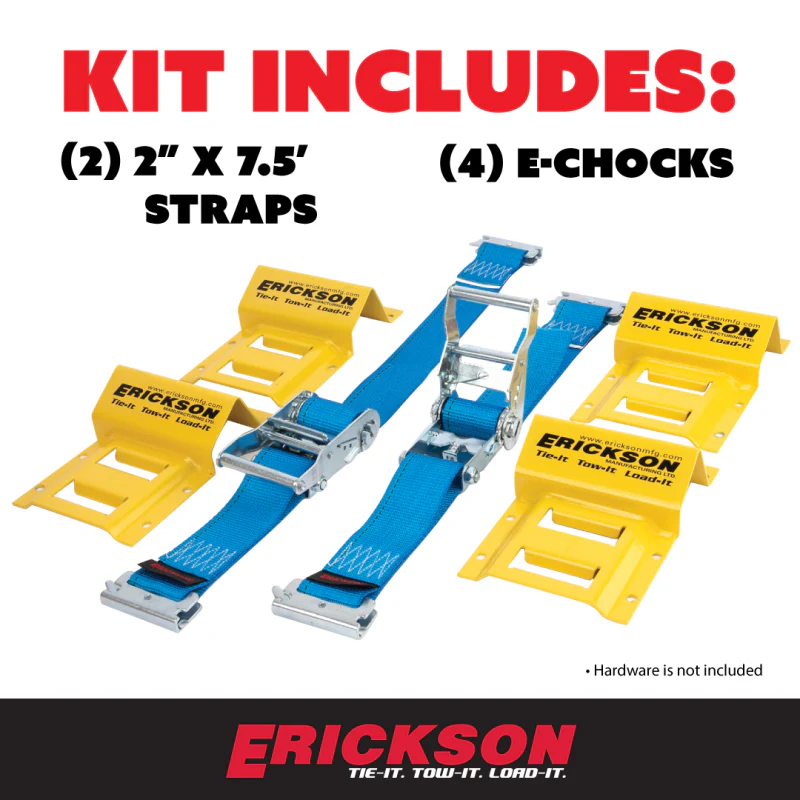

• Complete Two-Wheel Security: Each kit includes all necessary components to fully secure two wheels for stable transport.

Specifications

Performance & Load Limits

Maximum Vehicle Weight	1,500 lbs.
Tire Diameter Range	10" – 30"

Strap & Webbing Details

Webbing Material	Polyester
Strap Dimensions	2" W x 7.5' L
Ratchet Style	Short Handle Ratchet
Fitting Finish	Yellow Chromate

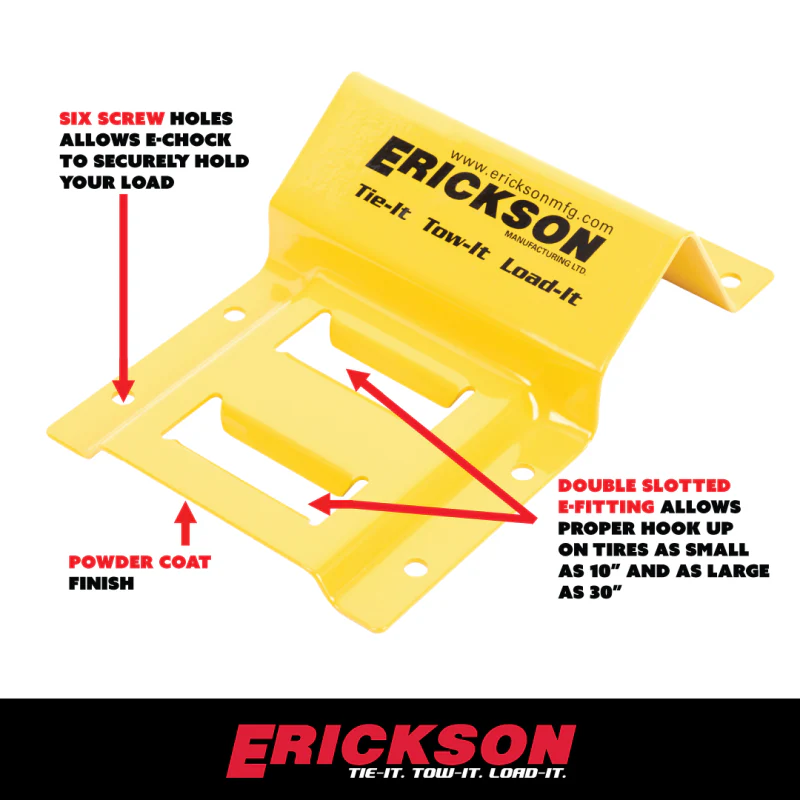

Wheel Chock Dimensions

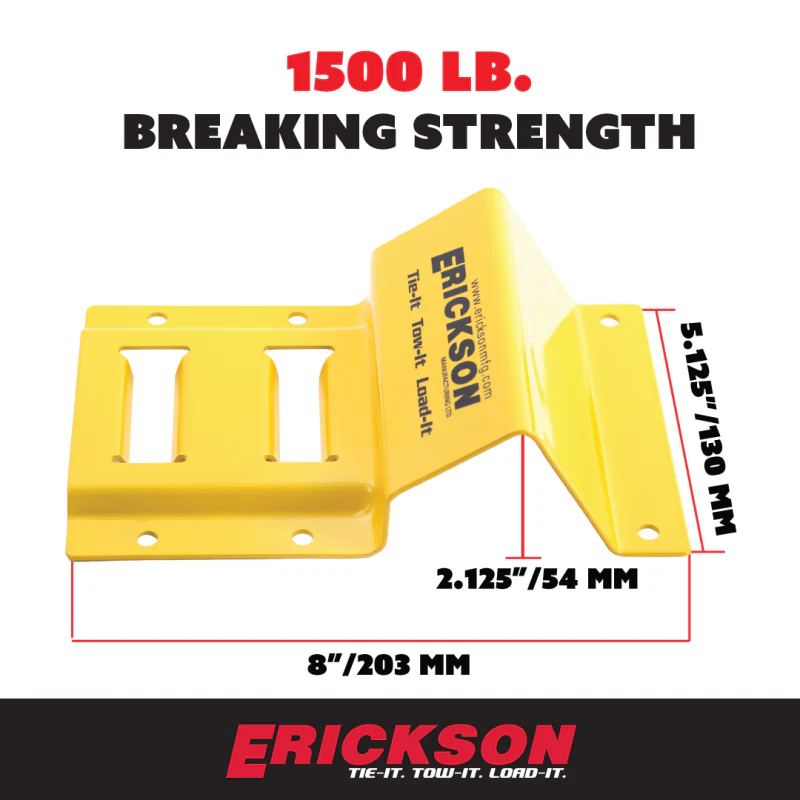

Chock Size (LxWxH)	8″ x 5.125″ x 2.125″
Chock Finish	Yellow Powder Coated
Mounting Holes	0.25″ holes
