BCI Fabrication 95 Gallon Fuel Transfer Tank Toolbox Combo Model LTB95

Not DOT Approved

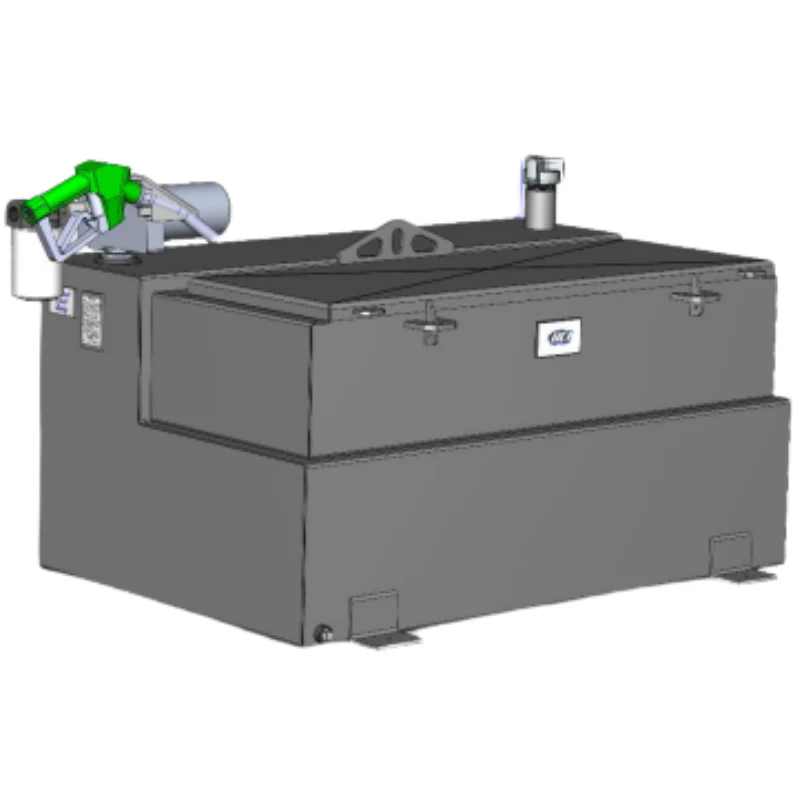

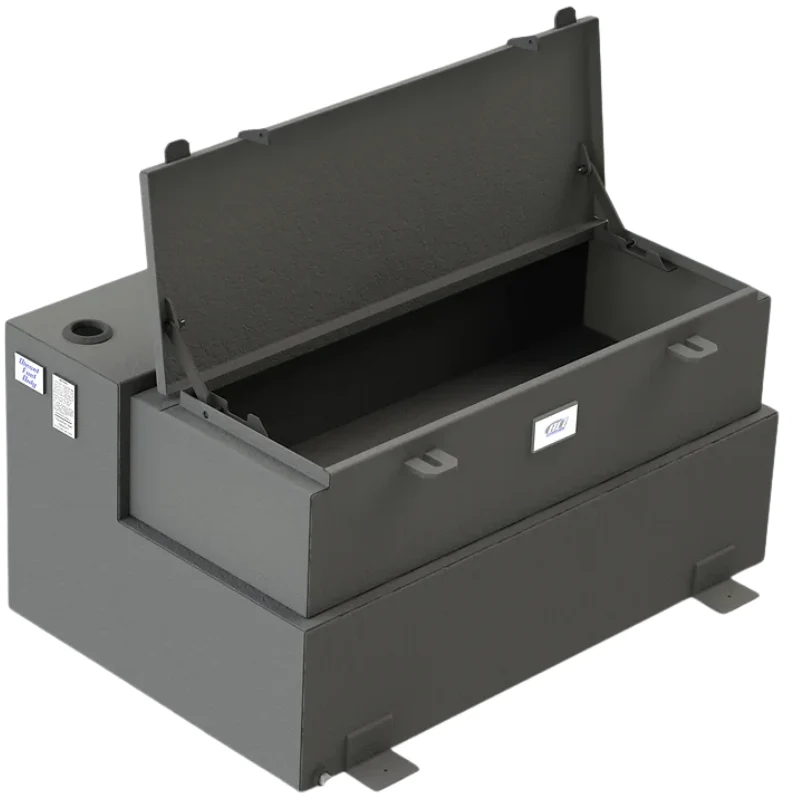

The BCI L-tank combos are built just as rugged and with the same textured coating as the Standard Series Combos, but in a compact design. Like the Standard Series Combos, these toolboxes are also welded directly to the tank. This strengthens the tank and prevents rubbing between the tank and box, which could shorten the life of the tank. These products also feature a lift hook, which makes them a great option for platforms.

The LTB95 was designed to fit between the side boxes on the TM beds by CM Truck Beds. Many of our customers use these boxes in a wide variety of applications.

Warning: Proper Use of Transfer Tanks

To ensure safety and optimal performance, do not fill your transfer tank to 100% capacity. Transfer tanks require sufficient headspace to allow for fuel expansion and vapor buildup. Overfilling the tank can lead to:

• Fuel Leaks: Excess fuel may escape through vents or seals, posing safety and environmental risks.
• Increased Pressure: Without adequate space for vapor, pressure buildup can damage the tank or connected systems.
• Compliance Issues: Overfilled tanks may violate local or federal regulations for fuel transport.

Safe Filling Recommendations

• Fill the tank to 90% of its capacity to allow room for fuel expansion.
• Use proper venting systems and check all connections for leaks before transport.
• Follow all local, state, and federal guidelines for the storage and transport of fuel.

By adhering to these precautions, you can ensure the safe and reliable use of your transfer tank while protecting your vehicle, environment, and compliance with regulations.

If you have any questions about proper usage or tank specifications, please contact our customer service team for assistance."

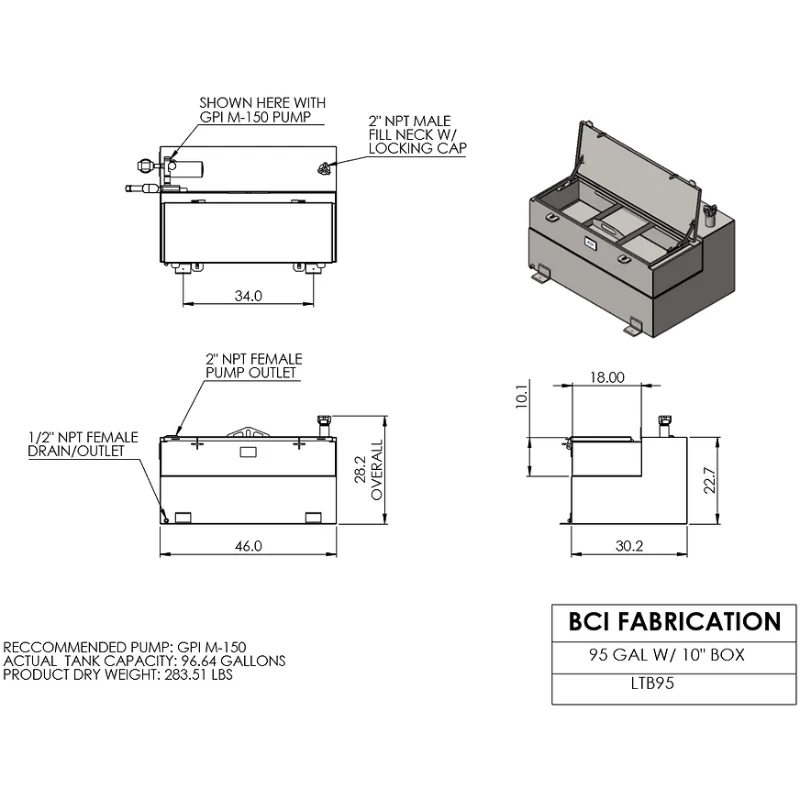

Specifications

Approximate Height	28.2"
Approximate Length	46"
Approximate Width	30.2"
Fuel Tank Capacity	95 Gallons
Color	Black
Material	12-Gauge Steel
Lid Construction	Cross-Broken 12-Gauge Steel
Warranty	3-Year Limited
Polyurea Coating	Yes
Weather Resistance	Yes
Long Bed	Yes
Short Bed	Yes
Flatbed	Yes
Standard Bed	Yes
