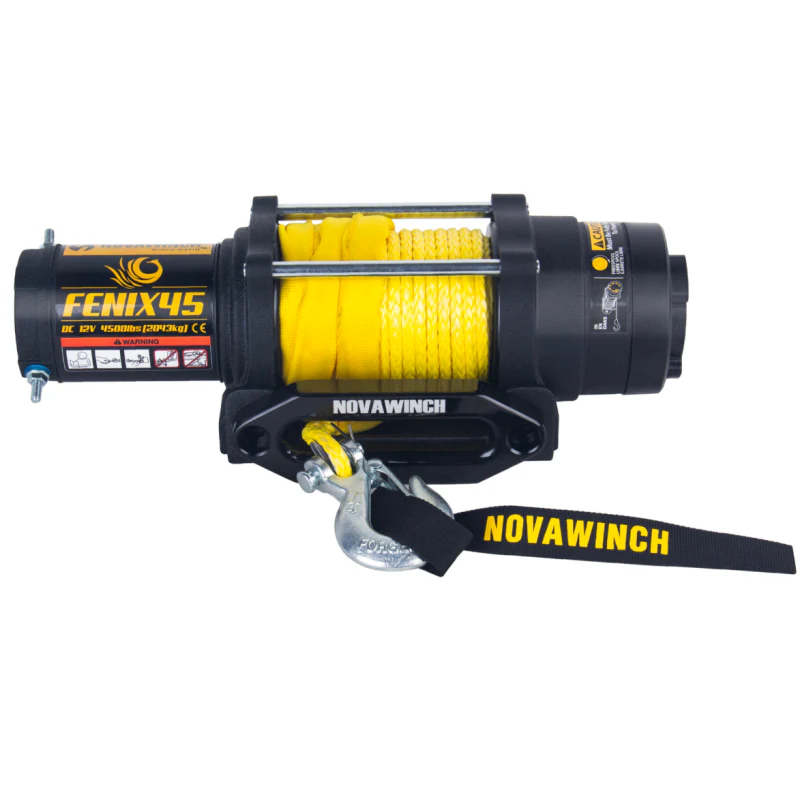

Novawinch FENIX 4500 Synthetic Rope Model 701001068819
Novawinch FENIX 4500 Synthetic Rope Model 701001068819
Take the very best parts and build the very best winch - that’s the NOVAWINCH Terra. From IP67 Rated weatherproofing to remarkable performance pull after pull, it’s easy to see why this is the winch people brag about. The FENIX Series - Large SXS/UTVs is built for bigger machines, these powerhouse winches pull more than they should for longer than you’d think.

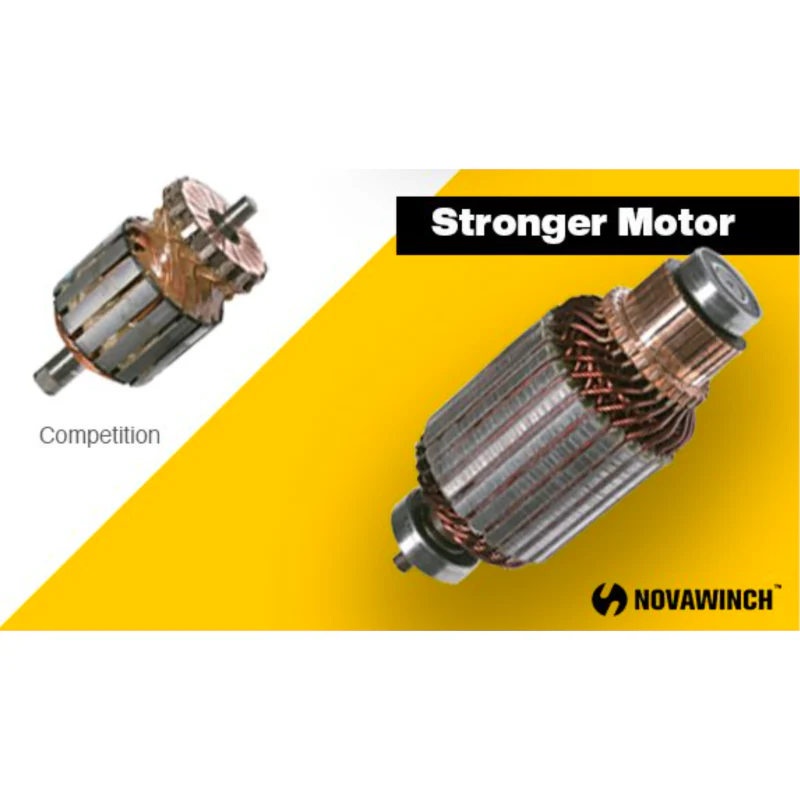

- Better Motors. With fatter windings, the FENIX winch can provide more power to the drum. Roller bearings (instead of competitors bushings) provide a smoother experience.

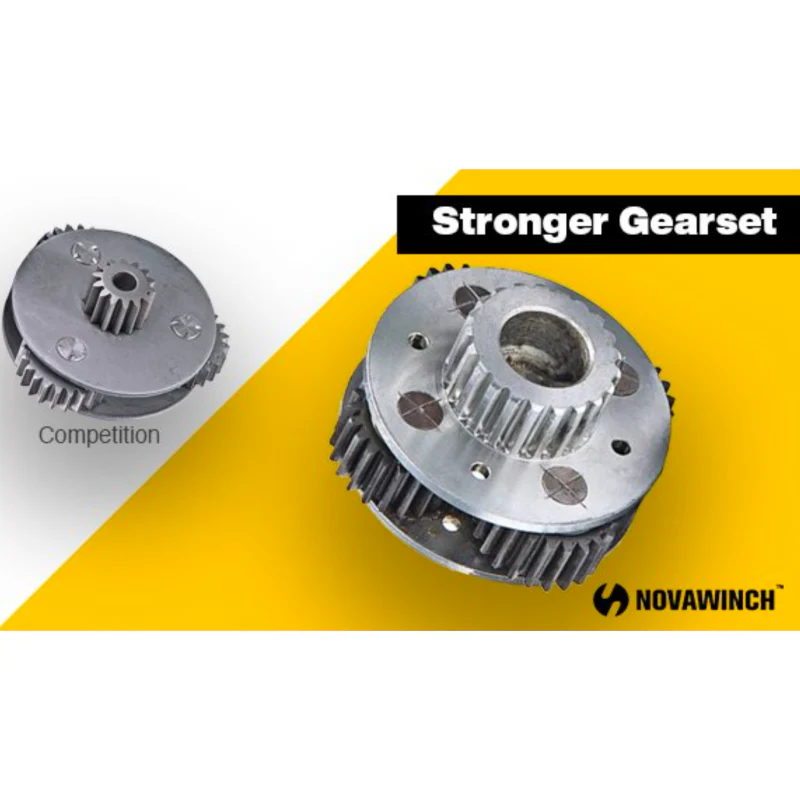

- Wider, cut-steel gears spread loads leading to better engagement and longer service life.

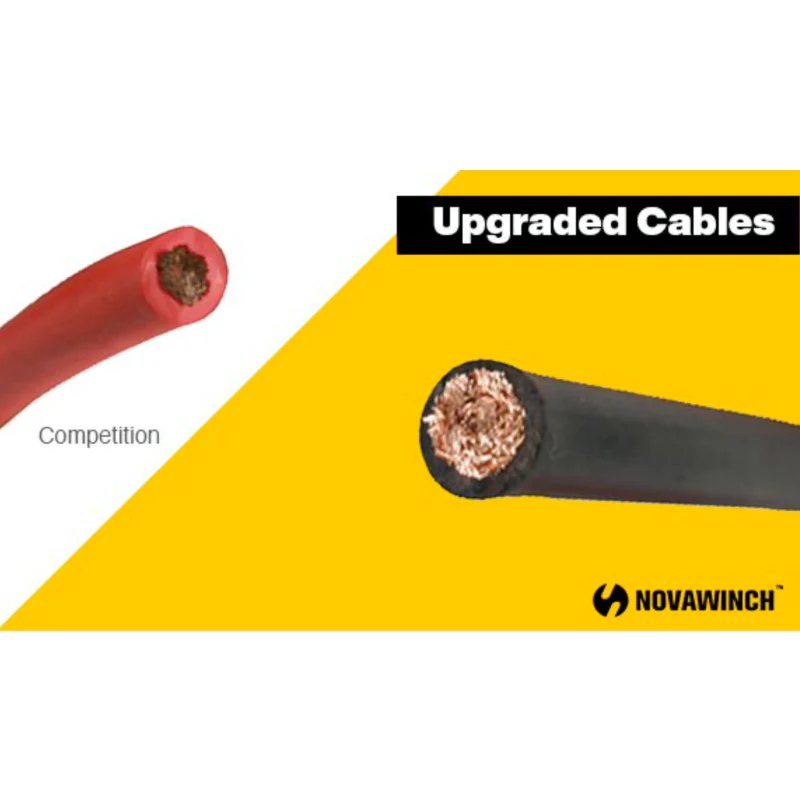

- All the parts you need. From mounting bolts to electrical cables, all you need is a vehicle-specific mount kit.
Specifications
| Rated Line Pull | 4,500 lbs (2,043 kgs) |
| Motor: | Sealed 3.7 HP (2.8kW) Permanent Magnet |
| Seal Rating | IP68 |
| Gear Box | 3-Stage Planetary |
| Gear Ratio | 191:1 |
| Clutch | Ergonomic 360° Control |
| Braking Action | Mechanical, Automatic Load Holding |
| Fairlead | Aluminum hawse |
| Synthetic Rope | 1/4″×55′(6.5mm×16.76m) |
| Remote | Waterproof handheld remote, 9.85' (3.0m) |
| Dimensions | 15.24" L x 4.84" D x 4.84" (387mm L x 115mm D x 123mm H) |
| Mounting Bolt Pattern | 3.0" x 6.66" (76mm x 168mm) |
| Weight | 33 lbs (15kgs) |
