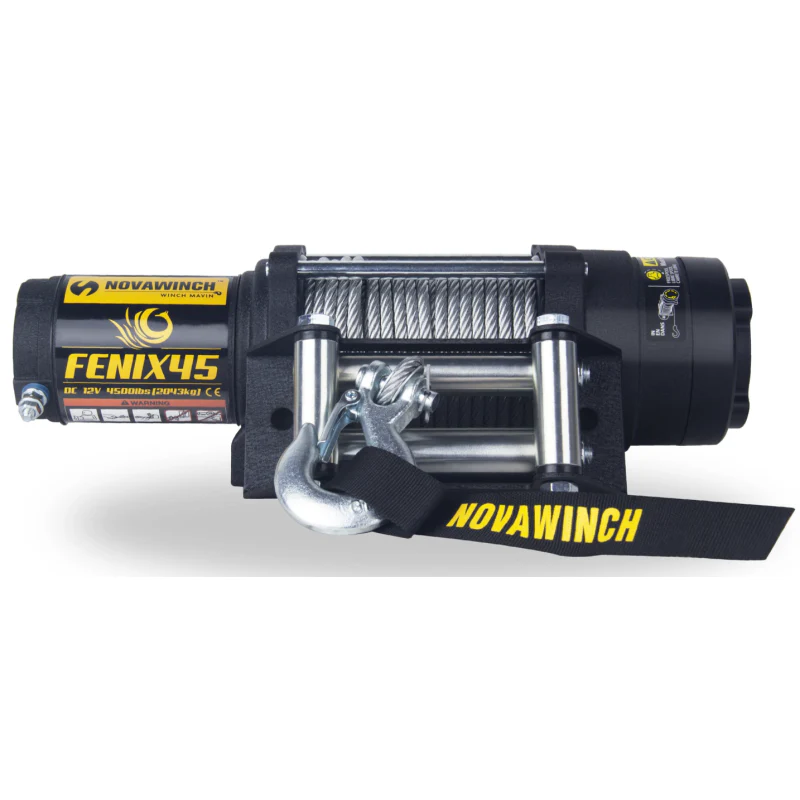

Novawinch FENIX 4500 Wire Cable Model 701001068818
Novawinch FENIX 4500 Wire Cable Model 701001068818
From fast line speeds to low amp draw and a remarkable brake, this is the top of the line winch without the high price. The FENIX Series - Large SXS/UTVs is built for bigger machines, these powerhouse winches pull more than they should for longer than you’d think.

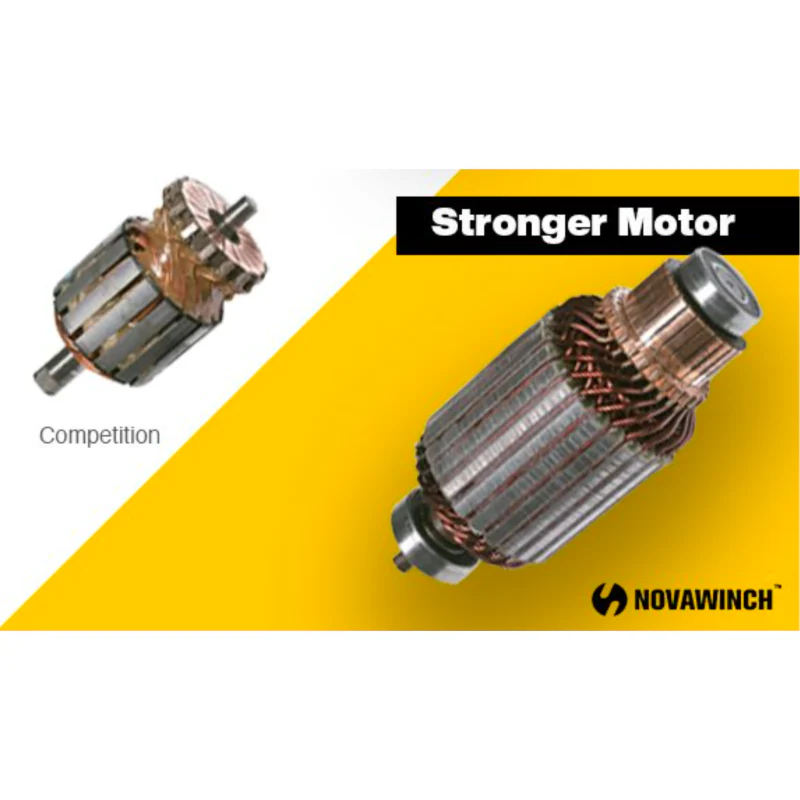

- Better Motors. With fatter windings, the FENIX winch can provide more power to the drum. Roller bearings (instead of competitors bushings) provide a smoother experience.

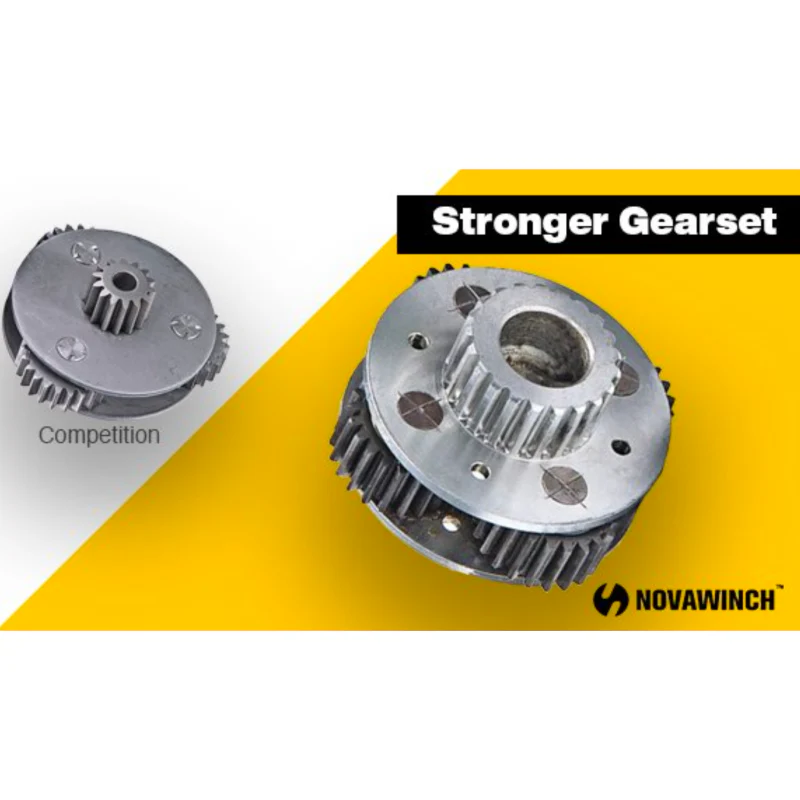

- Wider, cut-steel gears spread loads leading to better engagement and longer service life.

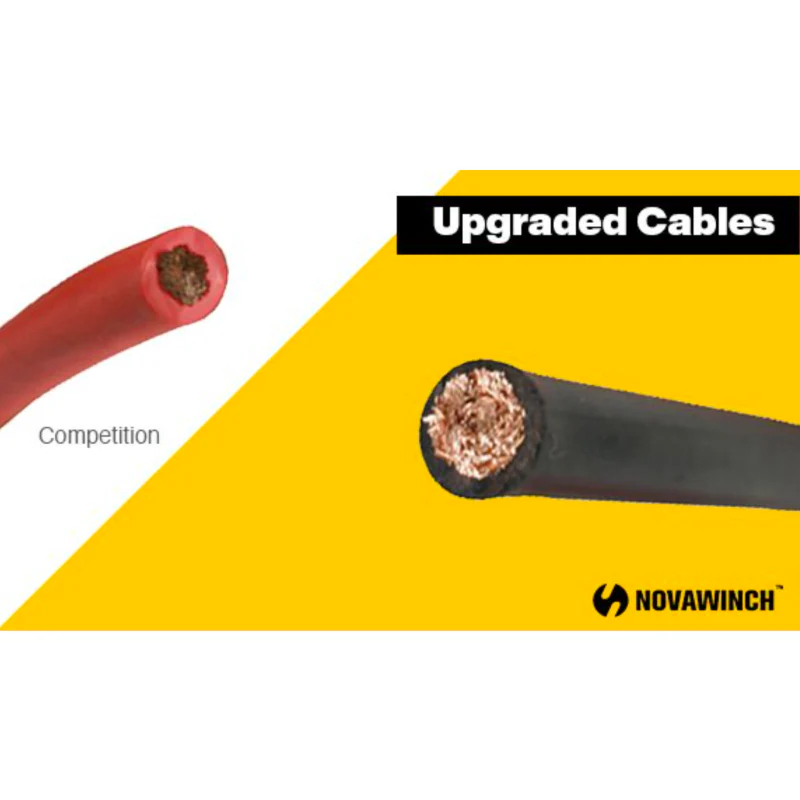

- All the parts you need. From mounting bolts to electrical cables, all you need is a vehicle-specific mount kit.
Specifications
| Rated Line Pull | 4,500 lbs (2,041 kgs) |
| Motor(Series wound): | Sealed 1.6 HP Permanent Magnet |
| Seal Rating | IP68 |
| Gear Box | 3-Stage Planetary |
| Gear Ratio | 191:1 |
| Clutch | Ergonomic 360° Control |
| Braking Action | Automatic, 100% Load Holding |
| Fairlead | 4-Way Roller |
| Wire Rope | 1/4″×55′(6.5mm×16.76m) |
| Remote | -10' Rugged Composite Remote -Handlebar Thumb Rocker |
| Dimensions | 15.1" L x 4.5" D x 4.8" (383mm L x 114mm D x 122mm H) |
| Mounting Bolt Pattern | 3.0" x 6.66" (76mm x 169mm) |
| Weight | 22lbs (9.98kgs) |
$317.36
Novawinch FENIX 4500 Wire Cable Model 701001068818—
$317.36
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Novawinch FENIX 4500 Wire Cable Model 701001068818
From fast line speeds to low amp draw and a remarkable brake, this is the top of the line winch without the high price. The FENIX Series - Large SXS/UTVs is built for bigger machines, these powerhouse winches pull more than they should for longer than you’d think.
- Better Motors. With fatter windings, the FENIX winch can provide more power to the drum. Roller bearings (instead of competitors bushings) provide a smoother experience.
- Wider, cut-steel gears spread loads leading to better engagement and longer service life.
- All the parts you need. From mounting bolts to electrical cables, all you need is a vehicle-specific mount kit.
Specifications
| Rated Line Pull | 4,500 lbs (2,041 kgs) |
| Motor(Series wound): | Sealed 1.6 HP Permanent Magnet |
| Seal Rating | IP68 |
| Gear Box | 3-Stage Planetary |
| Gear Ratio | 191:1 |
| Clutch | Ergonomic 360° Control |
| Braking Action | Automatic, 100% Load Holding |
| Fairlead | 4-Way Roller |
| Wire Rope | 1/4″×55′(6.5mm×16.76m) |
| Remote | -10' Rugged Composite Remote -Handlebar Thumb Rocker |
| Dimensions | 15.1" L x 4.5" D x 4.8" (383mm L x 114mm D x 122mm H) |
| Mounting Bolt Pattern | 3.0" x 6.66" (76mm x 169mm) |
| Weight | 22lbs (9.98kgs) |
