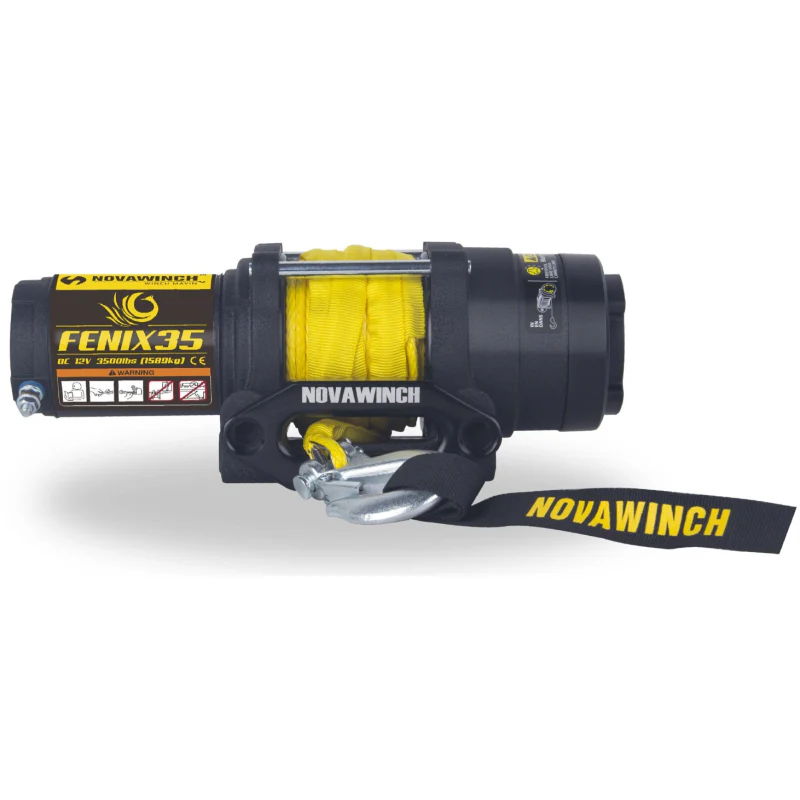

Novawinch FENIX 3500 Synthetic Rope Model 701001068817

Looking for a winch you can trust? This is the one. Built with premium parts for an amazing winch experience, this winch impresses every time you use it.

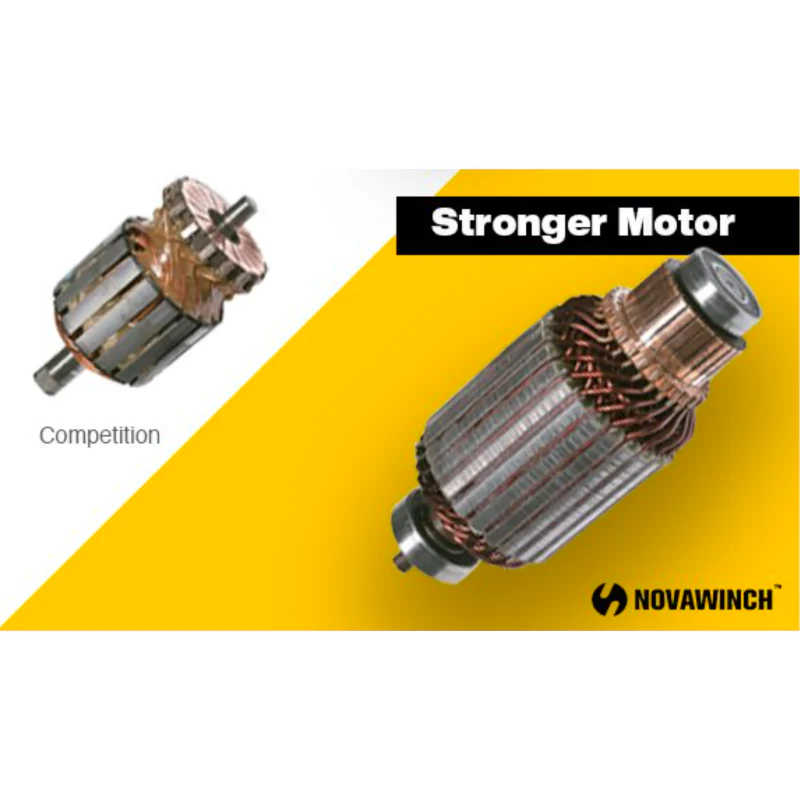

• Better Motors. With fatter windings, the FENIX winch can provide more power to the drum. Roller bearings (instead of competitors bushings) provide a smoother experience

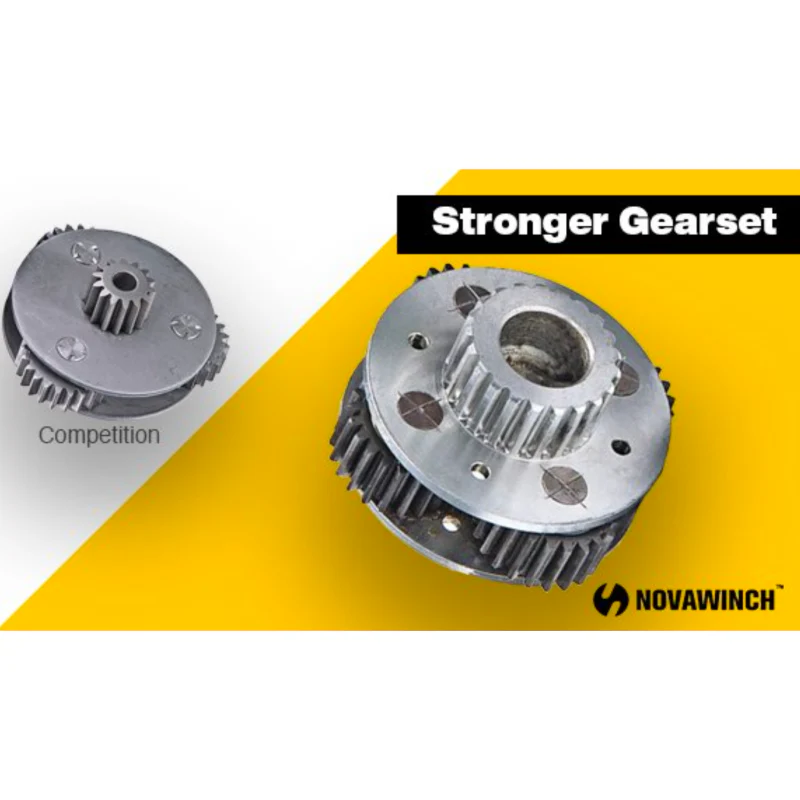

• Wider, cut-steel gears spread loads leading to better engagement and longer service life.

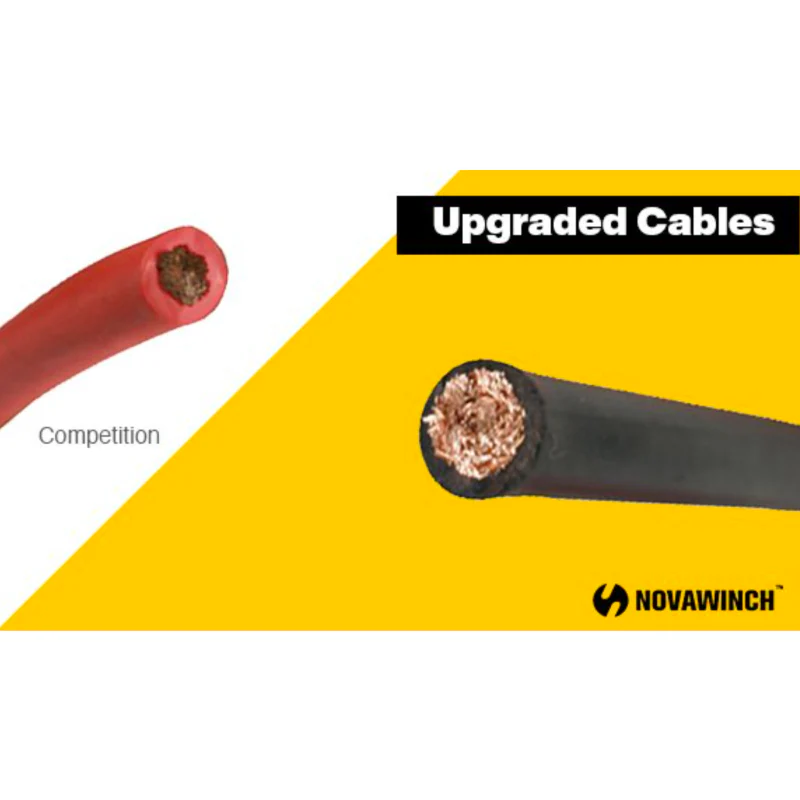

• All the parts you need. From mounting bolts to electrical cables, all you need is a vehicle-specific mount kit.

FENIX Spec Sheet

Specifications

Rated Line Pull	3,500 lbs (1,589 kgs)
Motor:	Sealed 4.1 HP / 3.1kW Permanent Magnet
Seal Rating	IP68
Gear Box	3-Stage Planetary
Gear Ratio	140:1
Clutch	Ergonomic 360° Control
Braking Action	Mechanical, Automatic Load Holding Brake
Fairlead	Aluminum Hawse
Wire Rope	3/16"x 50' (4.8mm x 15.2m)
Remote	Waterproof handheld remote, 9.85' (3.0m) Waterproof Mini-Rocker 9.85' (3.0m)
Dimensions	13.5" L x 4.84" D x 4.84" H (343mm x 115mm x 123mm)
Mounting Bolt Pattern	Industry standard 3.0" x 4.8" (76mm x 124mm)
Weight	28.6 lbs (13 kgs)
