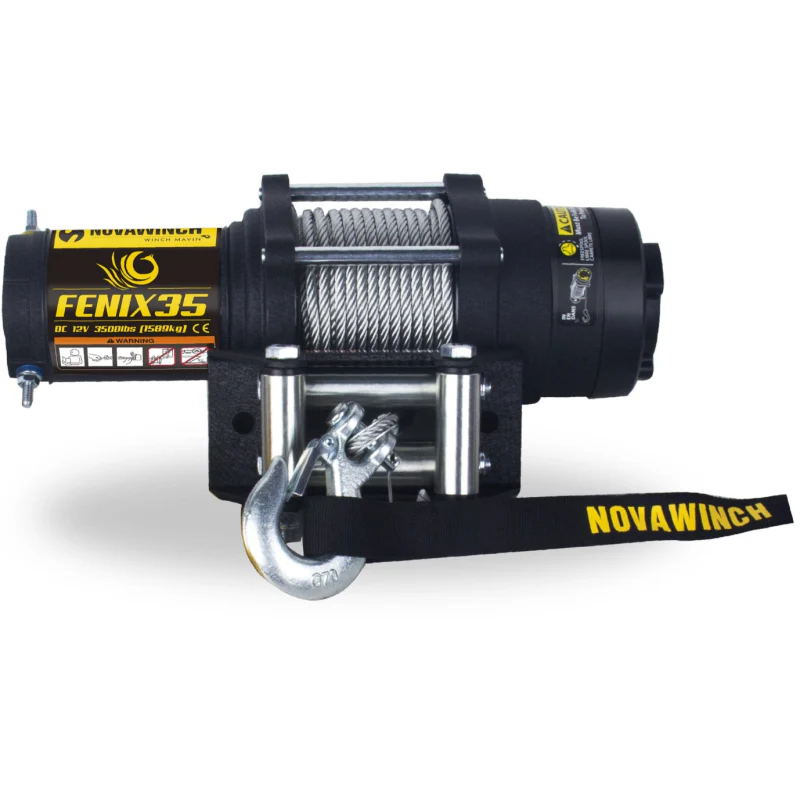

Novawinch FENIX 3500 Wire Cable Model 701001068816
Novawinch FENIX 3500 Wire Cable Model 701001068816
Novawinch takes the best components, add in IP68 rated seals, an amazingly efficient motor mated to oversized gears and the result is a winch that will pull far more for far longer than you’d expect. That’s the NOVAWINCH FENIX line.

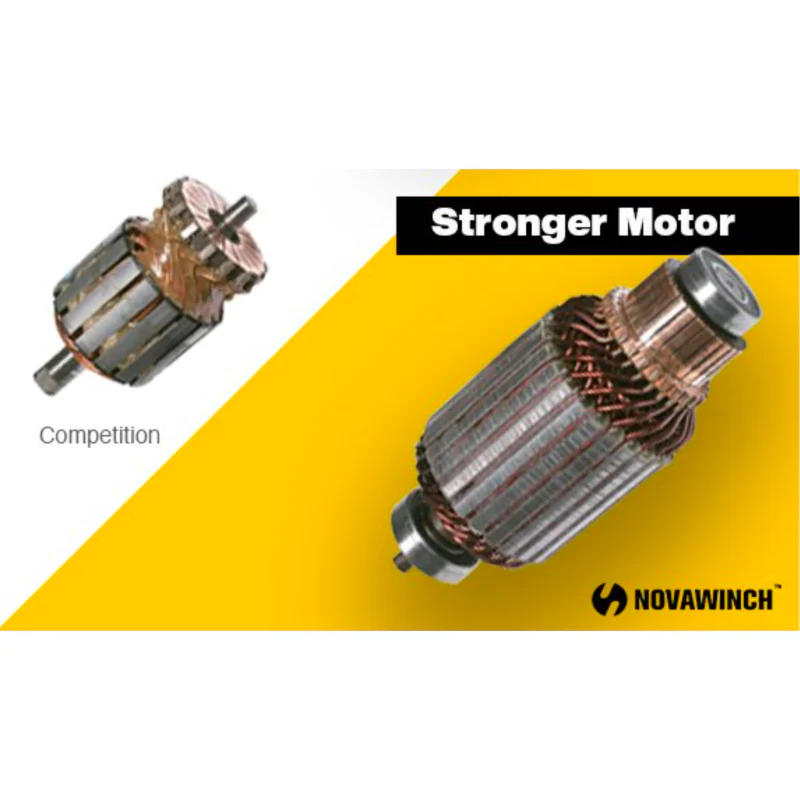

- Better Motors. With fatter windings, the FENIX winch can provide more power to the drum. Roller bearings (instead of competitors bushings) provide a smoother experience.

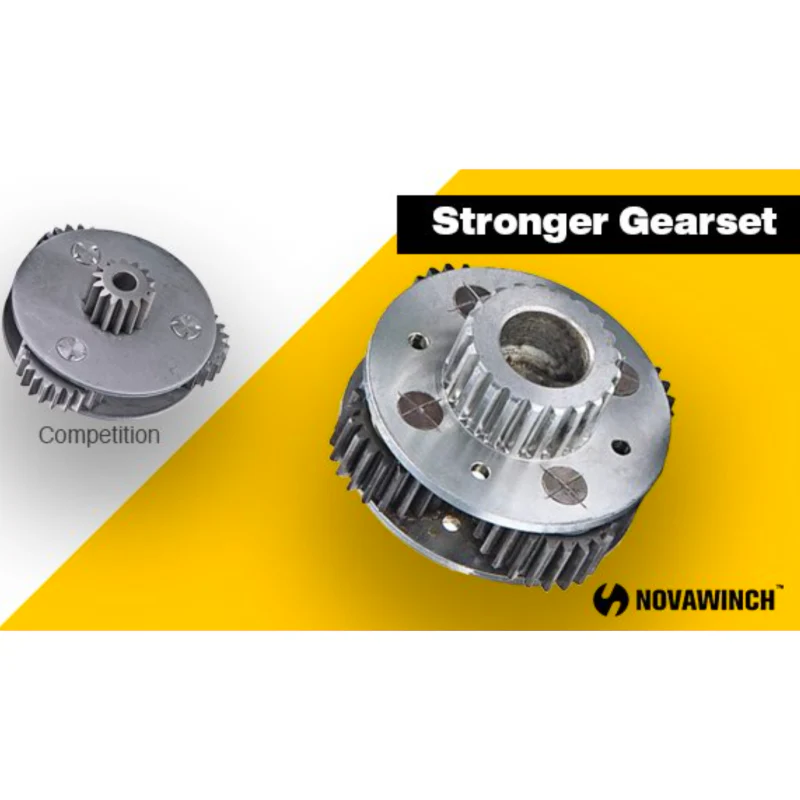

- Wider, cut-steel gears spread loads leading to better engagement and longer service life.

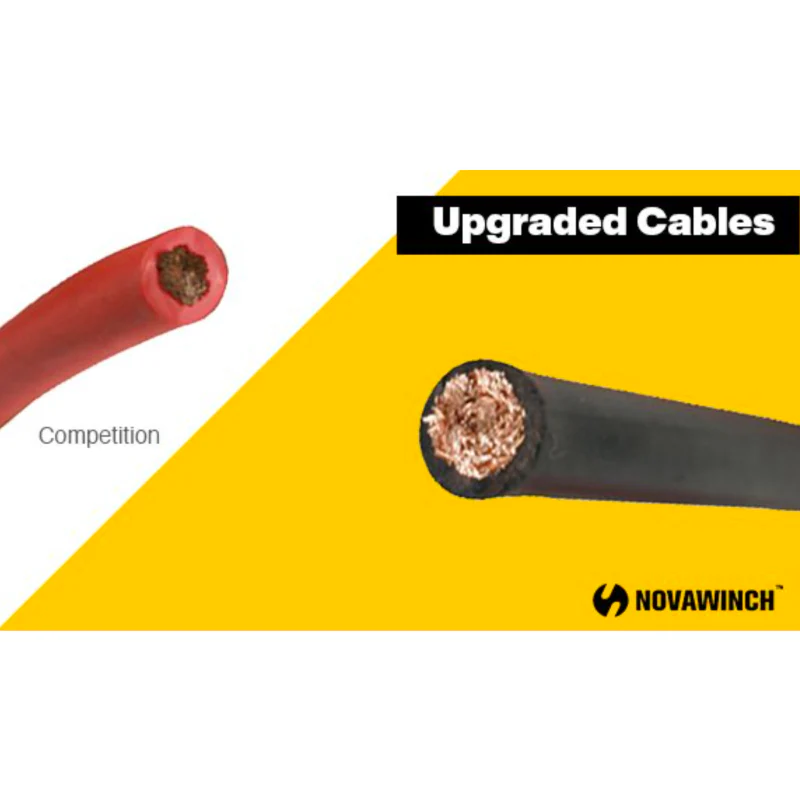

- All the parts you need. From mounting bolts to electrical cables, all you need is a vehicle-specific mount kit.
Specifications
| Rated Line Pull | 3,500 lbs (1,589 kgs) |
| Motor: | Sealed 4.1HP/3.1kW Permanent Magnet |
| Seal Rating | IP68 |
| Gear Box | 3-Stage Planetary |
| Gear Ratio | 140:1 |
| Clutch | Ergonomic 360° Control |
| Braking Action | Mechanical, Automatic Load Holding Brake |
| Fairlead | 4-Way Roller Fairlead |
| Wire Rope | 3/16"x 50' (4.8mm x 15.2m) |
| Remote | Waterproof handheld remote, 9.85' (3.0m) |
| Dimensions | 13.5" L x 4.84" D x 4.84" H (343mm x 115mm x 123mm) |
| Mounting Bolt Pattern | Industry standard 3.0" x 4.9" (76mm x 124mm) |
| Weight | 28.6 lbs (13 kgs) |
