Novawinch TH1000 Hoist 12v Model 701001068802
Novawinch TH1000 Hoist 12v Model 7010010688028
Built with a 4:1 safety rating for lifting, the TH1000 is the right winch to safely lift and move materials up to 1000lbs. This hoist features full power in and power out and a full-load mechanical brake to ensure secure and easy operation. This unit excels at pulling horizontal or vertical for materials, trees, stones, mower, engine, truck top cover, etc all powered by 12v DC. Power in, powers out with wired remote.
- IP67 seals yield excellent water/dirt/dust protection.
- Powerful, upgraded armature with fatter copper for better efficiency. Cut steel, thick gears for better engagement and longer life.
- Welded steel drum outlasts cheap cast aluminum and leads to longer service life.
- Powerful tried and true winch performance.
- Can be mounted vertically or horizontally.
| TH1000 Specifications | |
| Rated Line Pull | 1000lbs(454kgs)single line |
| Motor(Series wound): | DC 12V: 1.3hp/1.0kW |
| Gear Box | 3-Stage Planetary |
| Gear Ratio | 140:01:00 |
| Braking Action | Dynamic and Mechanical |
| Fairlead | Stainless Steel 4-Way Roller |
| Wire Rope | 3/16″×60′(4.8mm×18.3m) |

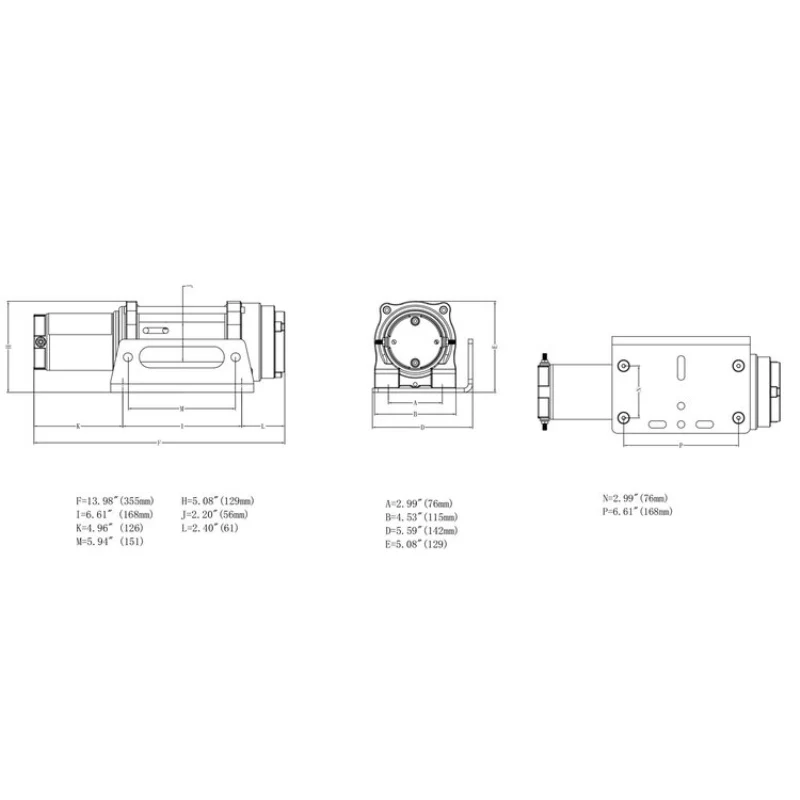

| Dimensions (Winch Sans Mounting Plate) | 14″×4.5″×5.1″(355mm×115mm×129mm) |
| Dimensions (Winch With Mounting Plate) | 14″×5.6″×5.1″(355mm×142mm×129mm) |
| Mounting Bolt Pattern | 2-Bolt, slotted. 6.6"x 3" (168mm x 76mm)P |
| Weight | 24lbs(11kgs) |
