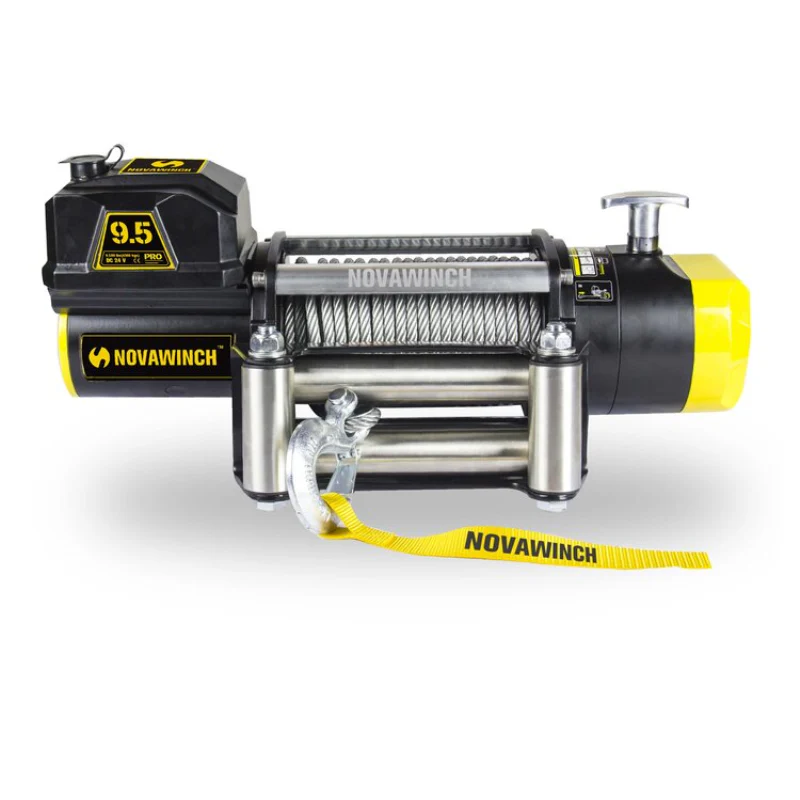

Novawinch PRO 9500 winch, 12v, Wire Cable Model 701001068581

Product image 1
1 / 5

Novawinch PRO 9500 winch, 12v, Wire Cable Model 701001068581

Novawinch PRO 9500 winch, 12v, Wire Cable Model 701001068581

The NOVAWINCH PRO Series is built to be the very best winch using the very best in performance parts. The Novawinch commitment to excellence is evident in every aspect of its design. Featuring exclusive innovations such as the industry-first brake that doesn’t heat the rope drum, the NOVAWINCH PRO Series sets a new standard for winch performance. With excitingly fast line speed and a host of other cutting-edge features, it delivers unmatched reliability, durability, and efficiency in every operation.

  • It's fast. Sealed 6.0 HP motors deliver a quick but safe 52 FPM line speed at a low 50 Amp draw.
  • Smart electronics: Anti-high temperature silver pad, 500A Sealed contactor. Only 360A full load current which is the lowest in the industry field. The contactor will never get stuck.
  • IP68 rated sealing keeps elements out and winch running.

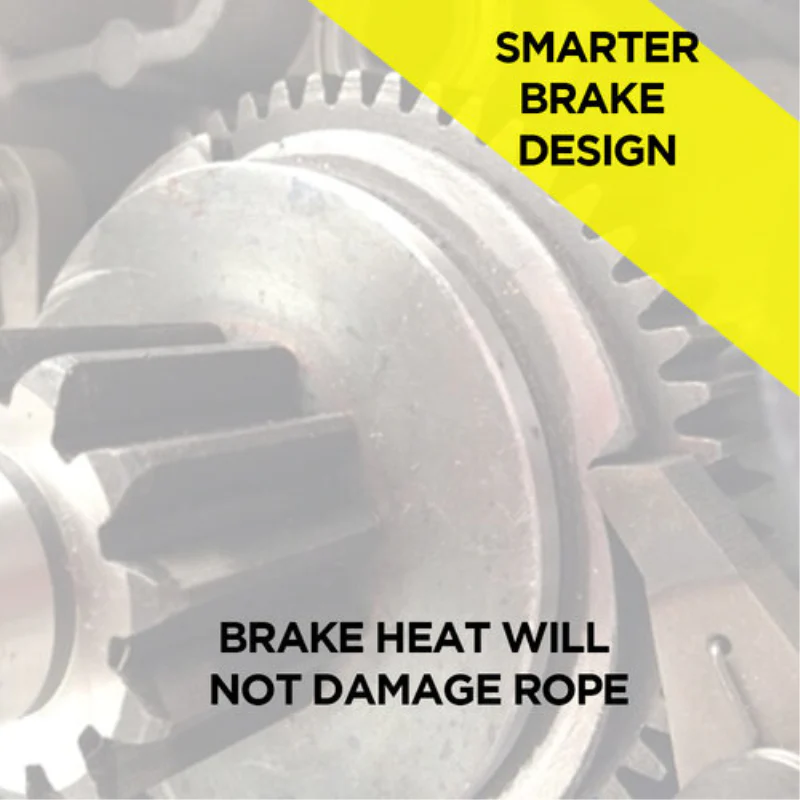

  • Smart brake: innovative “Double-lock” 100% load-holding brake design provides zero drag on cable in. Located inside the gearbox away from the drum to eliminate heat transfer to the synthetic rope.
  • Made to last: SUS304 stainless steel hardware on winch body and roller fairlead, 2 aluminum tie bars for rigidity and 45 degree clocking freespool for tricky mounts.



PRO 9500 Specifications
Rated Line Pull 9,500lbs (4309kgs)
Motor(Series wound): DC 12V: 6.0hp/4.4kW
DC 24V: 6.4hp/4.8kW
Gear Box 2-Stage Planetary/2-Stage Spur Gear
Gear Ratio 171:1
Clutch Pull & Turn
Braking Action Automatic, in gear box
Fairlead 4-Way Stainless Steel Rollers
Wire Rope 3/8″×85.3′(9.2mm×26m)
Drum Size 2.48″×8.74″(63mm×222mm)
Remote Waterproof Rubber Remote, 12.7' (3.9m)

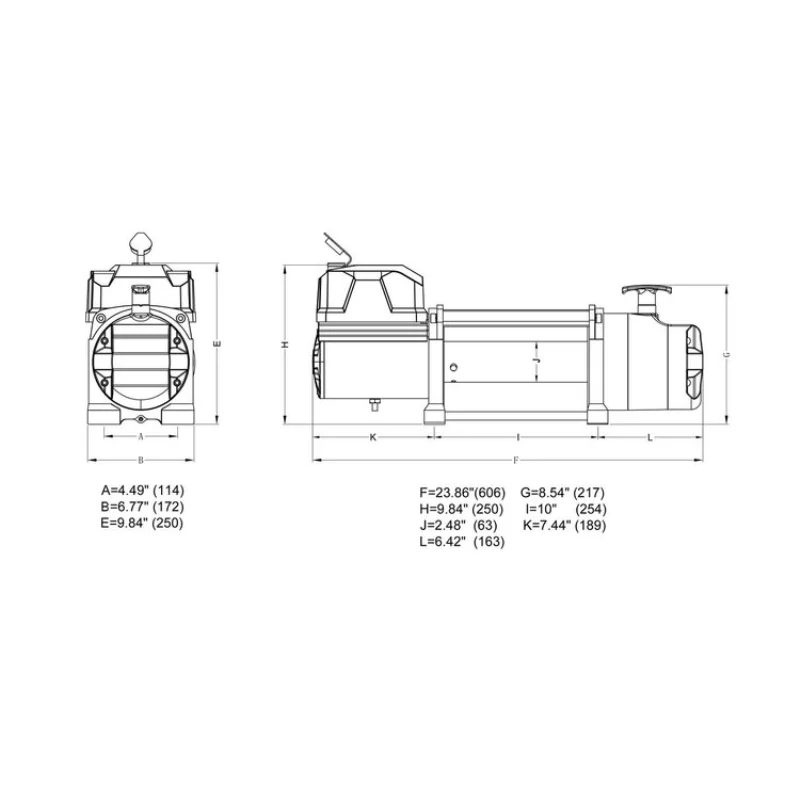

Dimensions 23.86″×6.77″×9.84″(606mm×172mm×250mm)
Mounting Bolt Pattern 10″×4.5″(254mm×114mm)
Weight 93.6lbs(42.5kg)



$201.52

Original: $671.73

-70%
Novawinch PRO 9500 winch, 12v, Wire Cable Model 701001068581

$671.73

$201.52

Product Information

Shipping & Returns

Description

Novawinch PRO 9500 winch, 12v, Wire Cable Model 701001068581

The NOVAWINCH PRO Series is built to be the very best winch using the very best in performance parts. The Novawinch commitment to excellence is evident in every aspect of its design. Featuring exclusive innovations such as the industry-first brake that doesn’t heat the rope drum, the NOVAWINCH PRO Series sets a new standard for winch performance. With excitingly fast line speed and a host of other cutting-edge features, it delivers unmatched reliability, durability, and efficiency in every operation.

  • It's fast. Sealed 6.0 HP motors deliver a quick but safe 52 FPM line speed at a low 50 Amp draw.
  • Smart electronics: Anti-high temperature silver pad, 500A Sealed contactor. Only 360A full load current which is the lowest in the industry field. The contactor will never get stuck.
  • IP68 rated sealing keeps elements out and winch running.
  • Smart brake: innovative “Double-lock” 100% load-holding brake design provides zero drag on cable in. Located inside the gearbox away from the drum to eliminate heat transfer to the synthetic rope.
  • Made to last: SUS304 stainless steel hardware on winch body and roller fairlead, 2 aluminum tie bars for rigidity and 45 degree clocking freespool for tricky mounts.



PRO 9500 Specifications
Rated Line Pull 9,500lbs (4309kgs)
Motor(Series wound): DC 12V: 6.0hp/4.4kW
DC 24V: 6.4hp/4.8kW
Gear Box 2-Stage Planetary/2-Stage Spur Gear
Gear Ratio 171:1
Clutch Pull & Turn
Braking Action Automatic, in gear box
Fairlead 4-Way Stainless Steel Rollers
Wire Rope 3/8″×85.3′(9.2mm×26m)
Drum Size 2.48″×8.74″(63mm×222mm)
Remote Waterproof Rubber Remote, 12.7' (3.9m)
Dimensions 23.86″×6.77″×9.84″(606mm×172mm×250mm)
Mounting Bolt Pattern 10″×4.5″(254mm×114mm)
Weight 93.6lbs(42.5kg)
